DESCRIPTION

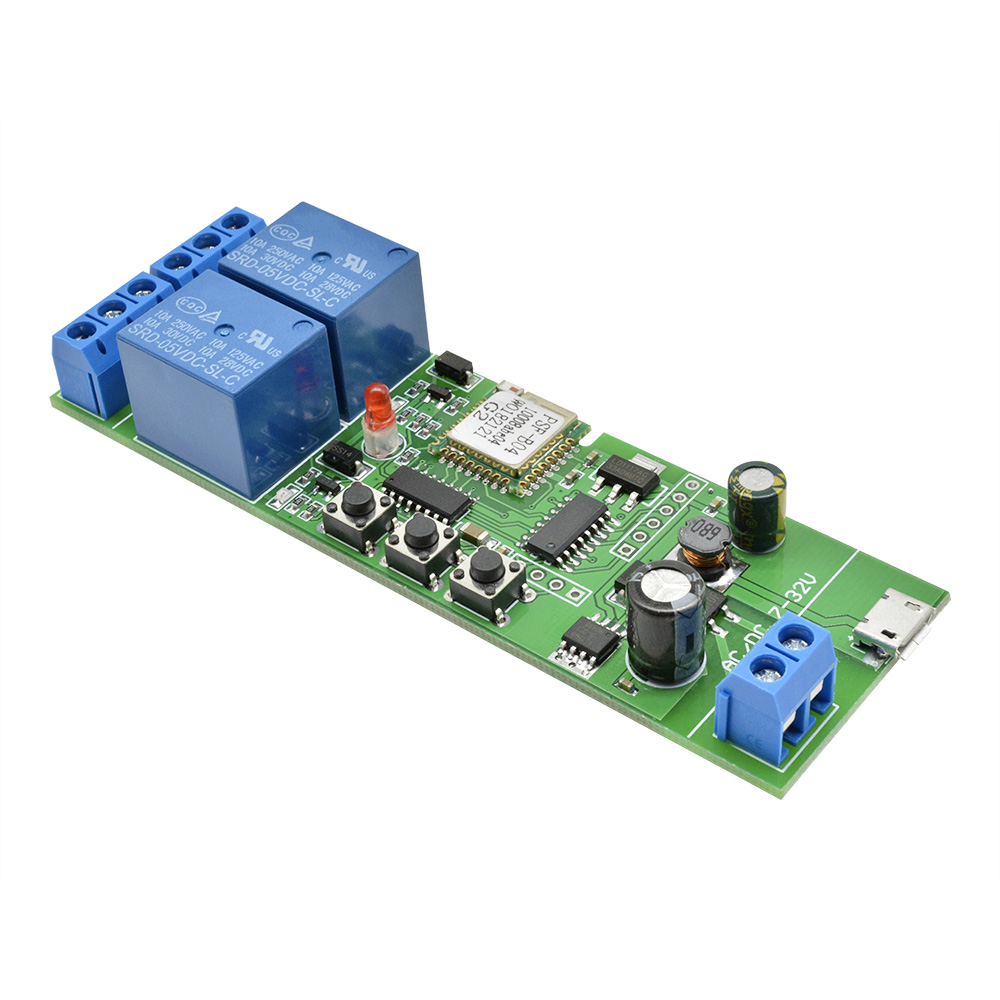

DC 7-32V 2 Channel Smart Switch Home Remote Control WiFi Wireless Relay Module
Product View












Detail
Description:
This wireless switch is a cost-effective device with WI-FI control module, no programming, only need to download an APP and link WIFI then can control the own cloud. As long as the module links WIFI, the connected appliances of different types and brands can be controlled via phone APP EWeLink from anywhere anytime in the world. Meanwhile, by setting timing schedules for your appliances and sharing control your smart home together with your family, you can maintain an carefree life.
Features:
* Supports WiFi network. Supports numerous WiFi smart switches on one smart phone.
* Supports status tracking: device status timely provided to the EWeLink.
* Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain/door, reversing motor, etc.
* Supports max 8 enabled scheduled/countdown/loop timers for each device.
* Voice Control: Compatible with "Amazon" Alexa/for Google Home/Nest, IFTTT.
* Share Control: Control your smart home together with your family.
Specifications:
Working voltage: 5V/7-32V DC
USB port power supply more convenient
Controlled Device Voltage: AC/DC7-32V/AC85-250V
Supports to control different voltage ranges
Indicator: With a signal indicator, relay pull the light
Board consumption: <1W
Standby current: 80mA
Standby power: <0.5W
Input current: ≤10A; Wattage: ≤2200W
2 Channel Total Load: 10A/2200W
Single Load: 10A/2200W
Relay lifespan: ≥1000000 times
Electrical insulation resistance: 100M
Electric shock voltage: 1000V
Relay maximum suction time: 15ms
Relay maximum release time: 5ms
Working mode: Inching self-locking, Interlock
Transmission mode: Wi-Fi communication
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: EWeLink on Android/IOS
Applicable occasions: smart home. Wifi control
Control distance: infinity
Controlled lines: 2
Enclosure Material: Fire-retardant ABS
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
Item Size: 105 * 35 * 20 (mm)
Package Size: Approx. 12*10*2.5cm / 4.7*3.9*0.98in
Package included:
1 x DC 7-32V 2 Channel Smart Switch Home Remote Control WiFi Wireless Relay Module
