Product Features:
1. High-precision digital compensation, full-temperature-range calibration, and stable output
2. Operating temperature range: -20°C to 100°C, with strong environmental adaptability
3. Compact package, small footprint, easy to install, and saves PCB space
4. Stability: ±1.0% FS; overload protection with intelligent grading according to measurement range
5. Specifically designed for non-corrosive gases; widely applicable in fitness equipment, automotive, and household appliances
Product Introduction:

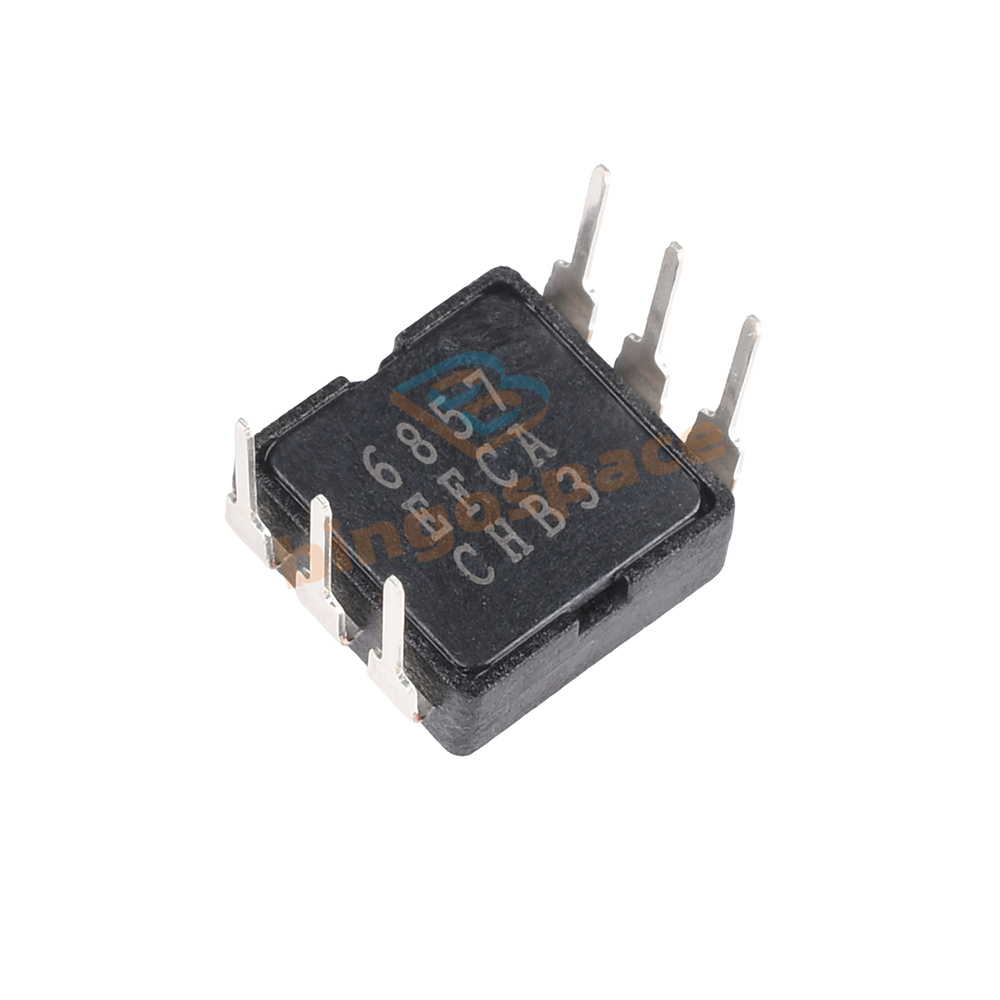

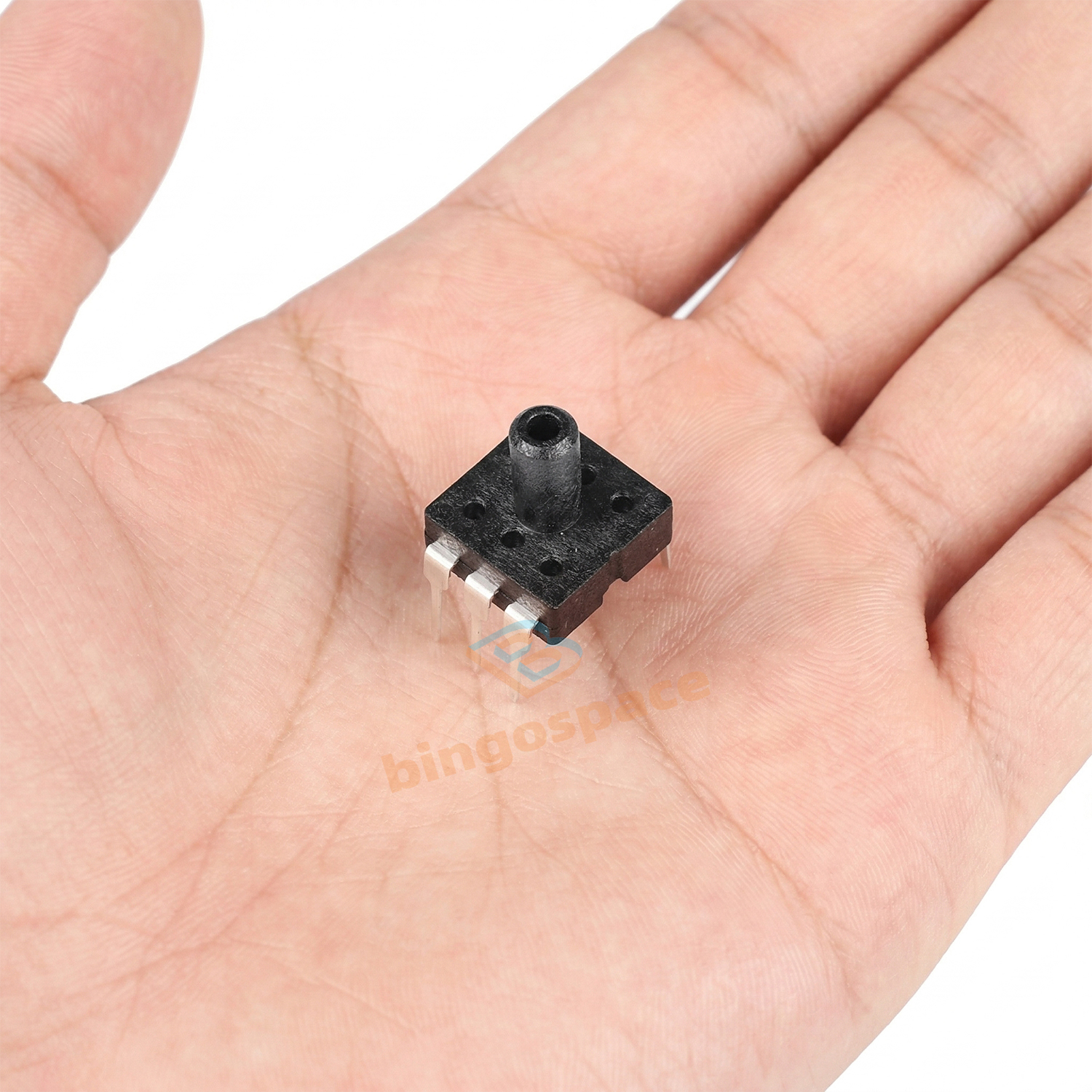

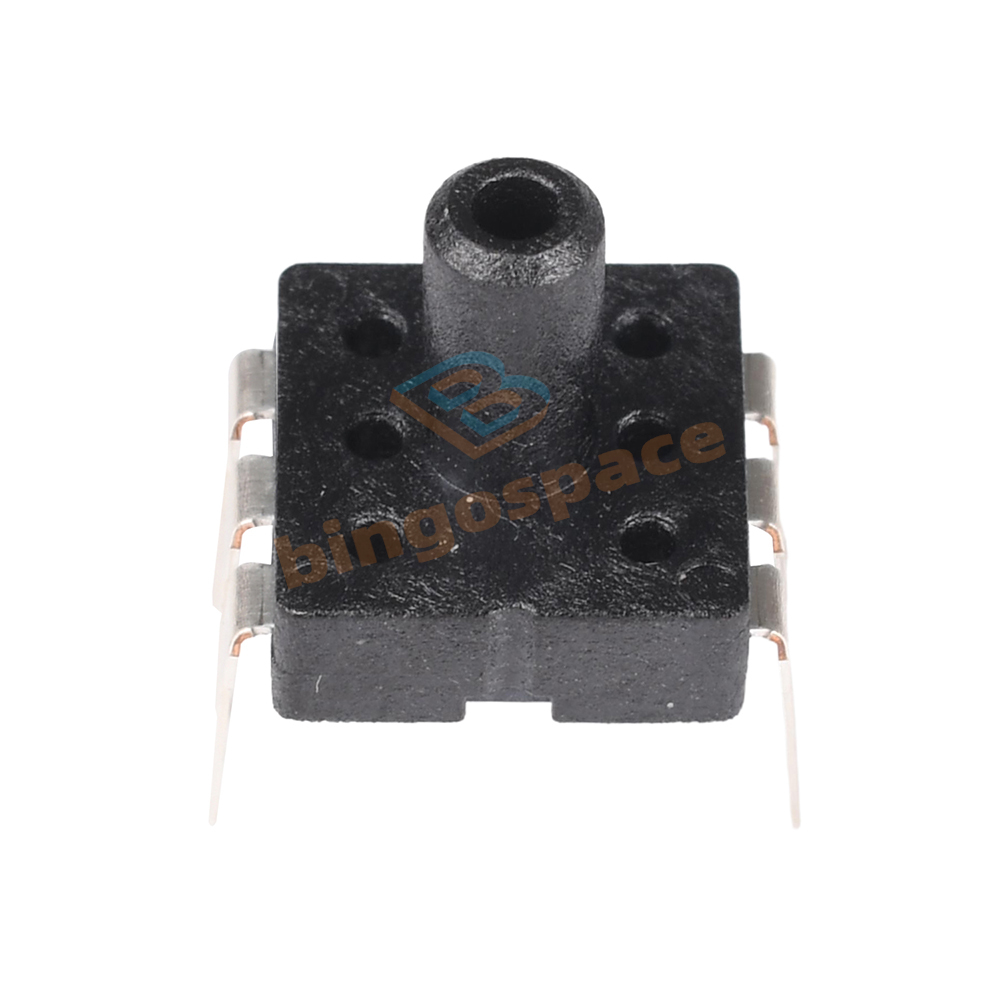

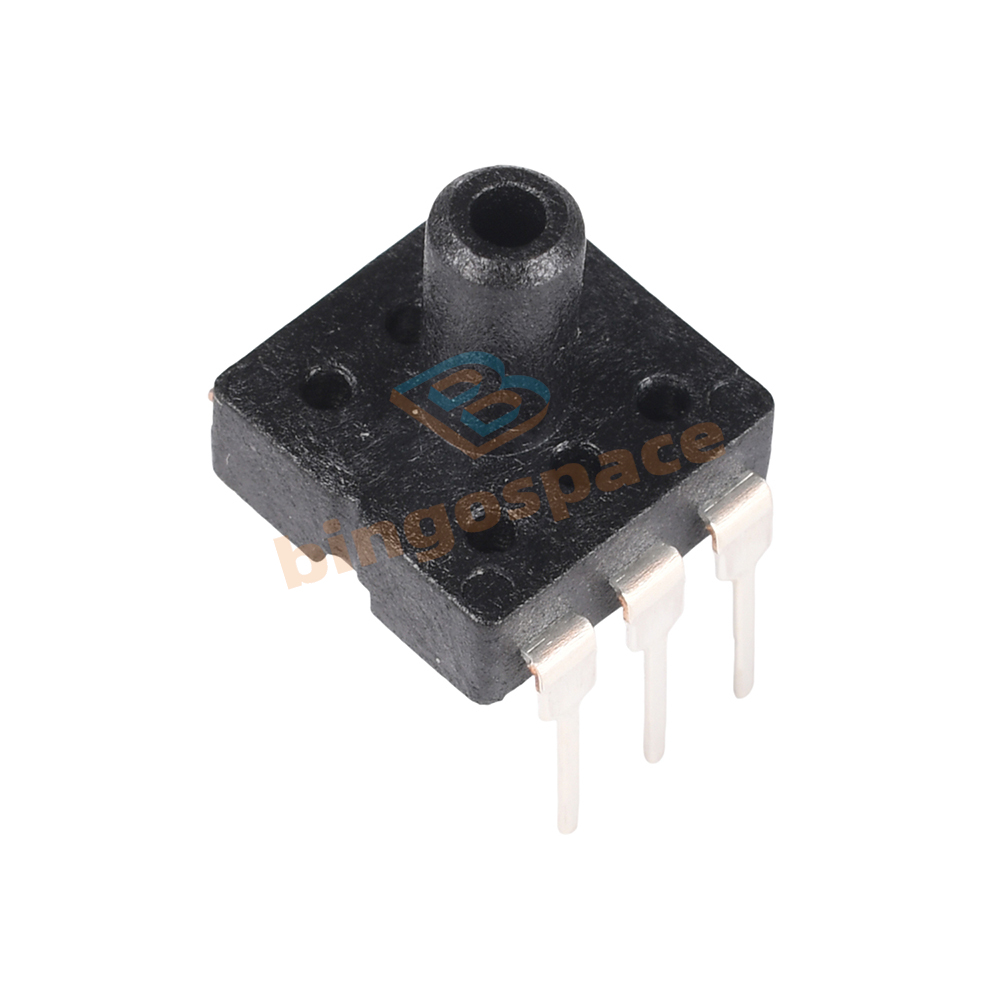

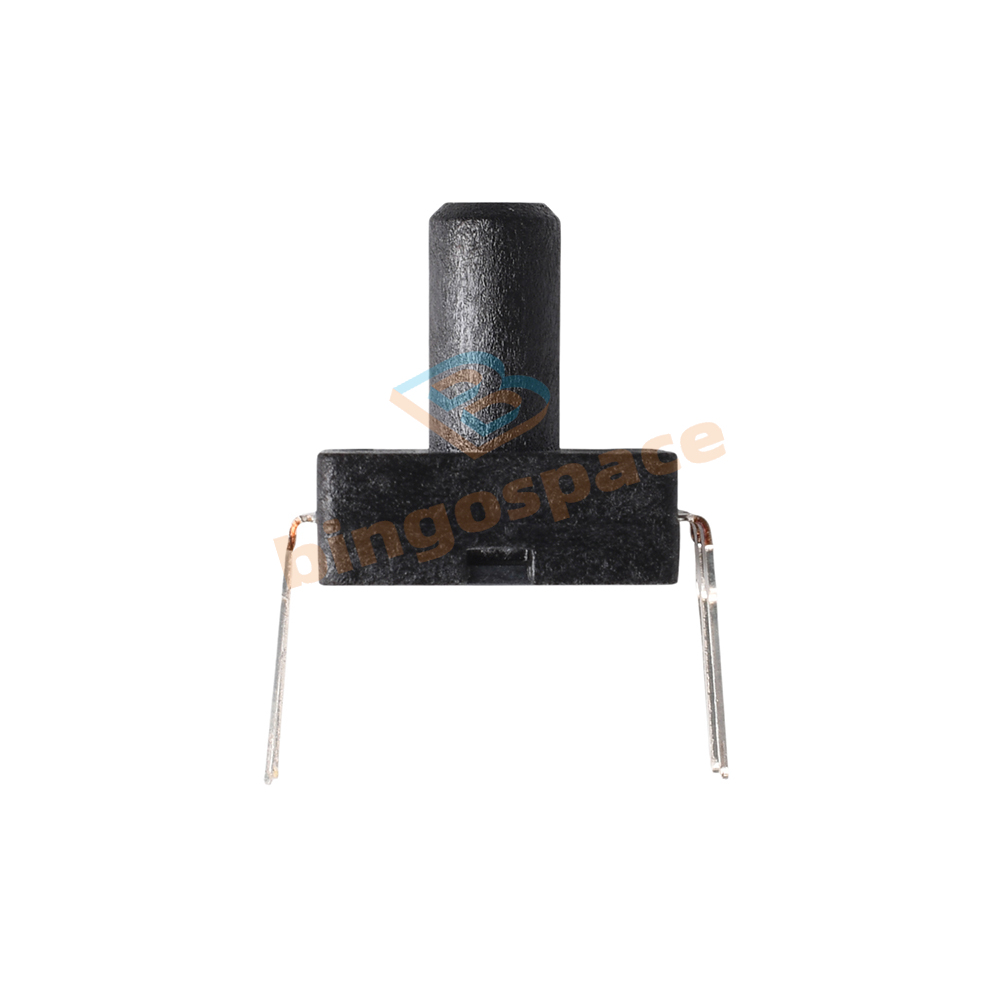

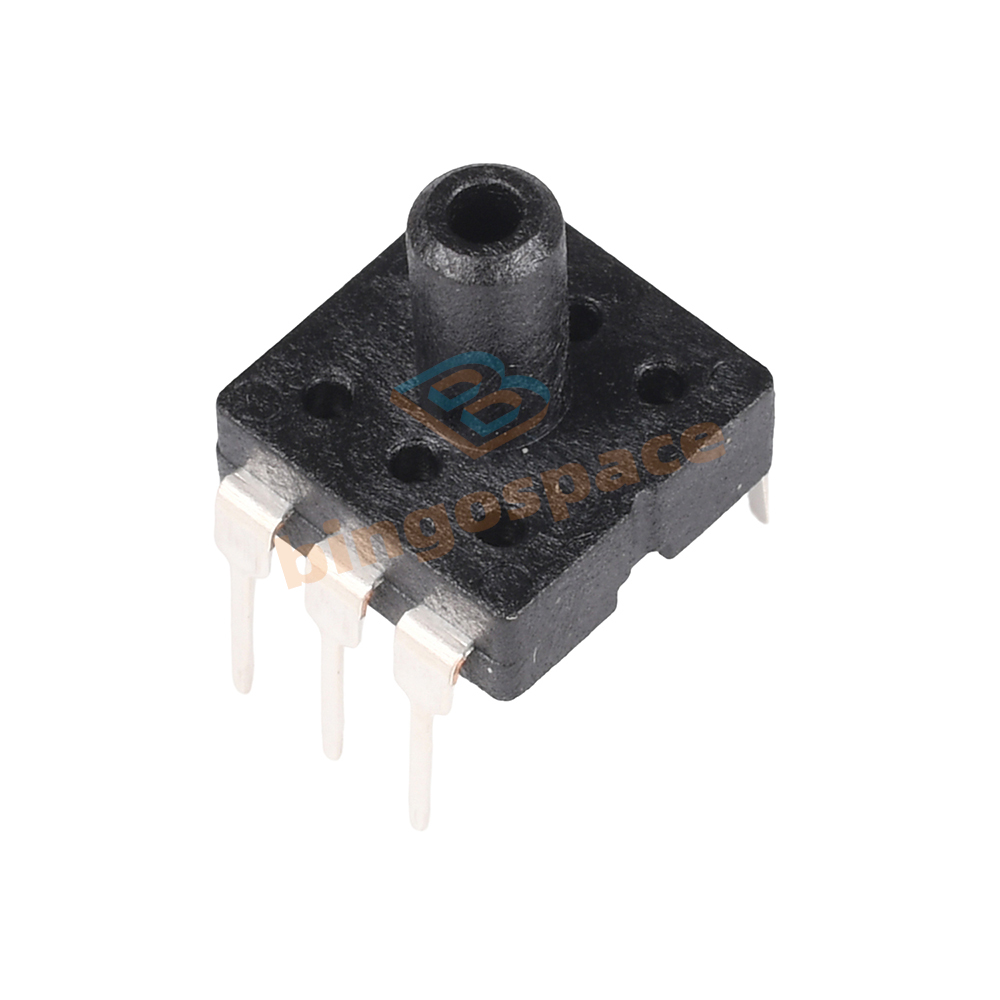

The XGZP6857A pressure sensor adopts a DIP-style package. By integrating the pressure sensor element and signal processing circuit chip within the housing, it performs digital compensation for sensor offset, sensitivity, temperature drift and non-linearity. Using the supply voltage as a reference, it generates a calibrated, temperature-compensated standard voltage signal. The XGZP6857A pressure sensor is compact and easy to install. Its output signal can be calibrated to meet user requirements, making it widely used in automotive electronics, sports and fitness equipment, and other fields.
Performance Specifications:
Supply Voltage: DC (5±0.25) V
Output signal: 0.5–4.5 V (5 V supply)
Measuring range: -100 to 0 kPa
Accuracy: ±2.5
Long-term stability (1 year): ±1.0
Overload pressure:
5× (FS ≤ 40 kPa)
2× (FS ≥ 100 kPa)
1.5× (FS > 200 kPa)
Temperature compensation: 0–60 °C
Operating temperature: -20–100 °C
Storage temperature: -30–125 °C
Gauge pressure type (positive or negative pressure)
Suitable for non-corrosive gases
Application areas
· Electronic blood pressure monitors, ventilators, oxygen concentrators, patient monitors, etc.
· Automotive electronics: tyre pressure monitors, power steering, brake boosters, MAP sensors, etc.
· Sports and fitness equipment: massagers, massage chairs, air mattresses, etc.
· Water heaters, oxygen generators, beer dispensers, coffee machines, air pumps, vacuum pumps, pressure gauges, electric breast pumps, vacuum cleaners, etc.
Product list:
1× module
