Product Highlights:
1. 100% brand-new premium product crafted from high-quality materials, compact size, and simple installation.

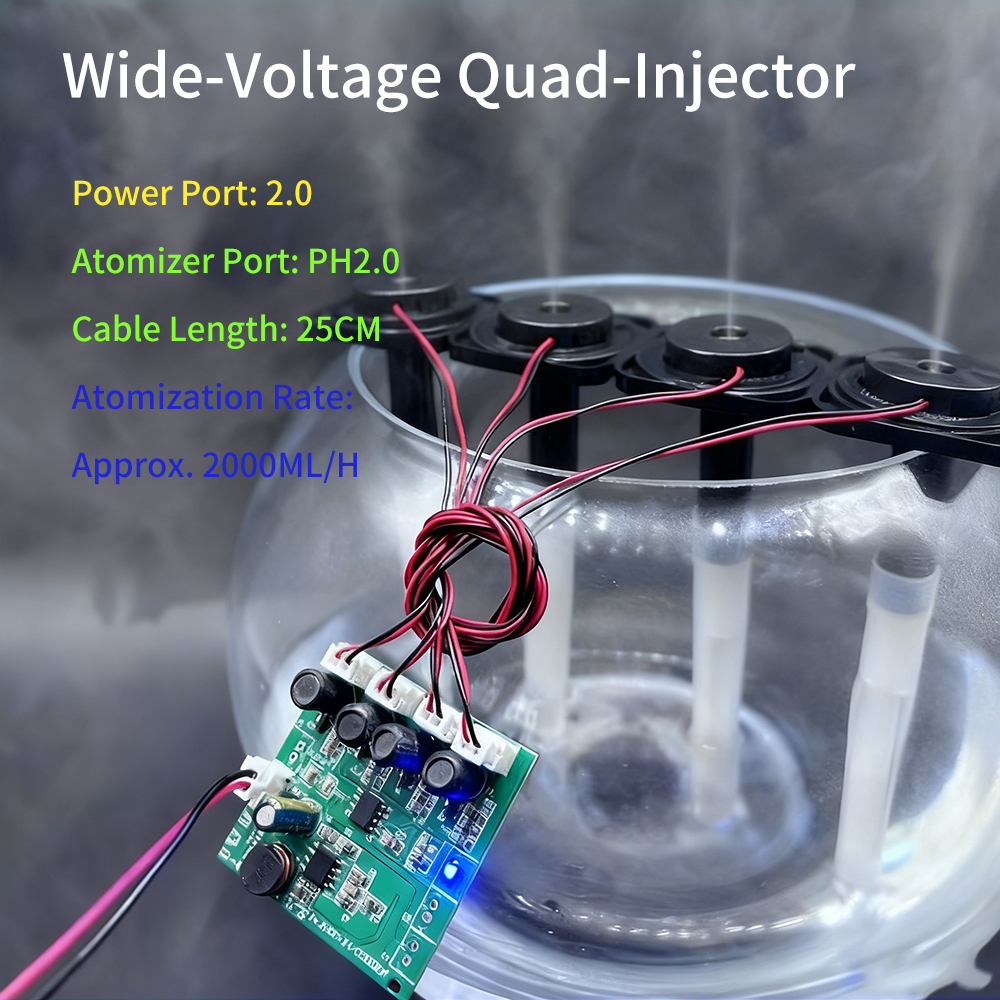

2. User-friendly operation with four-head spray technology delivering powerful mist output, high mist volume, and continuous spraying.
3. Upgraded wide-voltage design ensures broad compatibility, stable performance, and intuitive operation for easy handling.
4. Efficient and reliable performance—sprays instantly upon powering on with extended operational lifespan.
5. Versatile applications: DIY projects, plant humidification, product spraying. Modular kits are ready to use, each including a bracket and cotton swabs for simple assembly.
Product Specifications:

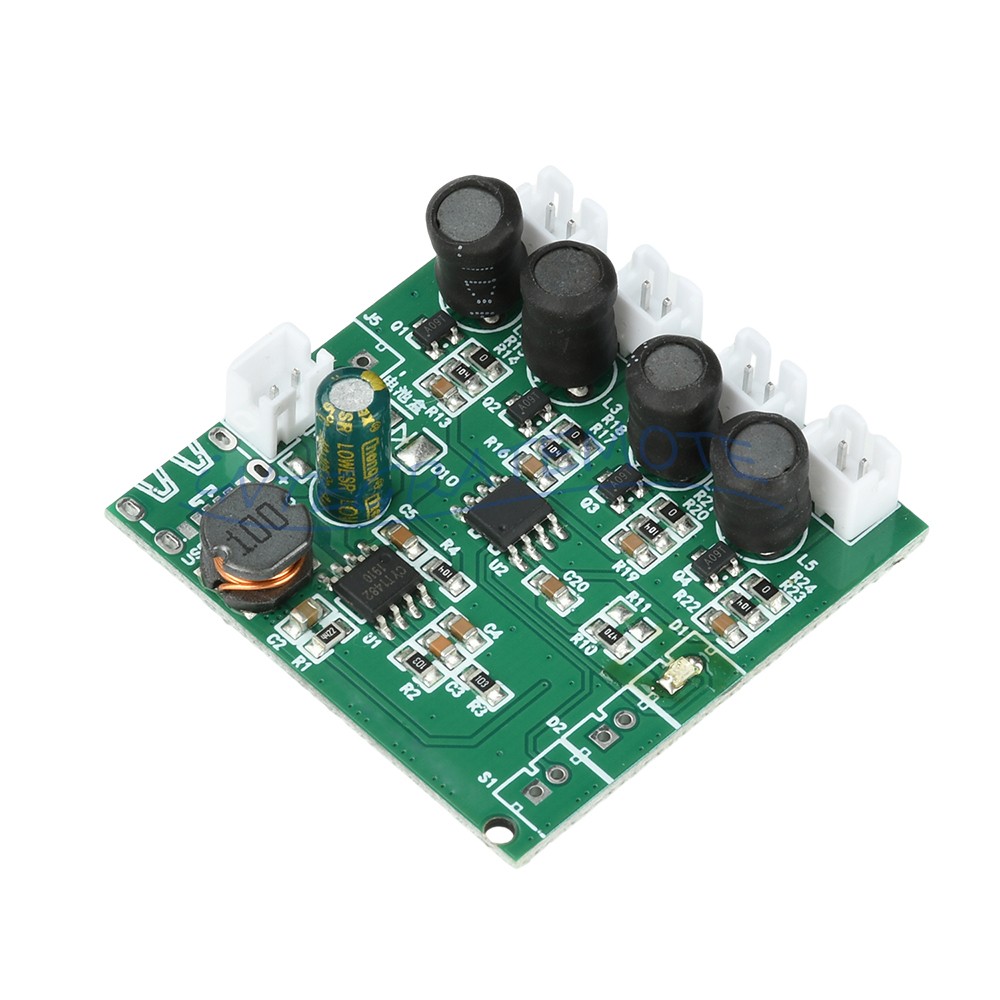

Name: Wide-Voltage Quad-Spray
Material: 1.2MM FR-4

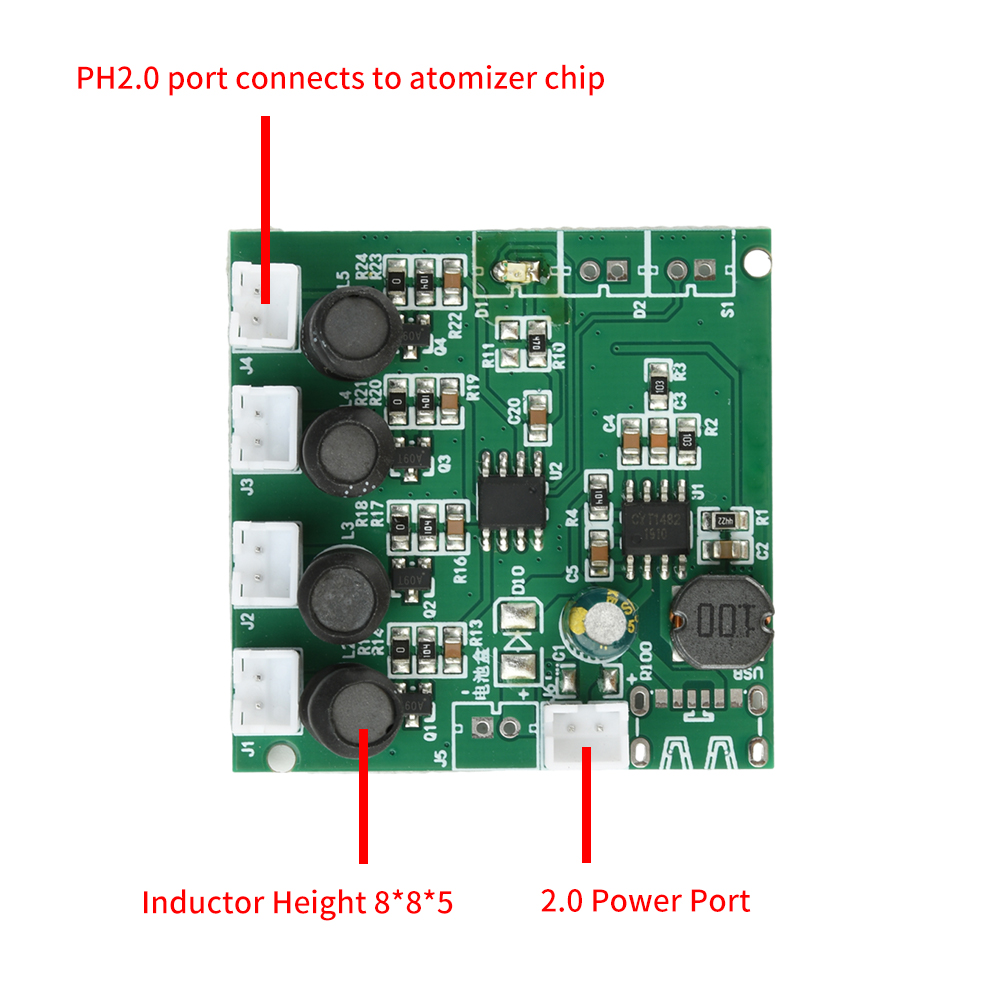

Terminal Interface: PH2.0 connector
Rated Voltage: DC6V-24V (power supply)
Rated Current: 300mA
Power: 1.5-2W
Atomization Frequency: 108kHz ±5kHz

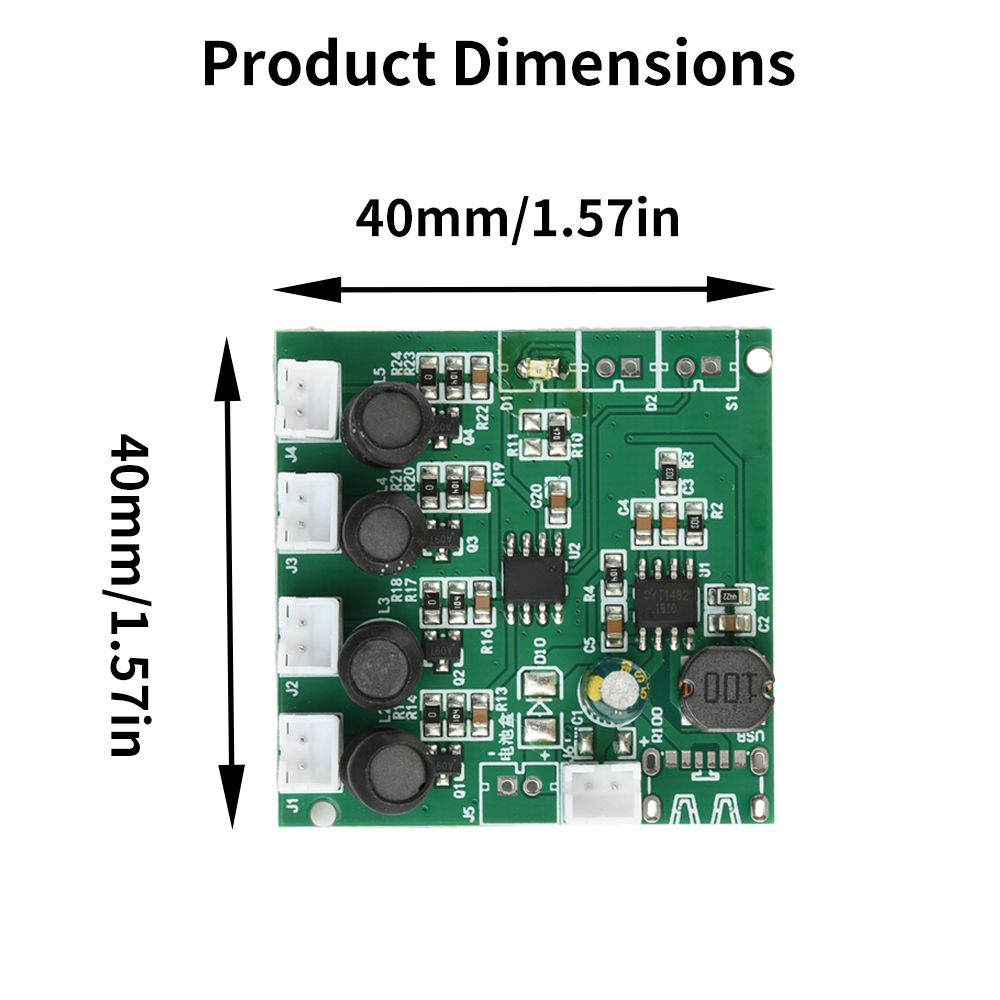

Module Size: 40*40mm
Cotton Swab: 8*100mm

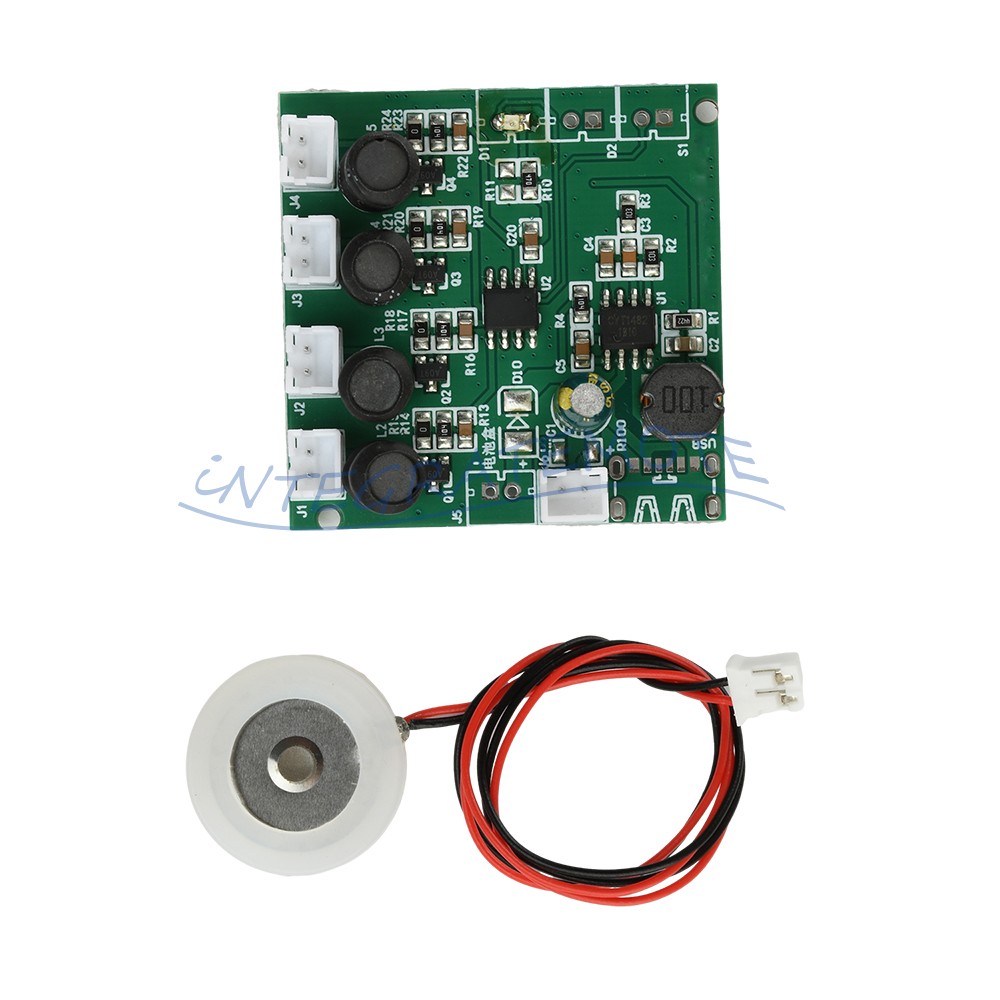

Atomization Plate Parameters:
Drive Voltage: 5V
Resonance Frequency: 108-110kHz ±5
Rated Power: 2W
Number of Holes: 800
Hole Diameter: 4-5μm
Silicone Sleeve Outer Diameter: 20mm
Rubber Ring Thickness: 3mm
Steel Plate Diameter: 16mm
Wire Length: 25cm
Wire Terminal: PH2.0
Usage Instructions:

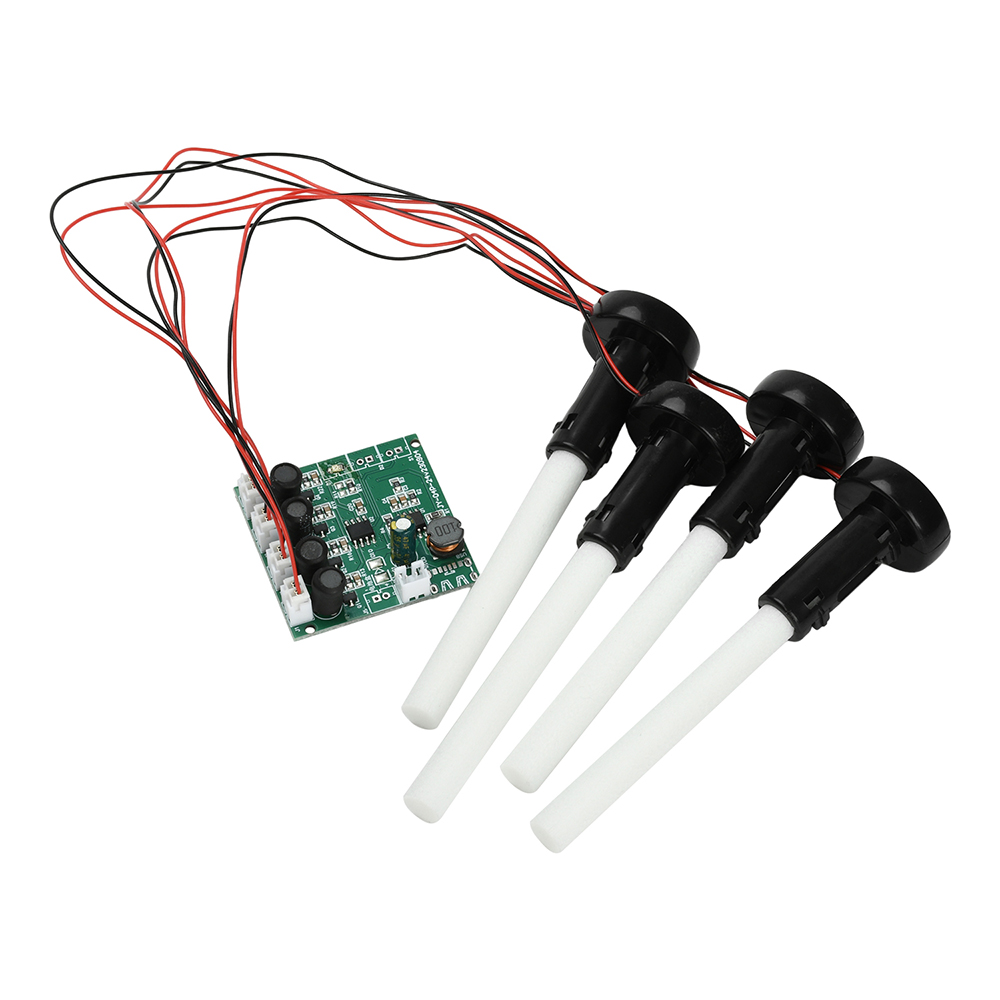

1. First install the atomizer plate holder cotton swab
2. Connect the atomizer plate to the module's atomizer port
3. Then connect the power supply to the module's power port
4. Press the power switch
5. The atomizer plate will spray mist upon contact with water
Precautions:
1. Never puncture the atomizer plate; do not bend or pull the solder joints
2. Never power on without connecting the atomizer plate
3. Never use a fast charger.
4. Never modify the module.
5. Keep the module away from water.
6. Ensure the full steel plate (raised surface) contacts downward; the cotton swab absorbs water.
7. Use rated power input.

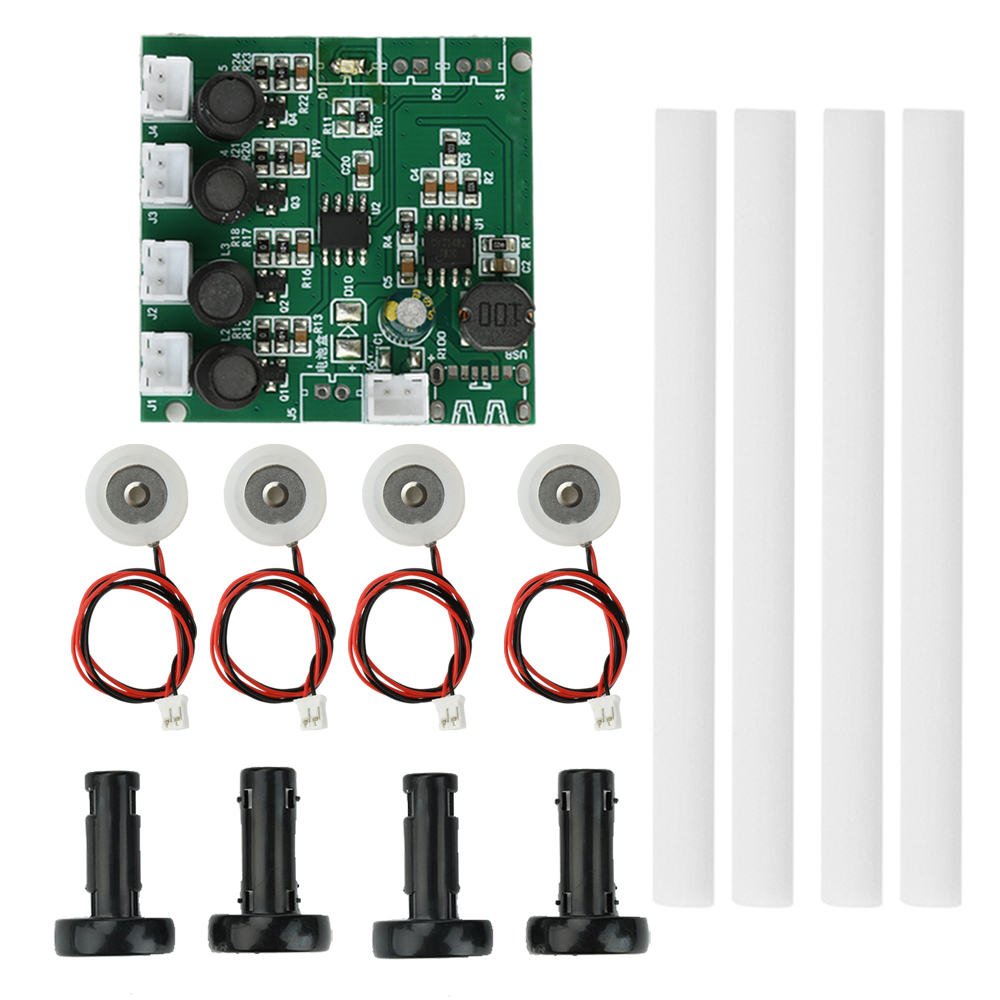

Package:
Module * 1
Bracket Base * 4
Atomization Plate * 4
Cotton Swab * 4
