Features:

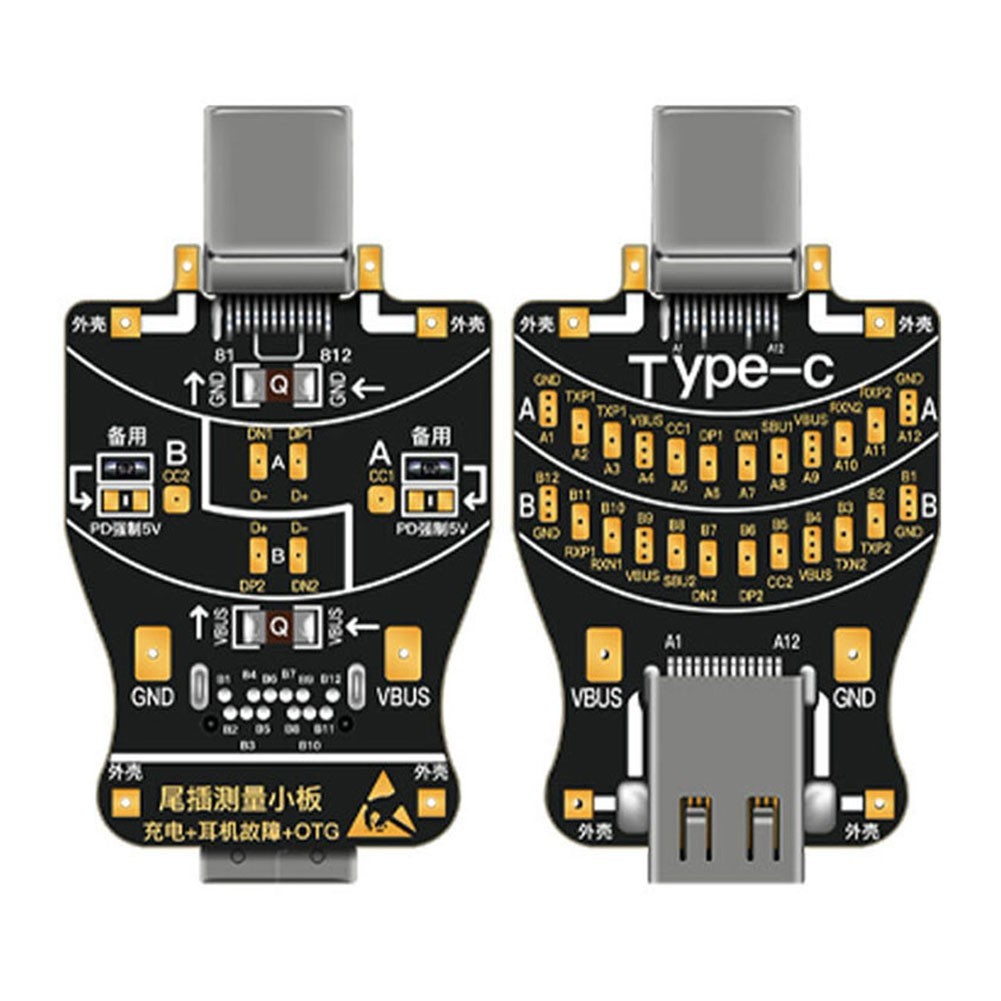

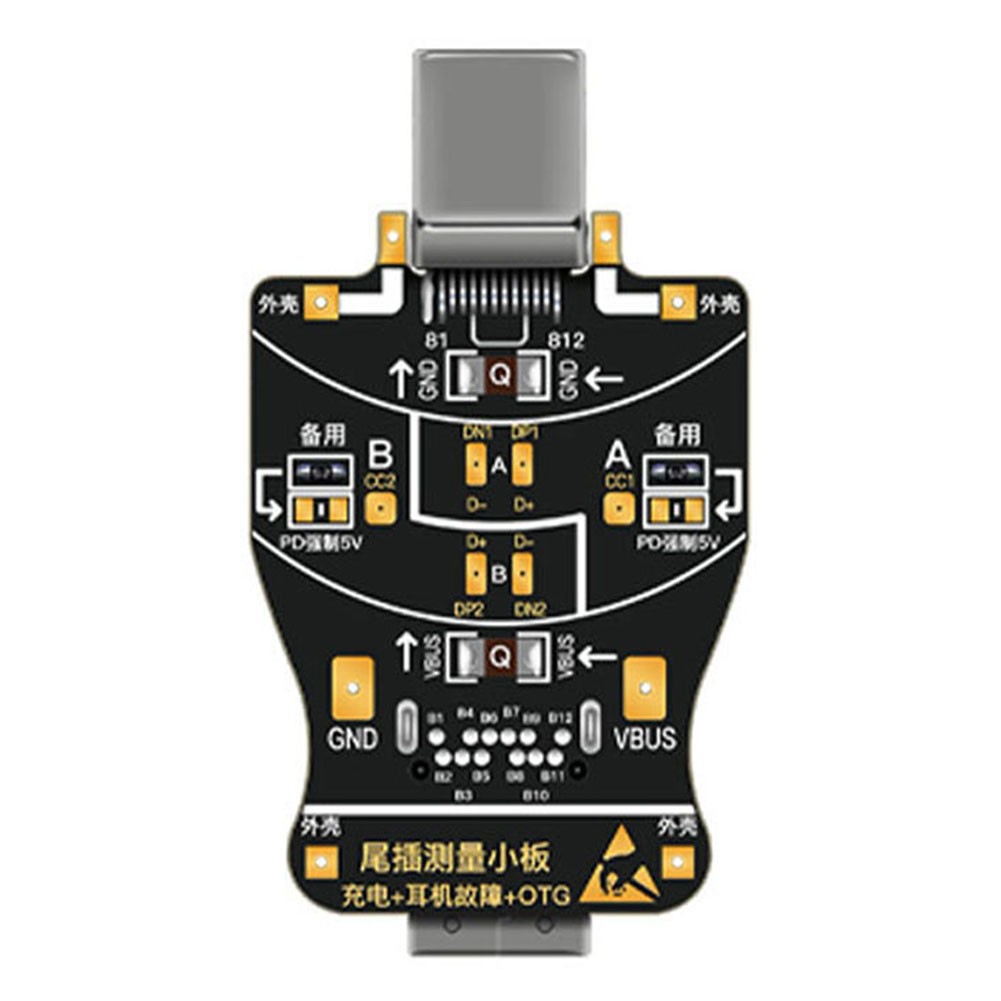

DNDP Type-CDual Backplane Test Board – for Testing of Mobile Interfaces
Still struggling with Type-C or interface issues (e.g., charging failure, headphone failure, for OTG error)? The DNDP dual tail test board helps you diagnose easily. Designed as 1(1for Type-C and 1 for ), this tool kit combines precise resistance measurement, clear pin markings, and multi-function testing to efficiently solve common mobile interface problems.
for Resistance Measurement:
Type-C: Clear markings of DP1 forward resistance (400-800Ω) and reverse resistance (1000-OL) for diagnosing DC line open, short, or SBU channel.
:Detailed pin voltage/function table (e.g., Id0 for ID, /DNB for power channel) for identifying charging failure or data line problems.
Multi-function Testing: Supports charging test, headphone failure diagnosis, for OTG function check, and more - covering all common interface issues in 1 toolkit.

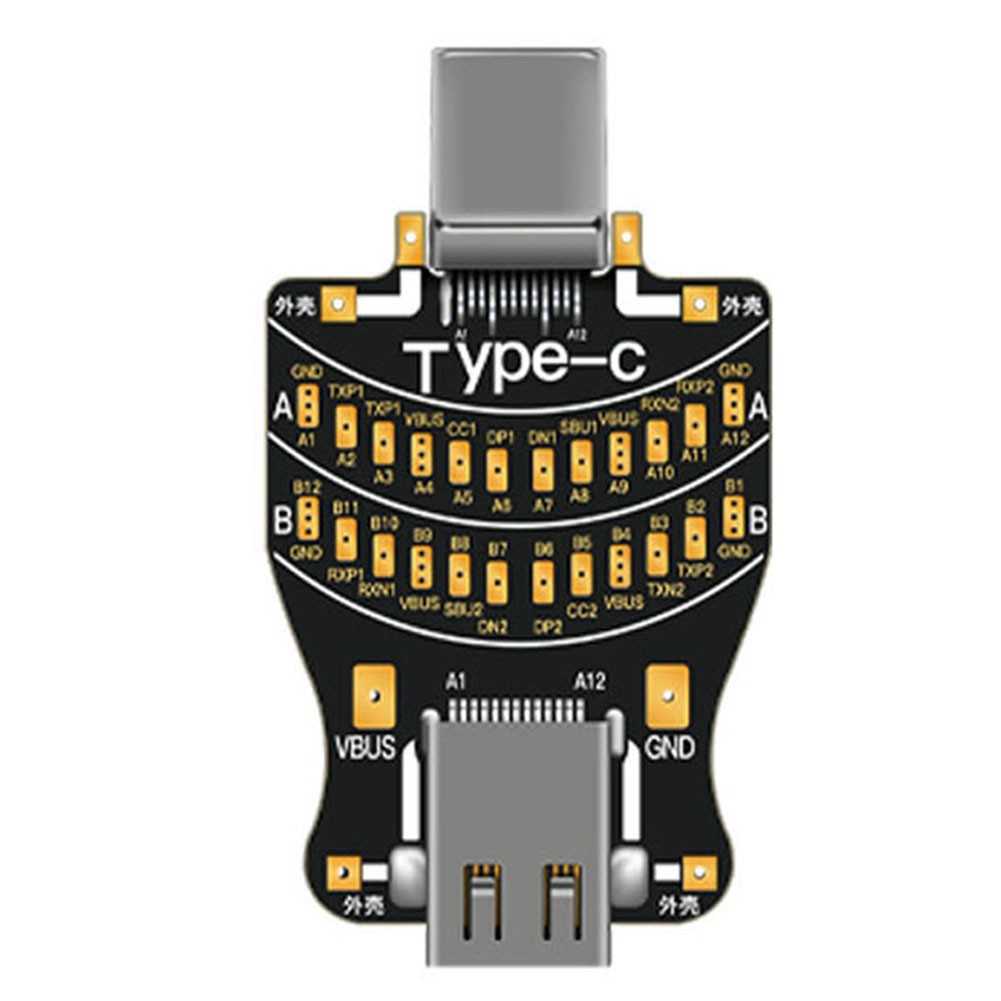

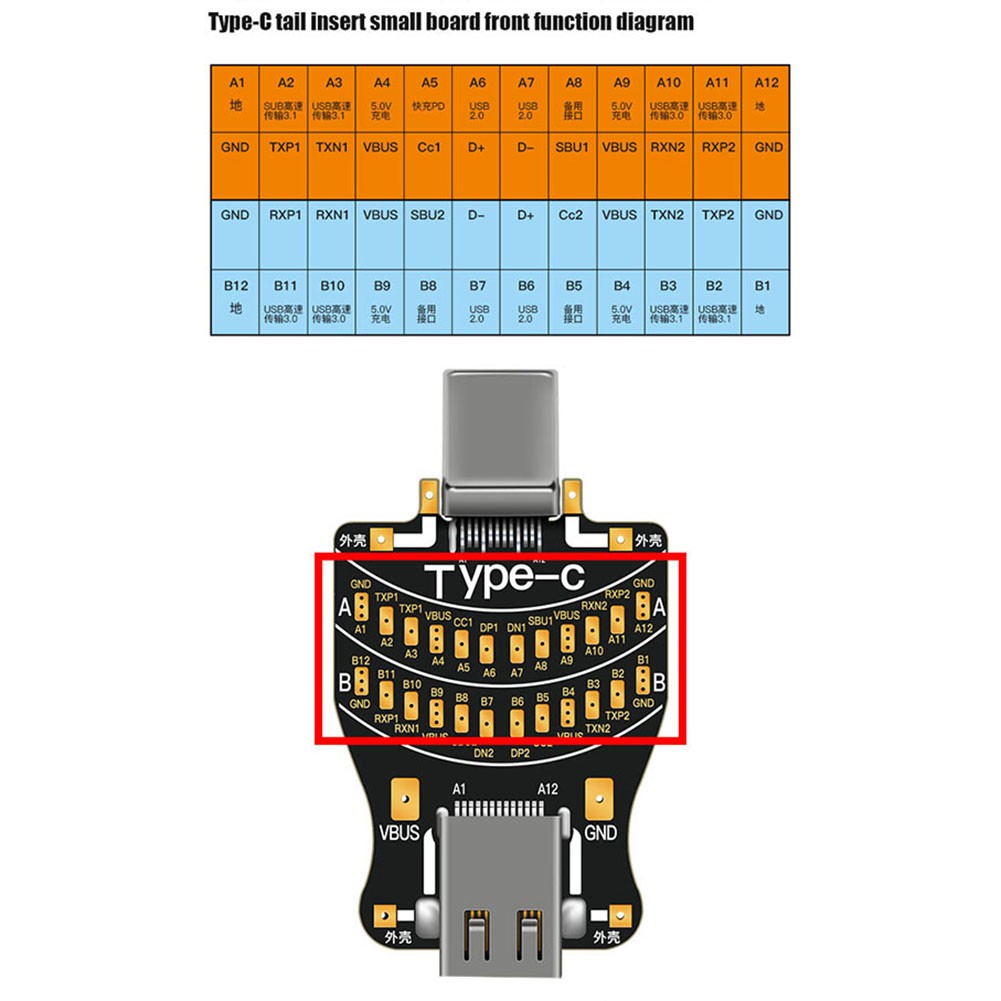

Clear Pin Labels: All pins are labeled with their functions (e.g. GND, VBUS, CC1/CC2 for Type-C; Id0, Shell for ), making it easy to find connections during repairs.
Compact and Portable: The lightweight design fits easily into a tool bag, convenient repairs .
for Construction: High-quality materials resist wear and tear, reliable performance in busy repair environments.
Specifications:
part Name: DNDP Type-C Tail Test Board
Material: abs
Color: black
Size: as shown
Package Contents:
1*DNDP Type-C Tail Test Board
