Features:
1. Precise Measurement: Accurately measures differential pressure, positive pressure, and negative pressure with an accuracy of ±1% FS.
2. Multiple Pressure Units: for supports 11 for international standard pressure units, including kPa, psi, and mmHg, with wide applicability.
3. Data Logging Function: Tracks and displays maximum/minimum/average values during measurement for easy analysis.
4. Backlit LCD Display: Adjustable backlight brightness ensures clear display even in low-light environments.
Specifications:

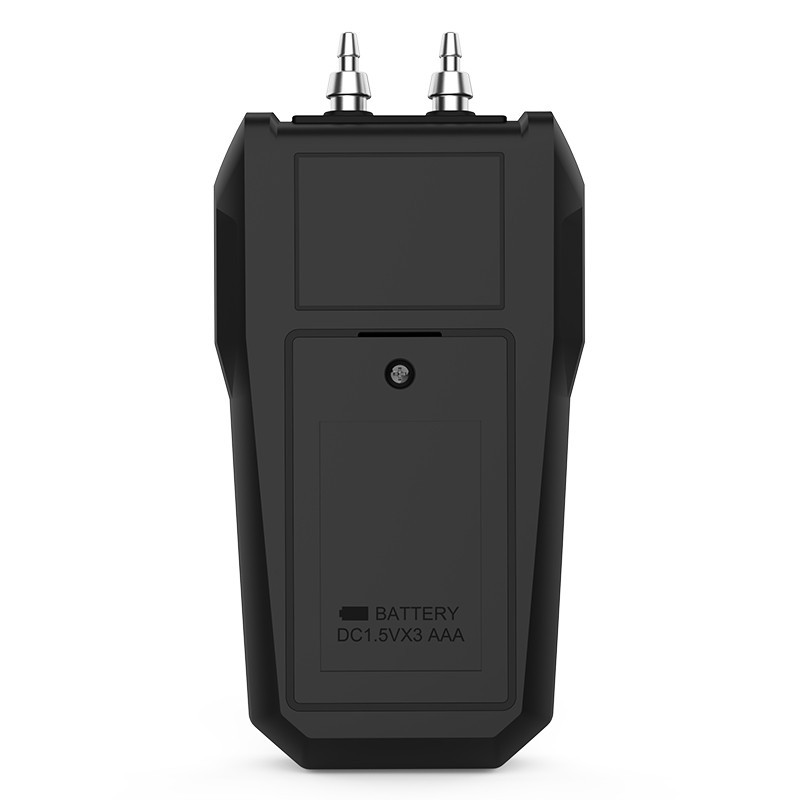

Part Name: DPM02B Differential Pressure Gauge
: ABS
Color: Black
Size: 14.6*7.3*3.3 cm
Working Height: Maximum 2000m
Display: LCD
Working Current: Approx. 3mA
Over-range Display: OL or -OL
Sampling Time: Approx. 0.5s
Automatic Shutdown: Approx. 30 minutes
Accuracy: +1%FS
Operating Temperature and Humidity: 0°C~50°C (32F~122°F) / 10%~80%RH
Storage Temperature and Humidity: -10°C~60°C (14F~140°F) / 10%~90%RH
Package Contents:
1*Differential Pressure Gauge
1*Hose
1*Storage Bag
for note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
