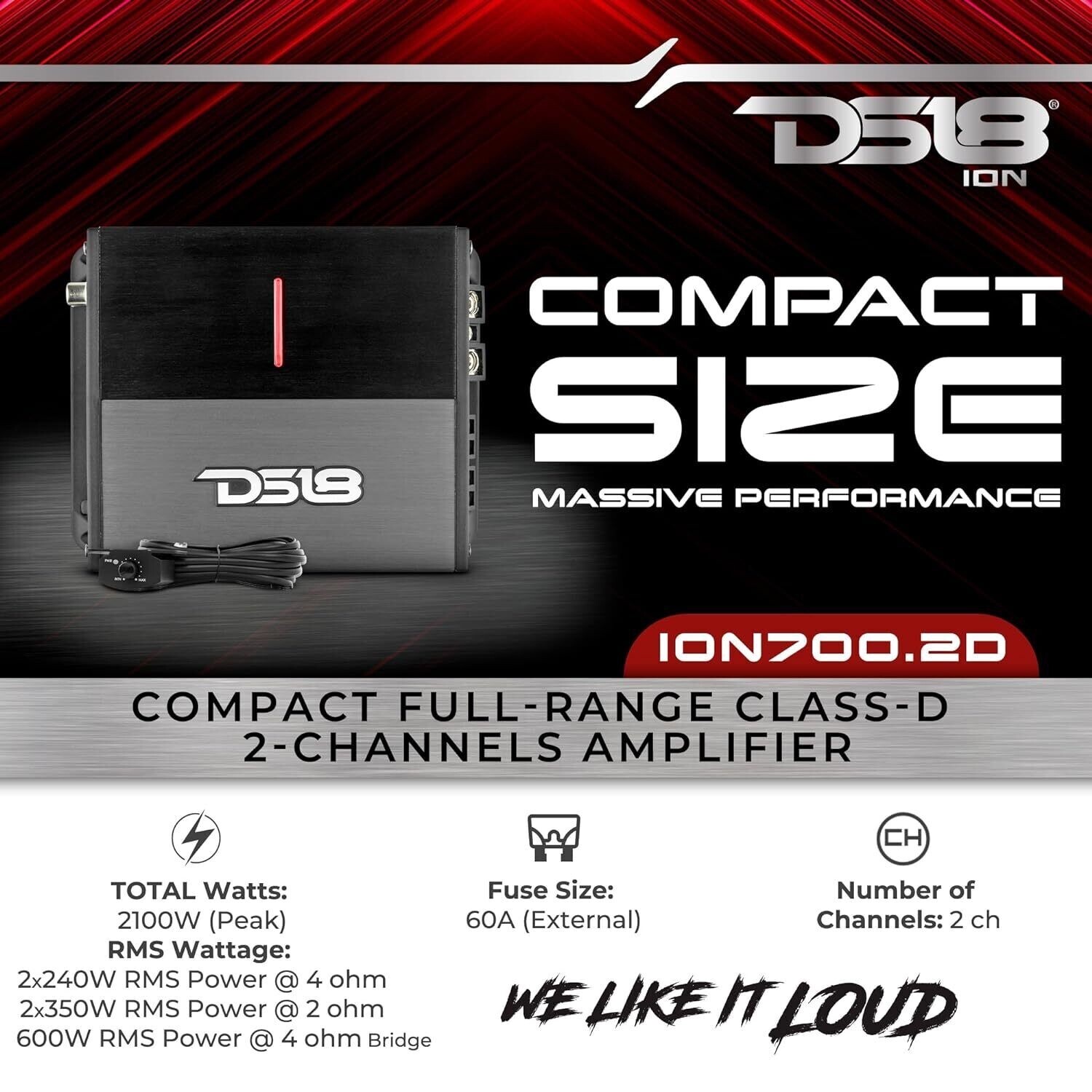

Introducing DS18’s ION700.2D, the perfect digital micro amplifier addition to your car audio system for boosting performance and efficiency for a premium listening experience!

Hi-level Inputs and Tiffany RCA’s allow this amplifier to be easily integrated into any existing audio setup and ensure optimal signal transfer for crystal clear sound. The ION700.2D miniature size and surface mount component technology allows it to be placed almost anywhere in your build without taking up too much space.

The full variable crossover switch lets you customize your audio settings to your preferences for enhanced audio clarity across all frequencies. You also have the ability to adjust the amplifier's 45Hz Bass Boost level up to 12dB. Fine tune these levels with the convenient remote level knob control!

Safety was a top priority in the creation of DS18’s ION700.2D amplifier. The power, protection, and clipping LED indicator always keeps you informed of the amplifiers status. While short circuit thermal, DC offset, and high/low voltage protection features, give you the comfort of knowing that your amplifier will operate reliably and safely. Additionally, protective coating prevents moisture corrosion on the PCB, guaranteeing longevity and durability.

The ION700.2D has power ratings of 700W at 4-ohm bridged, 2 x 350W at 2 ohms, and 2 x 240W at 4 ohms; perfect power ratings to turbocharge every component in your system!

Experience the power and precision of DS18’s ION700.2D!

Specifications:

SKU: ION700.2D
Total Peak Power: 2100W

RMS Power:

@ 4 ohms (per channel): 2 x 240W
@ 2 ohms (per channel): 2 x 350W
@ 1 ohm: Not applicable
@ 4 ohms Bridge: 700W

Audio:

Frequency Response: 10Hz-20KHz
Signal to Noise Ratio: >95dB
Efficiency @ 4 ohms: 88%
Damping Factor: 210
Input Impedance: 27Kohms
Channel Separation: 59dB
Total Harmonic Distortion (THD): 0.01%
Input Range (Low Level): 0.2-6V
High Level Input: Yes
Selectable X-Over: LPF/HPF/FULL
X-Over Filter Range: 40Hz-2KHz
Bass Boost Range: 0~12dB
Bass Boost Frequency: 45Hz

Features:

Amplifier Class: Digital
Amplifier Type: Full-Range Stereo
Number of Channels: 2
Minimum Impedance: 2 Ohm (Stereo) / 4 Ohms (Bridge)
LED Indicators: Power / Protect / Clipping
Power Input Terminal Size: 4 AWG
Fuse Size: 60A (external)
Protection Features: Thermal, Overload, DC Output, Short Circuit, Voltage Input, Clipping
Body Color / Finish: Aluminum Black / Silver

Extra Features:

Hi-Level Speaker Connector: Yes
Tiffany RCA Terminal: Yes
LED Clip Indicator: Yes
High Efficiency Micro Digital Design: Yes
Measurements:

Overall Dimensions:

Length: 6.14" / 156mm
Width: 4.72" / 120mm
Height: 2" / 52mm
Heatsink Length: 4.84" / 123mm
Gross Single Unit Weight: 0.75Kg
