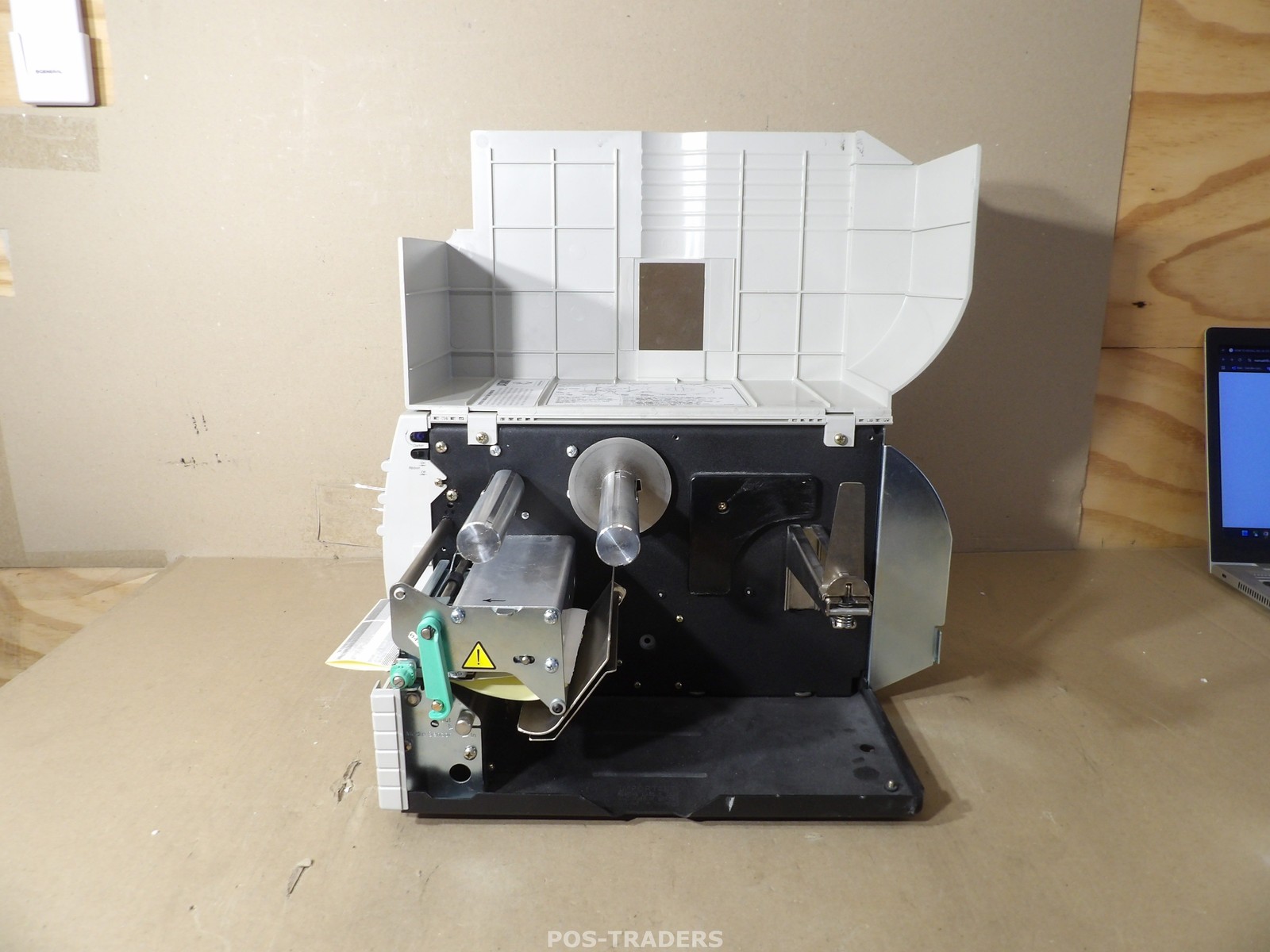

Datamax Allegro2 Thermal Barcode Label POS Printer Serial DB25 - BAD PRINT

Technical Specifications

• General

• Model: Datamax Allegro 2

• Printer type: Desktop/industrial label printer

• Printing methods: Direct thermal and thermal transfer

• Intended use: Low- to mid-volume label production (shipping, retail, lab, POS, etc.)

• ---

  Print performance

• Resolution: 203 dpi (8 dots/mm)

• Print speed: 2–3 ips (51–76 mm/s)

• Maximum print width: 4.1 in (104 mm)

• Maximum print length:

  • 8.25 in (210 mm) standard

  • up to 20.25 in (514 mm) with optional memory

• Minimum dot size: 0.005 in (0.125 mm)

• ---

  Media and ribbon

• Media width: 0.75 – 4.65 in (19 – 118 mm)

• Media length: 0.5 – 99.99 in (13 – 2539 mm)

• Media thickness: 0.0025 – 0.0100 in (0.0635 – 0.254 mm)

• Media types: roll-fed, die-cut, continuous, fan-fold labels, tags, tickets

• Max roll diameter: 8 in (203 mm)

• Core sizes: 1.5 – 3 in (38 – 76 mm)

• Ribbon length: up to 360 m (1182 ft)

• Sensors: transmissive (gap) and reflective (black mark)

• ---

  Memory and processing

• Standard memory:

  • 256 KB DRAM

  • 512 KB EPROM

• Optional memory modules:

  • 256 K or 512 K RAM

  • 256 K or 512 K Flash for fonts/graphics

• ---

  Connectivity

• Standard interface: Serial (RS-232)

• Optional: parallel adapter, networking options

• ---

  Fonts and barcodes

• Built-in fonts:

  • 9 alphanumeric fonts

  • OCR-A, OCR-B

  • CG Triumvirate scalable font

• Font scaling: up to 8×; rotation 0°, 90°, 180°, 270°

• Supported barcodes:

  • Code 39, Code 128, Interleaved 2-of-5

  • UPC/EAN variants

  • Codabar, Code 93, MSI, Postnet, etc.

• ---

  Physical

• Dimensions: approx. 9.0 × 9.7 × 16.6 in
  (229 × 246 × 422 mm)

• Weight: about 23 lb (10.4 kg)

• Construction: metal internal structure; optional metal cabinet

• ---

  Power and environment

• Power: 115 V or 220–240 V AC, 50/60 Hz

• Operating temperature: 4 °C to 32 °C

• Humidity: 10–95 % non-condensing
