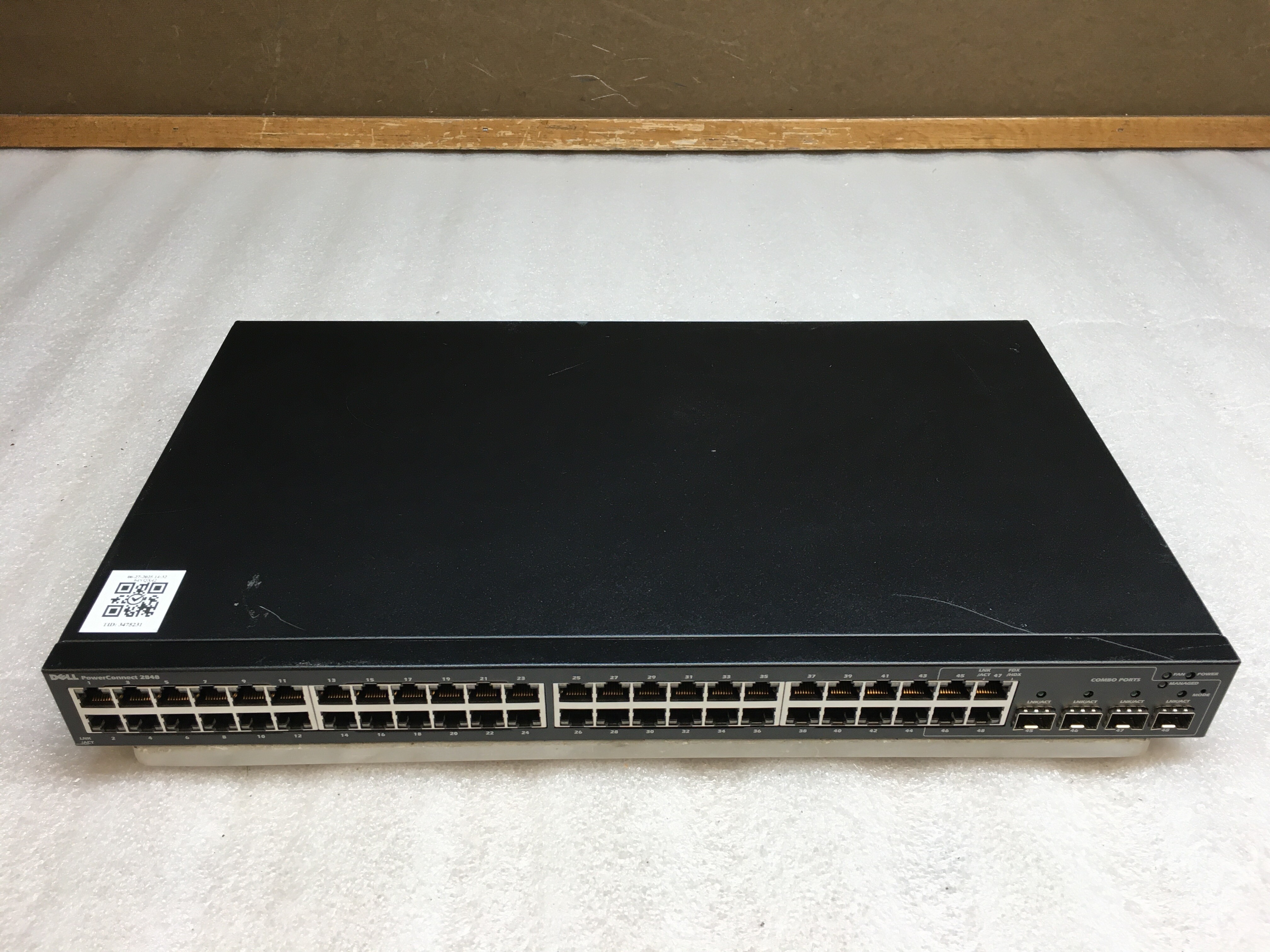

Product Photo
Description
Dell PowerConnect 2848 48-Port Managed Ethernet Switch w/4x Link Ports
Dell PowerConnect 2848 48-Port Managed Ethernet Switch w/4x Link Ports
The Dell PowerConnect 2848 is a robust managed Ethernet switch designed to enhance network performance and reliability. With 48 ports and 4 additional link ports, it’s ideal for businesses looking to scale their networks with advanced management capabilities.
Specifications
- Model: Dell PowerConnect 2848
- 48 10/100 Mbps Ethernet ports
- 4 dual-personality ports supporting 1000BASE-T or SFP
- Managed switch with full Layer 2 switching capabilities
- Supports VLANs, QoS, and SNMP for network management
- Switching capacity: 13.6 Gbps
- Forwarding rate: 10.1 Mpps
- Rack-mountable design
- Supports link aggregation and IGMP snooping
- Web-based management interface
Key Features
- Advanced network management with VLAN and QoS support
- High port density with 48 Fast Ethernet ports plus 4 Gigabit-ready ports
- Energy-efficient design to reduce power consumption
- Supports link aggregation for increased bandwidth
- Robust security features including access control lists
- Easy-to-use web interface and CLI for configuration
Important Notes
- Minor scratches, scuffs, and scrapes from previous use and storage
Included
- No Accessories Included
Not Included
- Power adapter/cable
- Rack mounting kit
- User manual
- Network cables
console# show tech-support
------------------ show clock ------------------
*00:01:04 (UTC+0) Jan 1 2000
No time source
------------------ show system ------------------
System Description: 48-port 10/100/1000 Gigabit Switch
System Up Time (days,hour:min:sec): 00,00:01:04
System Contact:
System Name:
System Location:
System MAC Address: f8:b1:56:87:69:f3
System Object ID: 1.3.6.1.4.1.674.10895.3029
Type: PowerConnect 2848
Operational Mode: managed
Asset tag:
Service tag: 64VQX42
Fan 1 Status: OK
Unit Temperature (Celsius) Status
------------------------ ------------------------ ------------------------
1 26 OK
------------------ show version ------------------
SW version 1.0.0.45 ( date 17-Jun-2013 time 17:33:43 )
Boot version 1.0.0.13 ( date 17-Jul-2012 time 08:47:13 )
HW version 00.00.03
------------------ show system mode ------------------
Feature State
------------------- ---------
Qos: Active
Policy-based-vlans: Active
------------------ show ip interface ------------------
Gateway IP Address Activity status Type
----------------------- ----------------------- --------
IP Address I/F Type
----------------------- -------------------- ---------
192.168.2.1/24 vlan 1 Default
------------------ show interfaces configuration ------------------
Flow Admin Back Mdix
Port Type Duplex Speed Neg control State Pressure Mode
-------- ------------ ------ ----- -------- ------- ----- -------- ----
g1 1G-Copper Full 1000 Enabled On Up Disabled Auto
g2 1G-Copper Full 1000 Enabled On Up Disabled Auto
g3 1G-Copper Full 1000 Enabled On Up Disabled Auto
g4 1G-Copper Full 1000 Enabled On Up Disabled Auto
g5 1G-Copper Full 1000 Enabled On Up Disabled Auto
g6 1G-Copper Full 1000 Enabled On Up Disabled Auto
g7 1G-Copper Full 1000 Enabled On Up Disabled Auto
g8 1G-Copper Full 1000 Enabled On Up Disabled Auto
g9 1G-Copper Full 1000 Enabled On Up Disabled Auto
g10 1G-Copper Full 1000 Enabled On Up Disabled Auto
g11 1G-Copper Full 1000 Enabled On Up Disabled Auto
g12 1G-Copper Full 1000 Enabled On Up Disabled Auto
g13 1G-Copper Full 1000 Enabled On Up Disabled Auto
g14 1G-Copper Full 1000 Enabled On Up Disabled Auto
g15 1G-Copper Full 1000 Enabled On Up Disabled Auto
g16 1G-Copper Full 1000 Enabled On Up Disabled Auto
g17 1G-Copper Full 1000 Enabled On Up Disabled Auto
g18 1G-Copper Full 1000 Enabled On Up Disabled Auto
g19 1G-Copper Full 1000 Enabled On Up Disabled Auto
g20 1G-Copper Full 1000 Enabled On Up Disabled Auto
g21 1G-Copper Full 1000 Enabled On Up Disabled Auto
g22 1G-Copper Full 1000 Enabled On Up Disabled Auto
g23 1G-Copper Full 1000 Enabled On Up Disabled Auto
g24 1G-Copper Full 1000 Enabled On Up Disabled Auto
g25 1G-Copper Full 1000 Enabled On Up Disabled Auto
g26 1G-Copper Full 1000 Enabled On Up Disabled Auto
g27 1G-Copper Full 1000 Enabled On Up Disabled Auto
g28 1G-Copper Full 1000 Enabled On Up Disabled Auto
g29 1G-Copper Full 1000 Enabled On Up Disabled Auto
g30 1G-Copper Full 1000 Enabled On Up Disabled Auto
g31 1G-Copper Full 1000 Enabled On Up Disabled Auto
g32 1G-Copper Full 1000 Enabled On Up Disabled Auto
g33 1G-Copper Full 1000 Enabled On Up Disabled Auto
g34 1G-Copper Full 1000 Enabled On Up Disabled Auto
g35 1G-Copper Full 1000 Enabled On Up Disabled Auto
g36 1G-Copper Full 1000 Enabled On Up Disabled Auto
g37 1G-Copper Full 1000 Enabled On Up Disabled Auto
g38 1G-Copper Full 1000 Enabled On Up Disabled Auto
g39 1G-Copper Full 1000 Enabled On Up Disabled Auto
g40 1G-Copper Full 1000 Enabled On Up Disabled Auto
g41 1G-Copper Full 1000 Enabled On Up Disabled Auto
g42 1G-Copper Full 1000 Enabled On Up Disabled Auto
g43 1G-Copper Full 1000 Enabled On Up Disabled Auto
g44 1G-Copper Full 1000 Enabled On Up Disabled Auto
g45 1G-Combo-C Full 1000 Enabled On Up Disabled Auto
g46 1G-Combo-C Full 1000 Enabled On Up Disabled Auto
g47 1G-Combo-C Full 1000 Enabled On Up Disabled Auto
g48 1G-Combo-C Full 1000 Enabled On Up Disabled Auto
Flow Admin
Ch Type Speed Neg control State
-------- ------- ----- -------- ------- -----
ch1 -- -- Enabled On Up
ch2 -- -- Enabled On Up
ch3 -- -- Enabled On Up
ch4 -- -- Enabled On Up
ch5 -- -- Enabled On Up
ch6 -- -- Enabled On Up
ch7 -- -- Enabled On Up
ch8 -- -- Enabled On Up
------------------ show interfaces status ------------------
Flow Link Back Mdix
Port Type Duplex Speed Neg ctrl State Pressure Mode
-------- ------------ ------ ----- -------- ---- ----------- -------- -------
g1 1G-Copper -- -- -- -- Down -- --
g2 1G-Copper -- -- -- -- Down -- --
g3 1G-Copper -- -- -- -- Down -- --
g4 1G-Copper -- -- -- -- Down -- --
g5 1G-Copper -- -- -- -- Down -- --
g6 1G-Copper -- -- -- -- Down -- --
g7 1G-Copper -- -- -- -- Down -- --
g8 1G-Copper -- -- -- -- Down -- --
g9 1G-Copper -- -- -- -- Down -- --
g10 1G-Copper -- -- -- -- Down -- --
g11 1G-Copper -- -- -- -- Down -- --
g12 1G-Copper -- -- -- -- Down -- --
g13 1G-Copper -- -- -- -- Down -- --
g14 1G-Copper -- -- -- -- Down -- --
g15 1G-Copper -- -- -- -- Down -- --
g16 1G-Copper -- -- -- -- Down -- --
g17 1G-Copper -- -- -- -- Down -- --
g18 1G-Copper -- -- -- -- Down -- --
g19 1G-Copper -- -- -- -- Down -- --
g20 1G-Copper -- -- -- -- Down -- --
g21 1G-Copper -- -- -- -- Down -- --
g22 1G-Copper -- -- -- -- Down -- --
g23 1G-Copper -- -- -- -- Down -- --
g24 1G-Copper -- -- -- -- Down -- --
g25 1G-Copper -- -- -- -- Down -- --
g26 1G-Copper -- -- -- -- Down -- --
g27 1G-Copper -- -- -- -- Down -- --
g28 1G-Copper -- -- -- -- Down -- --
g29 1G-Copper -- -- -- -- Down -- --
g30 1G-Copper -- -- -- -- Down -- --
g31 1G-Copper -- -- -- -- Down -- --
g32 1G-Copper -- -- -- -- Down -- --
g33 1G-Copper -- -- -- -- Down -- --
g34 1G-Copper -- -- -- -- Down -- --
g35 1G-Copper -- -- -- -- Down -- --
g36 1G-Copper -- -- -- -- Down -- --
g37 1G-Copper -- -- -- -- Down -- --
g38 1G-Copper -- -- -- -- Down -- --
g39 1G-Copper -- -- -- -- Down -- --
g40 1G-Copper -- -- -- -- Down -- --
g41 1G-Copper -- -- -- -- Down -- --
g42 1G-Copper -- -- -- -- Down -- --
g43 1G-Copper -- -- -- -- Down -- --
g44 1G-Copper -- -- -- -- Down -- --
g45 1G-Combo-C -- -- -- -- Down -- --
g46 1G-Combo-C -- -- -- -- Down -- --
g47 1G-Combo-C -- -- -- -- Down -- --
g48 1G-Combo-C -- -- -- -- Down -- --
Flow Link
Ch Type Duplex Speed Neg control State
-------- ------- ------ ----- -------- ------- -----------
ch1 -- -- -- -- -- Not Present
ch2 -- -- -- -- -- Not Present
ch3 -- -- -- -- -- Not Present
ch4 -- -- -- -- -- Not Present
ch5 -- -- -- -- -- Not Present
ch6 -- -- -- -- -- Not Present
ch7 -- -- -- -- -- Not Present
ch8 -- -- -- -- -- Not Present
------------------ show interfaces port-channel ------------------
Gathering information...
Channel Ports
------- -----
ch1
ch2
ch3
ch4
ch5
ch6
ch7
ch8
------------------ show vlan ------------------
Vlan Name Ports Type Authorization
---- ----------------- --------------------------- ------------ -------------
1 1 g(1-48),ch(1-8) other Required
------------------ show interfaces switchport ------------------
Port : g1
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g2
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g3
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g4
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g5
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g6
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g7
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g8
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g9
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g10
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g11
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g12
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g13
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g14
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g15
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g16
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g17
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g18
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g19
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g20
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g21
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g22
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g23
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g24
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g25
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g26
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g27
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g28
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g29
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g30
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g31
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g32
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g33
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g34
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g35
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g36
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g37
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g38
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g39
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g40
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g41
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g42
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g43
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g44
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g45
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g46
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g47
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : g48
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : ch1
Port Mode: General
Gvrp Status: disabled
Ingress Filtering: true
Acceptable Frame Type: admitAll
Ingress UnTagged VLAN ( NATIVE ): 1
Port is member in:
Vlan Name Egress rule Port Membership Type
---- -------------------------------- ----------- --------------------
1 1 Untagged System
Forbidden VLANS:
Vlan Name
---- --------------------------------
Classification rules:
Port : ch2
<
Specifications
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
S3 - Data Clear
Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22
Dell PowerConnect 2848
Function Tests
Passed
Passed
Passed
Passed
Shipping
Tracking information is automatically uploaded to ebay once your order ships.
We ship orders within the contiguous US with FedEx or USPS at our discretion. We use eBay's shipping calculator for all shipping rates.
PO Box, HI, AK, APO/FPO/DPO, and PR orders must be shipped via USPS. Please contact us or request an adjusted invoice before checking out.
Local Pickup
If you have purchased an item and prefer to pick it up, please select “Local Pickup” from the shipping options during checkout.
Then please contact us to arrange pickup.
Payment must be made through ebay prior to pickup.
Combined Shipping
We can typically provide a 30% shipping discount for multiple purchases that will fit in the same box.
For combined shipping, please click 'Request Total' or send us a message before checking out.
We can then adjust your invoice for combined shipping.
Expedited Shipping
In order to guarantee the rates and transit times shown, we must receive your order with its payment cleared by 12:00 PM EST during business days.
Orders placed after 12:00 PM EST will be shipped on the next business day.
Orders placed on weekends or holidays will be shipped the next business day.
Please plan your orders accordingly.
Returns
We strive to be a 5 star seller and hope that you are happy with your purchase.
If there is a problem with your order, please contact us through eBay messages or by phone before leaving feedback.
For items that are tested and working properly:
Our return window for working items listed as "New" or "Used" is 30 days.
If the item is no longer wanted or does not fit, the buyer is responsible for return shipping.
If the item is not working as described, we will work with you on the issue, please contact us to resolve.
Please review all product details and sale terms before making a purchase.
