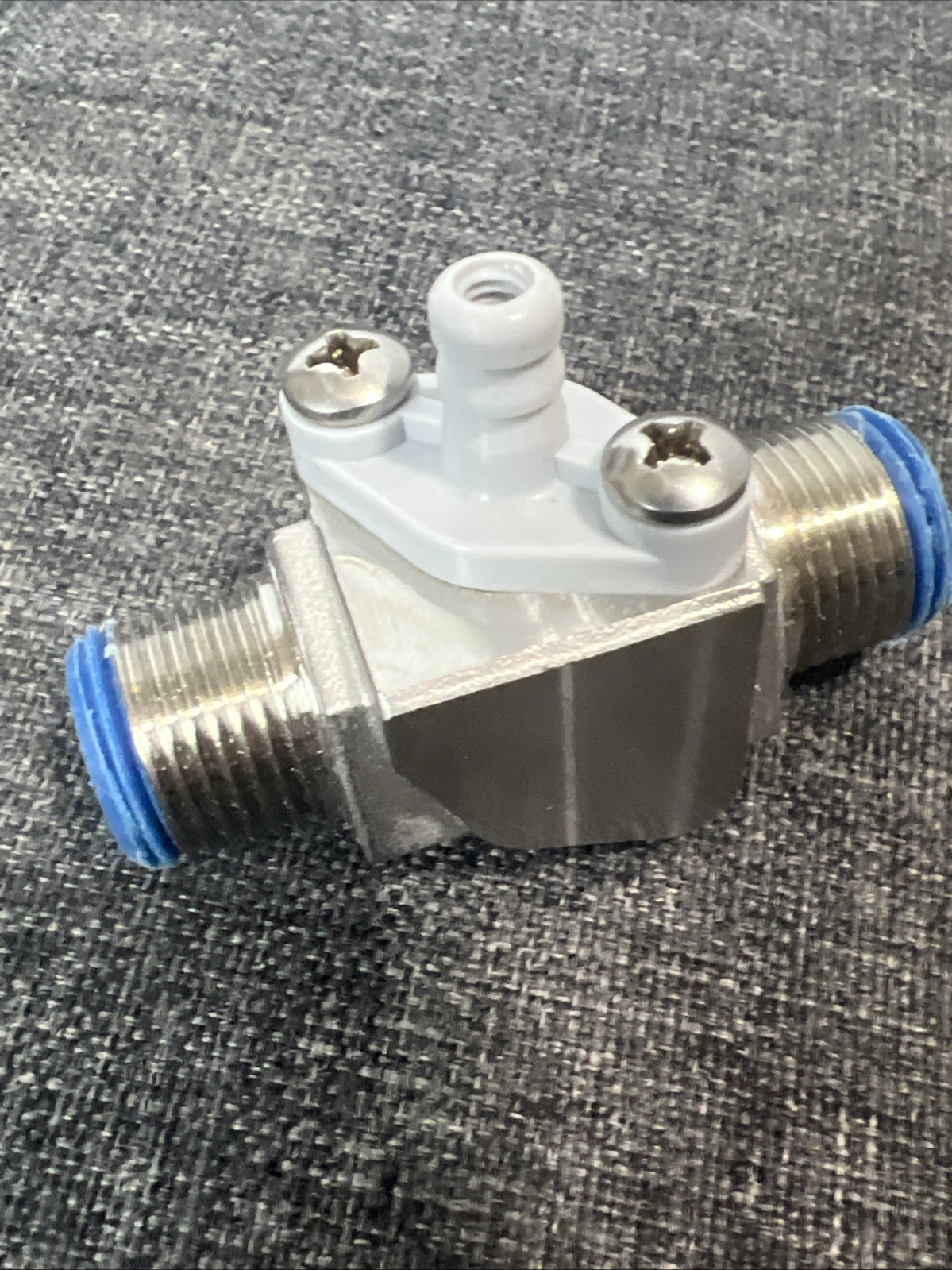

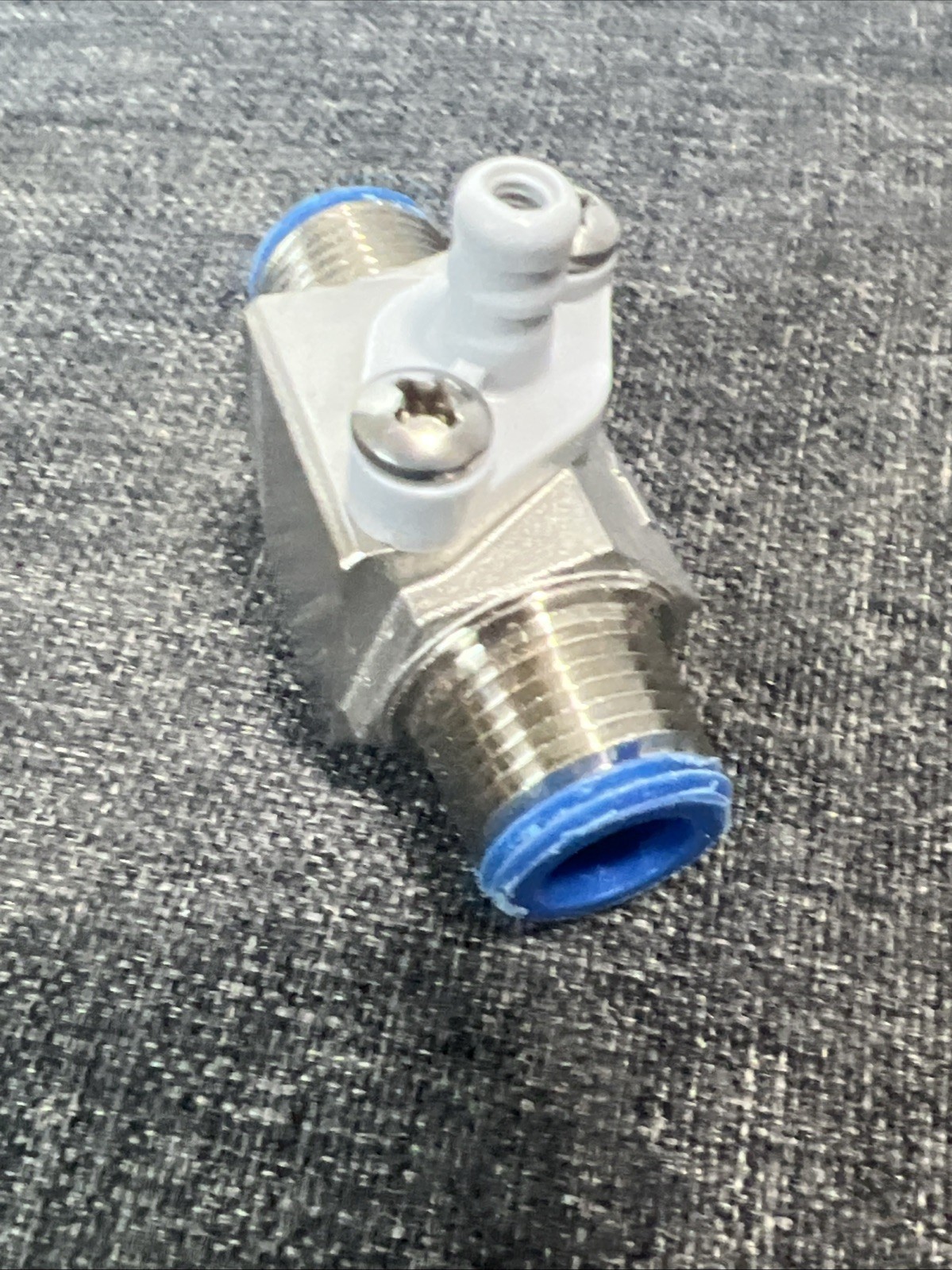

Single Barb, 2.4 GPM, 0.083" Orifice
Clean with greater pressure while consuming less chemicals! The Dema rocket injector has a grey color-coded metering barb to easily identify the nozzle orifice size inside injectors. Rocket chemical injectors are also effortless to repair, using removable nozzles and metering barbs to make maintenance and repair simple while extending the life of the injector. The long lasting, durable components are designed to be field serviceable and reduce maintenance costs.
Rocket chemical injectors cover an extreme range of dilution ratios. The Teflon ball offers chemical compatibility and the check valve keeps the chemical at the ready. The flexibility of the Rocket helps to operate systems at lower pressures, saving energy, and reducing operational costs.
Details:
- Viton diaphragm
- 3/8" NPT inlet and outlet ports
- 1/4" chemical hose barb
- Injectors can thread directly into manifold
- Flow orifice: 0.083"
- Flow rate at 200 PSI: 2.4 GPM
- Grey color-coded metering barb to identify nozzle orifice size
- 316 strong stainless steel cast external body
- Polypropylene molded internal body protects stainless steel
- 316 stainless steel removable nozzle
- Optimum chemical compatibility:
- Aflas seals
- Hastalloy spring
- Teflon ball
Compatibility:
This product may be compatible with machinery, equipment, and systems from the following manufacturers. Compatibility can vary by application. Please refer to the manual provided with your machine, equipment, or system, or consult the manufacturer, to verify compatibility before purchasing.
- Mark VII
- Washworld
- NCS
- Oasis
- Jim Coleman
- Belanger
- Petit
- D&S
- Hydro Spray
- Motor City Wash Works
