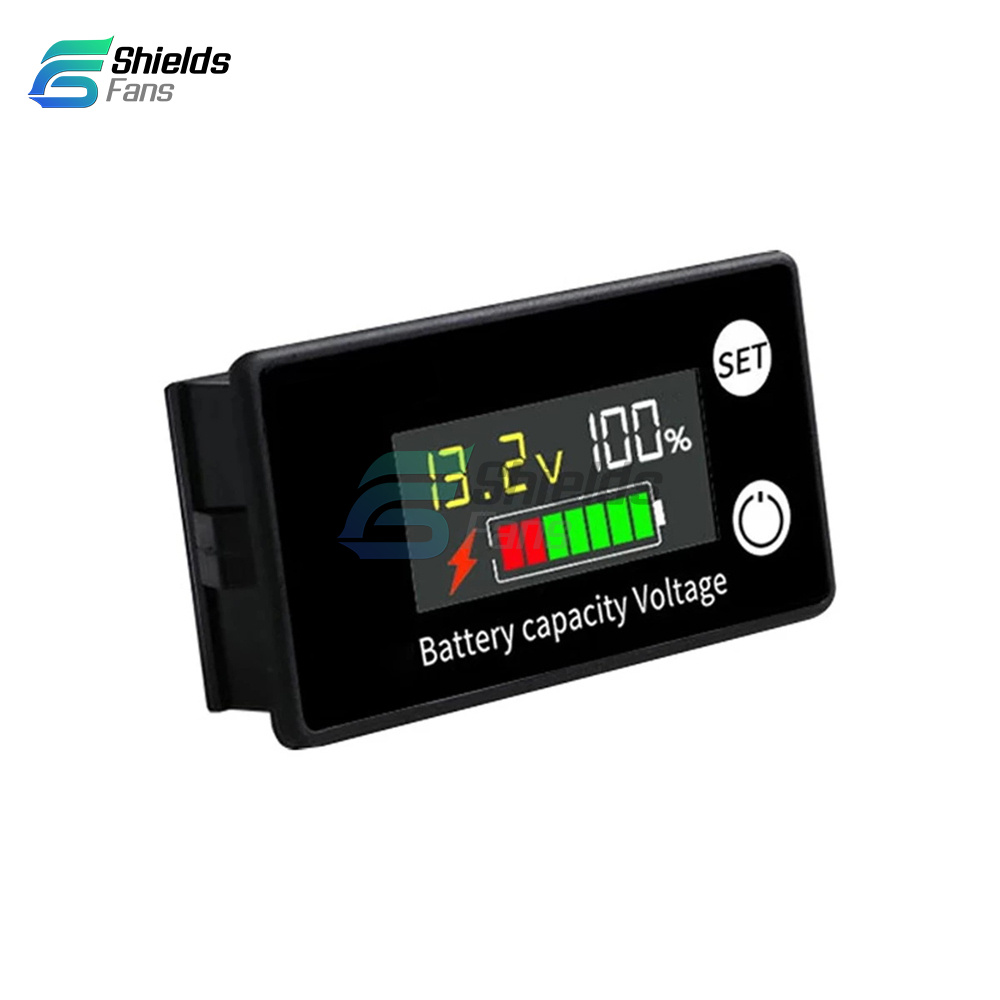

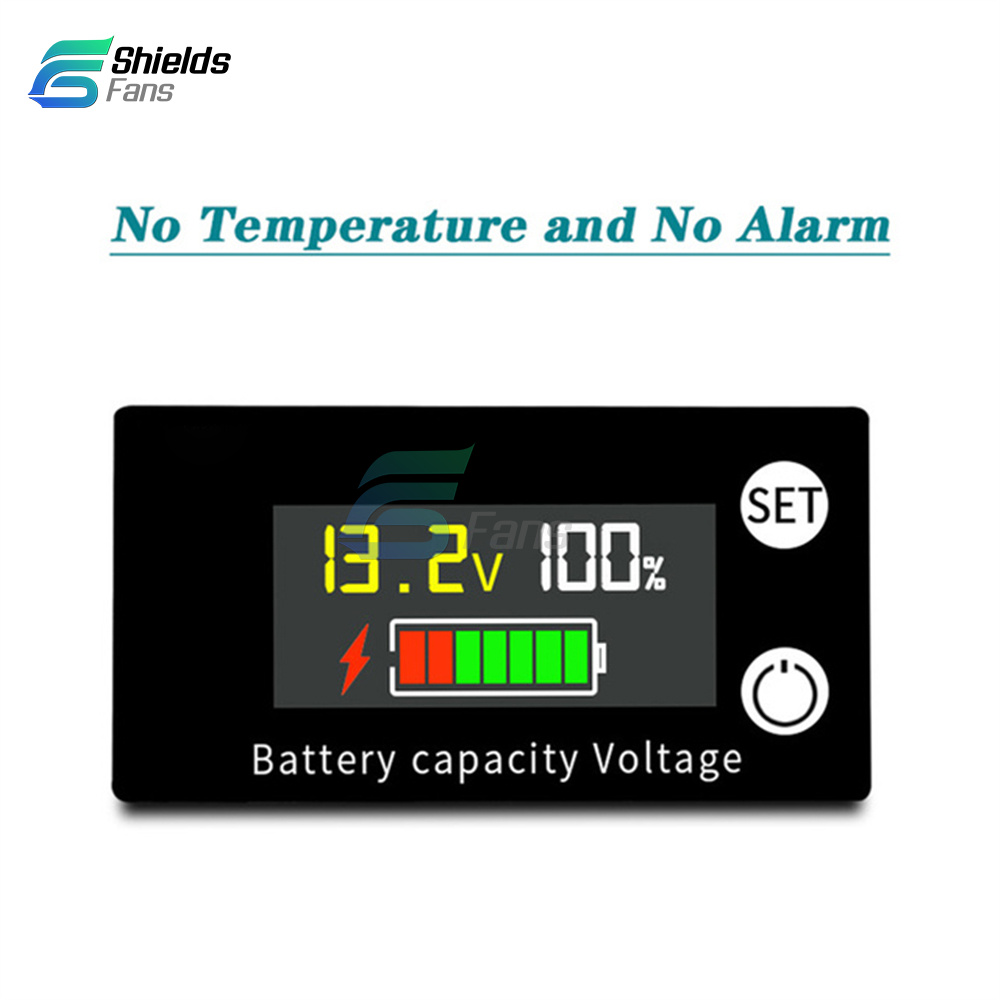

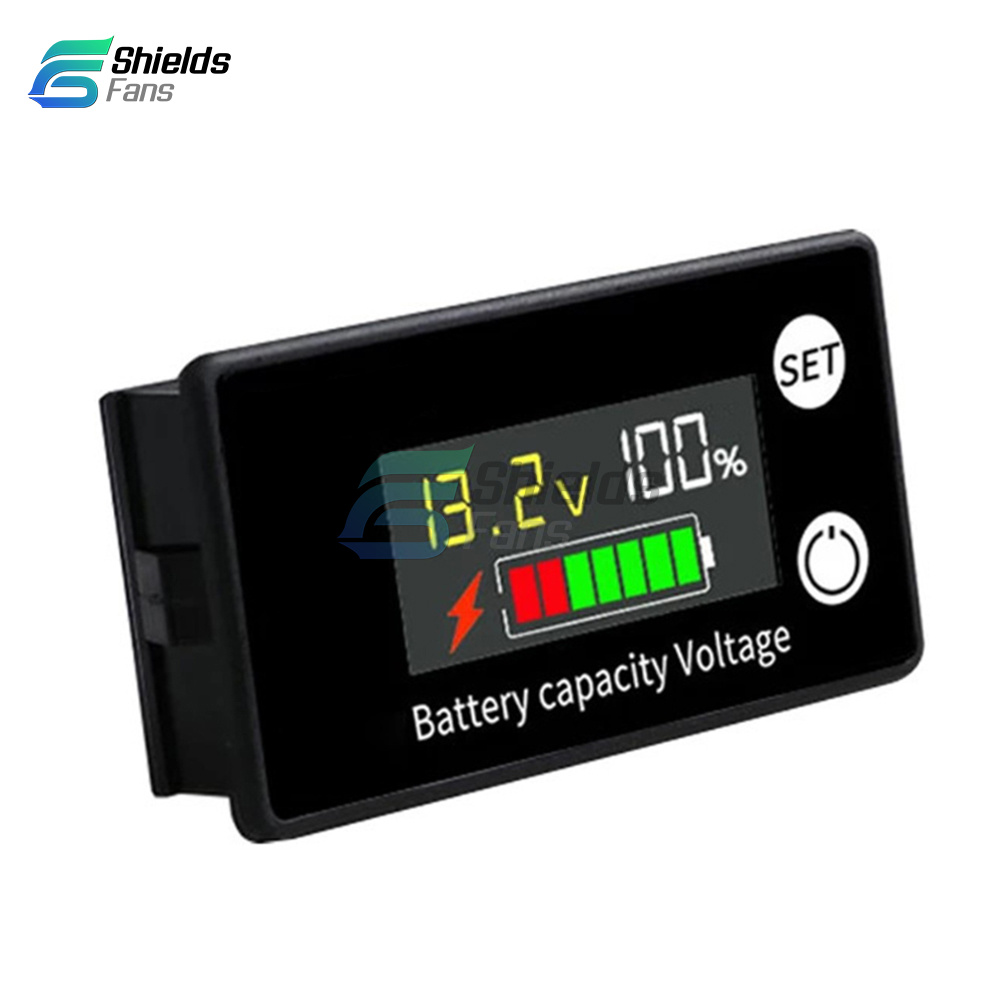

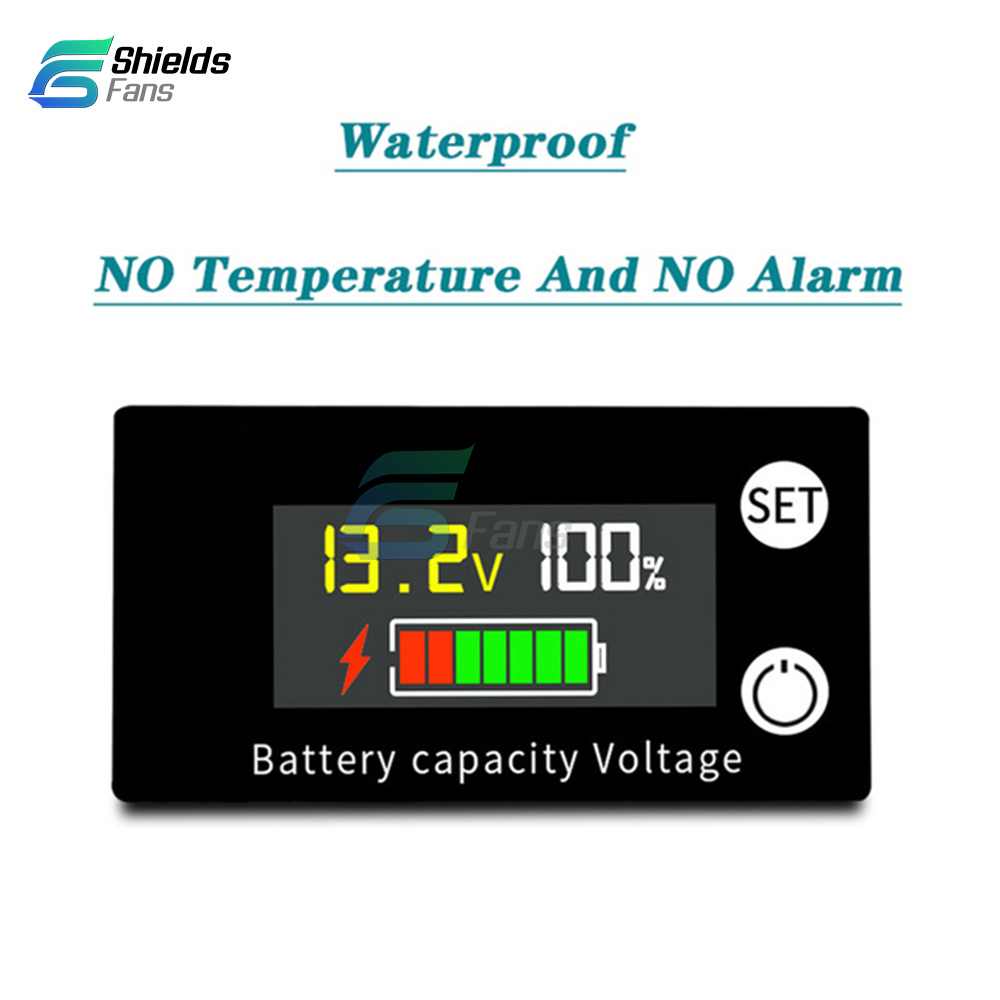

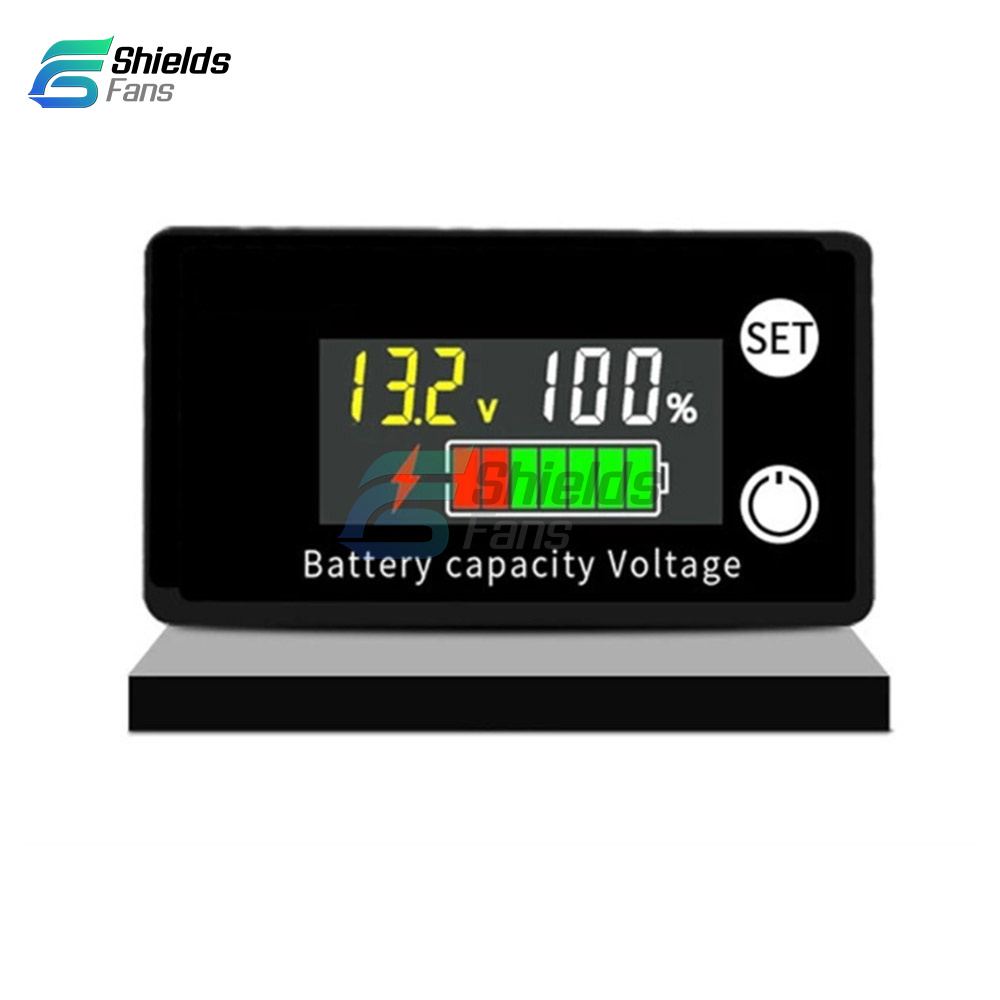

6133A LCD voltage and power two-wire 8-100V digital voltmeter digital display power meter battery power display
Parameter:
Voltage measurement range: DC8V-100V
Working current: <15MA
Display mode: LCD
Screen display color: color screen
Measurement accuracy: 1% ± 1 word
Measurement speed: about twice per second
Working temperature: -10—+70°C
Working humidity: 10-80%
Working pressure: 80-106Kpa
Sun exposure: no direct exposure
Installation size: 58mm*28mm
Dimensions: 61mm*33mm*15mm (length*width*height)
Selling point:
2 in 1 function: measure and display battery capacity and voltage.
Dual display: capacity and voltage can be displayed at the same time, clear and easy to read.
LCD Display: Large LCD screen with backlight for easy reading.
Wide Operating Voltage Range: This battery monitor can withstand a wide operating voltage range from capacity, voltage to voltage (DC 7-68V)
Suitable battery type: The battery detector is suitable for lithium batteries, lead acid batteries.
Premium Quality: Made of high quality ABS material, durable.
Easy to install: Easy and quick to install.

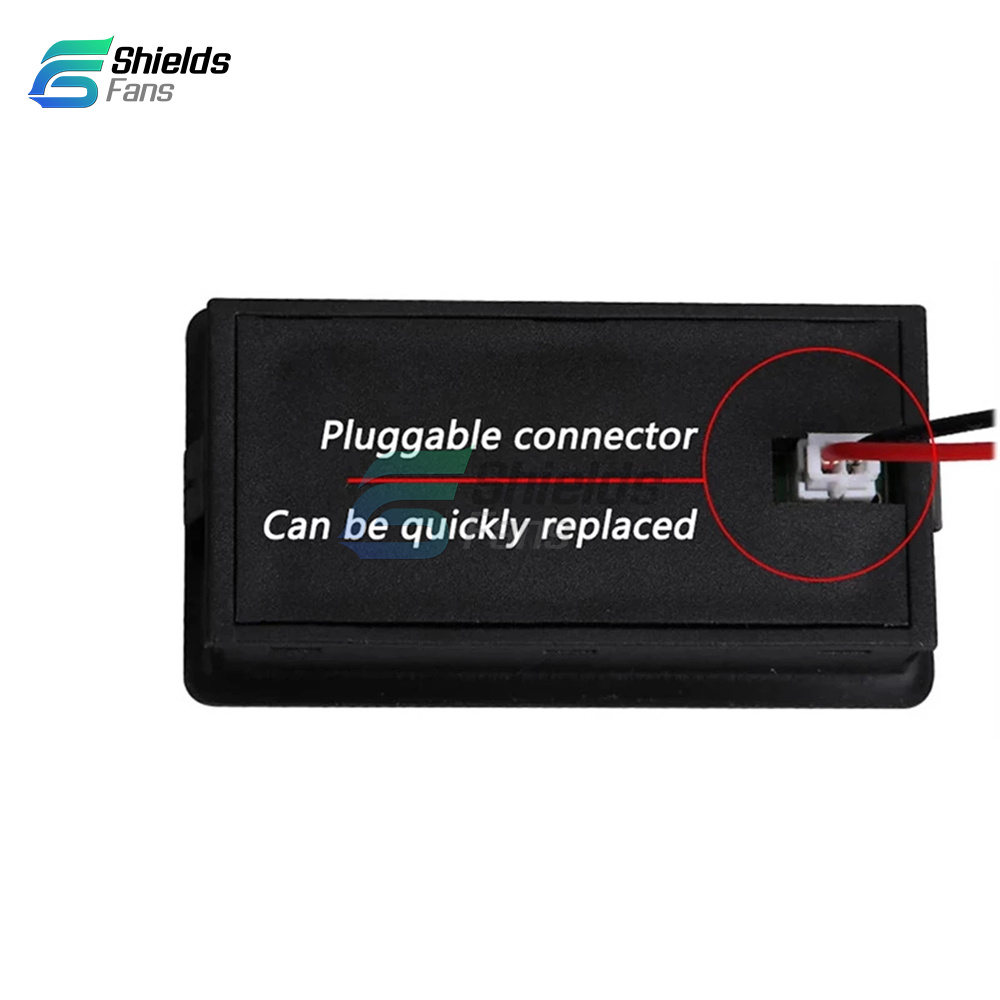

Safe to use: Simple connection with reverse protection
Packing list:
Line + Voltmeter
Hint:
1. Due to manual measurement, please allow 1-3mm difference, thank you for your understanding!
2. Due to the differences between different monitors, please understand that the pictures may not reflect the actual color of the item.
