Specification:
Type: Generator Control Module
Model: HAT600N
Engine Type: 4 Stroke
Style: Digital
Included Components: NO
Description:
HAT600N series ATS controller is intelligent dual-supply module with programmable function, automatic measurement, LCD display, and digital communication.
HAT600N Genset ATS Controller combines digital intelligence and networking.
Automatic measurement and control can reduce incorrect operation.
HAT600N Genset ATS Controller has full consideration in various application of ATS (automatic transfer system) can be directly used for Intelligent ATS, Contactor ATS, Circuit Break ATS etc.
HAT600N series ATS controller is made of microprocessor as its core, can accurately detect extended-spectrum 2-way-3-phase voltage and also make accurate judgment and output passive control switch under the abnormal voltage (over and under voltage, miss phase and over and under frequency).
Power supply for 1 # mains voltage # 2 mains voltage,# 1 mains voltage # 2 Gens Volt, # 1 Gens Volt# 2 mains voltage,1# Gens Volt # 2 mains voltage.
The LCD backlit,128x64,for the two languages (simplified Chinese, English) display, light touch button operation.
Acquisition and shows two road phase voltage and frequency：
#1
Line voltage（Uab，Ubc，Uca）
Phase voltage（Ua，Ub，Uc）
frequency（F1）
#2
Line voltage（Uab，Ubc，Uca）
Phase voltage（Ua，Ub，Uc）
frequency（F2）
Has the advantages of over voltage, under voltage, miss phase, anti-phase sequence, over frequency, owe frequency function.
With the auto/hand-switch state-transition in manual mode, enforceable switches close break-brake.
All the parameters field programmable, adopt two-stage password,non-professionals are to prevent incorrect operation.
Field can be set to bring load/without load mode of operation commissioning generating.
Has the power switch reclose and buckles function again.

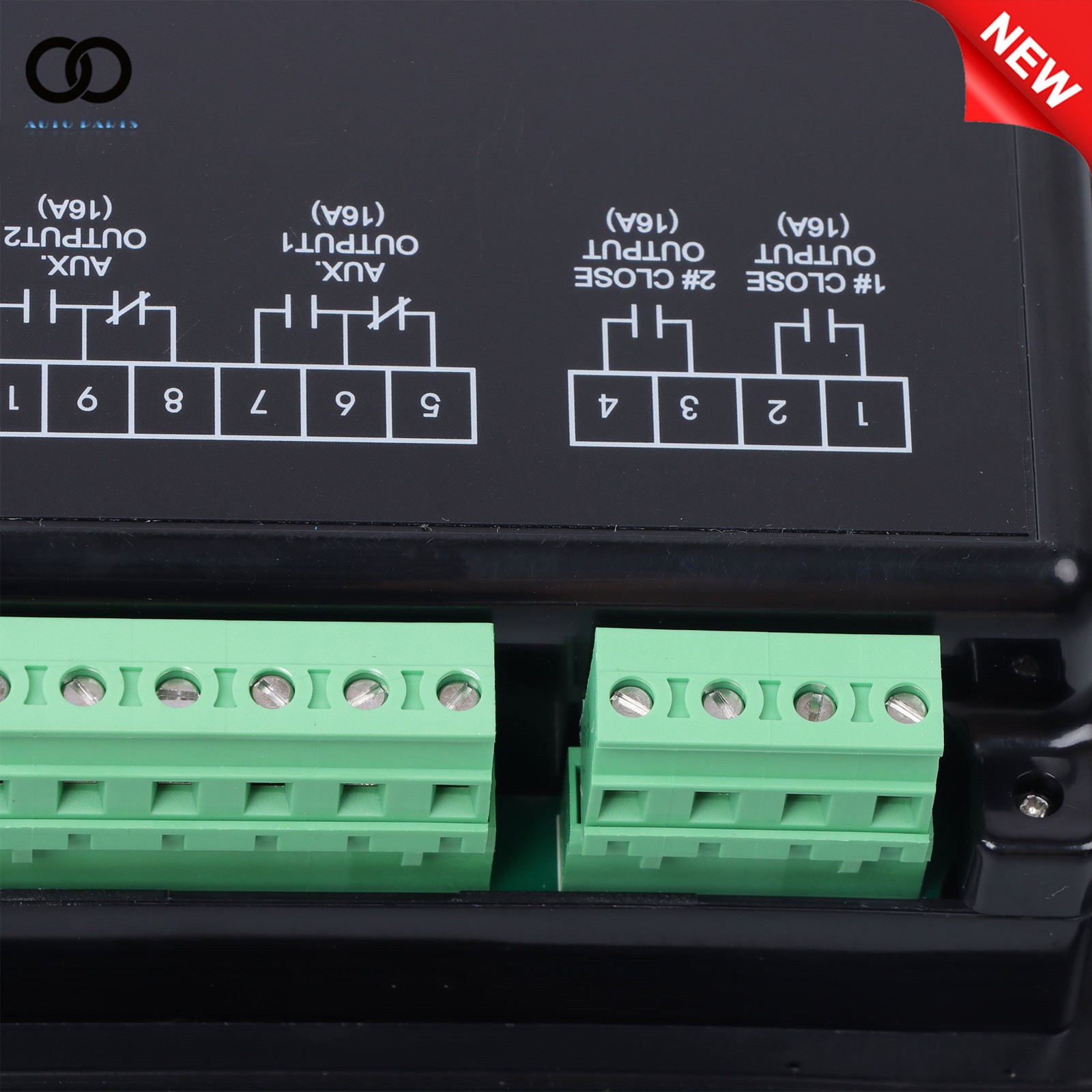

Output can be set off for pulse or continuous output.
Applicable to two segments, and without a switch section 3.
Two N line separating design.
DC power supply, very wide range, or supreme 80V dc input by HTS220 / HWS560 power module power supply.
AC input terminals spacing, the highest bearable 625V input voltage.
Industrial standard RS485 communication interface to fulfill the “remote controlling, remote measuring, remote communication” function by the communication protocol.
Can inquire the current controller (including input, over-voltage, under-voltage etc. internal switch quantity).
Function including schedule exerciser at singly, weekly, monthly.

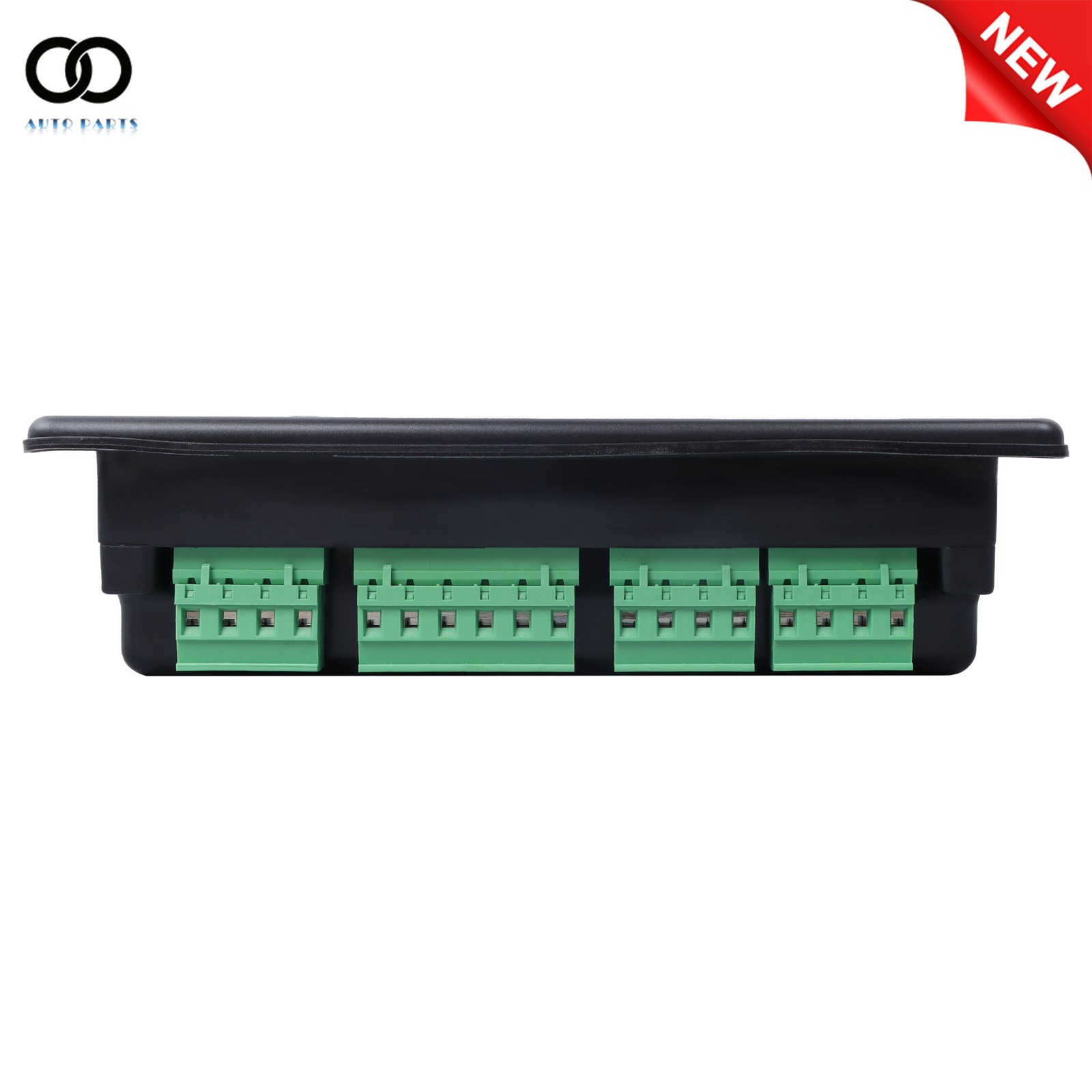

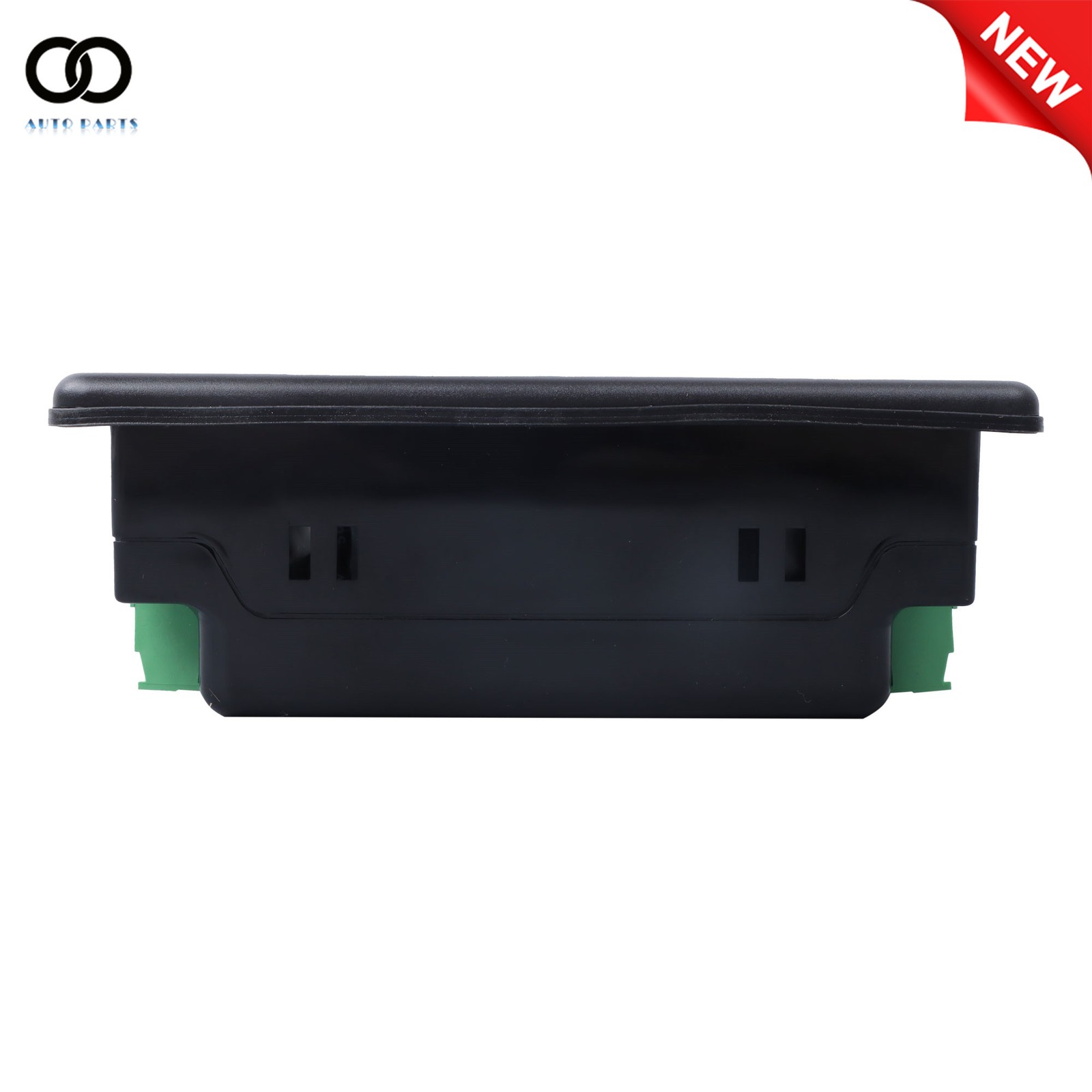

Module structure design, ABS plastic crust, embedded installation, plug connector, convenient maintenance.
High quality and durable.
Good working conditions and easy installation.
Sufficient warranty time and good after-sales service.
Please rest assured to buy products from our shop.
Key Features:
HAT600N series ATS controller is intelligent dual-supply module with programmable function, automatic measurement, LCD display, and digital communication. It combines digital intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.
HAT600N series ATS controller is made of microprocessor as its core, can accurately detect extended-spectrum 2-way-3-phase voltage and also make accurate judgment and output passive control switch under the abnormal voltage (over and under voltage, miss phase and over and under frequency). This controller has full consideration in various application of ATS (automatic transfer system) can be directly used for Intelligent ATS, Contactor ATS, Circuit Break ATS etc. It have compact structure, advanced circuits, simple wiring and high reliability, be widely used in electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, electrical devices, automatic control and testing system etc.
Package List:
1 × HAT600N Generator Control Module
