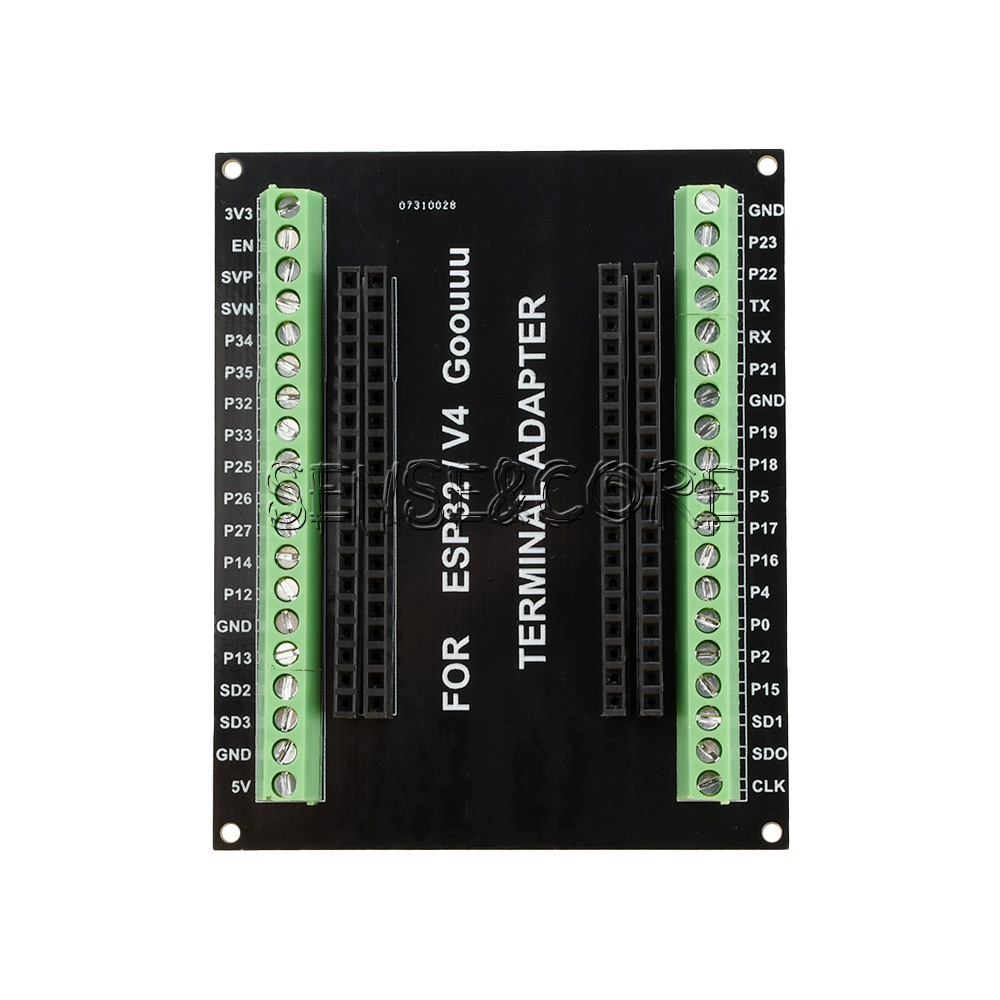

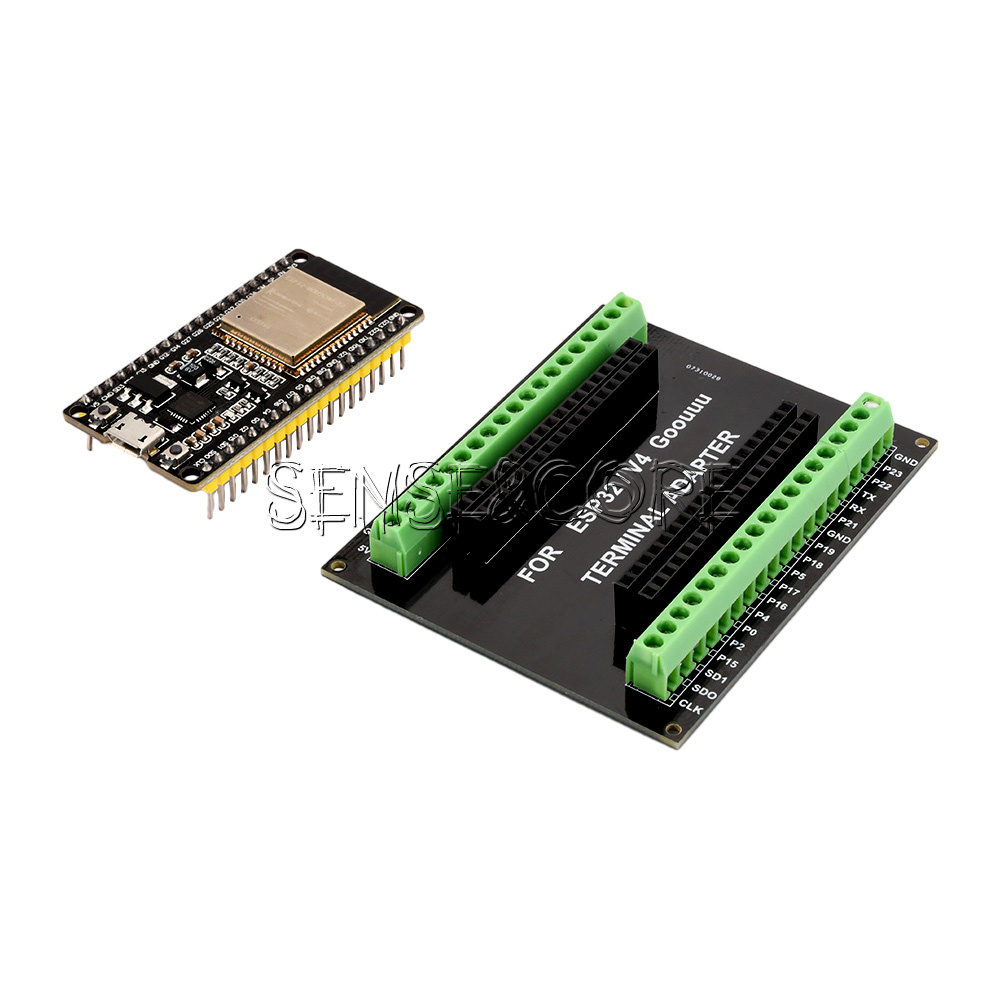

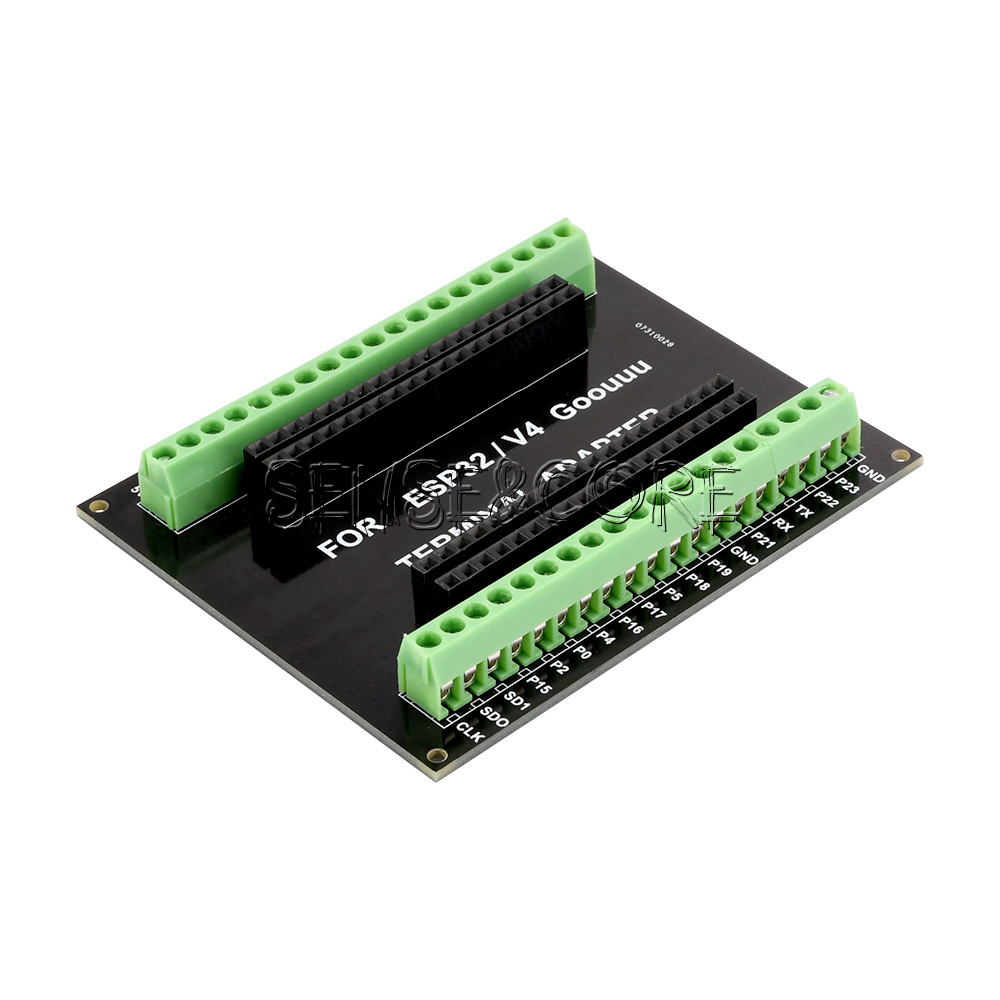

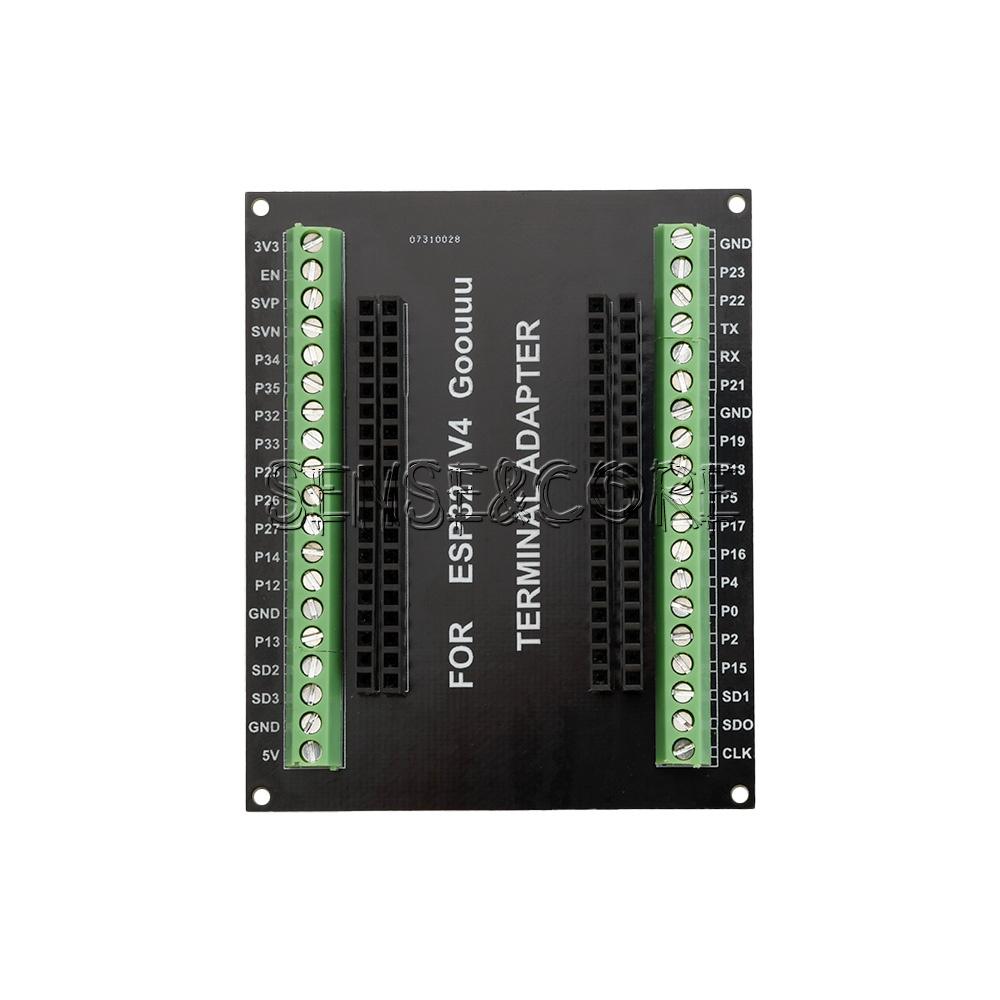

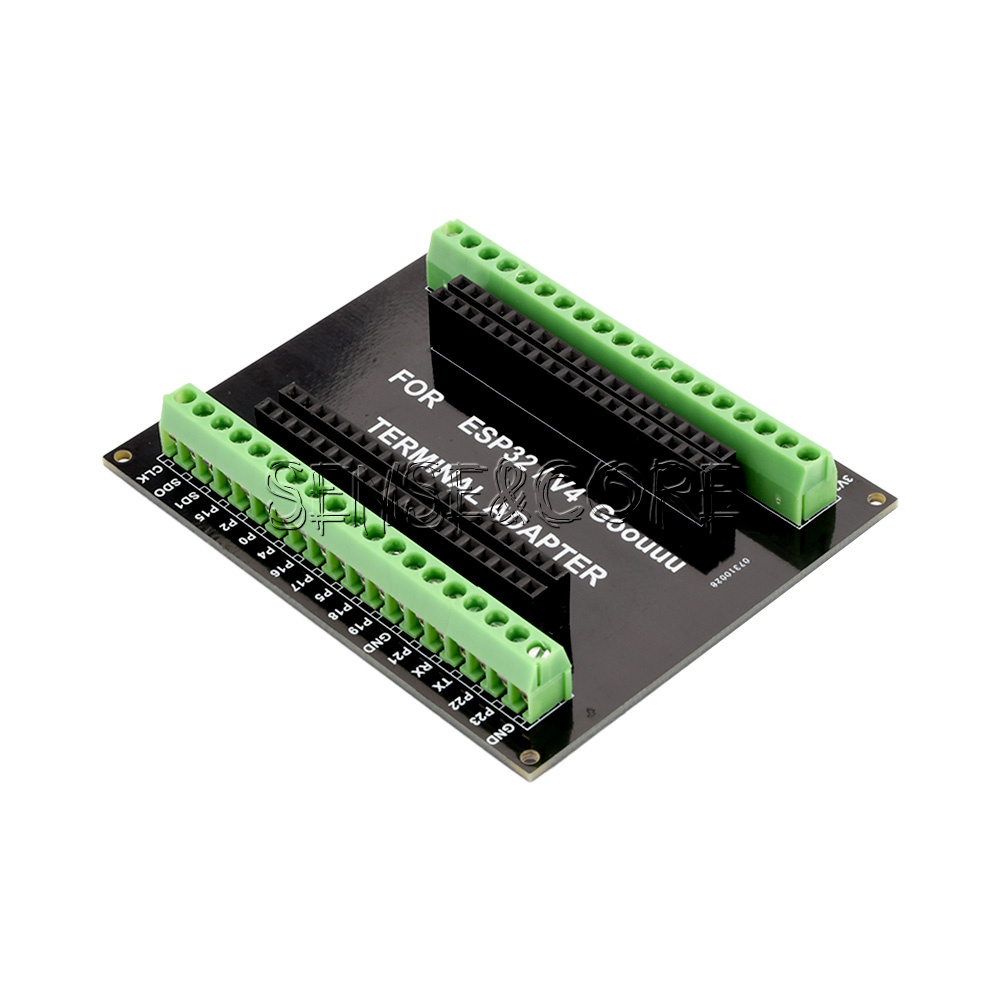

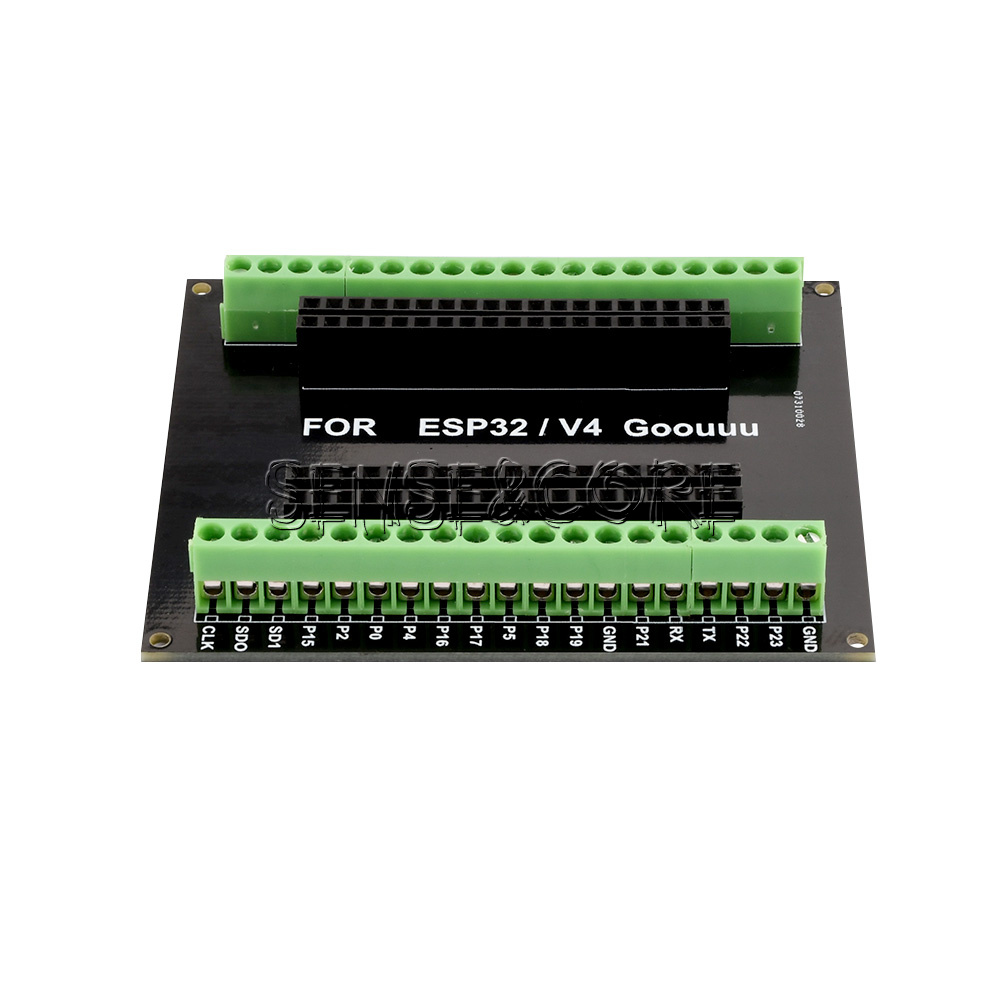

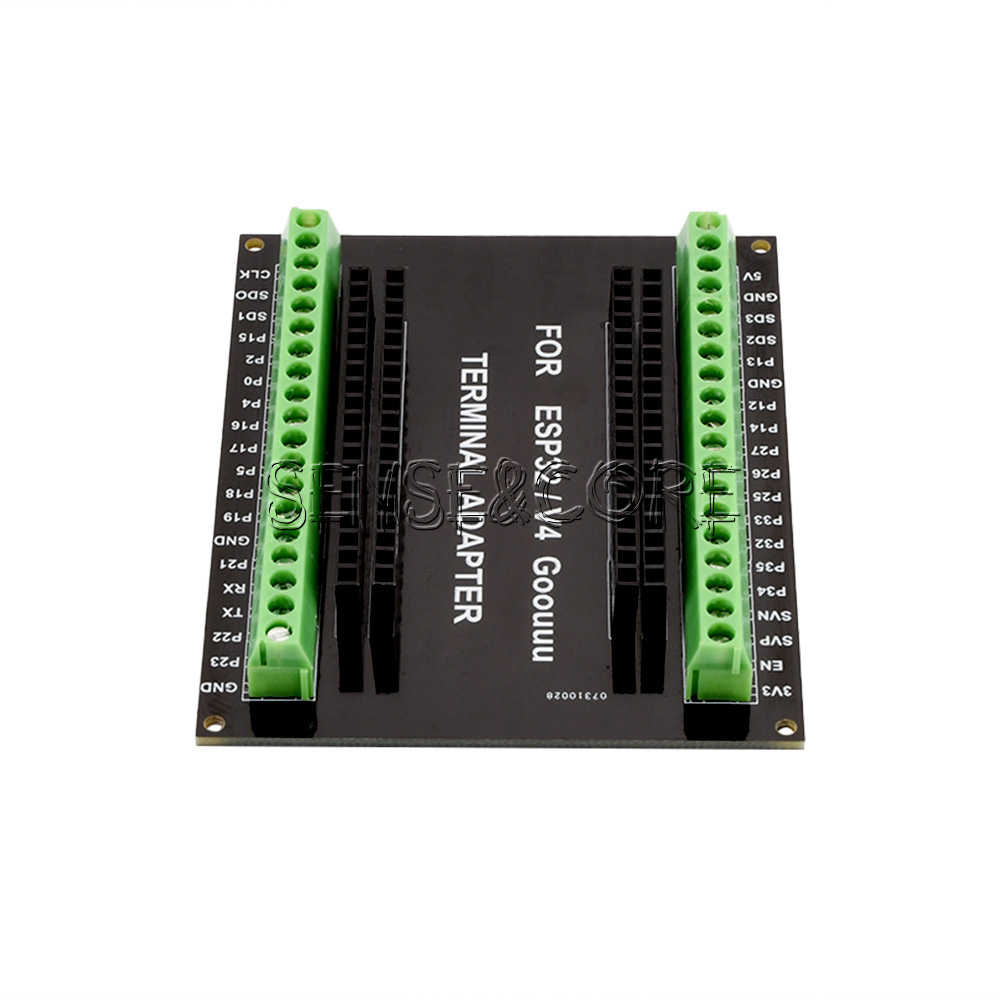

Product features:
This module is safe, reliable, and scalable to various applications

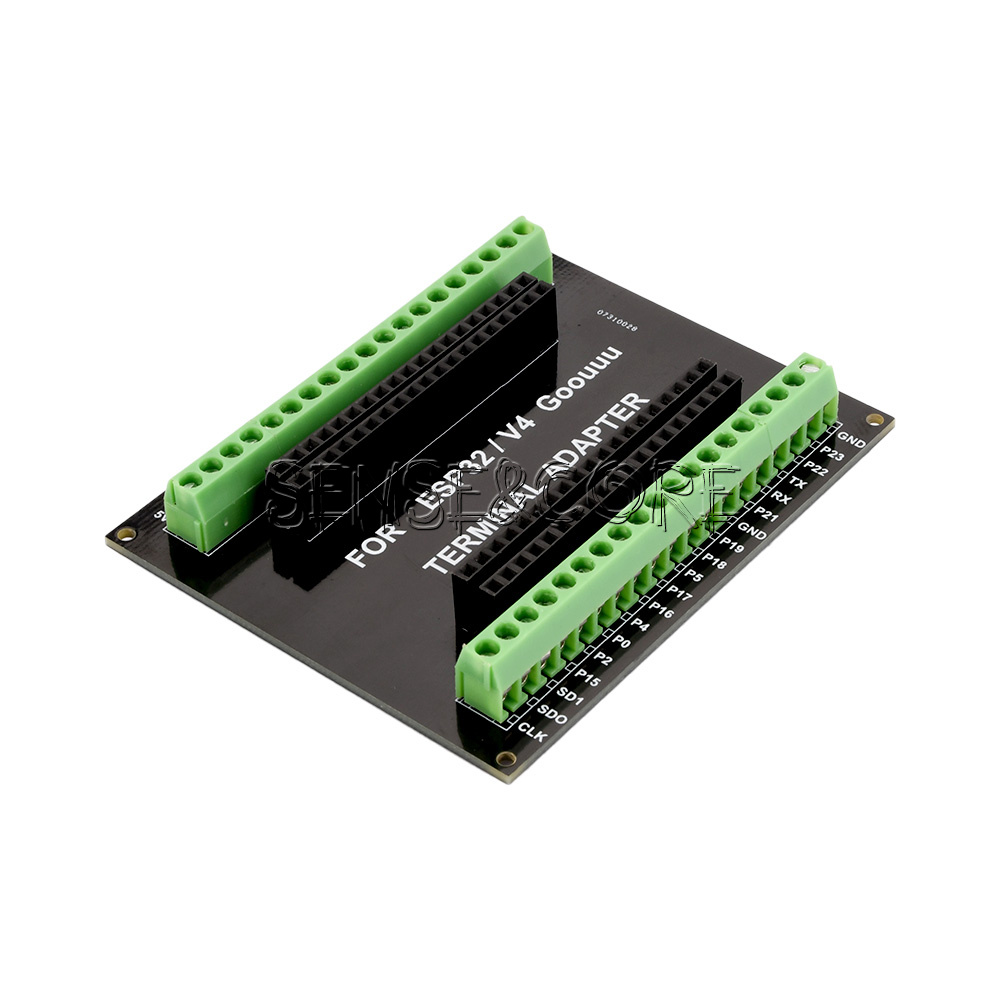

The expansion board is a double-layer board, with one pin connected on both sides. Therefore, the circuit is stable and reliable, and there will be no poor circuit contact or unstable signal transmission
Pin connectors and screw terminals, just choose them according to your purpose

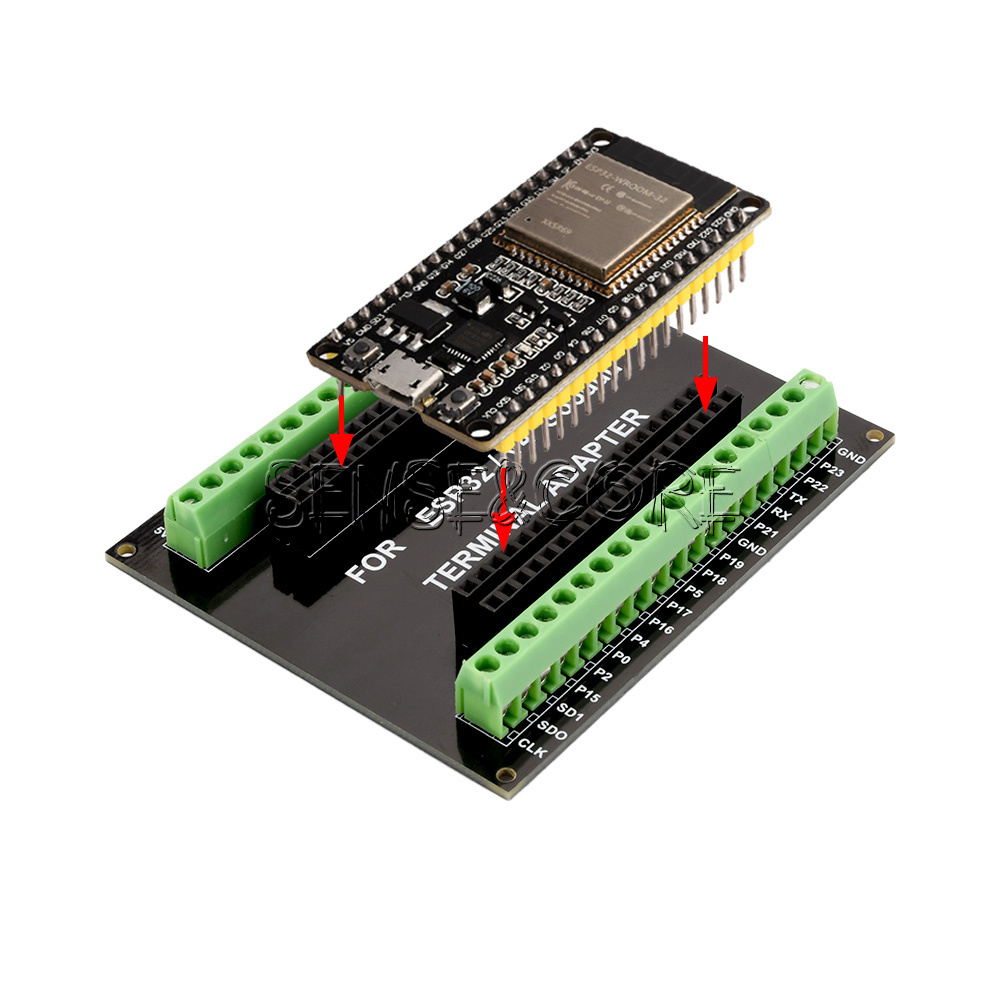

The distribution board can expand one GPI0 pin of the ESP32 development board to two, making it very suitable for you to reuse all pins. It is a good tool for your project
A good alternative to breadboard, it can expand one GPIO pin of the ESP32 development board to two. Very suitable for users to reuse all pins in DIY projects
Specifications:
PCB material: high-quality FR-4 material
PCB layers: 2 layers
PCB thickness: 1.6mm
Size: 7.8 * 6.3 * 1cm

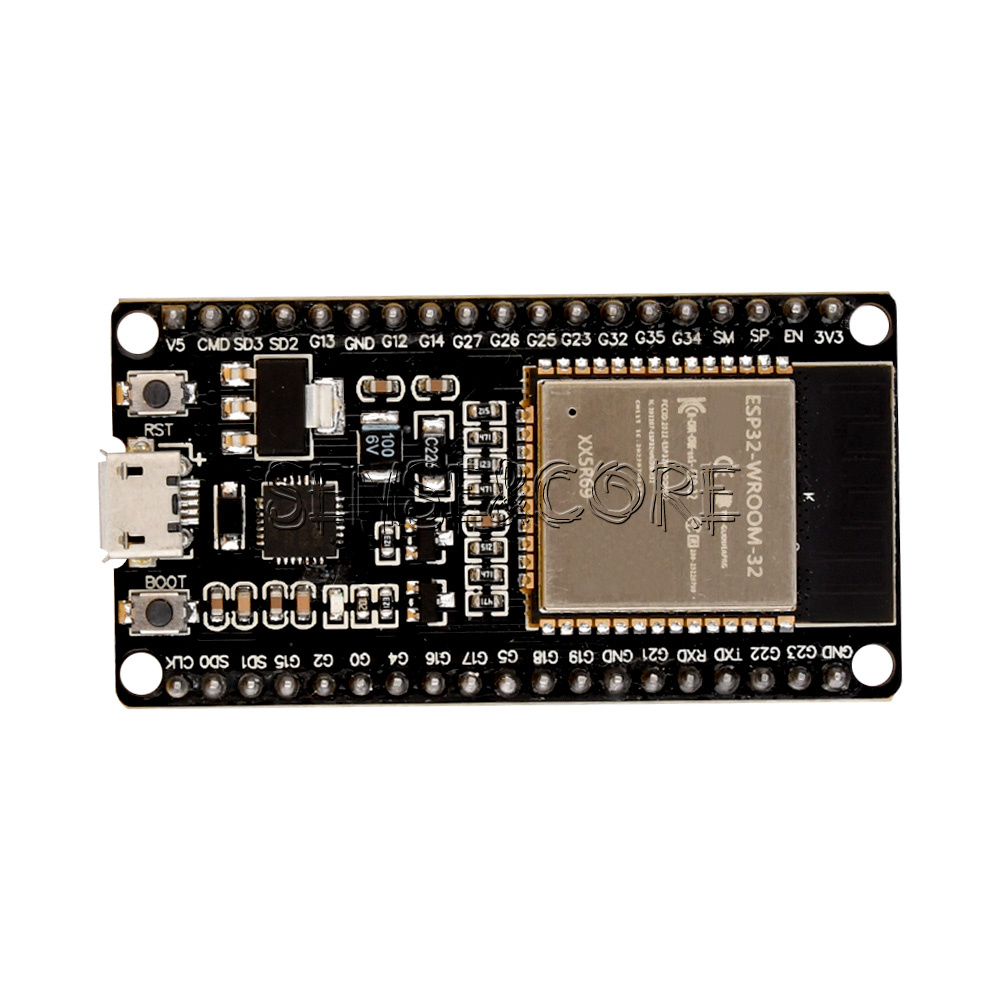

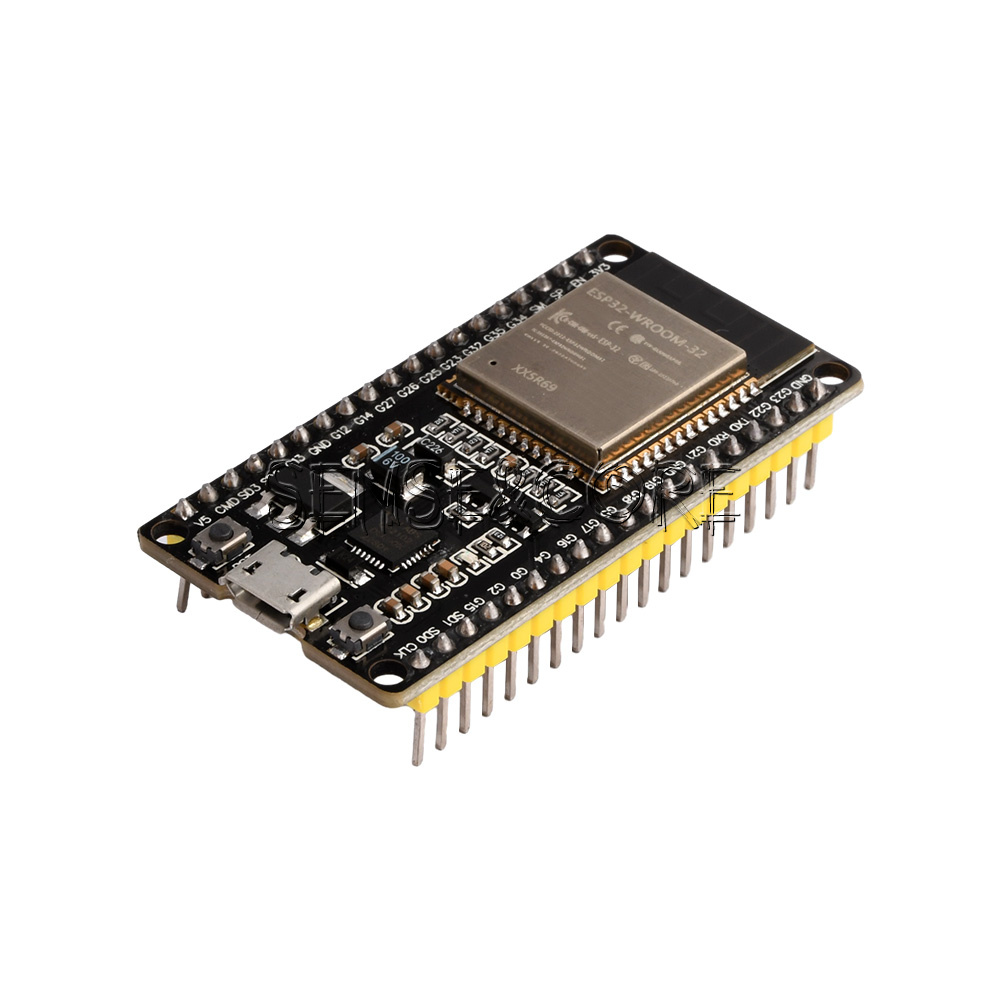

Note: The expansion board is only applicable to the ESP32 WIFI Bluetooth development board CP2102 version without installation holes. Please confirm that the pin width of your ESP32 board is consistent with the pin width of the expansion board
Shipping list:
ESP32 expansion board * 1（No ESP32 development board）
