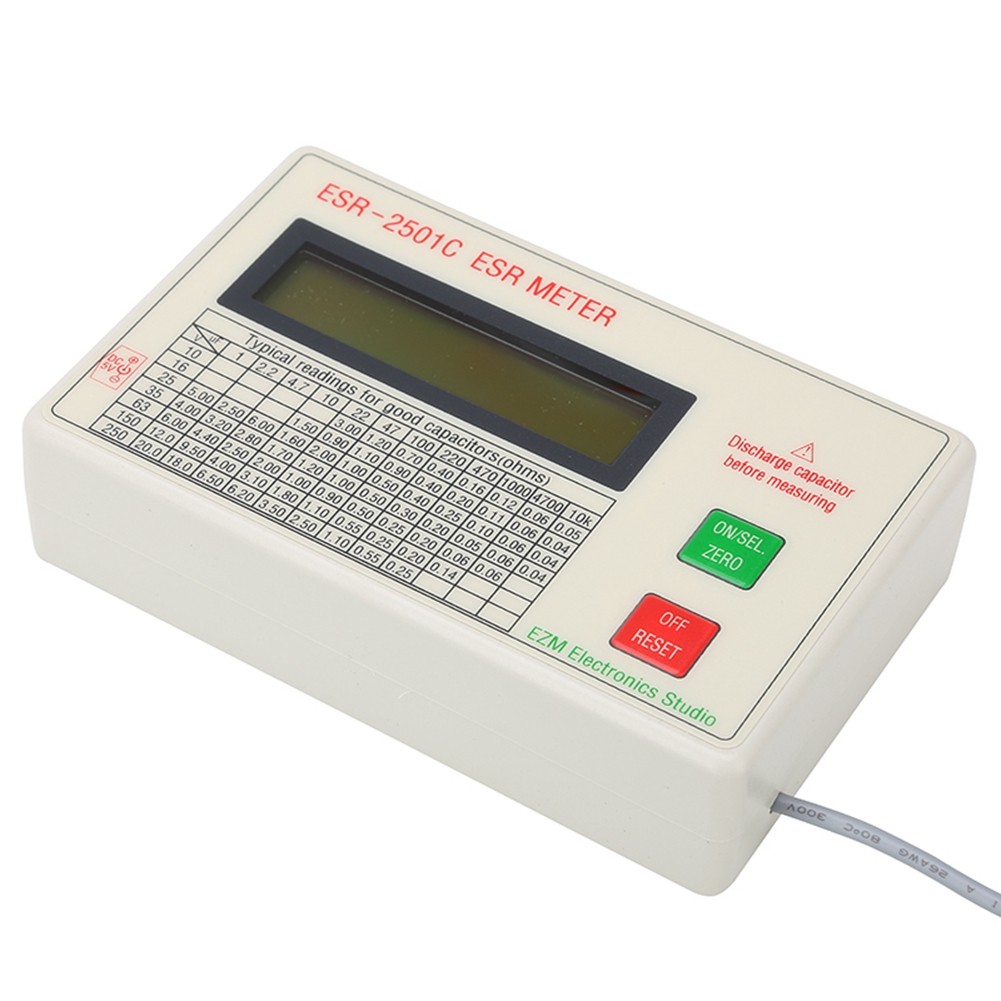

ESR2501C Capacitor Tester Test in Circuit Capacitance Meter with Test3867
Description: 1. The measuring range is 0-25Ω, divided into two gears: 0-5Ω and 5-25Ω, automatically switched.
2. Resolution: 0-5Ω is 0.01Ω, 5-25Ω is 0.1Ω.
3. Measurement accuracy: 0-5Ω range ±1.5%±0.01Ω, 5-25Ω range ±1.5%±0.1Ω.
4. It can measure the of the electrolytic capacitor, and also measure the (direct current resistance), which can be switched by the ON/OFF/ZERO button.
5. The synchronous detection is used for short circuit, so the tested value is the real .
It can be measured in-circuit and off-circuit, the measuring current is 5mA, and the measuring frequency is measuring industry standard frequency 100kHz.
Automatic zero point adjustment at power-on, automatic zero point adjustment is also done when and are switched. While the LCD displays the value, it also displays the probe compensation value, which is convenient for the user to adjust the time to the highest accuracy.
The input terminal has overvoltage protection.
Manual and automatic shutdown functions, automatic shutdown is an intelligent way, and it automatically shutdown if it is not used for about 5 minutes.
When the power supply voltage is low, the LCD prompt and it automatically shut down after 10 seconds.
Use a 3.7V 14500 lithium rechargeable battery, which can be charged while using it. The charging power supply is DC5-6V, and there is a charging indicator on the left, which is red when charging, and green after charging. The charging time is 2-3 hours.
The maximum working current of the whole machine is about 60mA (3.7V).
Working temperature: 10-40℃
Material: plastic
colour: As shown
Package Contents:
1 x -2501C tester
2 x Test pen
2 x Test clip
1 x USB cable
