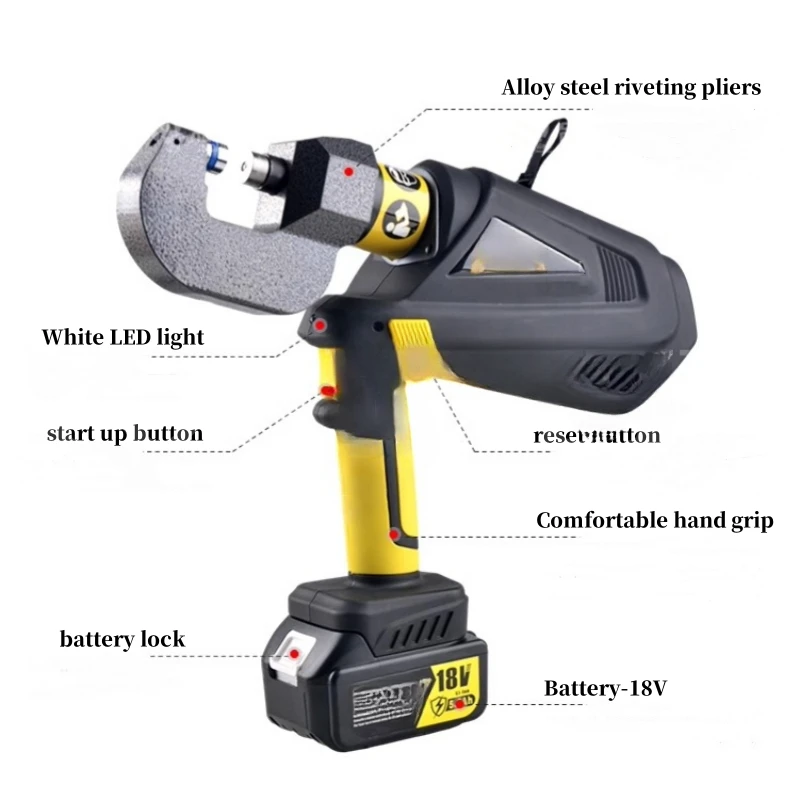

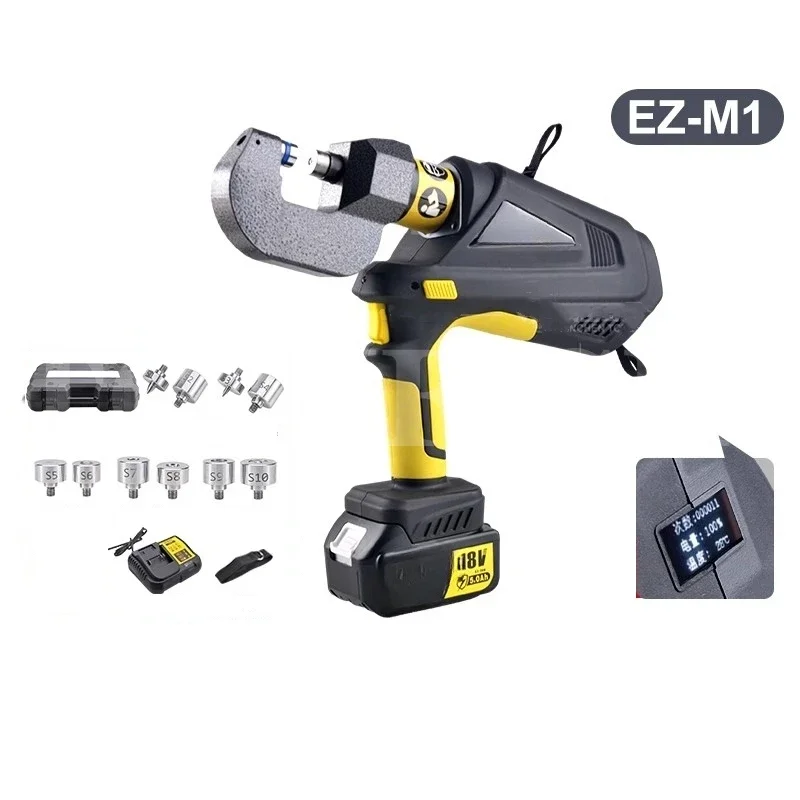

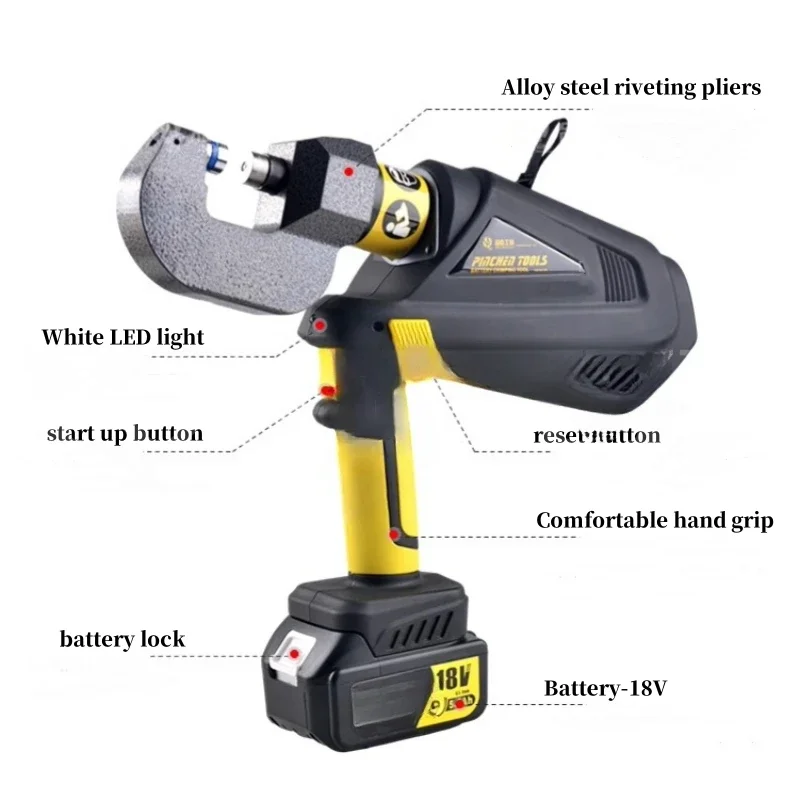

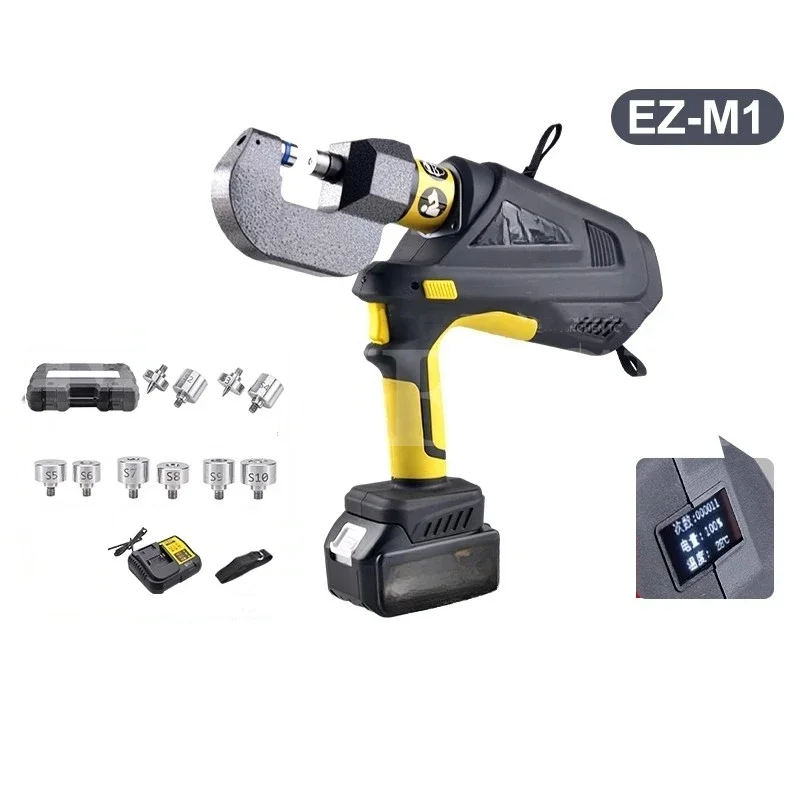

Aluminium body repair rivet gun EZ-M1 stamping riveting retreat nail electric hydraulic riveting gun self-punching auto repair sheet metal

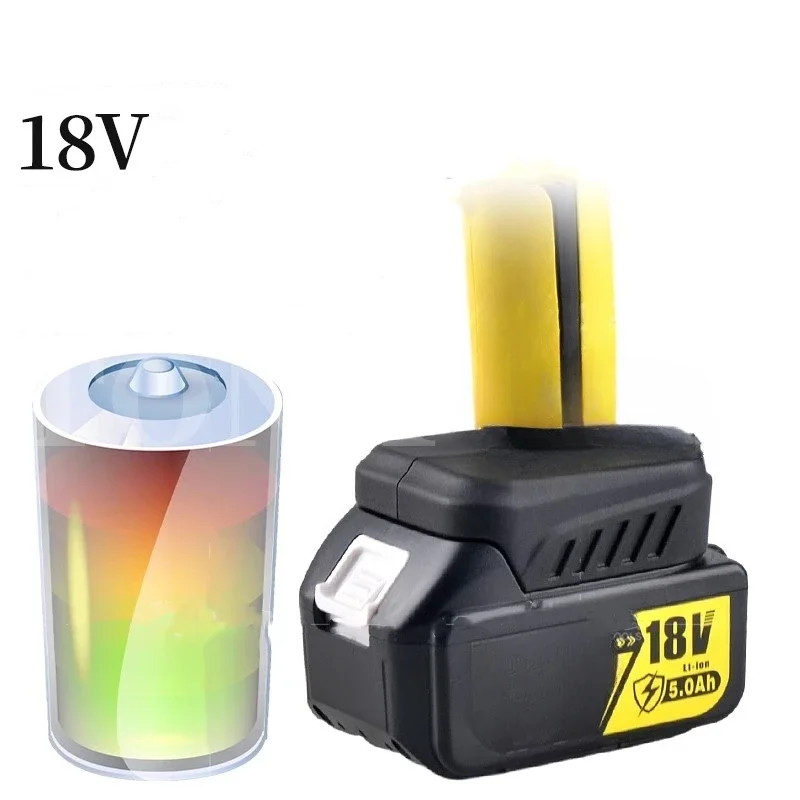

Charging voltage: DC 18V/5.0Ah lithium battery

Working stroke: 38mm

Net weight: 5.2Kg

 Gross weight 11kg

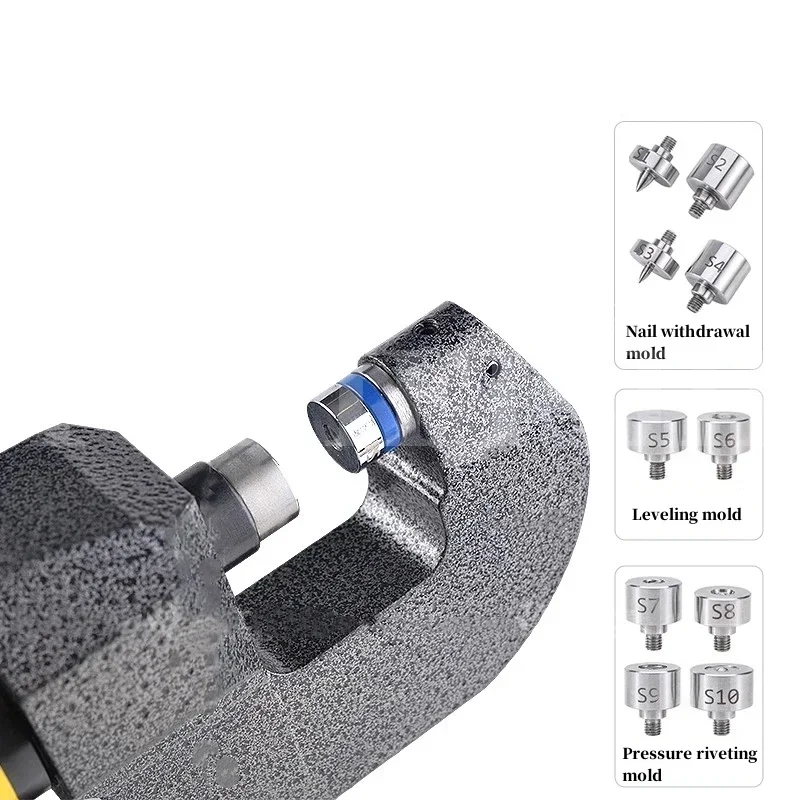

Function: self-piercing rivets, de-riveting, drilling, solid rivets, leveling, etc.

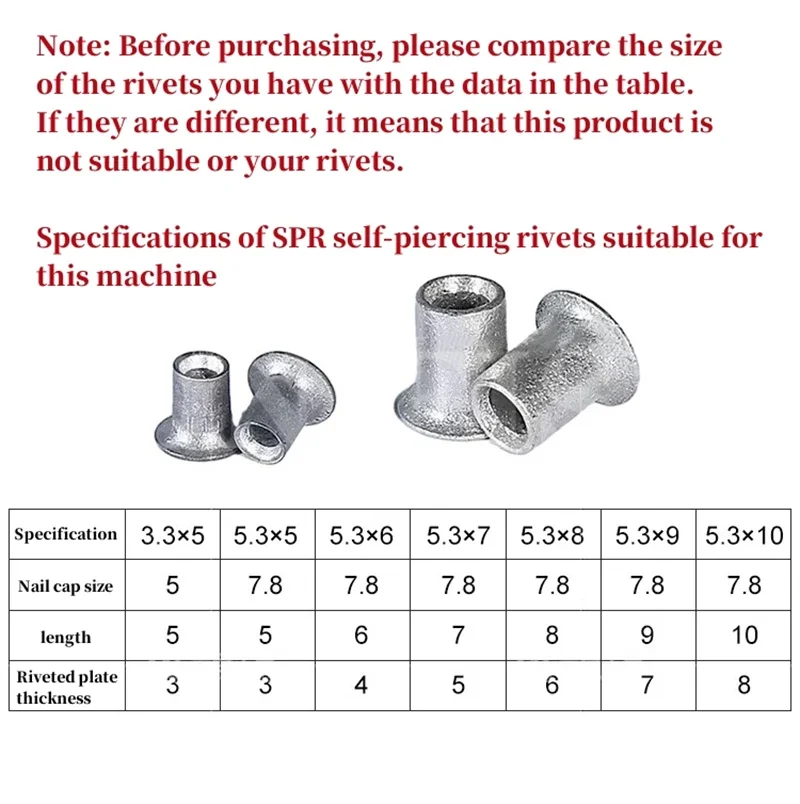

Processing range of self-piercing rivets: 3.3*5mm, 5.3*5mm, 5.3*6mm, 5.3*7mm, 5.3*8mm, 5.3*9mm, 5.3*10mm, 5.3*12mm

Technical features:

1. The riveting force can be infinitely adjusted according to the size of the rivets and the strength requirements of the riveted material. It can be used for riveting, filling, punching and caulking, flattening and shaping of plates, etc.;

2. Quick and accurate stop function. During the riveting process, the tool will pause instantly when the button is released and can be started again. The safety valve can be released automatically or manually after reaching a certain pressure, and the working stroke can be adjusted;

3. Ergonomically designed anti-slip handle, U-shaped frame tool can rotate 360 degrees;

4. Microcomputer control system implements pressure detection and double safety protection during the automatic riveting process;

5. High-performance lithium-ion battery provides a more powerful power source, has a reminder function when the battery is low, and has no discharge memory effect.
