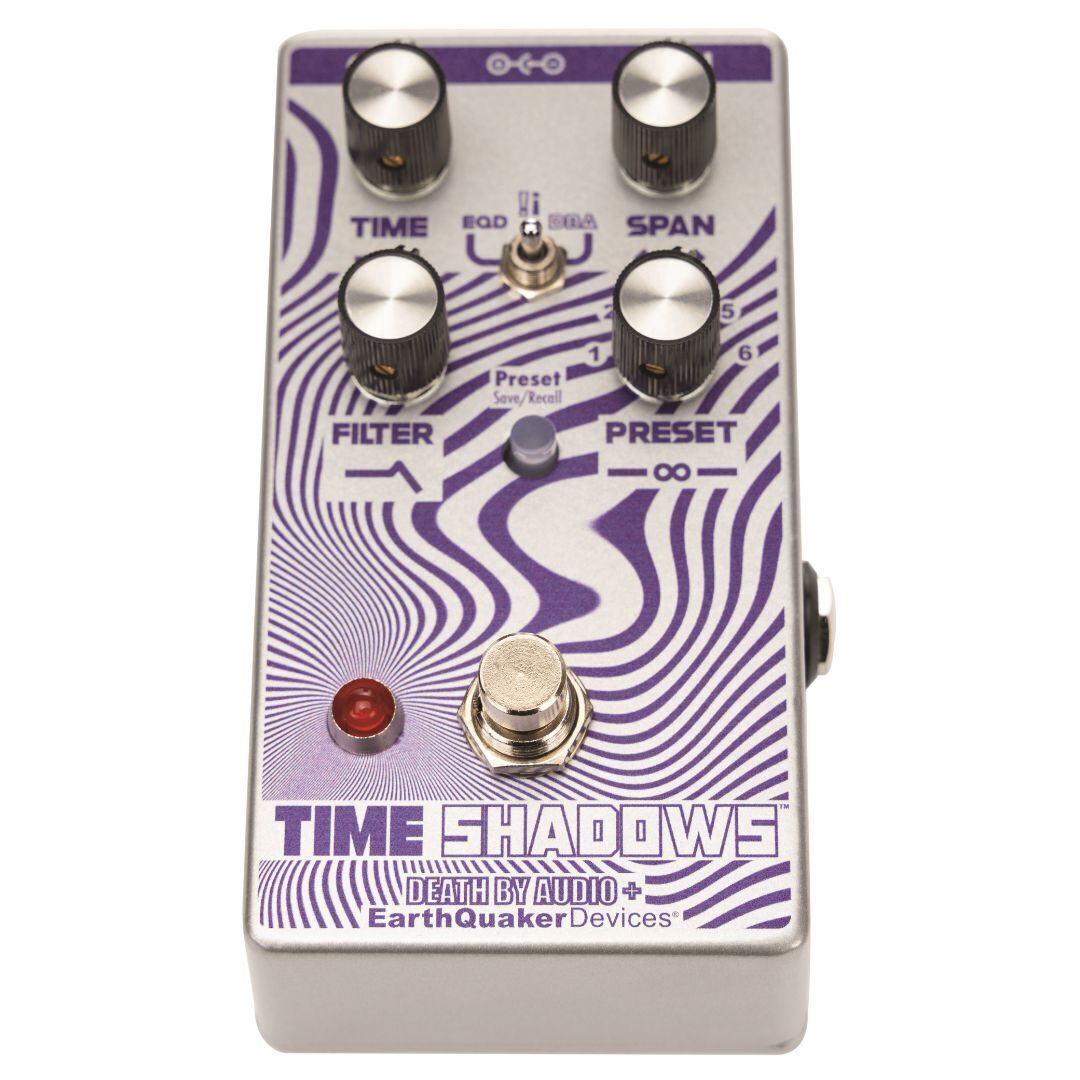

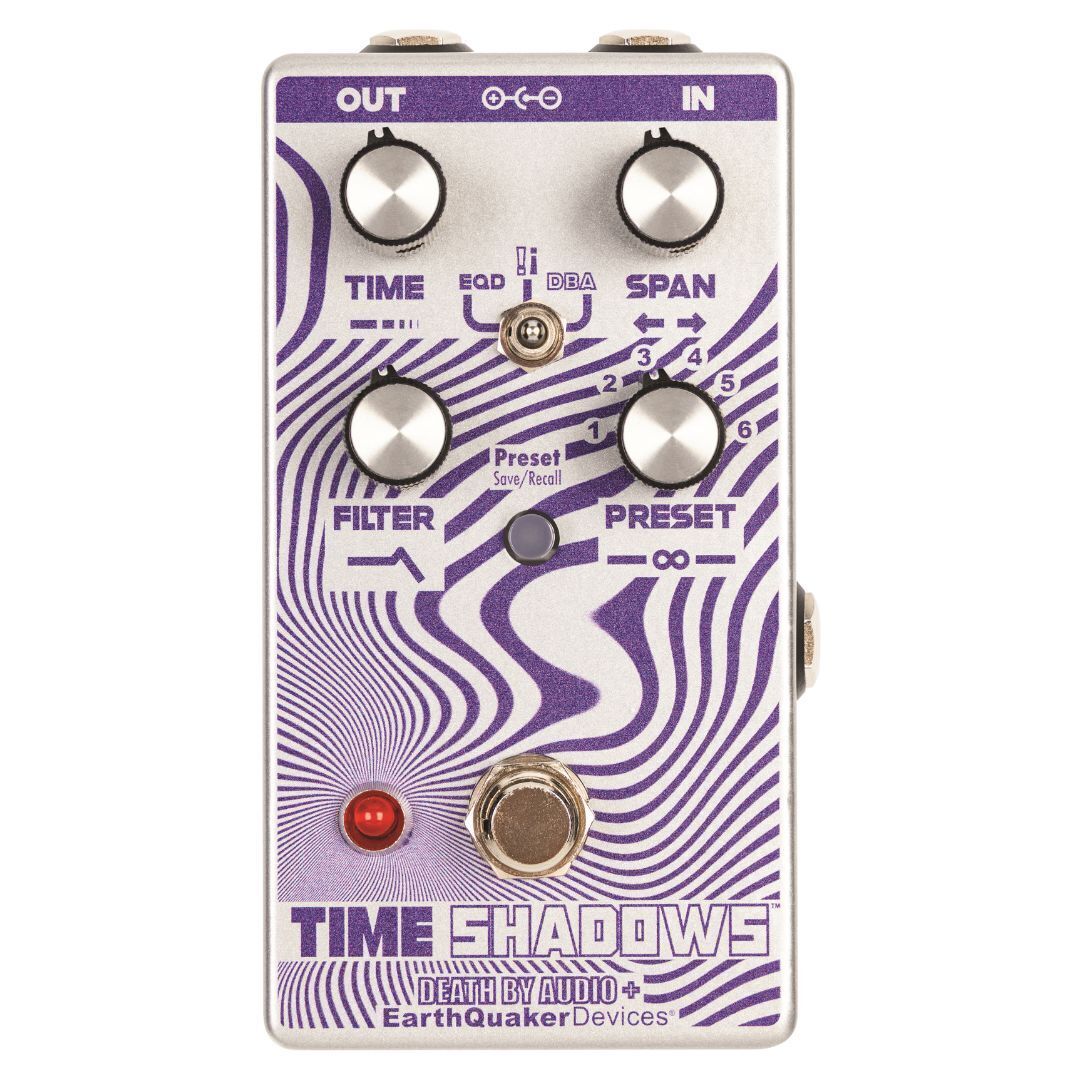

Earth Quaker Devices Time Shadows II Subharmonic Multi - Delay Guitar Pedal
Earth Quaker Devices Time Shadows II Subharmonic Multi - Delay Guitar Pedal
- Guitar pedal inspired by Death By Audio device
- Simple-to-use Time, Span, and Filter controls
- Green means live mode
- Red means preset mode
- Time controls the Delay Time
- Span controls the intensity of repletion
- Factory set to boot up in Live Mode
- 500K input impedance
- 100 ohm output impedance
- EarthQuaker Device Time Shadows II Subharmonic Multi-Delay Resonator Guitar Pedal with 6 Presets
Controls
All three modes share the same simple controls: Time, Span and Filter. While they control the same parameters, you’ll get wildly different results in each mode. Time controls the Delay Time. Span controls the intensity of repletion. Filter is arguably the most fun control on Time Shadows. On the EQD side this controls an envelope for the filter frequency and a gate for the cutoff to the input of the delay. On the DBA side this controls the filter Frequency as well as the shift point of a precisely phased delay line for pole zero interpolation. In the magic middle position, this controls the mix. Since there is an envelope component to this effect, the input level will play a role in frequency response. Some of the most fun to be had is with short delay Time and high Span settings while manipulating the Filter control.
Global Features
Time Shadows has two operating modes which are indicated by the color of the Save or Recall switch. Green means Live Mode. The pedal will operate exactly where the controls are set, and any changes will have no effect on the presets unless saved. The Save or Recall switch will stay static green. Red means Preset Mode. Time Shadows will operate in a stored preset mode which is selected by the preset switch and the physical settings of the control will be ignored. The Save or Recall switch will stay static red. Time Shadows comes factory set to start up in Live Mode.
Presets
Time Shadows has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the mode switch and the expression jack assignment can be saved and recalled in any of the slots.
Specifications
- Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
- Current Draw: 75 mA
- Input Impedance: 500 k ohm
- Output Impedance: 100 ohm
- TRS Expression Pedal Wiring: Tip: Wiper / Ring: +3.3V / Sleeve: Ground
- Power: This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. The manufacturer always recommends pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies.
