Fitment:
08-07 FORD RANGER L4 2.3L
08-07 FORD RANGER V6 3.0L
11-07 FORD RANGER V6 4.0L
Position:
Fuel Tank
Package Included:

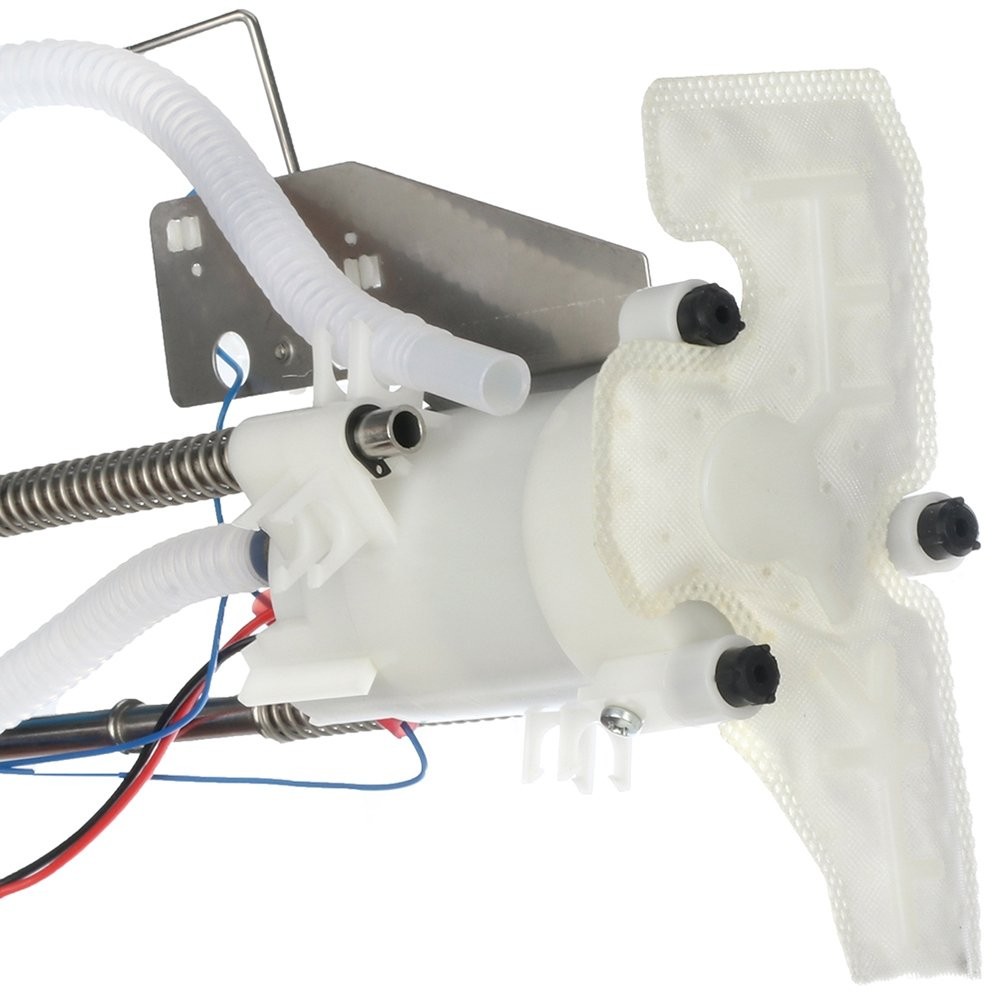

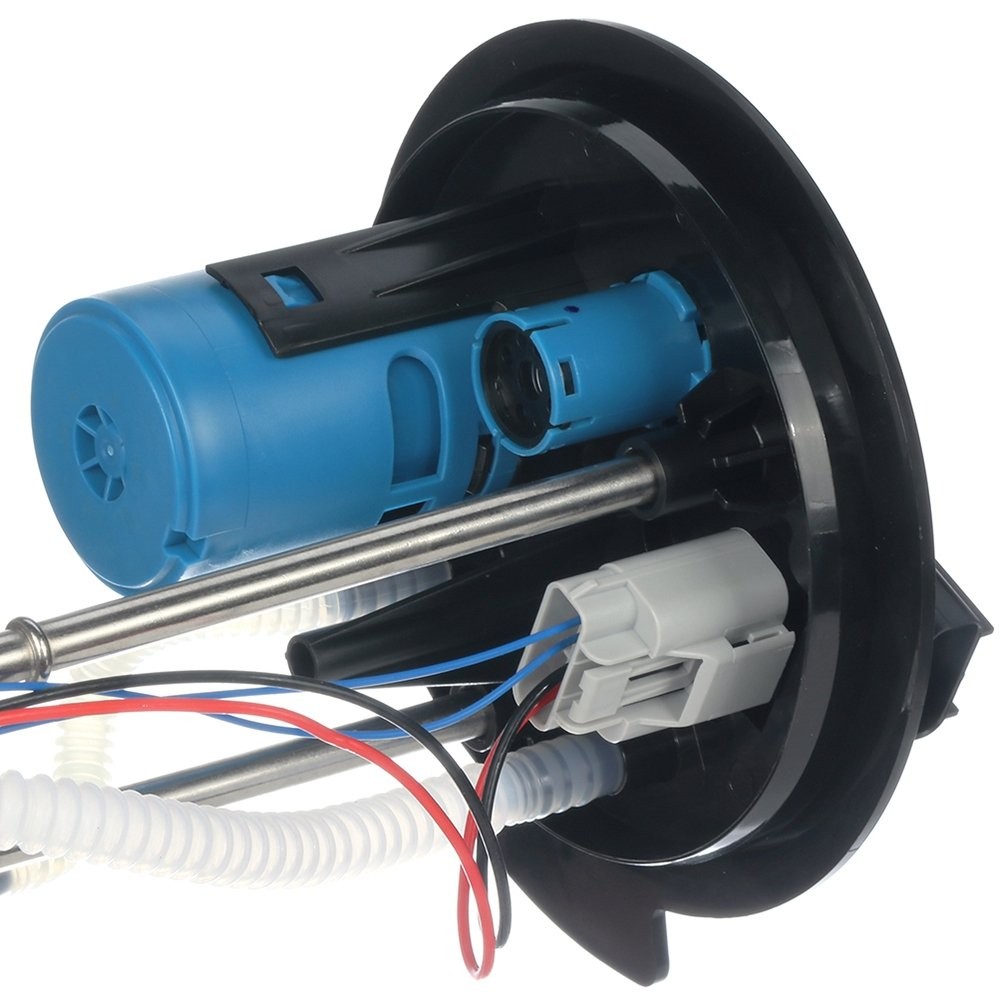

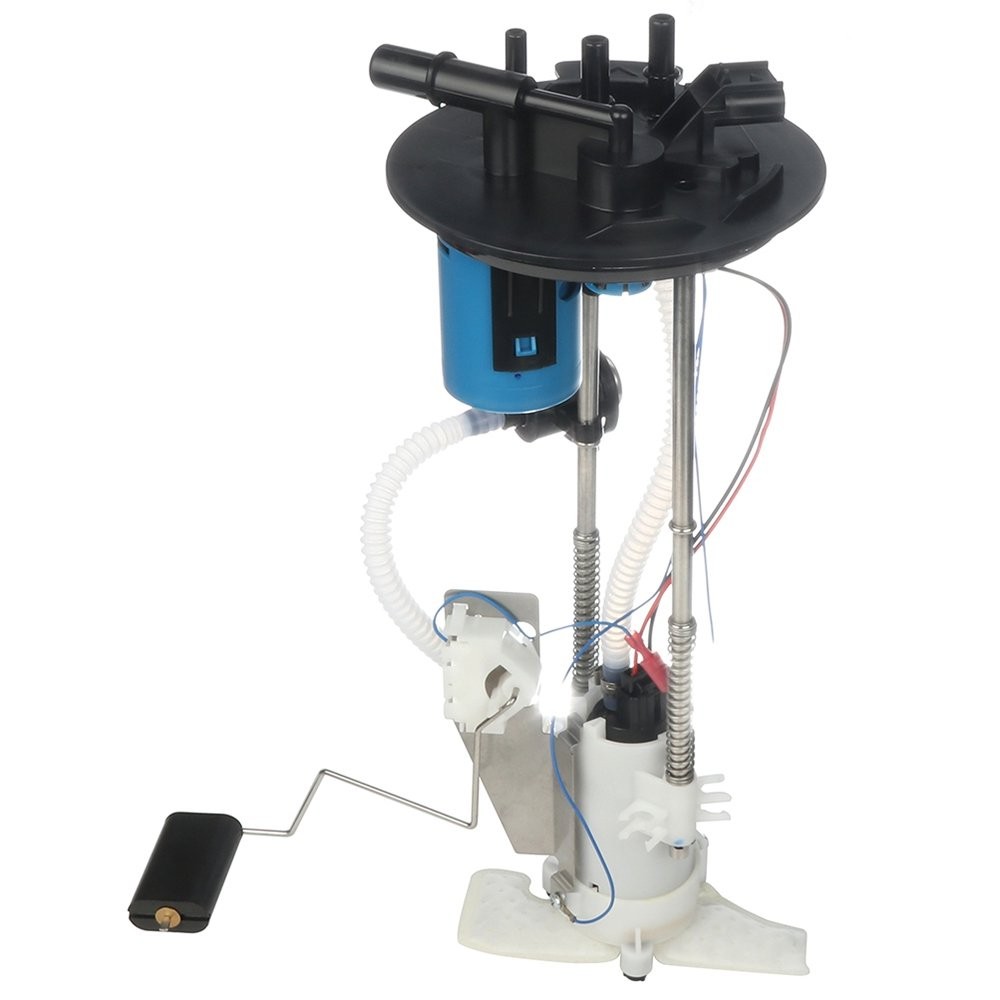

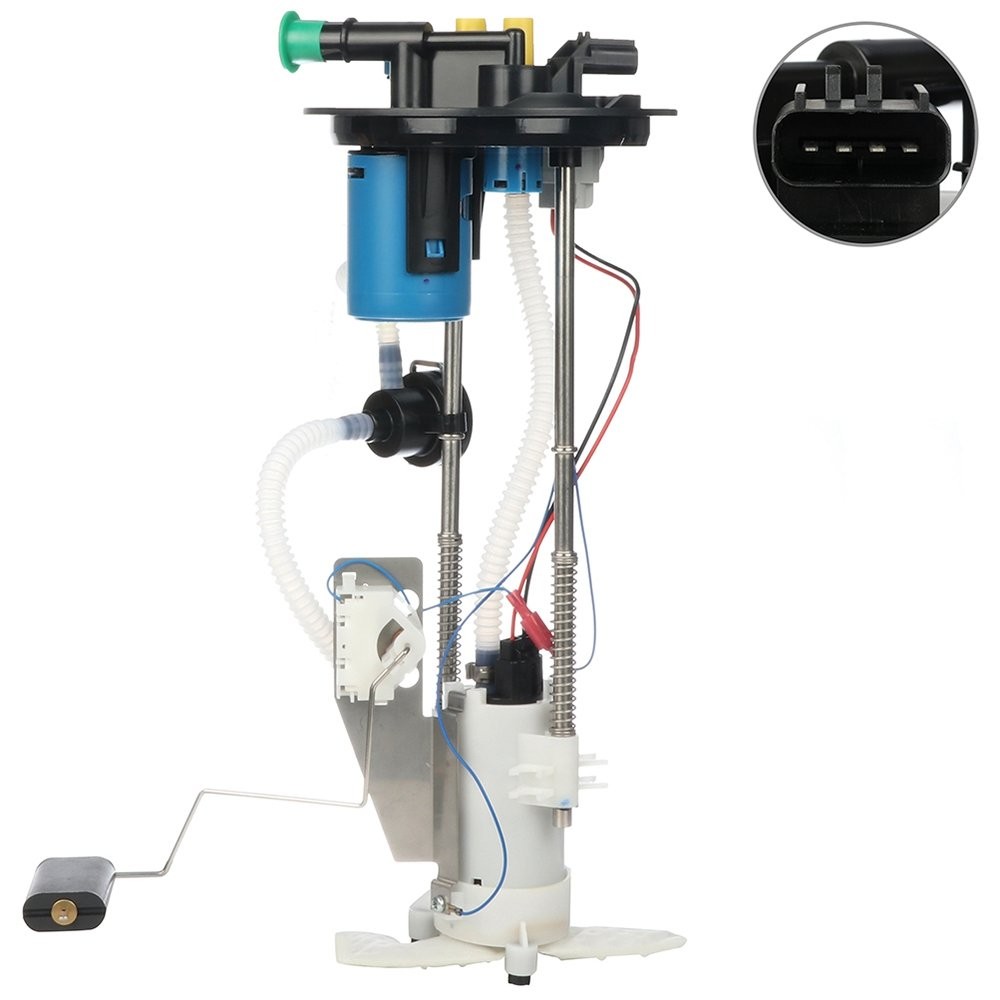

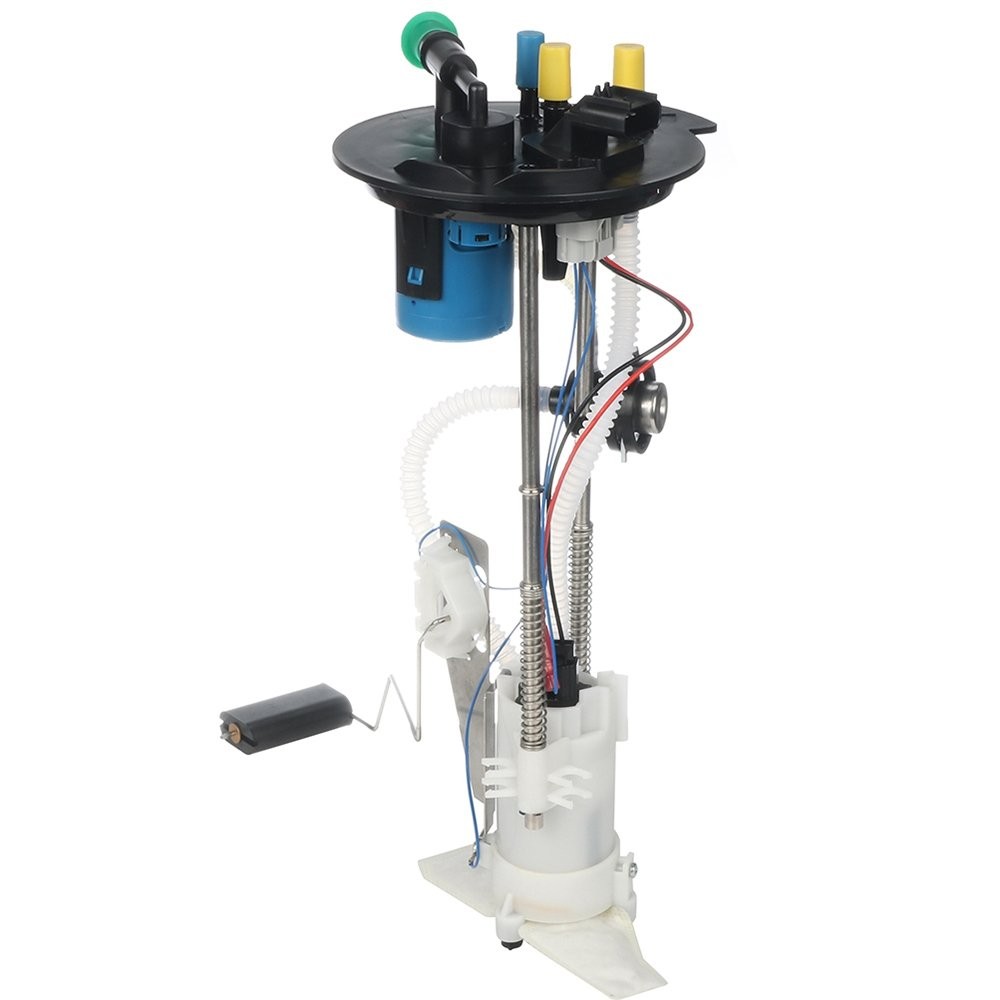

1 x Fuel Pump Assembly
How to replace a fuel pump?
Replacing a fuel pump is a complex and potentially hazardous procedure involving fuel system depressurization, electrical safety, fuel handling, and precise mechanical assembly. It is strongly recommended that this task be performed only by a certified automotive technician.That said, for informational purposes only, here’s a high-level overview of the typical steps:
-
Safety First: Disconnect the vehicle battery to prevent sparks; work in a well-ventilated area away from open flames or ignition sources.
-
Relieve Fuel Pressure: Use the vehicle’s diagnostic system or disconnect the fuel pump fuse/relay and run the engine until it stalls.
-
Access the Fuel Pump: Depending on the vehicle, the pump may be accessed via an access panel in the trunk or rear seat (common in many sedans/SUVs), or requires dropping the fuel tank (common in trucks and some older models).
-
Disconnect Electrical & Fuel Lines: Carefully unplug wiring harnesses and detach fuel lines—use proper tools and absorb any residual fuel with shop towels.
-
Remove & Replace: Remove the old pump module (often housed in a sending unit assembly), install the new OEM- or high-quality aftermarket unit with new seals/gaskets, and reassemble carefully.
-
Test Thoroughly: Reconnect battery, cycle ignition (without starting) to prime the system, then start and check for leaks, abnormal noises, or warning lights.
⚠️ Important: Fitment, wiring configuration, and mounting vary significantly by make/model/year. Always consult the vehicle-specific service manual and verify compatibility before purchase.If you're considering a replacement, we recommend contacting a certified repair shop—or reach out to us for fitment verification and warranty support.
| Item Specifics | |
|---|---|
| UPC | Does not apply |
| Brand | CSmanager |
| Manufacturer Part Number | 13601284 |
| Manufacturer Warranty | 1 Year |
| Type | Fuel Pump |
| Fuel Type | Gasoline |
| Drive Type | Electrical |
| Placement on Vehicle | Fuel Tank |
| OE/OEM Part Number | A30549,PFS523,PFS-523 |
| Interchange Part Number | 8L5Z9H307E,FG0884,P76479M,FG0884 |
| Superseded Part Number | SP2371M,7L5Z9H307B,8L5Z9H307B |
| Items Included | Mounting Hardware |
| Wiring Harness Included | No |
| Gasket or Seal Included | Yes |
| Float Included | Yes |
| Flow Rate | 55-45 gph |
| Pressure | 59-65 psi |
| Voltage | 12 V |
| Fitment Type | Direct Replacement |
| Confirm | California |
| Outlet Type | Quick Connect |
| Outlet Size | 3/8 |
| Outlet Quantity | 1 |
| Inlet Quantity | 1 |
| Terminal Type | Flat |
| Pin Quantity | 4 |
| Terminal Gender | Female |
| Connector Shape | Oval |
| Connector Gender | Male |
| Internal Or External Strainer | External |
| Package Included | Fuel Pump Module Assembly w/Float Arm,Seal |
| Black Pressure Sensor Included | No |
| Color | White |
| Custom Bundle | No |
| OE Spec or Performance/Custom | OE Spec |
| Modified Item | No |
| Mounting Hardware Included | No |
