Fitment:
2003-2004 Ford Focus
Notes:

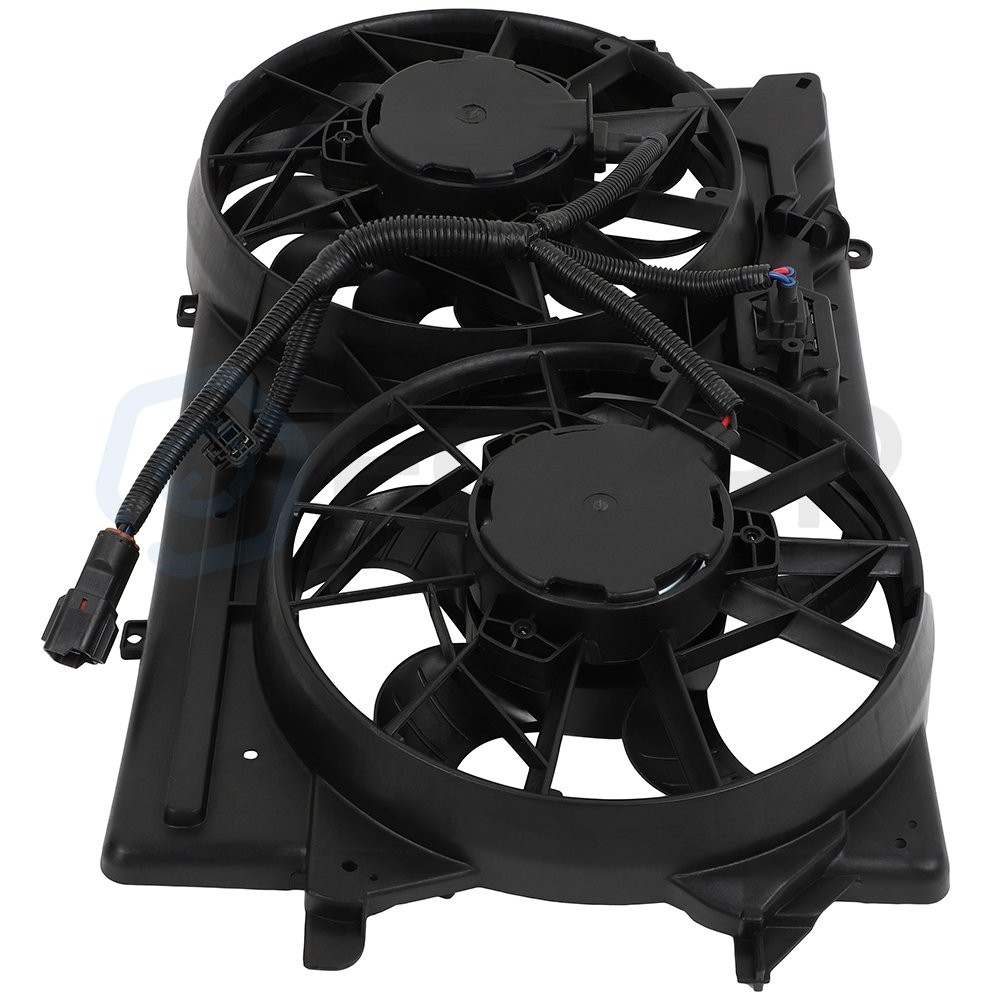

The radiator cooling fan is an integral part of your car that is responsible for cooling the radiator of your car. The radiator cooling fan does this by either pulling or pushing air into the radiator keeping the radiator temperatures within the safe levels. A damaged radiator cooling fan is a determining factor in preventing your car from overheating. Below are the materials that you need along with the instructions on how to replace a radiator cooling fan.
Step 1: Locate the Radiator Cooling Fan
Locating the radiator cooling fan is the first step in replacing it. Turn off your car and allow it to cool off. Open the hood of your car and you will be able to see the radiator that is located at the back of the grill at the front portion of your engine compartment. The radiator cooling fan is attached at the back of the radiator through a mounting frame. Under the engine and the radiator is a sticking cylinder that is encased in a small casing. That is the radiator cooling fan motor that you may need to change or repair other than the radiator cooling fan itself.
Step 2: Disconnect the Power Supply

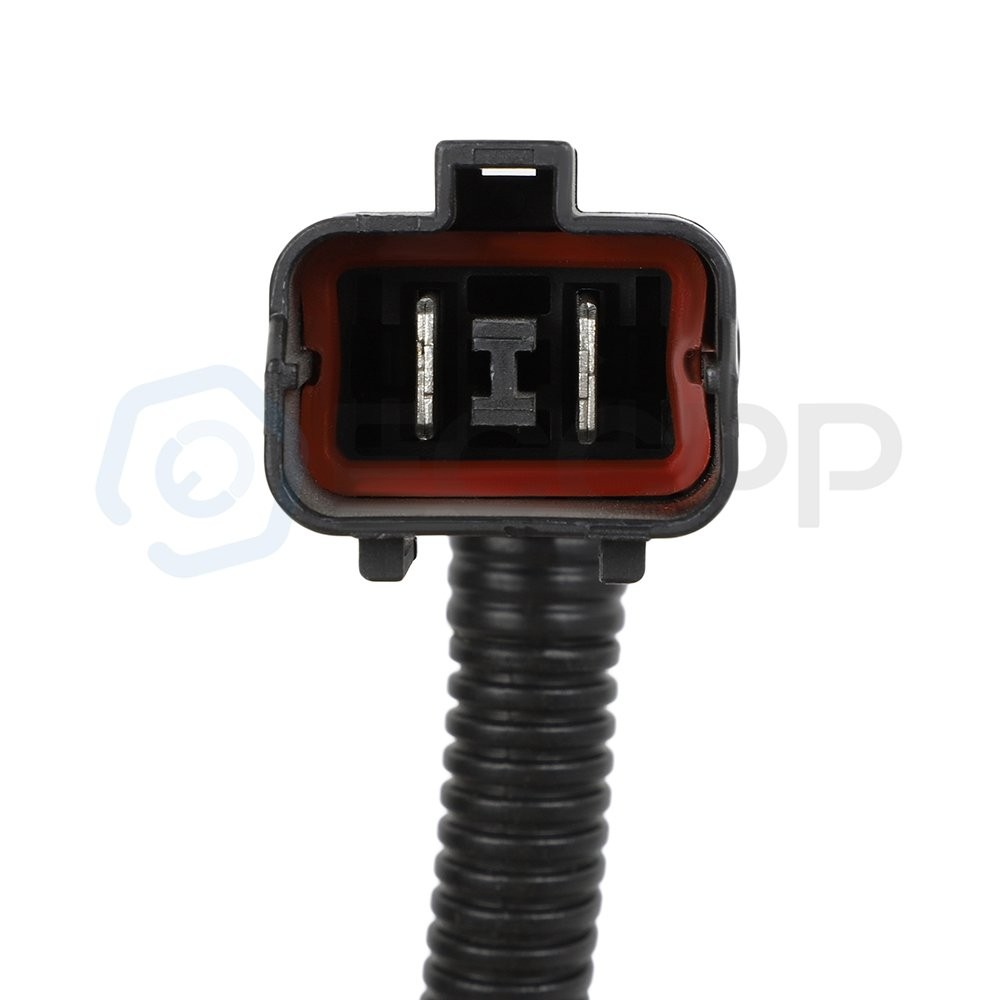

On the fan motor is an electric cable running towards the engine. Find the connector of the wires from your engine and from your radiator fan motor and disconnect it. Using two masking tapes with different colors, note the connection of the wires so that you will not have a hard time reconnecting the wires later.
Step 3: Remove the Fan Housing
Using a crescent wrench, remove the four screws located at each corner of the fan housing. Remove the fasteners at the sides of the fan housing as well. A radiator cooling fan housing is relatively large and you may need to remove all the obstructions like hoses and wirings so that you can extract the fan housing off your car hood. Hold the housing firmly and lift it off your engine compartment. Be careful in removing the fan housing to avoid damaging it. Place the fan housing on a clutter-free working table.
Step 4: Remove the Radiator Cooling Fan and the Fan Motor
The fan blade is either pinned or screwed to a shaft. With a screwdriver, loosen the fan blade and slide if off its shaft. You may need to remove a keeper that prevents the fan blades from moving up in the shaft up and down. As to the fan motor itself, remove it from the fan housing using a screwdriver.
Step 5: Attach the Replacement Radiator Cooling Fan and Fan Motor
Install the new fan motor into the fan housing. Slide your replacement radiator cooling fan into the shaft, insert the keeper and secure the new cooling fan and keeper into place. Return the fan housing back into its proper place and secure the screws and the fasteners. Reattach the hoses and wires you removed in step 3. Connect the fan motor into the car electrical system using the electrical tape guide you made in step 2. You just learned how to replace your radiator cooling fan as well as your radiator cooling fan motor.

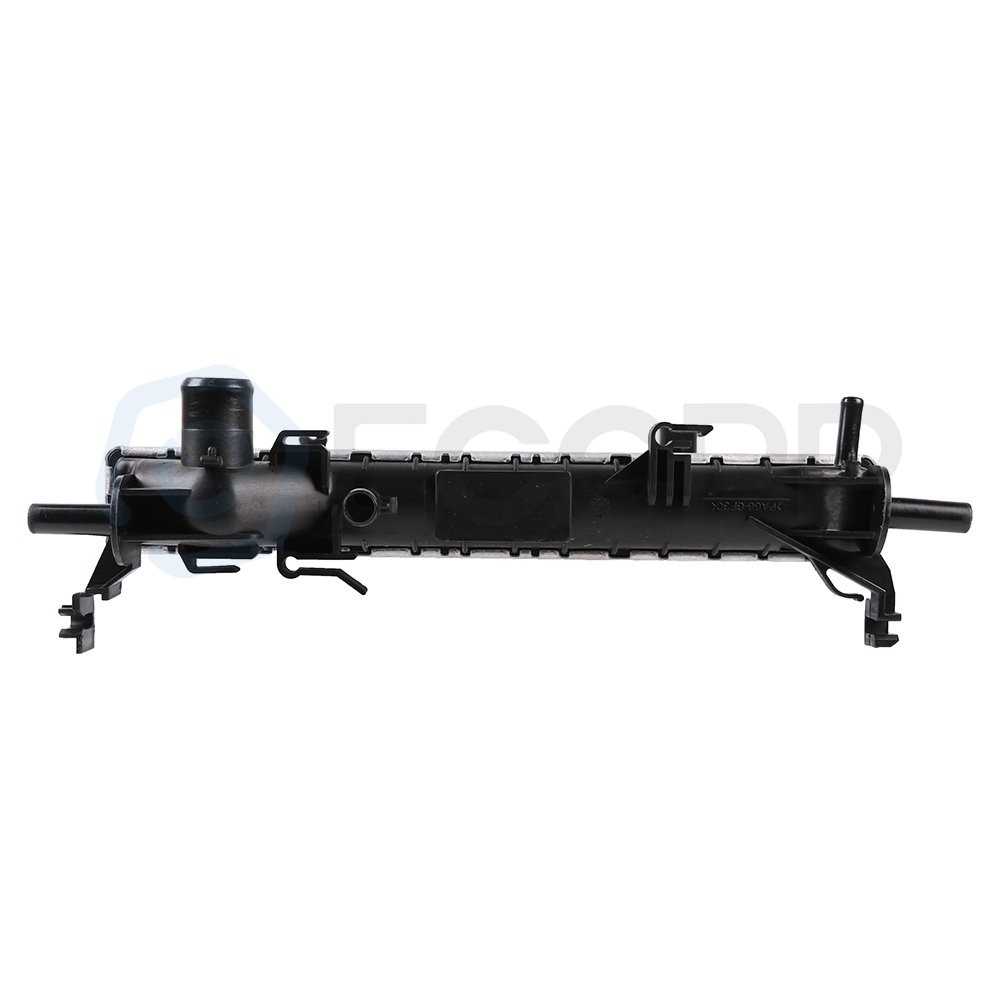

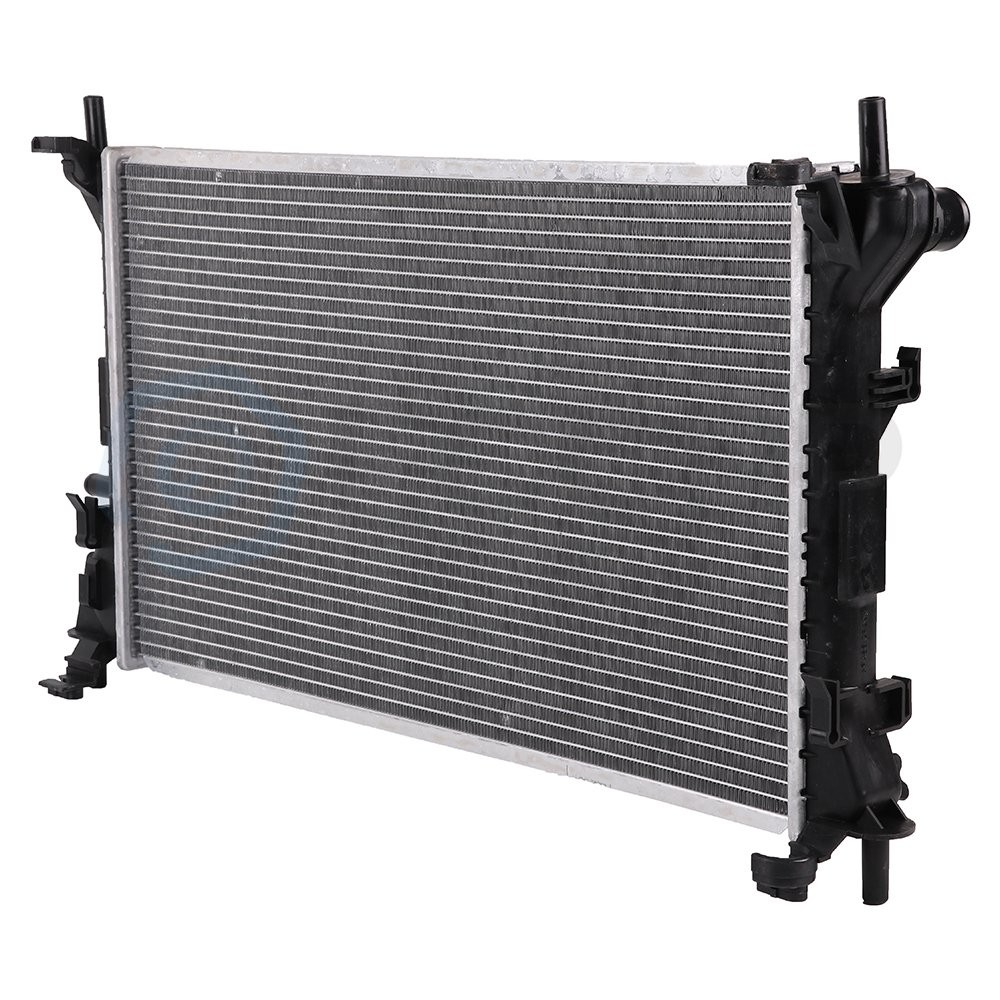

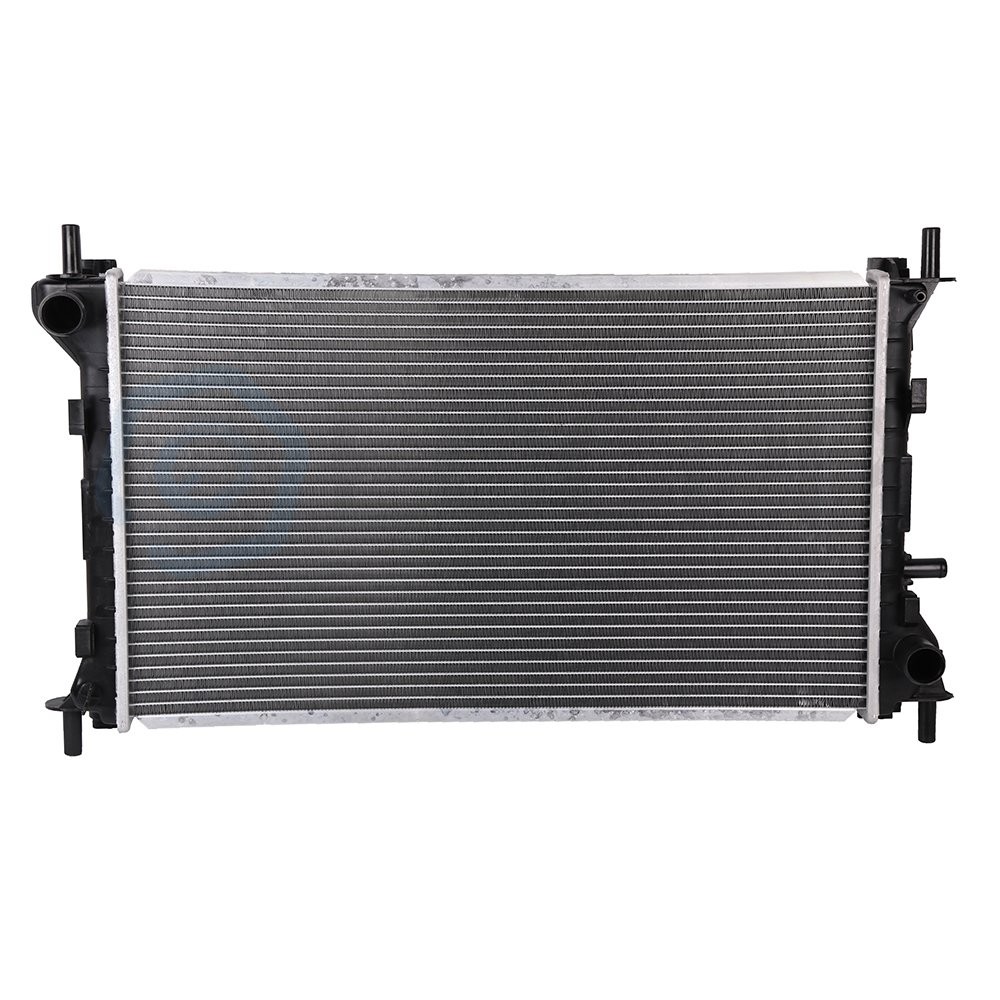

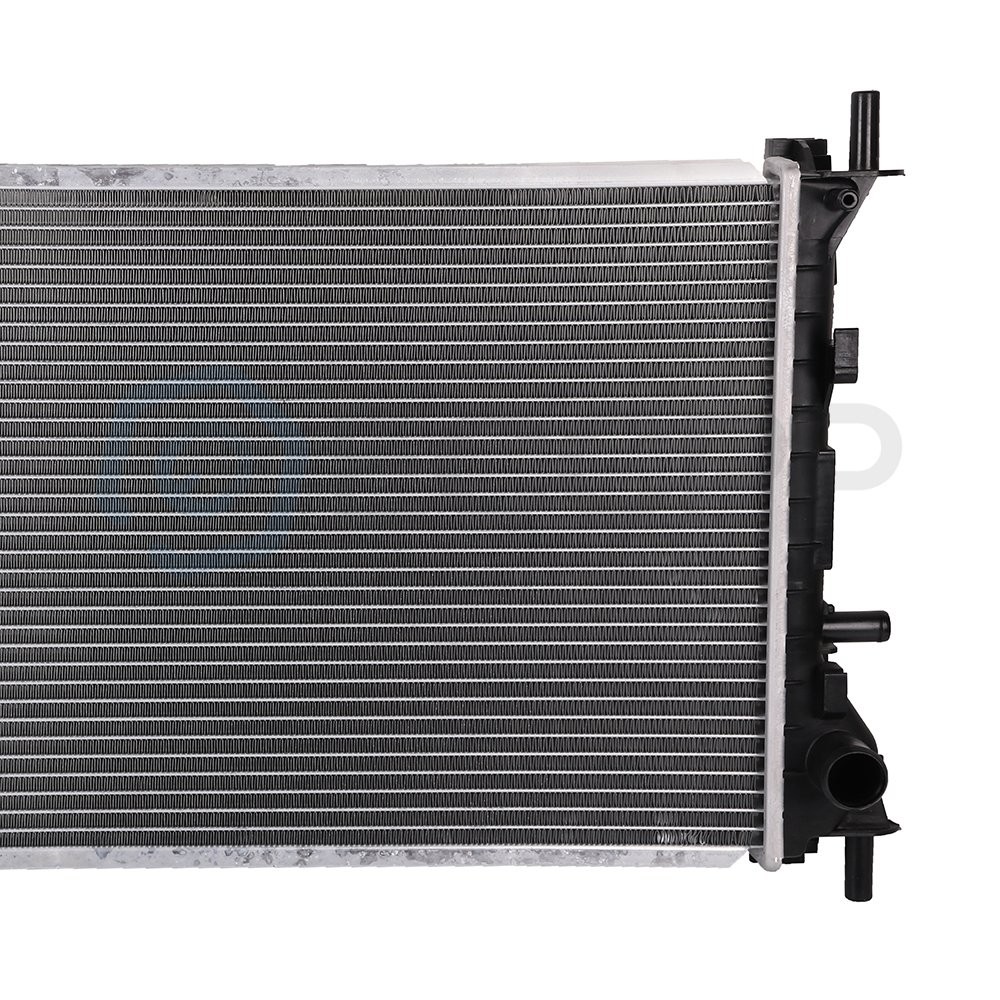

Radiator Notes:
Specification:
Core Material: Aluminum
Tank Material: Plastic
Quantity: 1pcs Radiator
Warranty:1 Year limited
Direct Replacement
100% brand new radiator (as picture showed)
--------------------------------------------
? Installation guidelines provided in the box
? Premium OE hardware and fittings included in every box
? OE design to ensure exact fit, form and function for an easy drop-in installation
? Maximum cooling efficiency and perfect fit
? Leak-tested aftermarket radiator
? SO 9001 certified manufacturing plants
How to replace a new radiator?
1. Disconnect the battery.
2. Drain the radiator fluid into a suitable container.
3. Remove the old radiator:
-Take off any plastic covers around the radiator.
-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.
-Disconnect the radiator hoses from the radiator.
-Disconnect the transmission cooling lines from the bottom of the radiator.
-Remove any clamps, brackets, or screws holding the radiator inside its frame.
-Lift the radiator up and out of the car.
4. Install the new radiator:
-Slide the new radiator into place.
-Connect any clamps or brackets that hold the radiator in place.
-Connect the transmission cooling lines carefully.
-Connect the engine cooling hoses to the radiator.
-Replace the fan and fan shroud.
-Reconnect the fan electrical connection.
-Replace the plastic covers.
5. Fill the radiator with fluid.
6. Check your work to make sure that there are no leaks.
(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)
Note:Do please keep children and pets away when replacing the radiator)
-----------------------------------------------------------------------------
Attention:
? project operation, the vehicle normal temperature 60 to 80 degrees.
? add detergent if the tank is too full can take some antifreeze.
- We stand behind every product we sell.
- All of our brand new items come with a 60-Days money-back guarantee.
- We define the item as defective only if it doesn't function as described.
- It is the buyer's responsibility to understand the item description before bidding.
- We will replace the defective items, provided that they are in stock within the warranty period posted with the listing and the buyer return the original item and pay for the S&H cost for the replacement.
- We will refund the purchase price if the replacement is not available or buyer prefers a refund and send the original item back at his/her own cost.
- We accept multiple payment methods
- Payments are expected within 7 days after the last winning auction is closed; Otherwise Unpaid Item Dispute will be filed with eBay.
- Product will be shipped within 2 business days after full payment is received and verified. Delivery Time is about 3-7 business days to most of countries.
- All domestic orders will be shipped via USPS, UPS or FedEx from our US warehouse and usually arrives to your door in about 3-5 business days.
- We ship the package to your shipping address in eBay. Please tell us your shipping address if it is different from the one in eBay.
- The tracking number will be given for the customer to check the shipping status online (registered or faster service only).
- We are not responsible for any wrong or undeliverable addresses. Please verify and update your shipping address on eBay during checkout.
- International Buyers a€“ Please Note:
- a) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
- b) Please check with your country's customs office to determine what these additional costs will be prior to bidding.
- Serious Buyer Only! Please place bid or "Buy it now" only if you agree the price and terms of the product and no argument after the auction.
- We strive to source genuine products from the suppliers. However, if you feel any of our products violate your Trademark, Patent Right or any other Intellectual Property Rights, please contact us. We will remove any offending listing immediately while awaiting further discussion.
