Features:

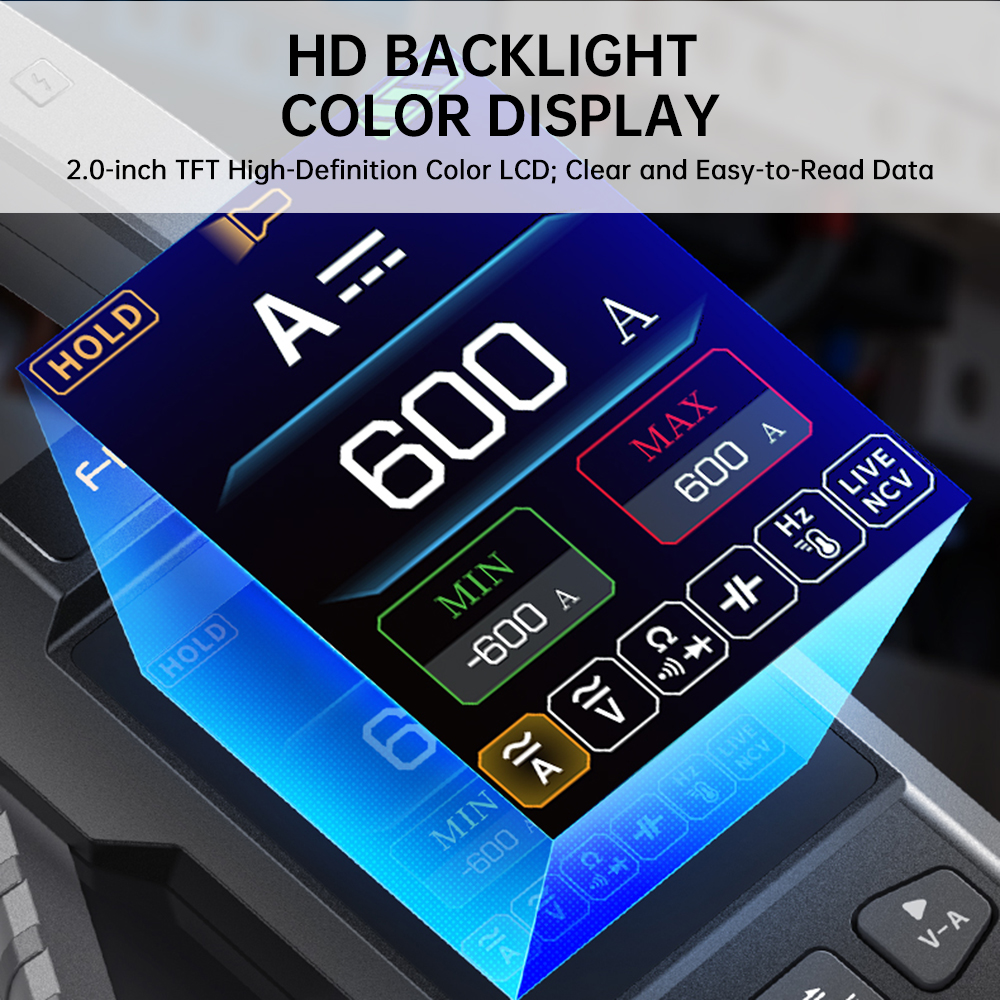

1.HD color screen clear digital display: equipped with 2.0-inch TFT high-definition full-color LCD display data view clear and concise

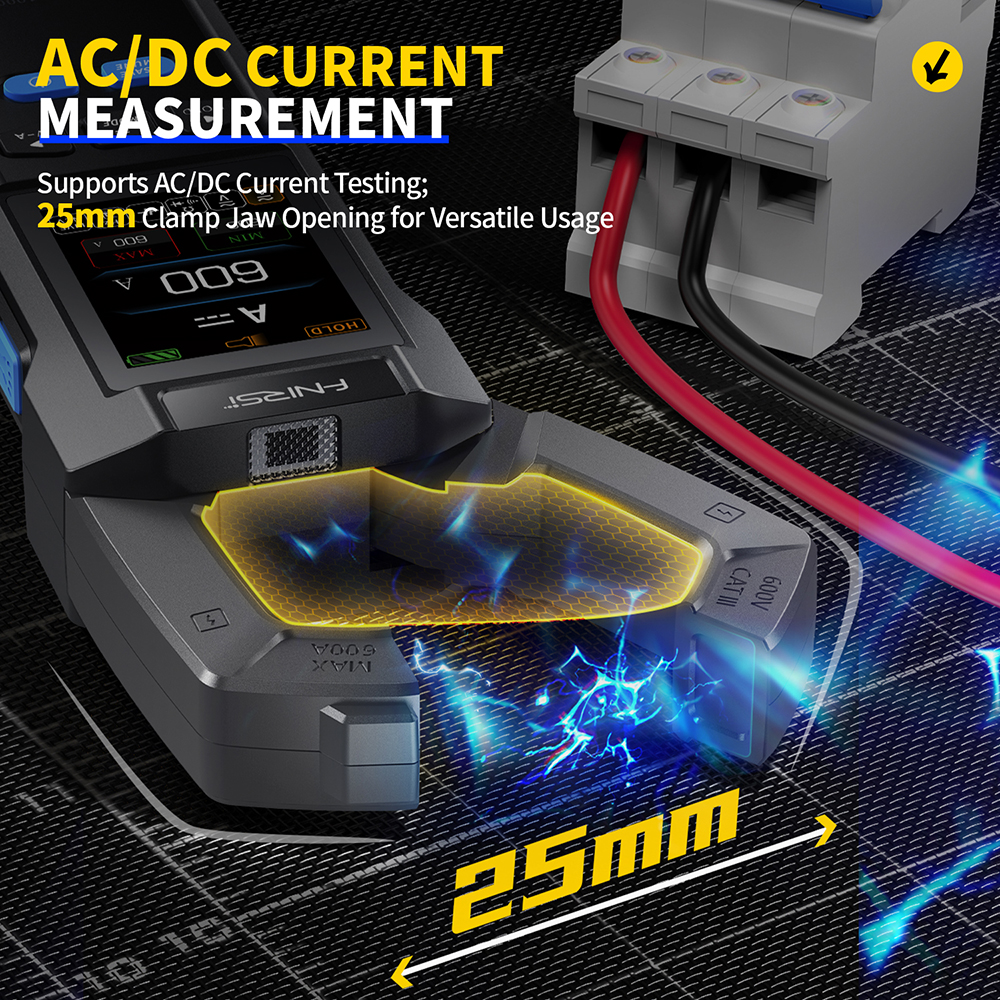

2.AC and DC current measurement: support DC and AC current measurement, up to 25mm jaw opening width, thick and thin wires can be measured.

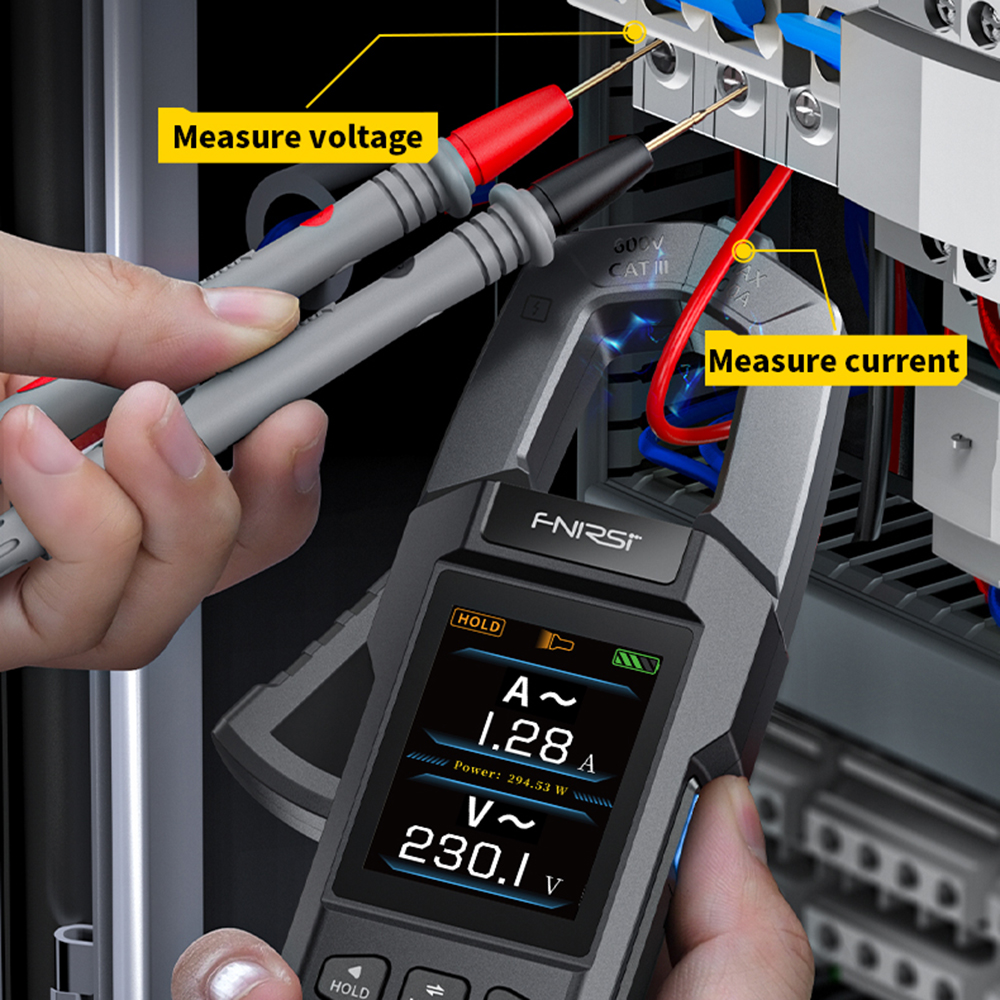

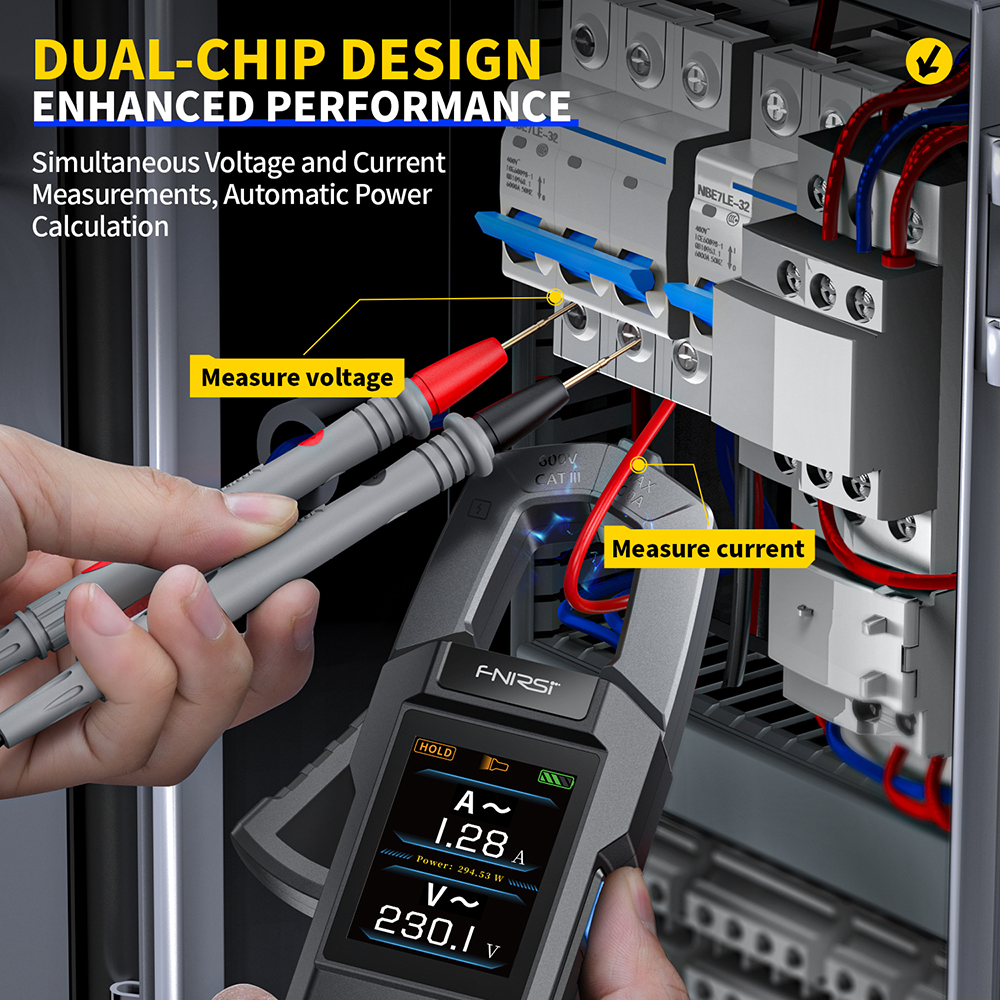

3. Data dual display: support voltage and current measurement at the same time
4.Waveform display and data saving: support viewing 8 groups of stored data, history records up to 30 groups of data.

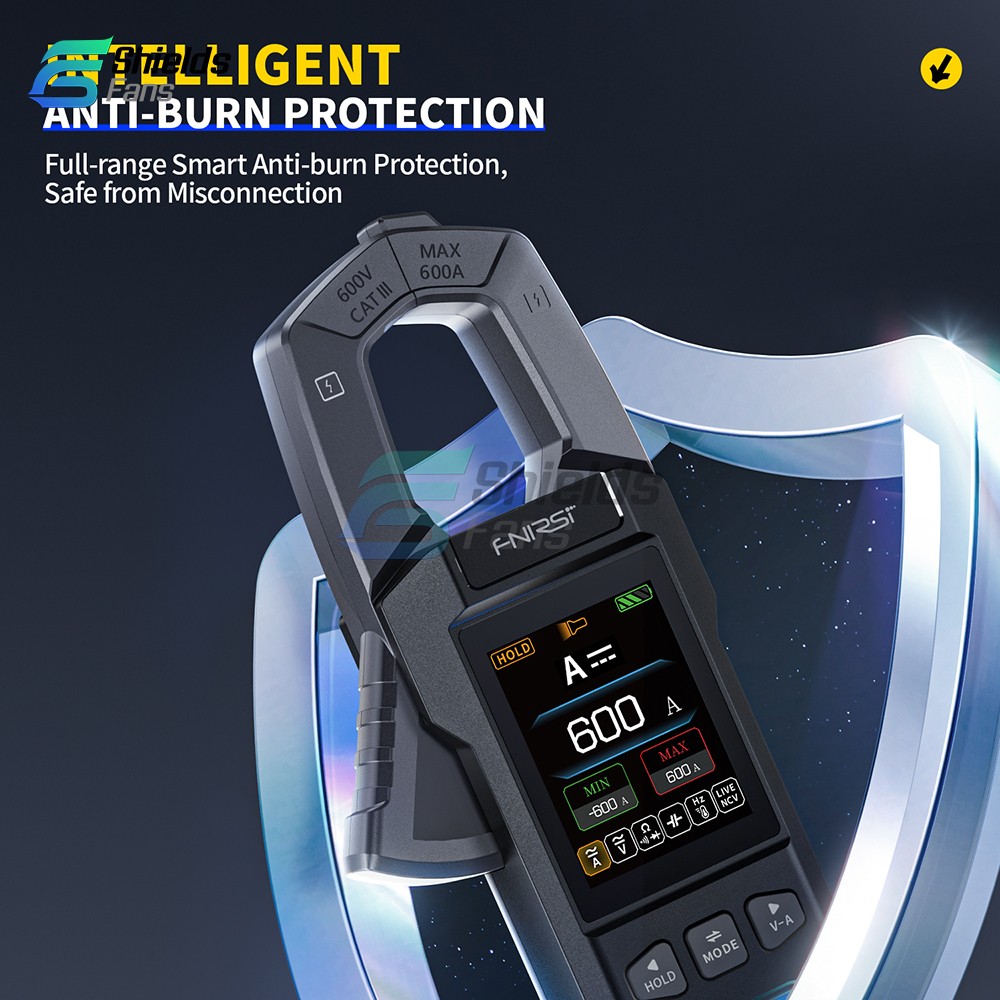

5.Intelligent anti-burning: all gears intelligent anti-burning, wrong gear does not burn the meter, safer to use.
Parameters:

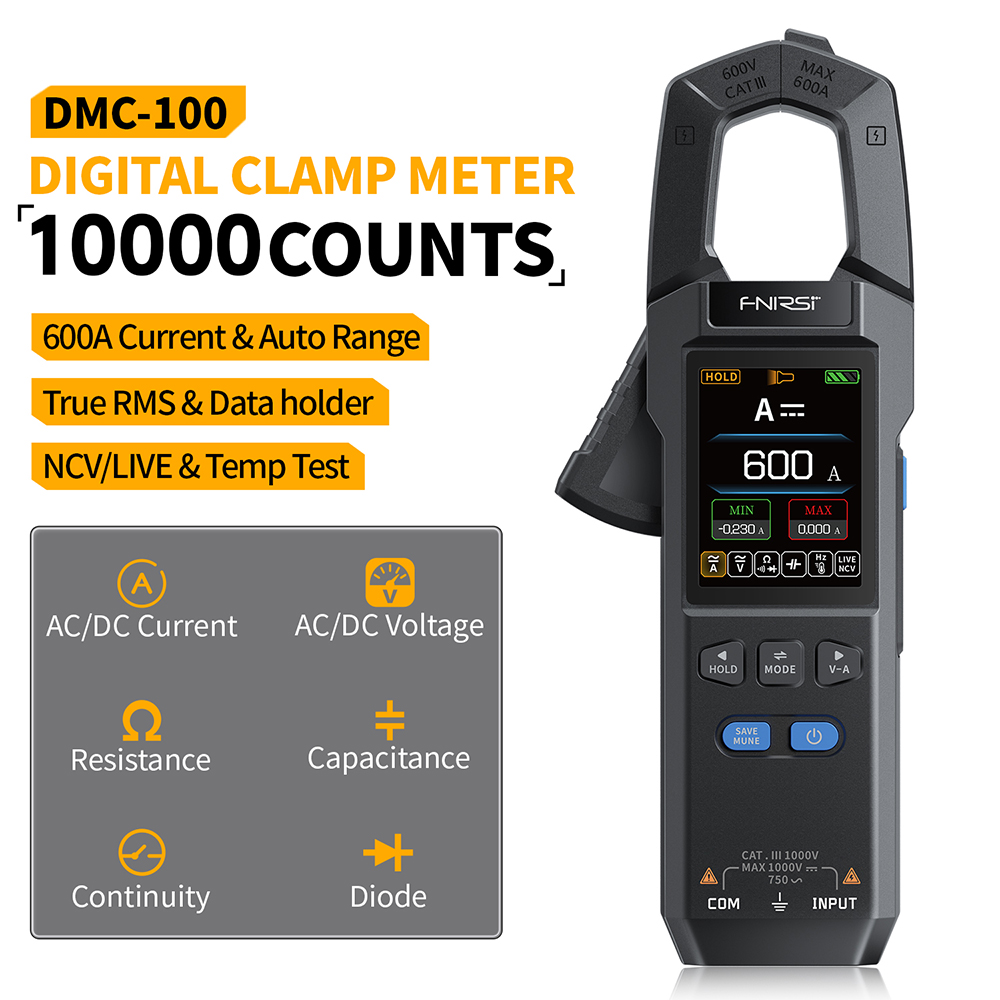

Product Model: DMC-100
Screen: 2.0 inch color screen

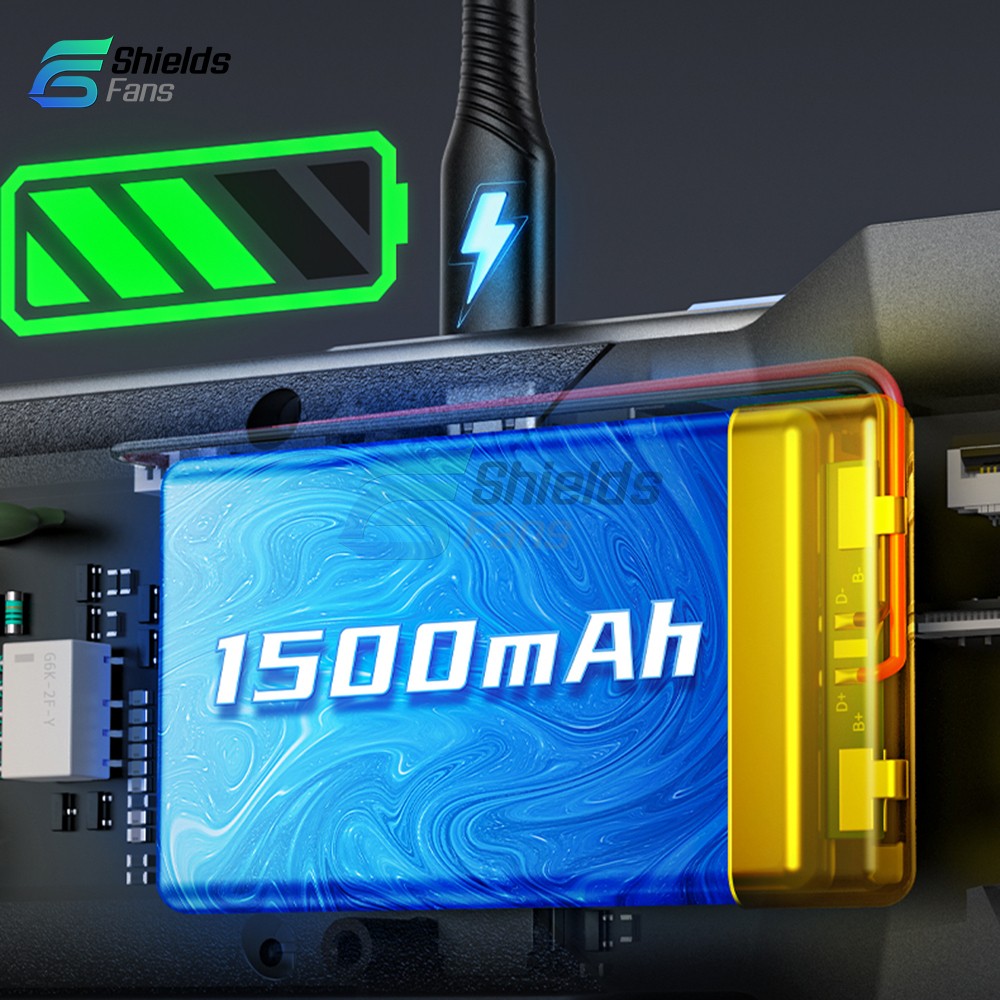

Power supply: 3.7V lithium battery
Charging specifications: USBType-C, 5V/1A
Maximum size of jaws: 25mm

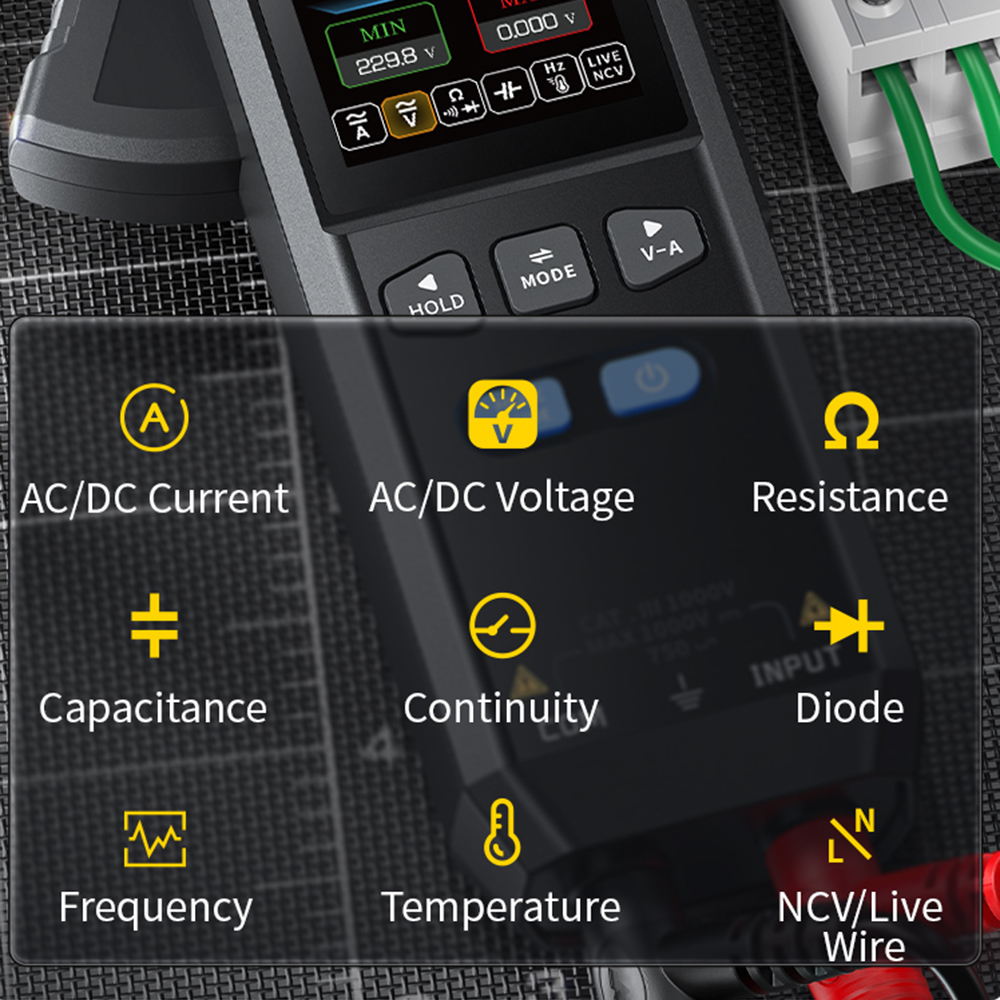

DC voltage: 9.999V/99.99V/999.9V
AC Voltage: 9.999V/99.99V/750.0V
DC current: 99.99A/600.0A
AC Current: 99.99A/600.0A
Resistance: 9.999MΩ/999.9KΩ/99.99KΩ/9.999KΩ/999.9Ω, 99.99MΩ
Capacitance: 999.9μF/99.99μF/9.999μF/999.9nF/99.99nF/9.999nF, 9.999mF/99.99mF
Frequency: 9.999MHz/999.9KHZ/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz
Temperature: (-55~1300℃)/(-67~2372℉)
Diode: √
On-off: √

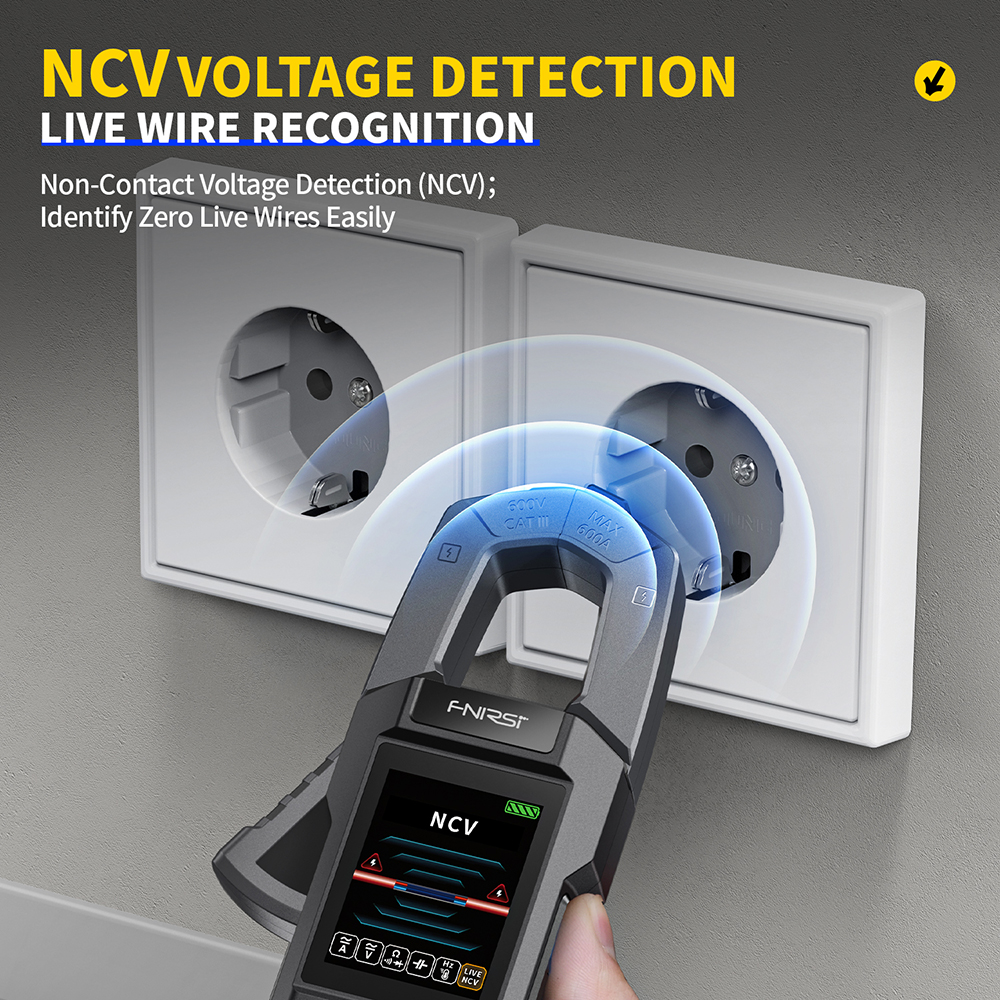

Non-Contact Voltage Detection(NCV): √
Single Meter Pen AC Voltage Detection (LIVE): √

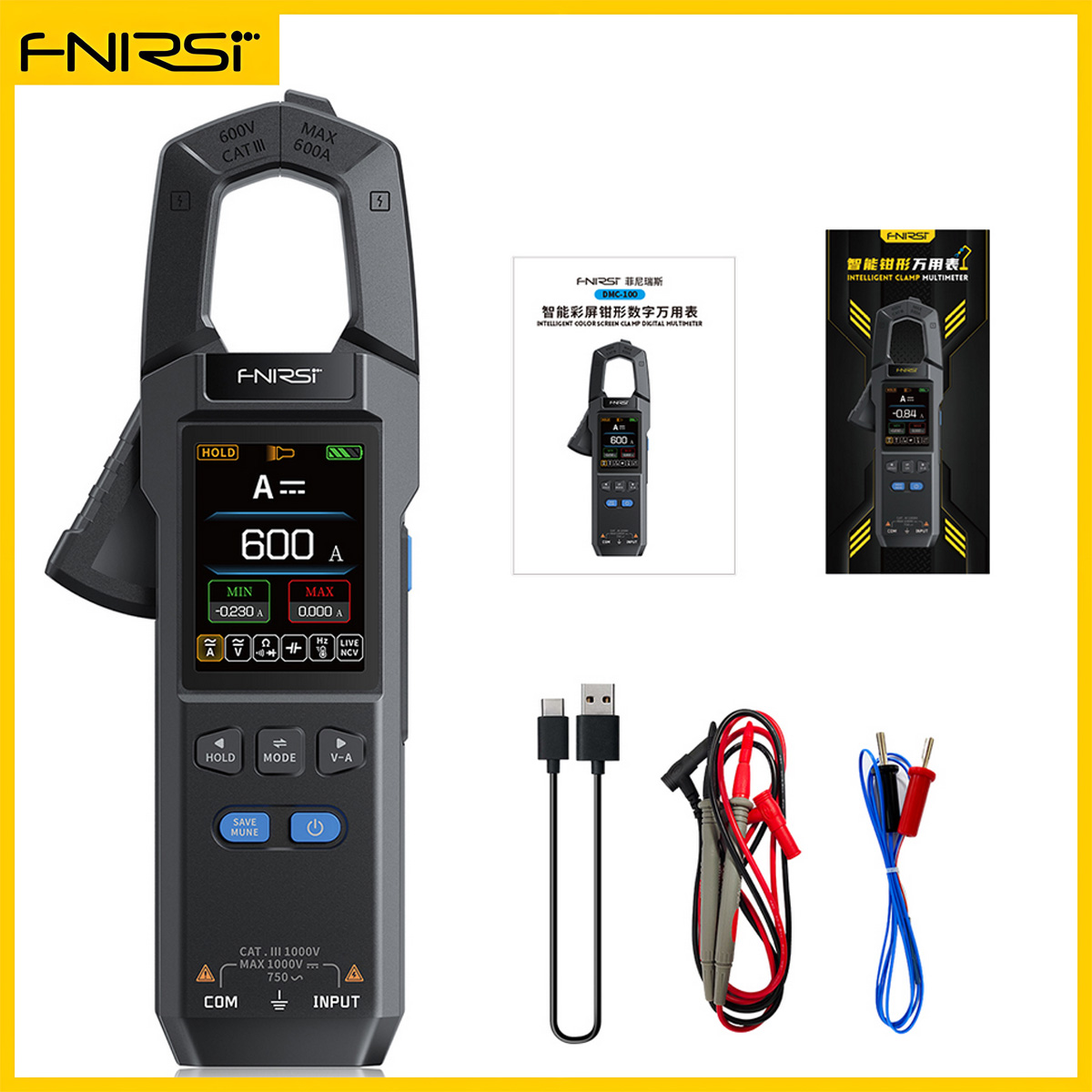

Package Includes:
Multimeter *1
Instruction manual *1
Multimeter pen *1
USB-C charging cable *1
Temperature cable *1
