Features:
1. High precision and wide measurement range: The LC1020E offers a basic accuracy of 0.3%, ensuring reliable and precise readings for professional use. It supports a wide measurement range for inductance (0-100H), capacitance (0-100mF), and resistance (0-10MΩ), making it suitable for various components.

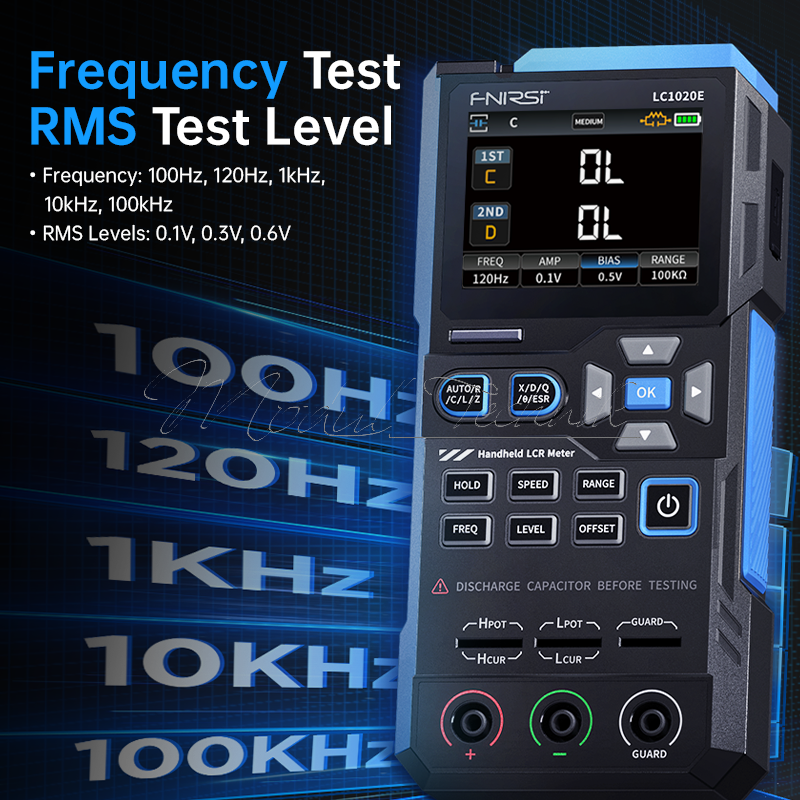

2. Multiple Selectable Test Levels: This LCR meter features five selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz) and three test levels (0.1V, 0.3V, 0.6V), enabling flexible and accurate analysis of component characteristics under various conditions, from general testing to high-frequency parameter analysis.
3. Dual test ports for versatility and accuracy: The device features a convenient three-terminal test socket and a five-terminal test slot for quick, daily measurements. The five-terminal configuration allows for complete four-terminal Kelvin measurements using professional test fixtures, ensuring the highest accuracy by minimizing lead impedance errors.

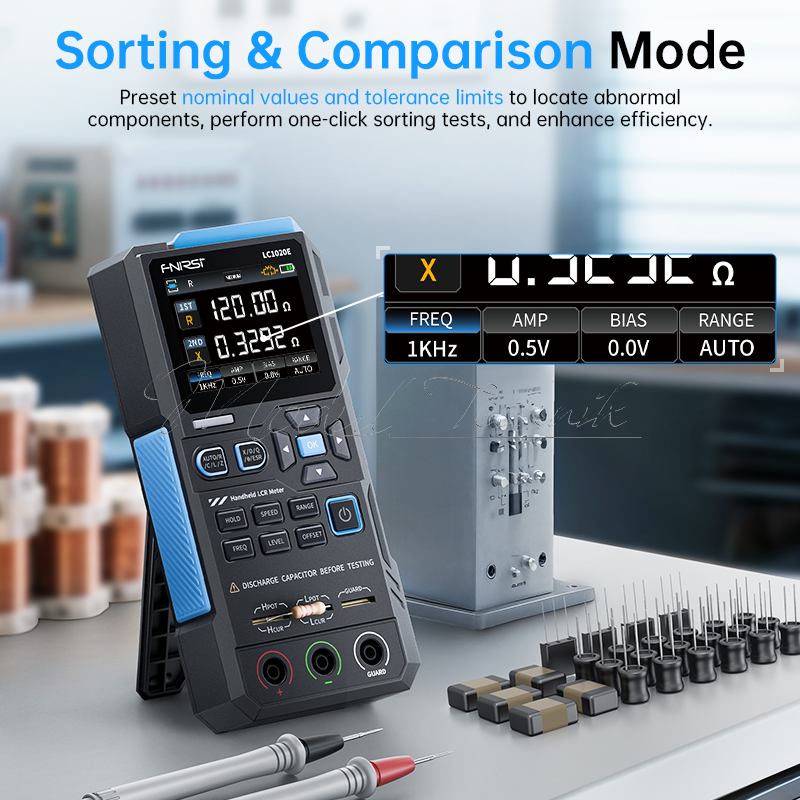

4. Intelligent component sorting and data logging: Significantly improve your batch testing efficiency with the intelligent comparison function. Set nominal values and tolerances (0.1%–99.9%) to automatically sort components and display audio-visual alerts for pass/fail results. The data logging mode records the number of successful and failed measurements for effective quality control.
5. Portable design with a clear display, long battery life: The LC1020E is designed for laboratory, production line, and field use, featuring a compact chassis and a powerful 3.7V, 3000mAh rechargeable lithium battery. The 2.8-inch TFT color display clearly shows all primary and secondary parameters (L/C/R/Z, X/D/Q/θ/ESR), making it easy to read measurement values anywhere.
Product specifications:
Product model: LC1020E
Battery capacity: 3000mAh lithium-ion battery
Test frequency: 100Hz, 120Hz, 1KHz, 10KHz, 100KHz
Basic accuracy: 0.3%
Display: 2.8-inch TFT LCD screen
Display digits: 4.5 digits for main parameters / 4.5 digits for secondary parameters
Measurement Parameters: Main Parameters: AUTO/R/C/L/Z, Secondary Parameters: X/D/Q/θ/ESR
Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10M
Test Level: 0.1V, 0.3V, 0.6V
Calibration Function: Open-circuit calibration, short-circuit calibration
Comparison Function: Used to calculate the relative error between the measured value and the nominal value of the component, displayed as a percentage, and provides screening results. The nominal value and tolerance can be set, with the tolerance range adjustable from 0.1% to 99.9%
Recording Function: Check whether the data of the tested component meets the set nominal value and tolerance value, and record the number of successful and failed measurements
Test Terminal Configuration: Three-terminal, five-terminal
Output Impedance: 100Ω
Communication Interface: USB-Type-C
Other: Language Settings, Screen Brightness, Sound Settings, Auto Shutdown, Calibration Settings, System Information
Shipping List:

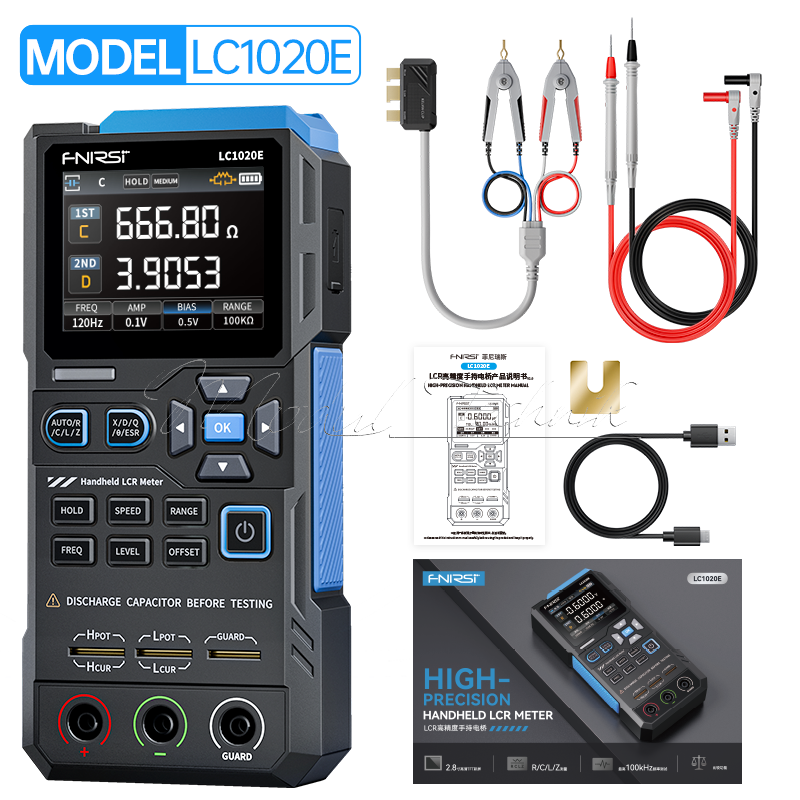

Handheld Bridge *1
Type-C Charging Cable *1
LCR Shorting Plate *1
LC Clamp Kit *1
3001 Test Probes *1 (Set)
Manual *1
