12V 20A / 24V 10A ON - OFF Rocker Switch
LASER Etched with Twin L.E.D Lights!
Brought to you by''AIR ON BOARD''
This high quality 12V/24V Rocker switch from AOB is a single throw ON - OFF switch designed to operate your accessories. It has a face surface size of 1.93'' x 1.00'' (49mm x 26mm) and uses a standard din size mounting hole of 1.5'' x 0.8''(37.5mm x 21.2mm). This is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.
- Single Pole Single Throw ON - OFF switch
- Black hard surface rocker.

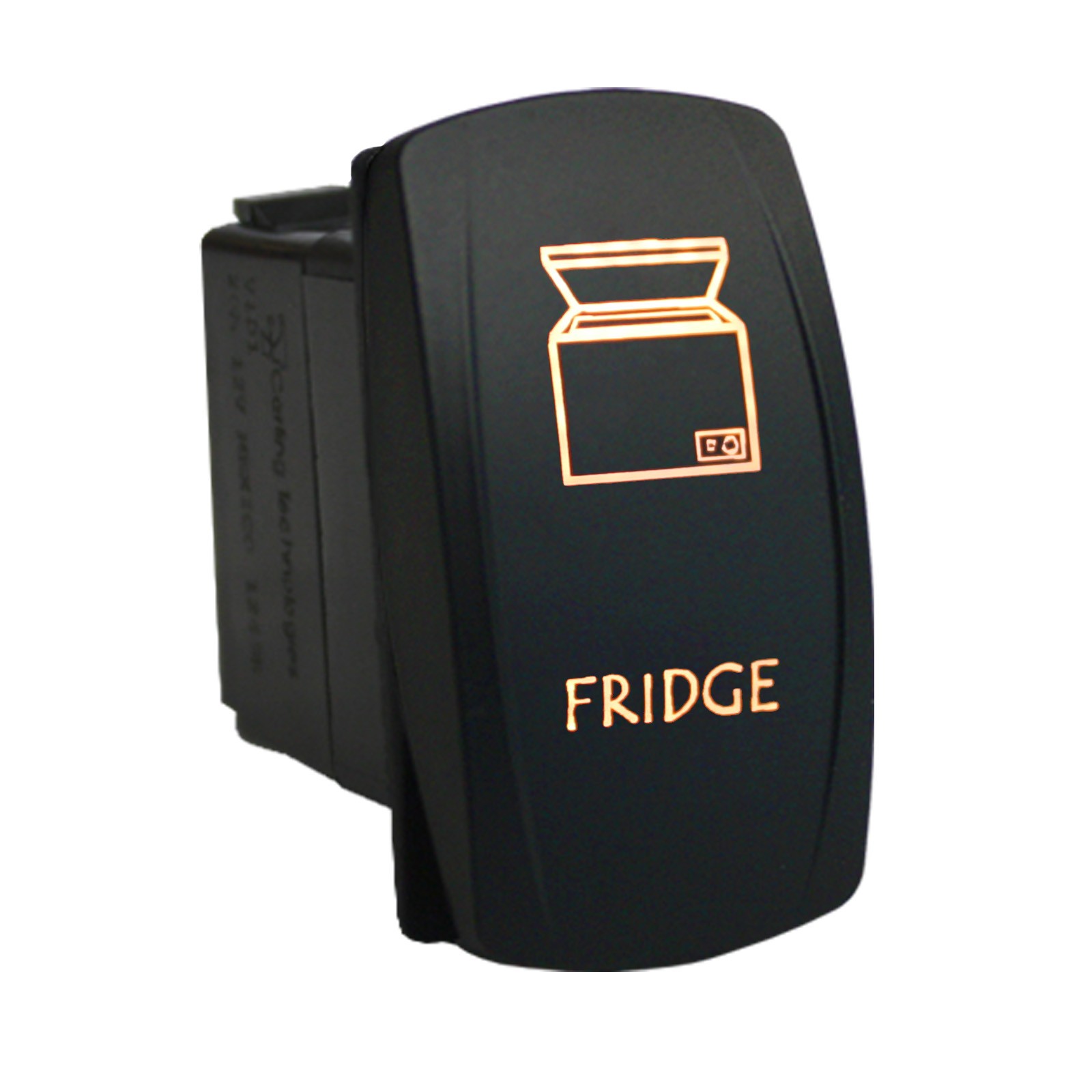

- Laser etched FRIDGE Legend
- Single upper L.E.D light.
- Single lower L.E.D light.
- Upper light is ON when the switch is pressed UP.
- Lower light can be wired to separate dash light circuit.
- Waterproof rating of IP66.
- Same size as the ARB switches.
- Rated 12V 20A / 24V 10A
- This switch uses the same light configuration as the ARB switches.
- No rear barriers between terminals.
- Wiring diagram supplied with switch.
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is rated to 20amp at 12V and 10amp at 24V however in ALL case we recommend that you wire the accessory through a fused relay.
