DESCRIPTION
Feature:
- Compatible to use with LED Lights, Incandescent , Halogen bulbs and LED Strip Lights under DC 12V or 24V power supply
- Full range of brightness control: Hold - Dim to Bright; Touch - On & Off.
- Rate up to 36 Watts(12V) or 72 Watts(24V) , 3 amps to Use with Single or Multi-lights
- The wall touch switch is designed for class Ⅲ insulation appliance based on human touch application, while touch switch installed inside/beneath wood board or other insulation materials. Max detecting range(thickness of the wall) < 1 1/4’’ (32mm).

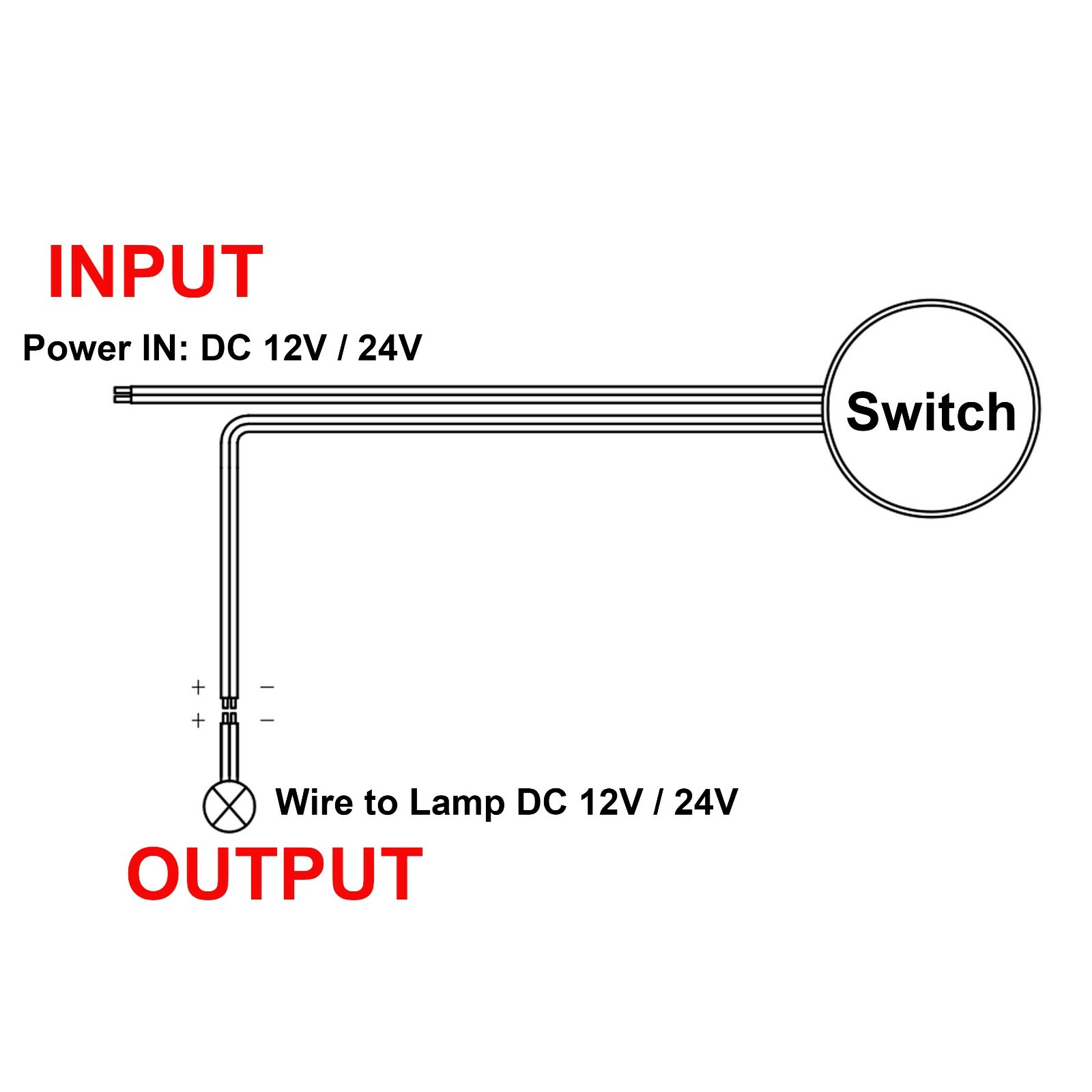

- Please note - Many RV light switches only interrupt the 12V positive wire. This dimmer requires you to connect the negative wires also (positive in, positive out, negative in, negative out, as labeled on the wires). If you can’t locate the negative wire going to your lights, this dimmer won’t work.
Package includes:
1x Touch Dimmer Switch
NEW Touch Dimmer Switch from Insulation Materials
- Voltage: 12V / 24V DC
- Dia: 1 3/4'' x H 5/16''
- Finish: White

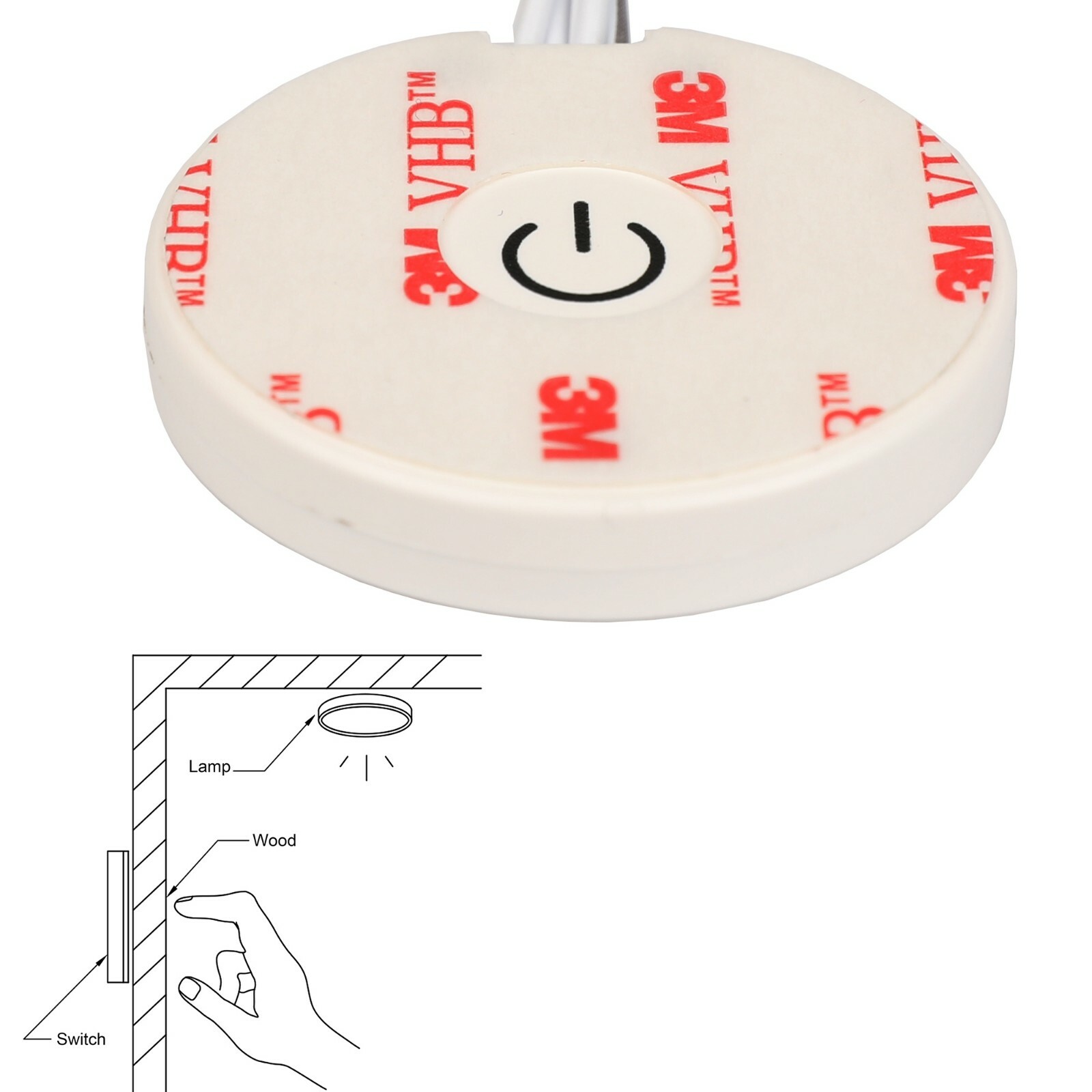

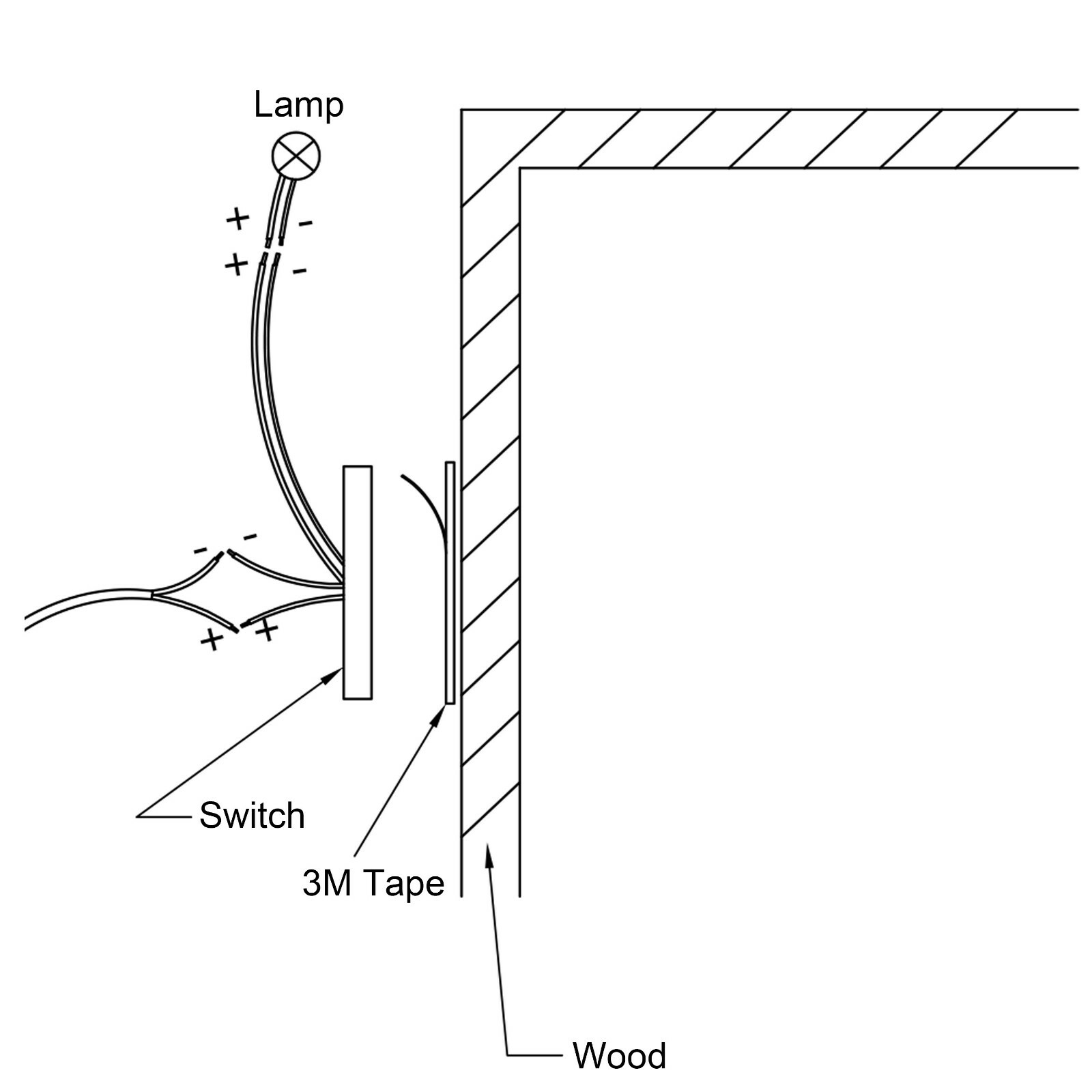

- Install: Wall Flush Mounting with 3M tape( Included)
- Comment Use with LED Lights, Incandescent and Halogen bulbs
- Up to 36 Watts / 72 Watts to Used with Single or Multi-lights
- Touch - On/Off
- Hold - Dim/ Bright

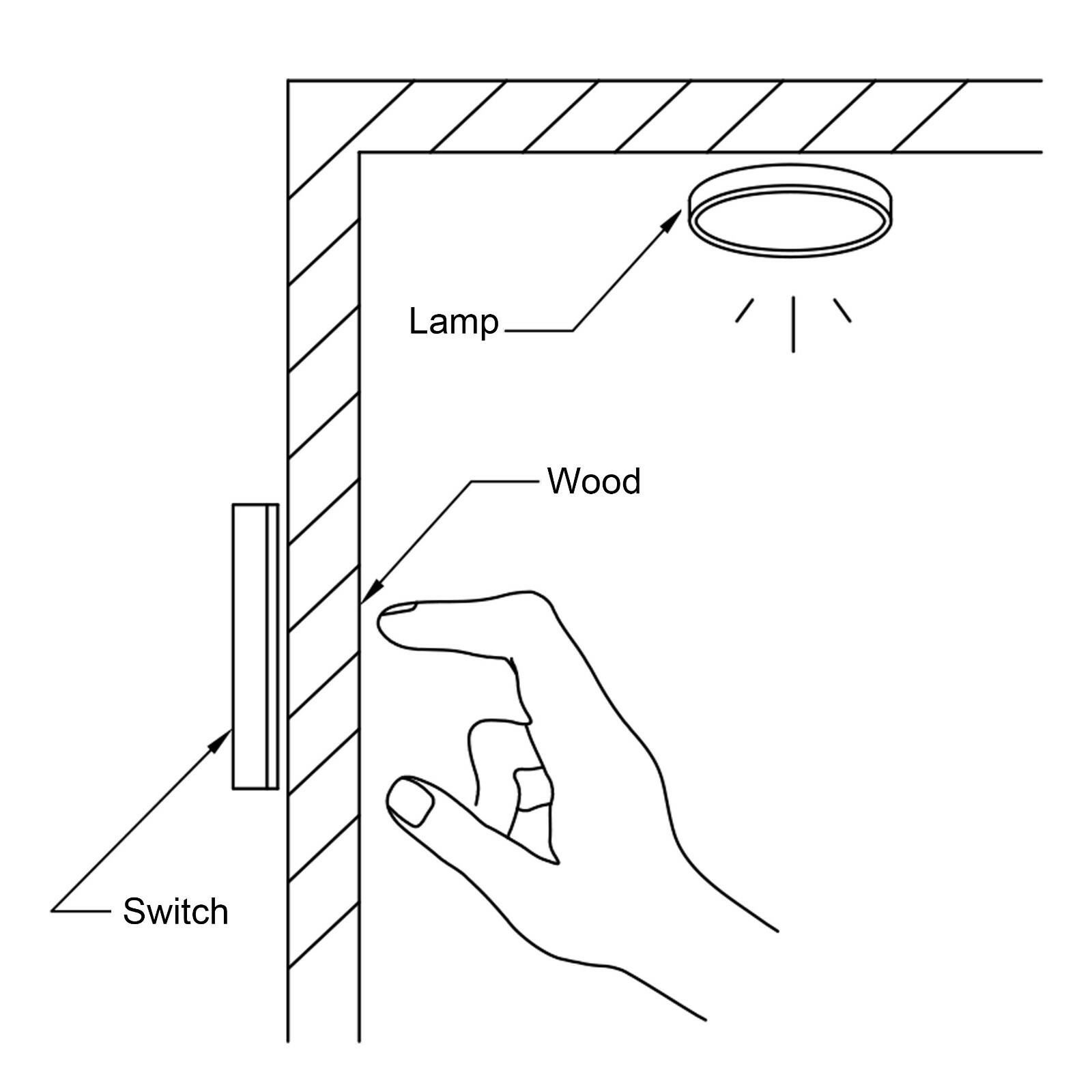

- Control the light from the other side of the wall( Touch signed label sticker included)
- Max detecting range (thickness of the wood wall ) < 1 1/4’’ (32mm)
