Product Description

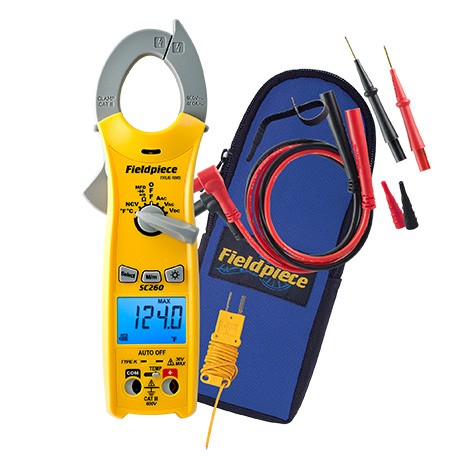

The Fieldpiece FP-SC260 is a compact clamp meter designed to measure AC/DC voltage and AC current up to four hundred Amps. This reliable tool performs True RMS measurements and can also measure temperature in both Fahrenheit and Celsius. It is capable of measuring capacitance and resistance up to forty Mega Ohms with a resolution of 0.01.

• Measures AC/DC voltage and AC current up to 400 Amps
• Temperature measurement in Fahrenheit and Celsius
• Backlit display for easy reading in low light

Product Highlights

This clamp meter includes features such as non-contact voltage detection, continuity tests, diode tests, and a max/min/hold function. The LCD display has a backlight and an automatic shut-off after five minutes to preserve battery life. It operates effectively in temperatures ranging from thirty-two degrees Fahrenheit to one hundred twenty-two degrees Fahrenheit and is powered by a nine-volt alkaline battery with a typical lifespan of one hundred fifty hours.

Product Information

Standard Information

• Brand: Fieldpiece
• MPN: FP-SC260

Technical Specifications

• Display: 4000 count
• Backlight: 5 minutes with auto-off
• Measurement rate: 3 times per second
• Operating environment: 32°F to 122°F
• Storage temperature: -4°F to 140°F
• Battery: 9V alkaline
• Battery life: 150 hours
• Dimensions: 205.5mm(H) x 67.4mm(W) x 45.1mm(D)
