For 1996 Ford F-100 Ranger RWD Suspension Shock Absorber Front Monroe

Fitment Notes: RWD;

Notes: with Front Raised Height 3.0 In. to 4.0 In.;

Placement on Vehicle: Front;

Product Description

Description

Brand: Rancho
Warranty: 12 Month Warranty
Part Type: Suspension Shock Absorber
Compatible Years: 1996

Description

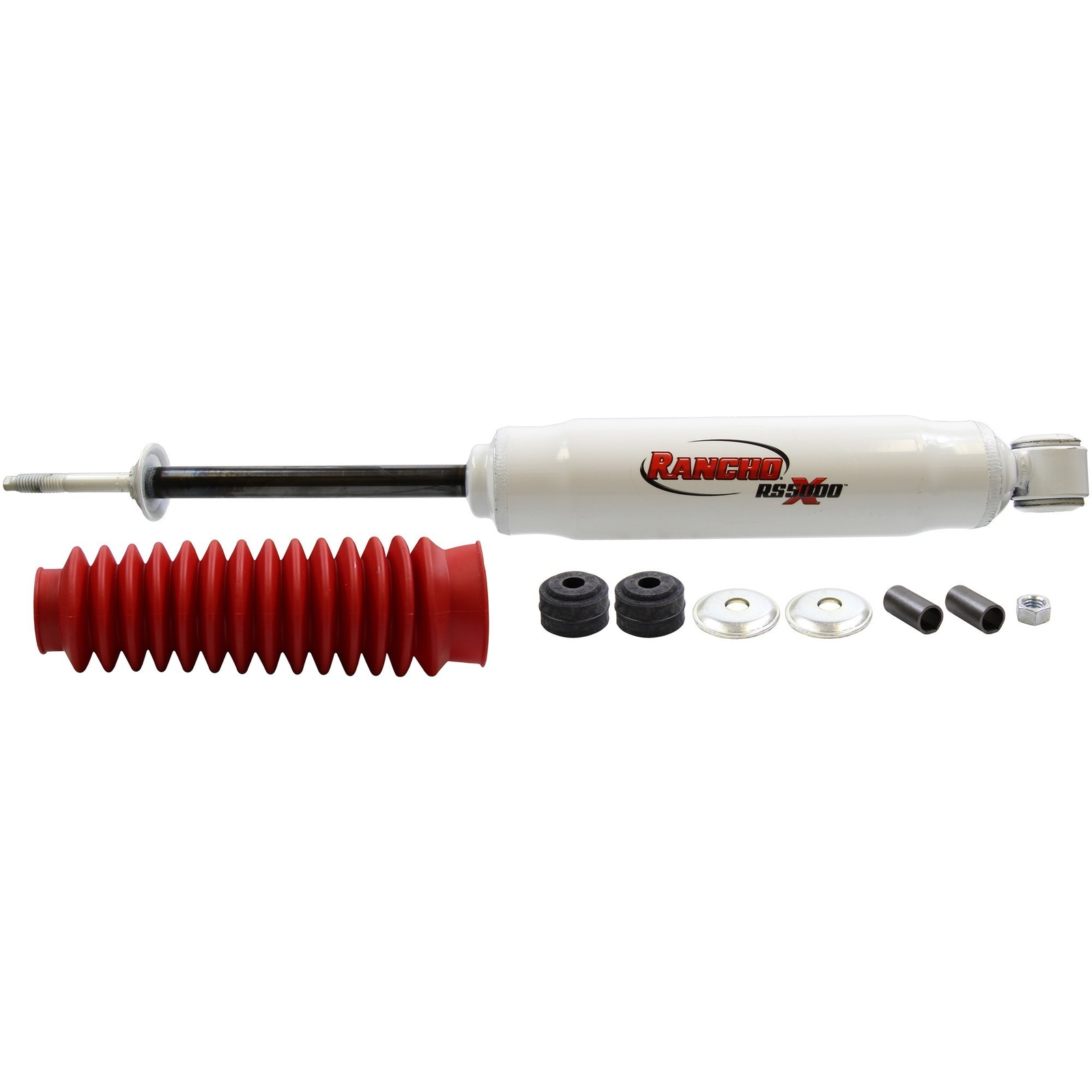

RS5000X Suspension Shock Absorber
Shock Absorber

Item Specifics

Active or Passive Suspension: Passive
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
Adjustable Ride Height: No
Bladder Heavy Duty Crimping Rings Included: No
Bladder Sleeve(s) Included: No
Bladder(s) Included: No
Body Color: White
Body Diameter: 2.25 IN / 57.2 MM
Body Material: Steel
Boot Included: Yes
Coil Spring Insulator(s) Included: No
Color: White
Compressed Length: 285.8 MM / 11.25 IN
Cylinder Color: White
Cylinder Finish: Painted
Cylinder Material: Steel
Cylinder Outside Diameter: 2.25 IN / 57.2 MM
Dust Shield Diameter: 2.99 IN / 75.9 MM
Dust Shield Included: Yes
Dust Shield Material: Rubber
Extended Length: 443 MM / 17.44 IN
Finish: Painted
Gas Charged: Yes
Grade Type: Performance
Hydraulic Lockout: No
Includes Bump Stop: No
Internal Construction Type: Twin Tube
Internal Rebound Bumper: Yes
Internal Rebound Spring: No
Lower Mount Code: L1
Lower Mount Type: Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Maximum Ride Height Lowering Distance: 0 IN
Maximum Ride Height Raising Distance: 4 IN / 101.6 MM
Mounting Hardware Included: Yes
Remote Reservoir: No
Rod Diameter: 15.8 MM / 0.622 IN
Self-Leveling: No
Shaft Material: Nitrocarburized
Shock Absorber Body End Measuring Point: Center of Loop
Shock Absorber Bore Size: 35 MM / 1.378 IN
Shock Absorber Rod End Measuring Point: Base of Stem
Shock Stroke: 6.19 IN / 157.2 MM
Strut Mount Insulator(s) Included: No
Suspension Shock Absorber Type: Telescopic
Travel Length: 157.2 MM / 6.19 IN
Upper Mount Code: S4
Upper Mount Type: Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Valving Type: Progressive

Confirm Your Vehicle Compatibility

Year	Make	Model	Application	Notes
1996	Ford	F-100 Ranger	RWD;	with Front Raised Height 3.0 In. to 4.0 In.; Position: Front;
