What Is A CV Axle ?
The function of an axle is to connect the transmission gears to the wheels and transfer power from the engine to the wheels of your vehicle. CV stands for Constant Velocity, which is a mechanical joint responsible for transferring the torque from the transmission to the drive wheels at a constant speed/velocity while accommodating the up-and-down motion of the suspension. CV axles are common in front-wheel-drive vehicles, all-wheel-drive vehicles, and some rear-wheel-drive vehicles that use independent suspensions.
What Are The Symptoms Of A Bad CV Axle?
1. Knocking Noise
The most common symptom of a bad CV joint is knocking and screeching noise while turning. This usually happens due to the lack of lubrication inside the CV joint or when the joint is on the verge of failure. The louder the noise, the more is the risk of total breakage. However, such a sound also arises due to the bad ball joint and worn-out tie rods. If your ball joints are falling, get them checked and replaced.
2. Grease Leakage
If you notice grease under your car or on your tires, it could be because of a bad CV joint. Damaged CV joint boots lead to grease leakage and allow the CV joints to sustain further damage. Get your CV joints checked for damage. It the boot has been damaged for a long time, your CV joints might be faulty and need to be checked.
3. Steering Vibrations
A worn or damaged CV joint will vibrate while you’re driving. CV joints in this condition will not be able to balance properly during rotation. The more you speed up, the more intense the vibrations will become. This is a sign of a bad CV axle, which can lead to excessive vibrations, making it difficult to control the vehicle. In worse cases, the vehicle starts to bounce, and in such a condition; it is advised not to drive your vehicle.
4. Wobbly Axle
Another sign of a bad or failing CV joint is a wobbly wheel, especially when you press the gas pedal. If you suspect your axle shaft is the culprit, go under the vehicle and try to push the axle up and down and side to side. Any slack or movement in the axle confirms that the CV shaft is damaged.
Replacing The CV Axle
- Make sure the vehicle is in Park or that it is in gear with the parking brake set.
- Jack up the car and remove the wheel on the side where you will be working.
- Locate the axle nut. It will be in the direct center of the hub or wheel assembly where you removed the wheel.
- Some vehicles have a cotter pin to secure the axle nut. You’ll need to remove it using pliers to straighten the pin so it can be pulled out. You can spray it with lubricant if it’s rusted or stuck.
- Now it’s time to remove the axle nut. In some cases, this step may require quite a bit of effort. If this is the case, your safety bet is to do this step before jacking the car up.
- This is where the optional impact wrench will come in handy. The wrench will help you safely remove the axle nut without having to use a pry bar.
- Carefully remove the bolts holding the brake caliper brackets in place and remove the calipers.
- Instead of dropping the caliper to dangle on the brake line, use a carabiner or other small hook to support the caliper and keep pressure off the brake line.
- Loosed the bolts holding the outer tie rod to the steering knuckle. If there’s another pin here, you’ll again need to use pliers to straighten it out.
- In some cases, the steering knuckle and tie rod will not want to be separated. This will require a few light taps with a hammer or mallet.
- Remove the bolts holding the hub to the strut tower. You’ll need to keep the nut from turning while unbolting the hub.
- Look further down the axle to see where it meets the transmission. Use your pry bar to pry the axle from the CV joint. You should be able to remove the axle at this point.
- You might see transmission fluid or have some leak while prying the axle. This is completely fine, but you may want to set up a pan or tray to catch the fluid.
- Insert the new axle into the transmission where the old one was removed.
- You can use your mallet or a hammer wrapped in a towel to carefully coax the axle into position.
- Attach the new axle to the hub and begin replacing the bolts you removed earlier in the process:
- Hub/strut tower
- Tie Rod/steering knuckle
- Caliper
- Replace the axle nut. Here, as before, use an impact wrench if you have one to safely tighten the nut. If you don’t have one, get the nut as tight as you can without yanking on it while it’s up on stands.
- Replace the wheel and lower the vehicle.
- If you need to tighten the axle nut further, it’s best to do it with the vehicle on the ground, so that you can really push on a wrench or bar to tighten without worrying about the vehicle falling.
FAQs About CV Axles
Q: Can You Drive With a Bad CV Axle?
A: No. Do not ignore a bad CV axle. The vibrations you’re feeling and noise you’re hearing are a warning that it’s time for maintenance. If your axle fails while you’re driving, you could lose control of your car.
Q: How Long Should a CV Axle Last?
A: CV axles are usually covered by the manufacturer’s powertrain warranty, which should have you covered for at least four to five years and 50,000 to 60,000 miles. As for whether or not the axle makes it past the warranty period, there are many factors that can impact its lifespan. Driving over rough terrain where there are rocks and debris can shorten the life of a CV axle, because there are more opportunities to damage the rubber boot that protects the moving parts. The same goes for driving in snowy or icy conditions, where salt and sand can also damage the rubber. In some cases, the rubber just dries out and cracks, which has the same effect.
Q: What Does a Bad Axle Sound Like?
A: If you hear a clicking or grinding sound while turning, there’s a good chance your CV axle is starting to go. The noise may also be present while accelerating, but it’s most noticeable when turning the steering wheel.
Q: Can The CV Axle Damage My Transmission?
A: Yes, since it’s connected directly to the transmission, a failing CV axle can cause damage. Excessive movement from a damaged axle can wear components inside the transmission more quickly than they would normally.
| Item Specifics | |
|---|---|
| Manufacturer Part Number | GD822131CAR |
| Brand | gdcarpartsin |
| Placement on Vehicle | Rear Left Right |
| Quantity | 2 |
| Compatible Year | 2014-2018 |
| Compatible Make | Polaris |
| Compatible Model | RZR 4 XP 1000,RZR RS1,RZR XP 1000,RZR XP,RZR XP 4 |
| Colour | Normal black |
| Bundle Listing | No |
| Warranty | 1 Year |
| Material | Metal |
| Fits | ATV |
| OE Spec or Performance/Custom | Performance/Custom |
| Interchange Part Number | 1333434 |
| Vintage Part | NO |
| Universal Part | NO |
| Modified Item | NO |
| Mounting Style | Bolt-On |
| Fitment Type | Direct Replacement |
Shop Category Hot Item
Delivery
New List Item
Help & Info Payment Policy Shipping Policy Return Policy FAQ About Us |

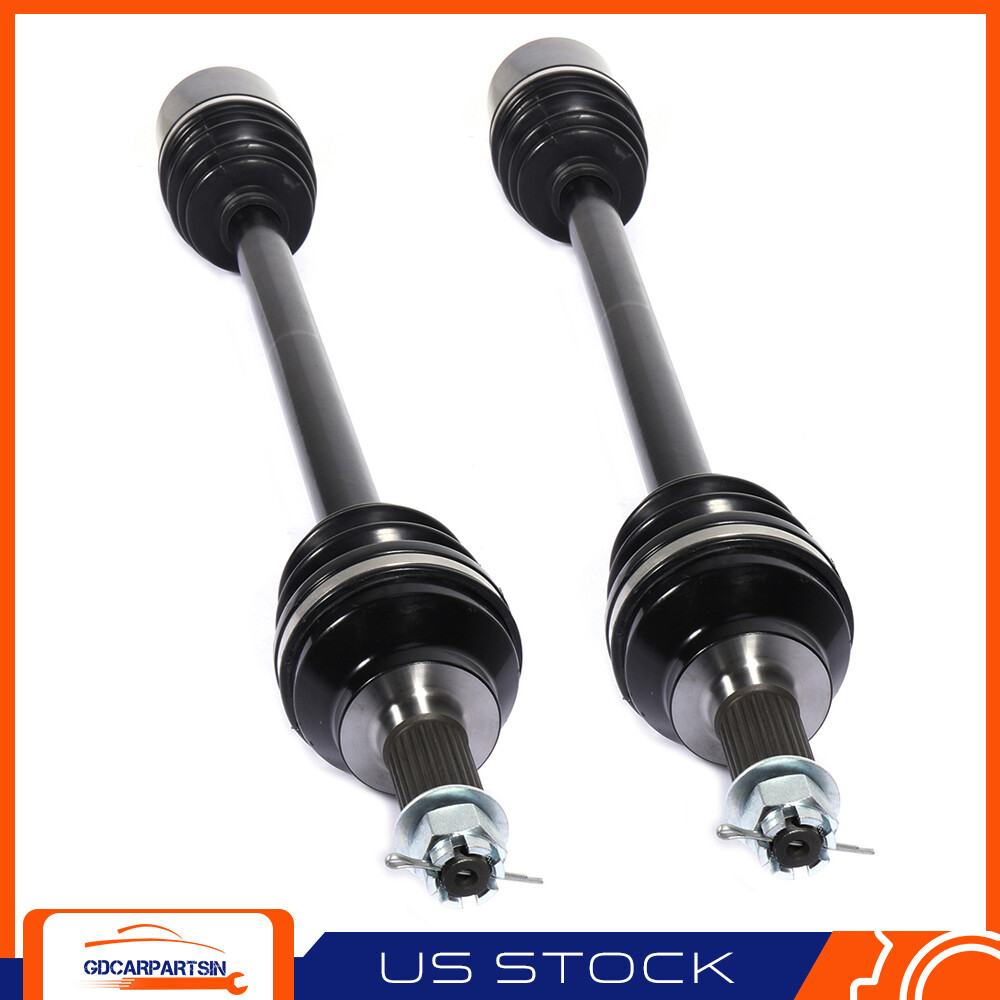

For Polaris RZR XP1000 2014-2019 Pair Rear Left Right CV Axle Shaft Assembly
