Introducing the FoxAlien Masuter Pro MaxZ Offline Controller Mount, designed to cleanup and organize your FoxAlien Masuter Pro CNC Router Machine. This upgrade is ideal for those in the woodworking industry.
The Offline Controller Mount provides a sturdy spot to mount your offline controller for a clean presentation.
Both MaxZ Brackets are laser-cut from high-quality 316L stainless steel for strength and durability.
MaxZ Offline Controller Mount installs with existing machine hardware.
Kit includes:
- (1) MaxZ Offline Controller Mount
- (2) Zip Ties
- (1) Mounting Tape
Works great with my MaxZ Bracket Kit in my other listings that gives you +20/40/60mm of Z-Axis clearance and my 65mm Spindle Offset Bracket Set Upgrade, that recenters your 65mm spindle on the work bed by offsetting 60mm on the Y-Axis while lifting the Z-Axis up 20mm to fit a dust shoe without losing all your Z-Axis capacity.
INSTALLATION INSTRUCTIONS
MaxZ Offline Controller (OC) Mount Kit (FA-MP-OCM)

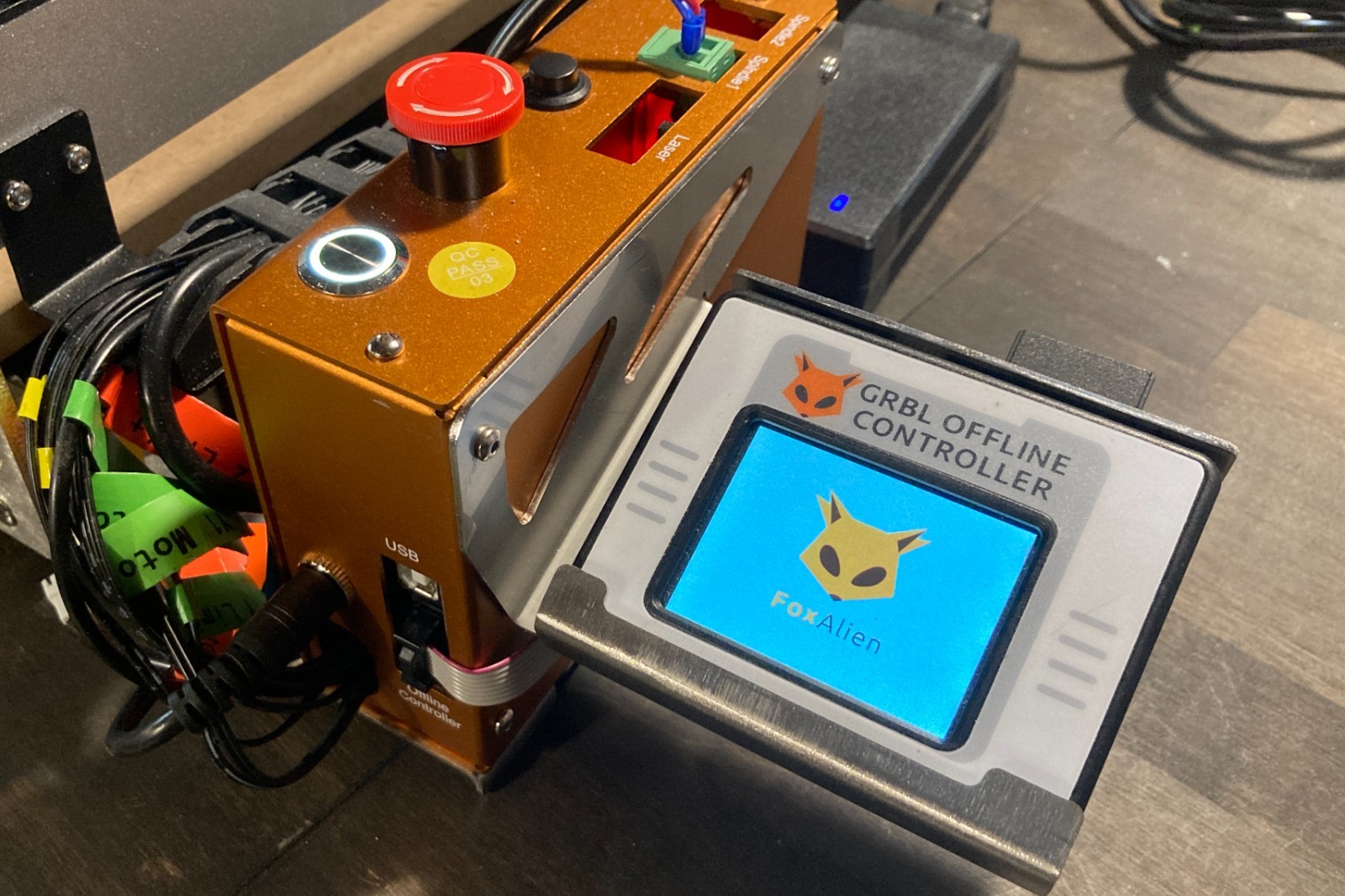

1. Coil up the OC cable and attach it loosely to the MaxZ Offline Controller Mount leaving enough lead on either side to reach the electrical box and OC using the zip ties provided. (as shown in pics)
2. Remove the top (2) screws in the side of the electrical box and re-install (careful not to strip screws) with the MaxZ Offline Controller Mount bracket. (plug the cable into the electrical box and tuck it behind the MaxZ Offline Controller Mount bracket)
Optional - Cut the double sided mounting tape into smaller pieces and attach to the corners of the back of the OC.
3. Stick the OC into the MaxZ Offline Controller Mount bracket and plug in the OC cable. The plug from the cable should hold the MaxZ Offline Controller Mount bracket in place. Use double sided tape as desired
