Front & Rear Shocks Coil Spring Coilovers for Caliber 2007-2010 Patriot Compass

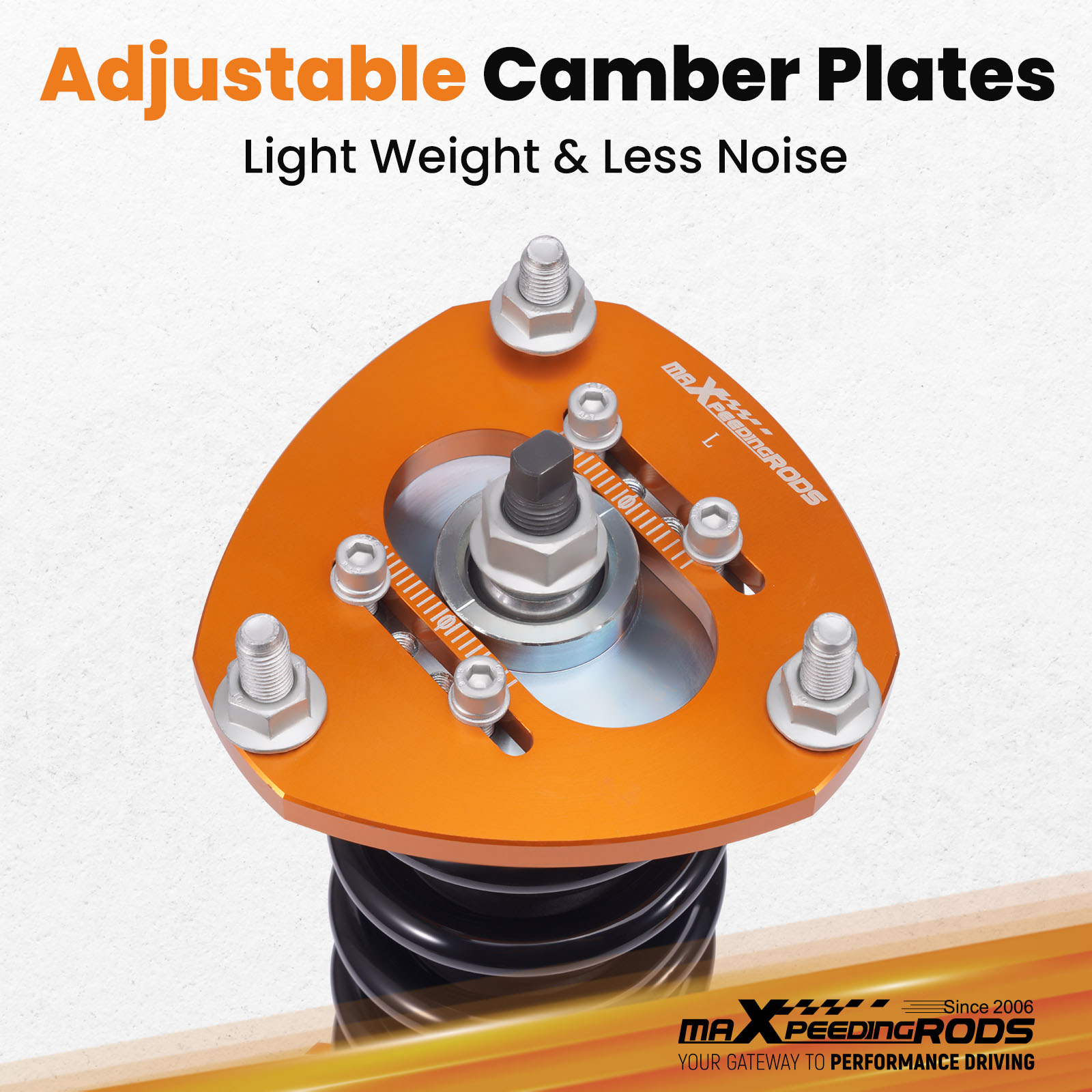

Aluminum Camber Plate with Pillow Ball Mount
Aluminum Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.
Anodized Shock Body With Anti-Corrosion Coating
Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

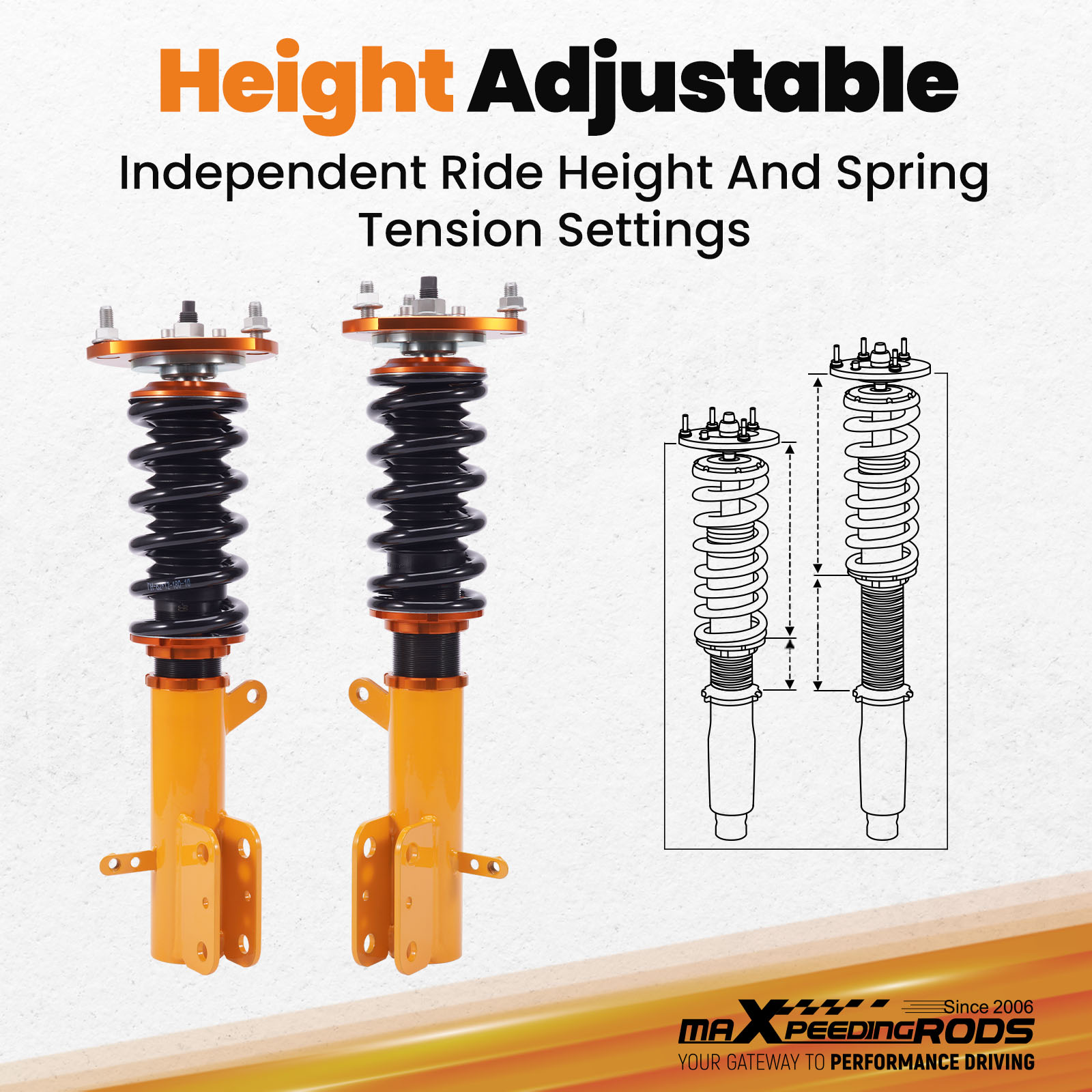

Drops From 1 to 3 Inch From Factory Ride Height
Full Threaded Absorber Tube Casing For Independent Height Adjustment.

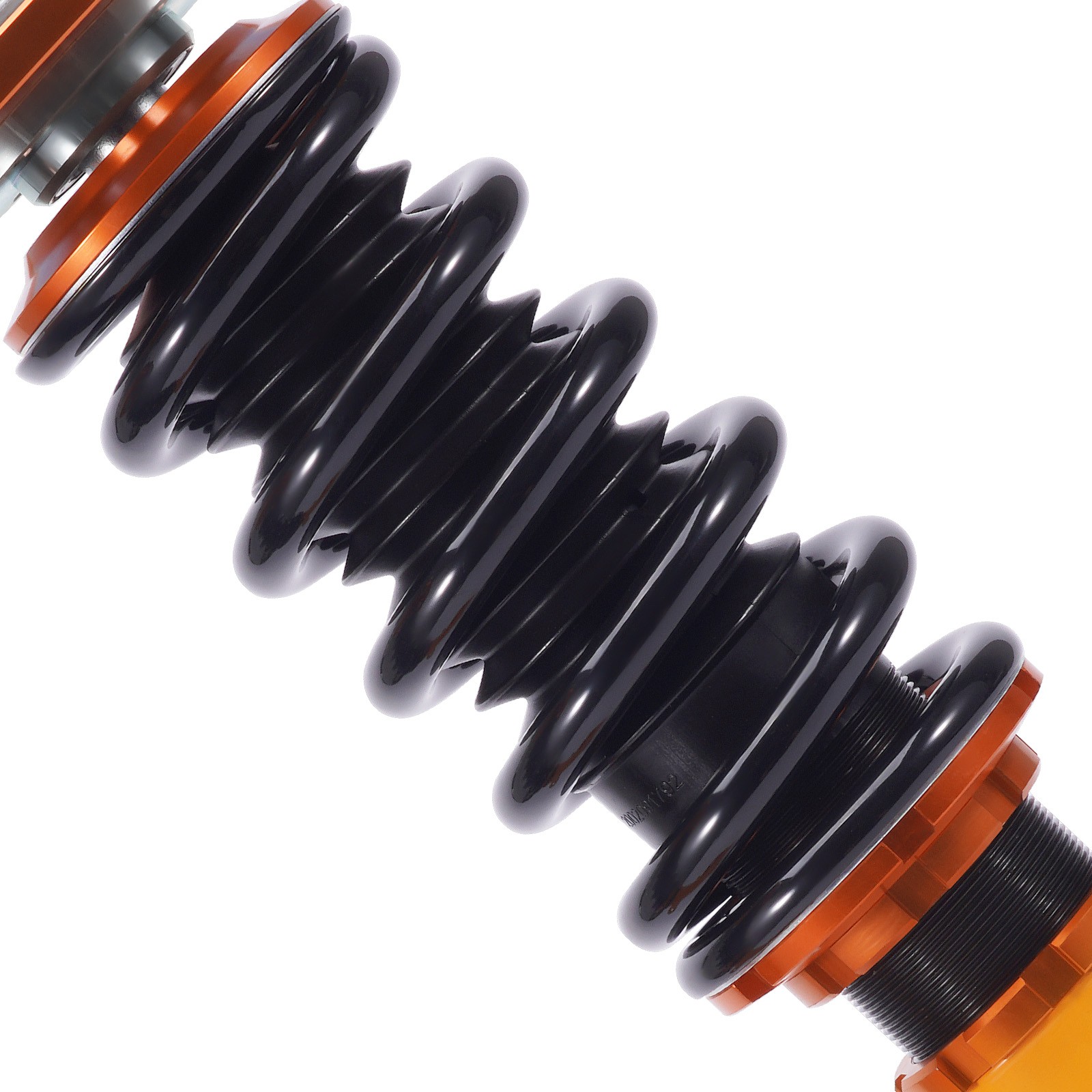

Durable Cold Wound Steel & Heat Treated Coils
High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.
Specifications
| Adjustable height | Yes, Lowering 1-3 inch |
| Adjustable camber plate | Yes |
| Front Spring length | 180 mm |
| Rear Spring length | 180 mm |
| Front spring length | 10 kg/mm (556 lbs/in) |
| Rear spring length | 8 kg/mm (448 lbs/in) |
| Front spring inner diameter | 62 mm |
| Rear spring inner diameter | 62 mm |
| Package Including | 2 Front + 2 Rear |
| Warranty | 1 Year |
Features
100% Brand New, Never Used or Installed
Twin-Cylinder Design - Allows Sufficient Stroke Within The Shock Absorber.
Full Length Adjustment - Lowers The Car Without Ruining Spring Tension
Independent Spring Tension - Custom Stiffness Without Change Ride Height
Front Camber Plates with Pillow-Ball Top Mount Provides Sharp And Precise Handling

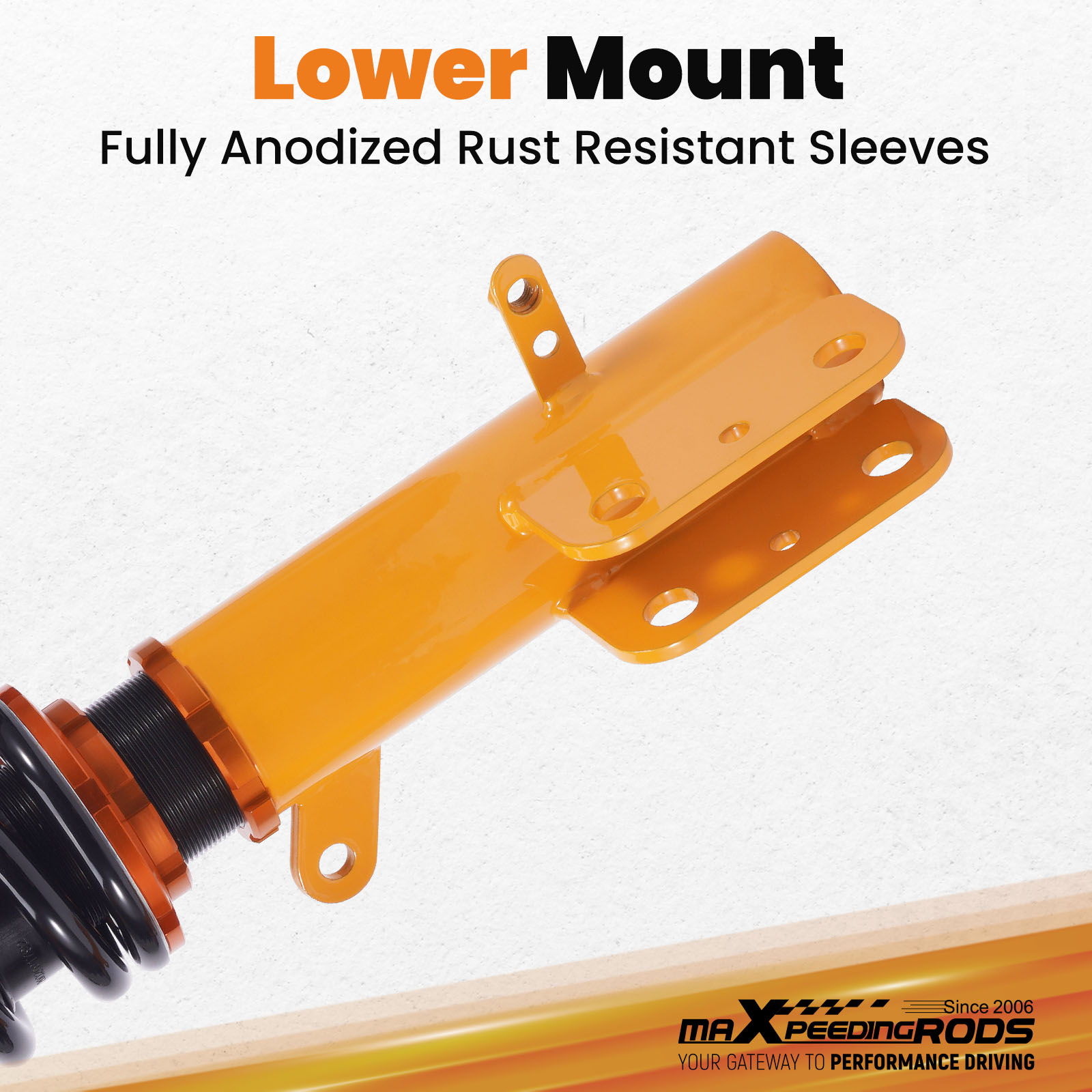

Fully Anodized Rust Resistant Sleeves.
Full Year Limited Warranty From Date of Purchase
Applications
For Dodge for Caliber (excluding SRT-4 )2007-2012
For Jeep Compass (MK) FWD 2008-2017
For Jeep Compass (MK) 4WD (without Off Road Package) 2008-2017
For Jeep Patriot (MK) FWD 2008-2010
Not Fit SRT-4
Specifications
- Front top mount structure: Pillow ball with camber plate
- Rear top mount structure: OE top mount required
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 10 kg/mm (556 lbs/in)
- Spring rate Rear: 8 kg/mm (448 lbs/in)
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 180 mm
- Spring length Rear: 180 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring

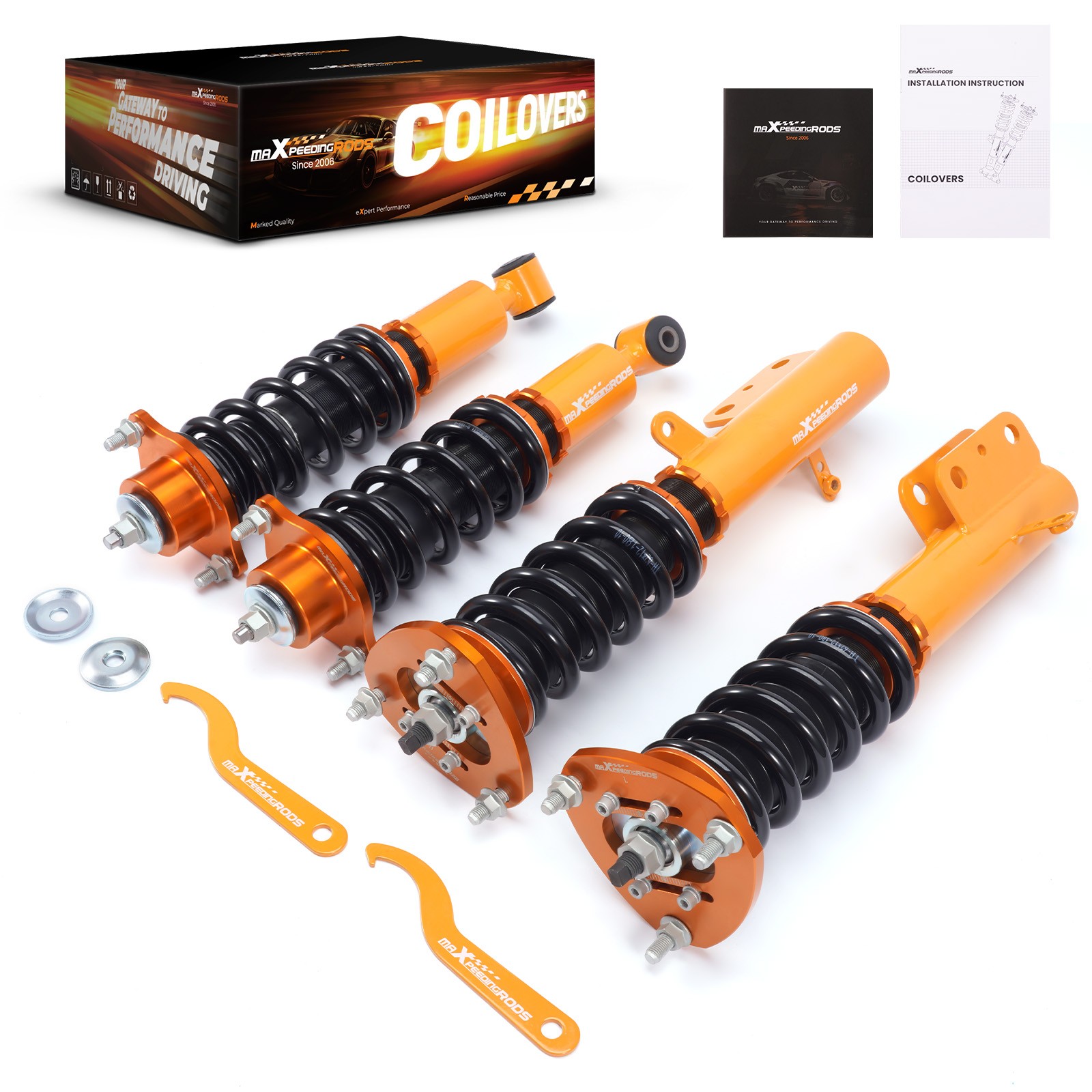

Package Included
2x Front coil-overs
2x Rear coil-overs
2x C spanners
★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.
