Front Rear Shocks Struts Kit For Ford Fusion 2013 2014 2015 2016 17 18 19 20
$88
DESCRIPTION
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Front Rear Shocks Struts Kit For Ford Fusion 2013 2014 2015 2016 17 18 19 20
Item-condition
- 100% brand new in factory original condition. Never been used or installed.
- Enhances overall handling, safety and performance of your vehicle.
- OE Quality TS16949 certified.
- Top Quality JAPANESE MADE OIL PISTON SEALS!
- Pressurized N2 gas to reduce foaming and aerating. Also to ensure product better performance.
- Effectively to reduce the effect of traveling over rough ground.
- Seamless cylinder & sleeves to reduce the possibility of splitting to ensure close contact between the piston & cylinder no leaks to obtain stable damping force.
- precision robotic welding in most of the applications.
- Powder-coated finish for corrosion resistance and long time service.
- Hard chromed piston rod micro-cracks chromed surface processed & ultra-precision vertical polishing to ensure smooth contact between the piston rod & seal.
- Buckle holes are consistent with the original car in situ for easy & quick installation without any changes.
- Newer valving technology operates in stages based on the velocity of the car.
- Stock in USA, 1 year warranty.
Compatible with the following vehicles
2013 - 2016 Ford Fusion
Package Included:

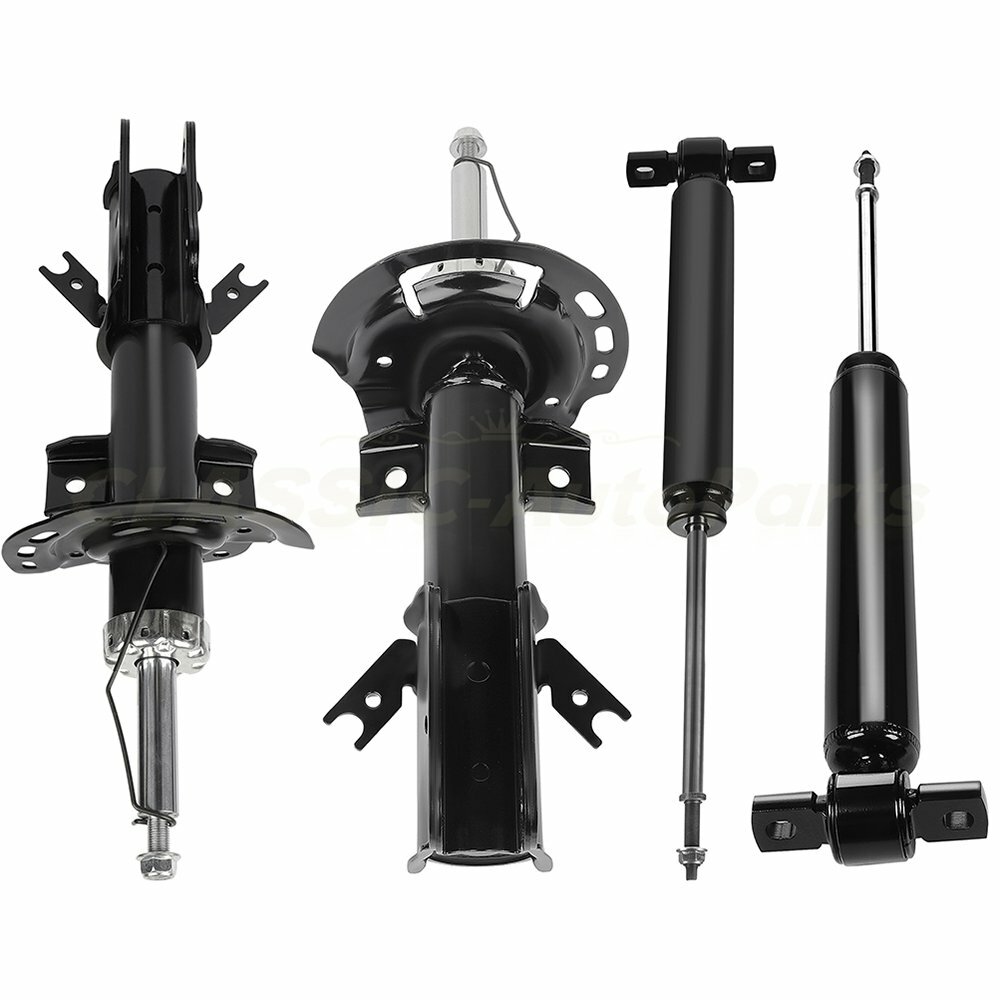

4X Shocks Struts （Rear Front Left Right）
NOTE: Look just above this product description (Item Specifics) for all part numbers and placement on vehicle.Please check your model carefully to avoid unnecessary trouble
HOW TO INSTALL :
Step 1: Before you lift the vehicle, loosen lug nuts one full turn.
Step 2: Jack up vehicle and use jack stands for safety & remove the tire from the rotor.
Step 3: (Wheel alignment is necessary after strut replacement.) Marking the position of all the bolts will help
keep the alignment close to original and save time aligning. Use a colored pencil to mark the old strut on the bolt
Step 4: Use penetrating oil (such as WD40) to coat any rusted fasteners, let soak for approximately 1 hour.
Step 5: (Optional) While waiting for oil to soak, take this time to inspect all other components that may need
replacement (brake pads, rotors, brake hoses, ball joints, CV boots, tie rod ends, bushings, sway bars, etc).
Step 6: Remove any brake line or wire attachments from the strut body. Do not disconnect brake lines (if possible)!
Opening brake lines will require bleeding of the brake system.
Use extreme caution when removing brake lines from your struts, as any damage to your brake line can result in
expensive and time consuming repairs.
Step 7: Remove sway bar attached to the strut assembly or control arm.
Step 8: Remove the tie rod (only if it attached to the body of the strut, if not leave it attached to the steering knuckle).
Step 9: Remove the strut to knuckle bolts at the bottom of the strut. On some vehicles, the brake caliper and rotor
may need to be removed to gain access.
Step 10: Remove the upper mounting plate bolts located in the engine or trunk compartment. Do not remove the
center retaining nut! It is not safe to unload the spring from the assembly in this position.
Step 11: Carefully remove the old strut assembly from the vehicle. Be very cautious not to let the strut "drop" down
on your brake line, rotor or drum.
Step 12: Install the new Complete Strut Assembly in the reverse order as above (steps 11-6). Using an anti-seize
compound on all fasteners is suggested.
Step 13: Carefully double check your work and make sure everything is tightened to manufacturers torque specifications.
Step 14: Replace the tire the rotor and tighten to manufacturers torque specifications.
Step 15: Slowly lower the vehicle down after removing the jack stands. Pay very close attention to any odd sounds
when the vehicle is lowered onto the new Complete Strut Assemblies.
Step 16: It is very important that you immediately "road test" your vehicle right away to ensure that installation was done properly.
Listen and feel for common signs of incorrect installation while driving slowly over speed bumps, rough road or potholes.
| Item Specifics | |
|---|---|
| Brand | CLASSIC-AutoParts |
| Manufacturer Part Number | C833403APS |
| Type | Strut |
| Fitment Type | Direct Replacement |
| Placement on Vehicle | Left Right Front Rear |
| Manufacturer Warranty | 1 Year |
| Features | Sealed |
| Modified Item | No |
| Adjustable | No |
| Gas Charged Shock | Yes |
| Interchange Part Number | 72638 ,5667 |
| Kit or Single Part | Kit |
| Kit Parts Included | Set of two front struts and two rear struts |
| Surface Finish | Powder Coat |
| OE Spec or Performance/Custom | OE Spec |
| Color | Gloss Black |
| Return Policy | Free return or replacement within 30 days |
| Shock Absorber System | Double Pipe |
| Shock Absorber Type | Gas |
| Vintage Part | No |
| Material | Steel |
| Mounting Style | Screw-On |
| Performance Part | No |
| Quantity | 4Pcs |
| Superseded Part Number | Shock and Strut |
| Universal Fitment | No |
| Included Hardware | Mounting Hardware |
| Package Dimension (in.) | 18.5*16.34*9.06 (F), 19.49*8.46*4.92 (R) |
| Gross Weight (LB) | 33.069 |
| Included Hardware | Mounting Hardware |
| Package Dimension (in.) | 18.5*16.34*9.06 (F), 19.49*8.46*4.92 (R) |
| Gross Weight (LB) | 33.069 |
