Description:

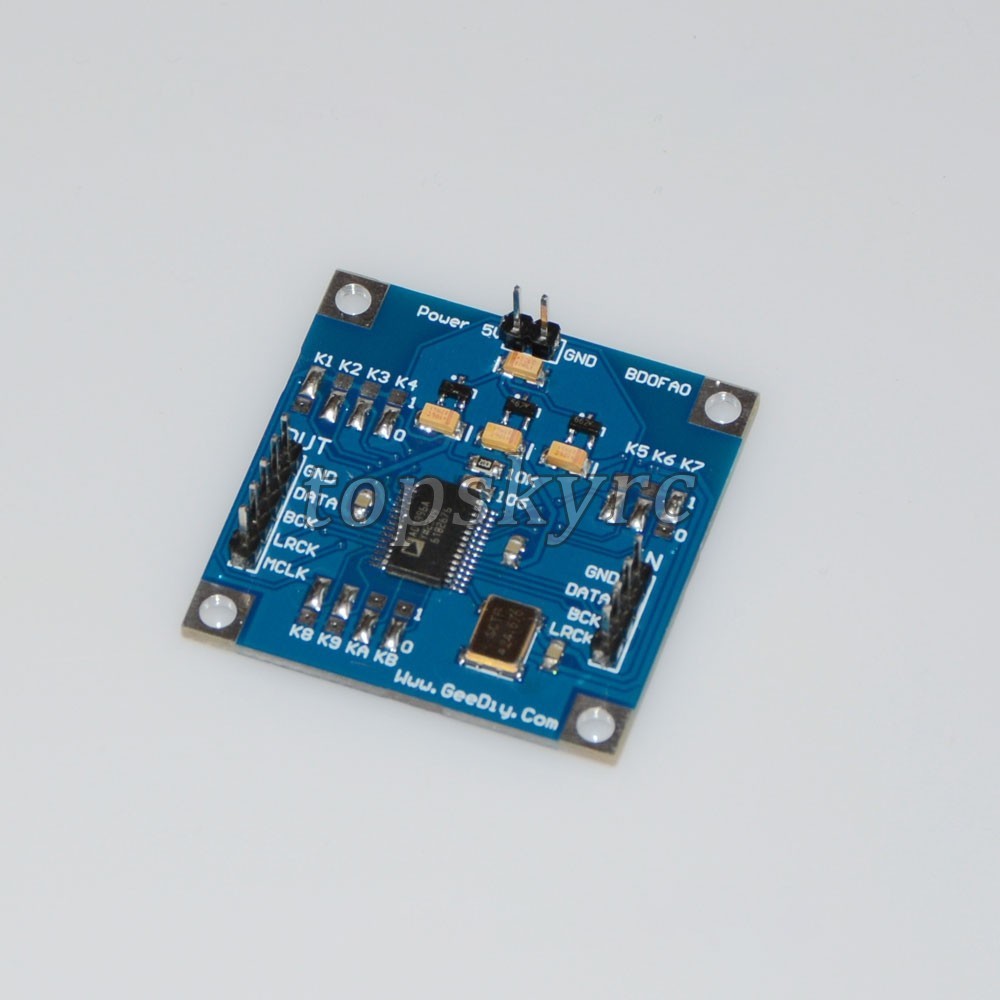

AD1896 is a sample rate/format conversion board. Additionally, the board can add an MCLK clock signal for devices that lack MCLK (e.g., Bluetooth boards or Raspberry Pi).
Default Settings:
* Output: Master mode, I2S format, 24-bit, 96kHz
* Input: Slave mode, I2S format, up to 192kHz
For other operating modes, data formats, or sampling rates, please contact customer service for customization.
Features:
* Input/output interface definitions are marked on the board.
* Board operating voltage: DC 5V; power interface is labeled on the board.
* Maximum input sampling rate: 192kHz
* Maximum output sampling rate: Master mode 96kHz, Slave mode 192kHz
* Bit depth range for input/output: 16-bit, 18-bit, 20-bit, 24-bit
Packing List:
* 1 × SRC Module
Packaging Details:
* Weight: 0.15kg
More Information:
* This board also allows custom configuration of sampling rate, data format, and operating mode. Please refer to the table below.
Because this module is only part of the entire circuit, our store cannot guarantee that using this module alone will make the full circuit work properly. The module is strictly tested before shipment to ensure it is complete and functional. Any damage or malfunction caused by personal DIY errors or misuse is not covered for returns or exchanges.
Declaration:
* This product is a finished board and is shipped only after testing.
* Upon receipt, test the product within 7 days. For non-user-caused defects within 7 days, unconditional returns or exchanges are allowed.
* For user-caused damage, the buyer must cover any repair costs.
* Due to instability in the electronic component market, some components may be replaced with equivalent brands, without affecting performance. Please make sure that you don't mind before purchasing.
* PCB files are not provided.
* Schematics or other files are not provided.
