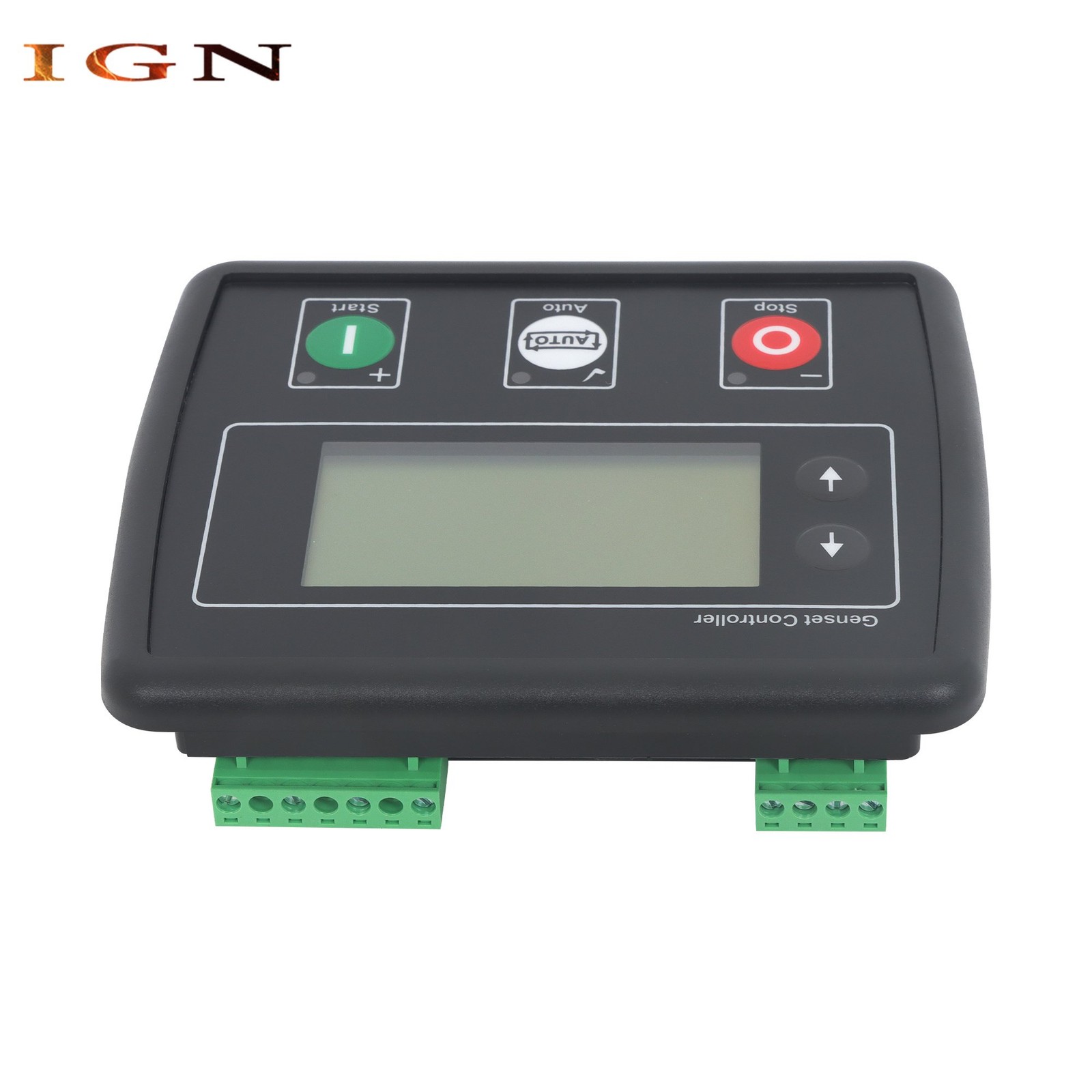

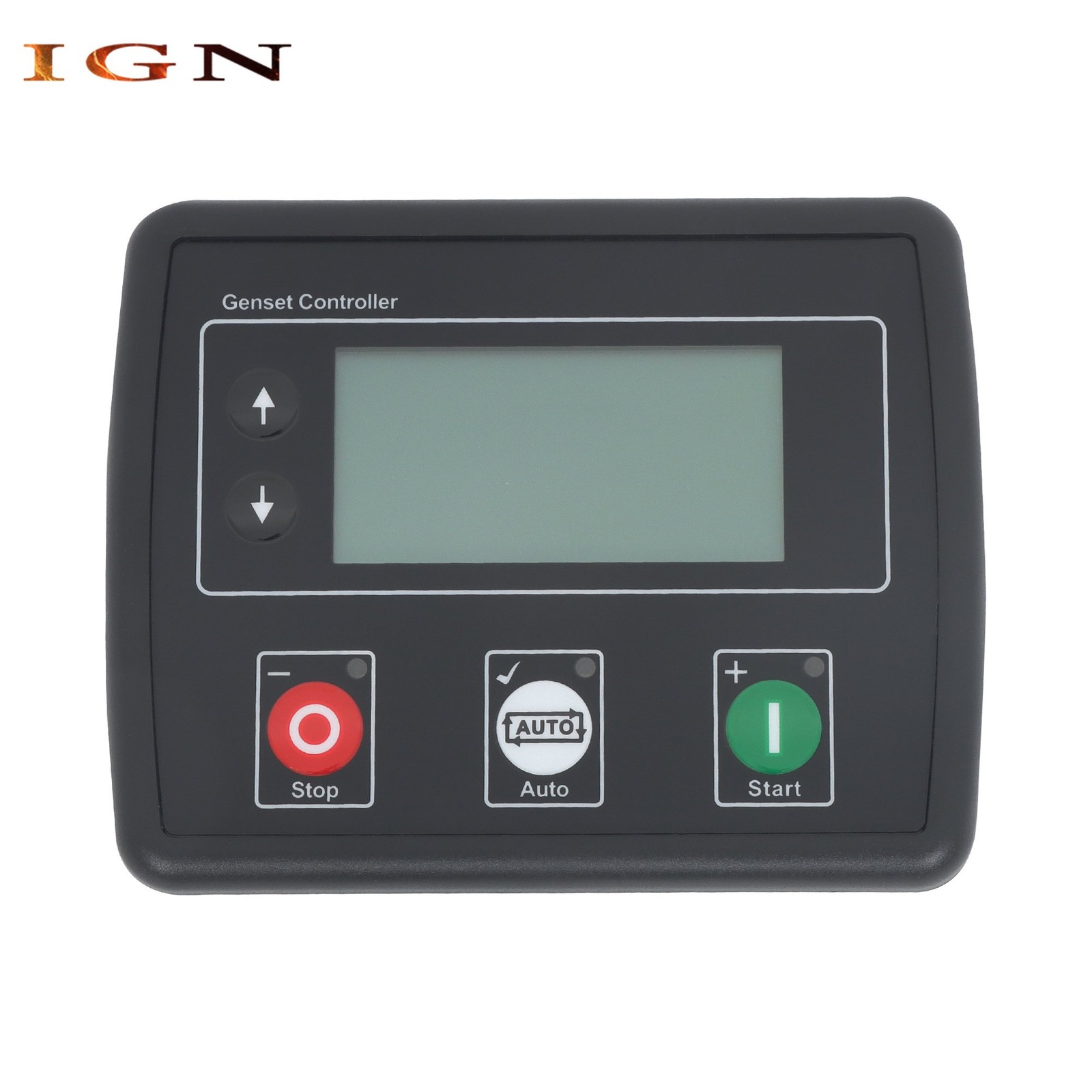

Generator Controller Control Module Deep Sea DSE4510 Control Panel LCD Display

Feature：

1. DSE4510 Is A Stand‑Alone Self‑Starting Controller, Which Can Provide Complete Monitoring And Protection Functions For Generator Sets.
2. The LCD Display Can Display Alarm Information Such As Ordinary Alarms, Electrical Trips And Shutdowns, And Supports , Gas And Gasoline EFI And Non‑EFI.
3. Can Monitor Engine Speed, Oil Pressure, Water Temperature, Oil Level, And Generator Frequency, Voltage, Current Power.
4. With Multiple Flexible Input, Output And Protection Functions, Suitable For A Variety Of Application Requirements.
5. The Parameters Can Be Set Through The DSE Software, Or The Parameters Can Be Edited On The Front Panel.

Description：

Item Type: Generator Set Controller

Functions: Self-Definable Self-Starting Mains Failure Self-Starting Mode; Support J1939-75 And CAN Alarm; Generator Frequency And CAN Detection Speed; The Largest Backlit Graphic Display Among Similar Products; Real-Time Clock; Can Be Set Through The Front Panel Or Computer All Parameters; Power Saving Mode; 3-Phase Generator Detection; 3-Phase Mains Detection; Support For 600 V Line Voltage (LL System); Unit/Load Force Monitoring (KW, KVA, KVAr, pf); Cumulative Power Monitoring (KWh, KVAh, KVArh); Overload Protection; Unit/Load Current Detection And Protection; Fuel And Start Output Can Be Customized When Connected To EFI; 4 Custom DC Outputs; 3 Custom Analog/Digital Inputs; 4 Custom Inputs Defined Digital Input; Self-Defined Hierarchical Load Output; 3 Engine Maintenance Indications; Engine Speed Protection; Engine Running ; Engine Warm-Up; Engine Start And Stop Cycles Can Be Preset; Engine Start Idling And Shutdown Idling Control; Tier4 Standard Engine Instrument Interface; Battery Voltage Monitoring; Start The Unit When The Battery Voltage Is Low; Custom Remote Start Input; 2 Sets Of Protection Parameters; Complete Alarm, Electrical Trip And Shutdown Protection; LCD Alarm Indication; 50 Event Records.
Advantages: Small Product And Strong Function; Automatic Switching Between Mains And Units; Real-Time Clock Provides Accurate Event Recording; Reasonable Button Layout, Easy ; Parameter Setting Using DSE Setting Software; Compatible With A Variety Of EFI Engines Including Tier4; PC Software; IP65 Grade (With Gasket) Better Waterproof Performance.

Package List:

1 × DSE4510 Controller

2 × Mounting Screws

Notes:

If You Are Uncertain About The Item,Please Feel Free To Contact Us For Confirm.

Sorry For Any Inconvenience Caused,Full Refund Guarantee If Does Not Fit.

Item Specifics
Country of Origin	United States
Brand	Genrics
MPN	DSE4510
Equipment Type	Control Panel
Model	DSE4510
Manufacturer Warranty	1 Year
Type	Generator Controller
