Advantages of GE017 Series:
-The NEWEST DESIGN of strip to wire connectors are worry-free solution for LED light strip connection and wire extension.
-Both solderless for strip lights & wire joint.No need to peel off waterproof coating gel.And do not need wire-stripping for wire connection. Saves 2/3 time on strips connection and wires installation.

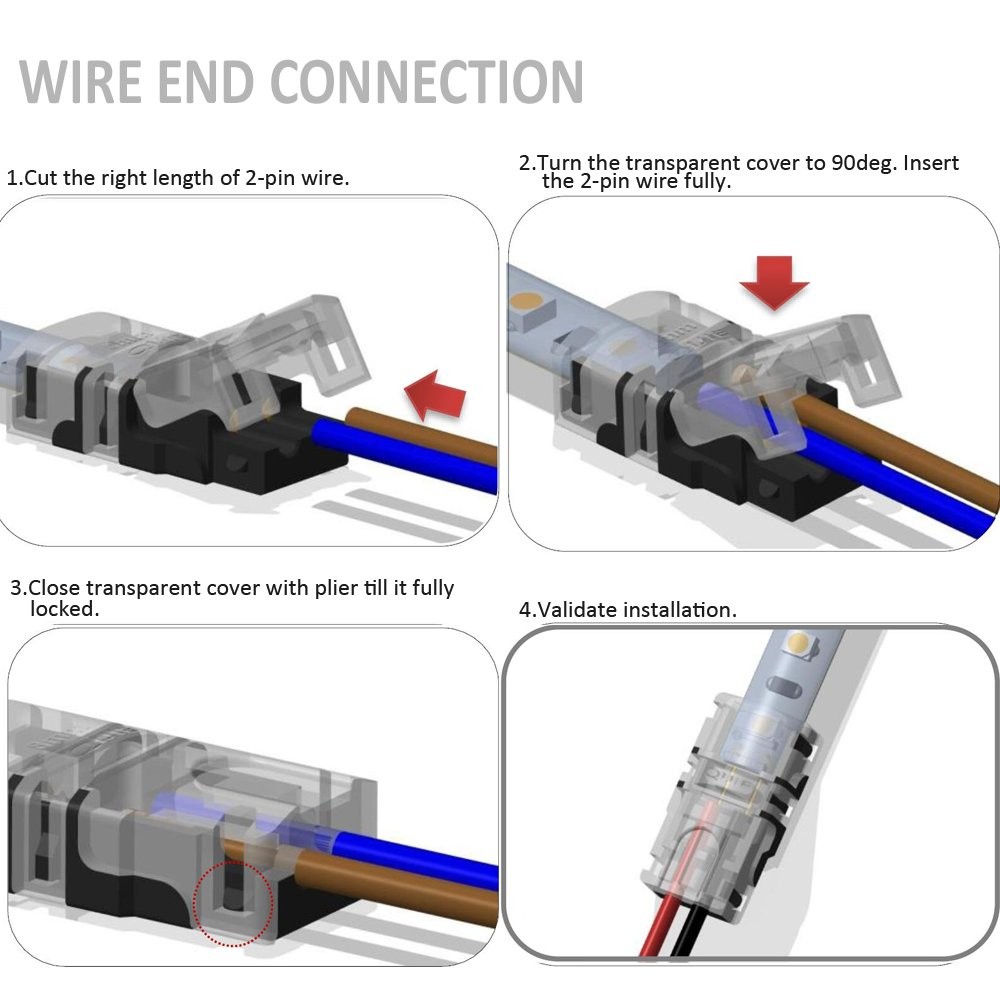

Installation Guides:
1.Ensure your section of LED light strip is WATERPROOF 2-PIN LED Strip and has 2 contacts (+,-).All the contacts are clean.
2.Insert the LED light strip into clasp side. Set the 2 contacts of led strip sitting ON the 2 pins of clasp. Close the clasp down with force.
3.Fitting the right length of 22-18 AWG 2 line wire.Insert the wire and assemble it by plier. Press cap down and no more work needed. (Note: No need to strip at the end of 2 Line Wire.)
4.Vailidate installation is complete.

Reminder:
Fitting with 10mm wide waterproof 2-PIN LED Strip Light AND Solid/ Strand WIRE 22-18AWG(0.35-0.75 square mm).Please check dimension before use.
Tools Needed: one combination plier.

Package includes:
12x Strip to Wire Connectors for 10mm Wide Waterproof 2-Pin LED Strip Light

If you have any questions, please send us an email as soon as possible, and we will try our best to solve it.
FREE FROM THE LIMIT OF TERMINAL POSITION. Connect wire by yourself as need,free from the consideration of the length of terminal wire
EASY TO USE. Solderless,No wire-stripping and No need to peel off Silicon cover.Quick and flexible work for Strip Light projects
COMPATIBLE WITH:Waterproof 10mm Wide Single Color 3528 /2835 /5630 /5730 Strip Light 30-120 LEDs/Meter
DURABLE MATERIAL. Fire-proof Nylon housing and High precision brass connector.Offer the excellent current loading of 6A/Pin
We offer a 3-month refund and a 1-year warranty service to our customers. If you have any questions about our products, please feel free to email us; we will be happy to help you with any questions you may have.
