DESCRIPTION

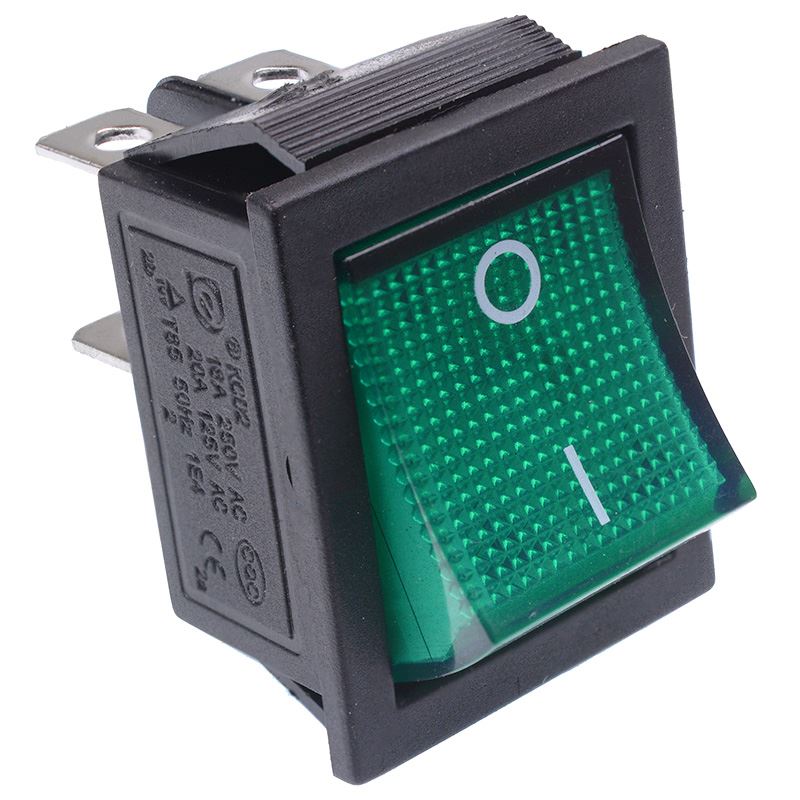

Illuminated rocker switch with On-Off action and DPST contacts. The switch has black housing and 6.3mm terminals.
- Green 12V illumination
- DPST contacts
- On-Off action
- Snap-in mounting
- 21 x 27mm panel cut-out
Technical Information
| Contact Rating | 20A 125VAC 16A 250VAC |
| Dimensions | 36 x 31 x 26mm |
| Insulation Resistance | >1000MΩ |
| Contact Resistance | <50MΩ |
| Electrical Life | 10,000+ Cycles |
| Mechanical Life | 50,000+ Cycles |
| Operating Temperature | -10°C to +85°C |
