H.265/H.264 9-Channel Network Transcoder RTSP to RTMP Network Camera IPC to Network Live Streaming 4K60 Transcoding
Description:

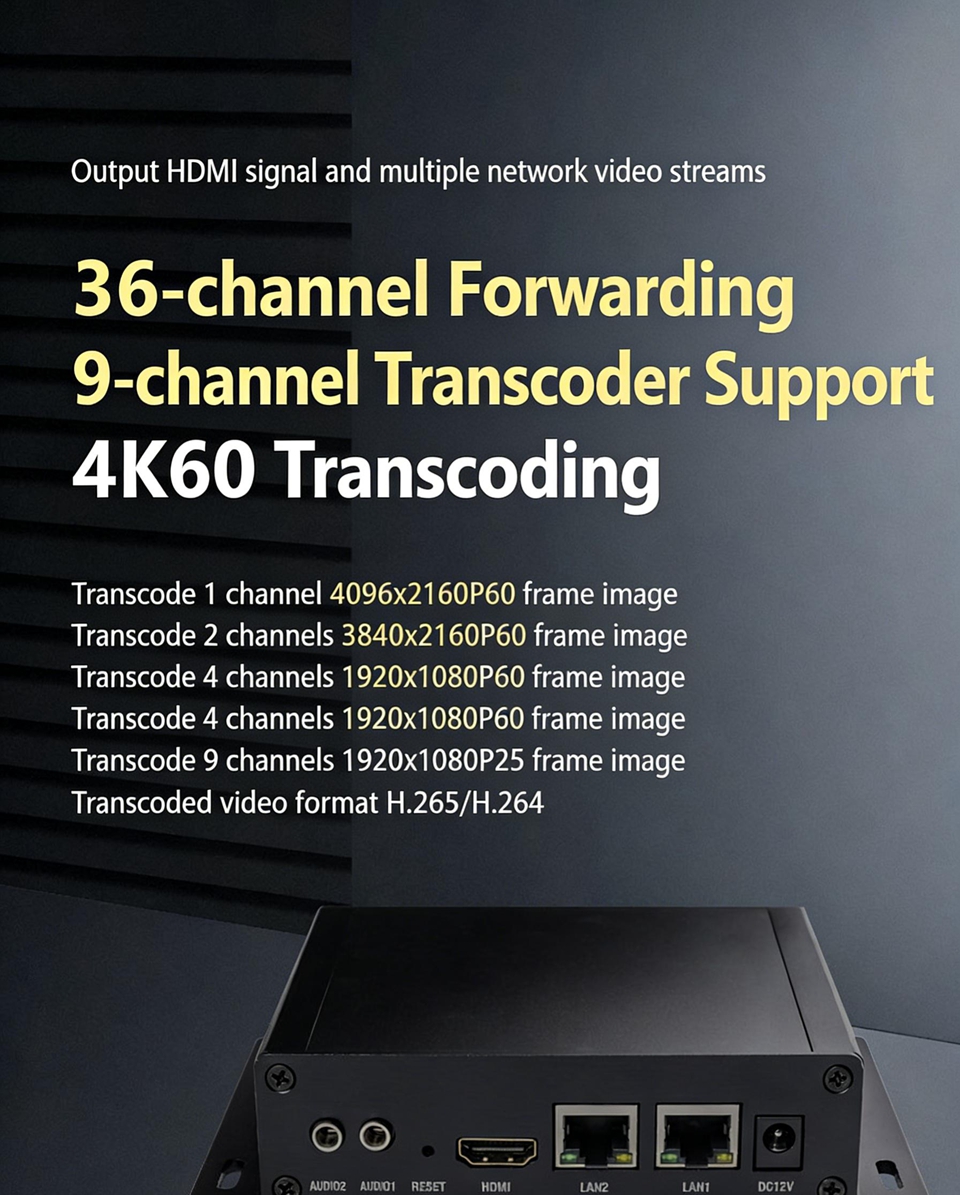

- H.265 forwarding and transcoding device can forward and transcode multiple network videos, with a maximum of 9 transcoding channels and 36 forwarding channels. The HDMI-compatible interface output displays the transcoded image, and can transcode up to 1 4K60 frame image or 2 4K30 or 4 1080P60 or 9 1080P25 frames per second.

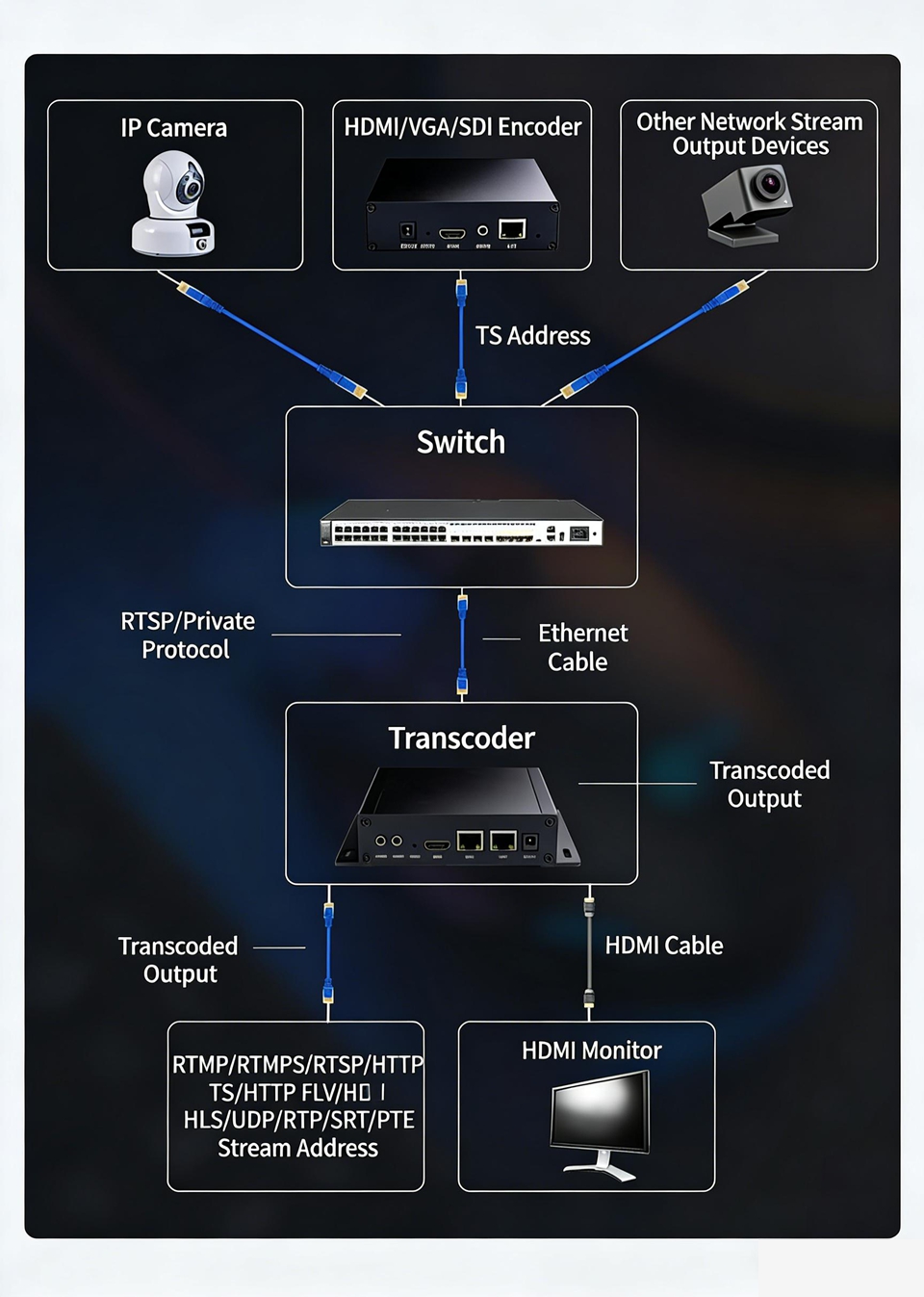

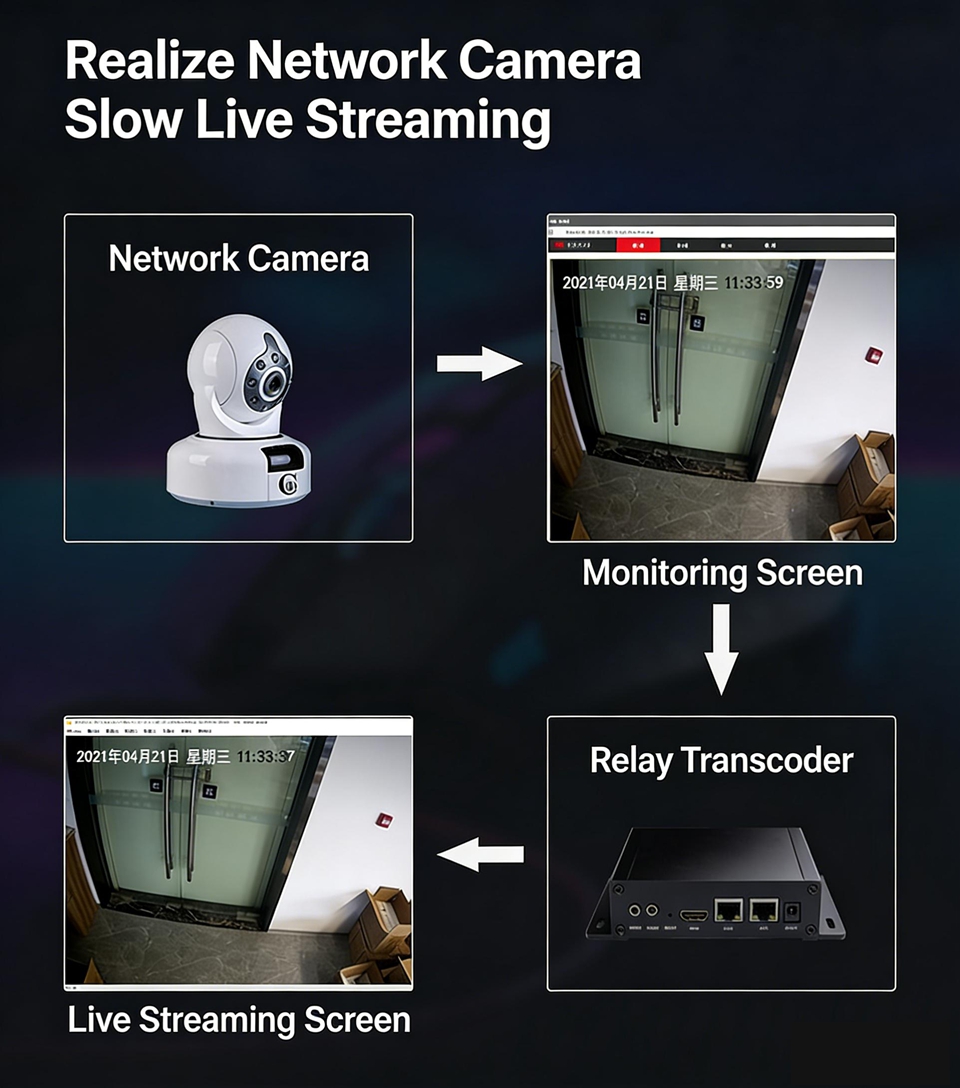

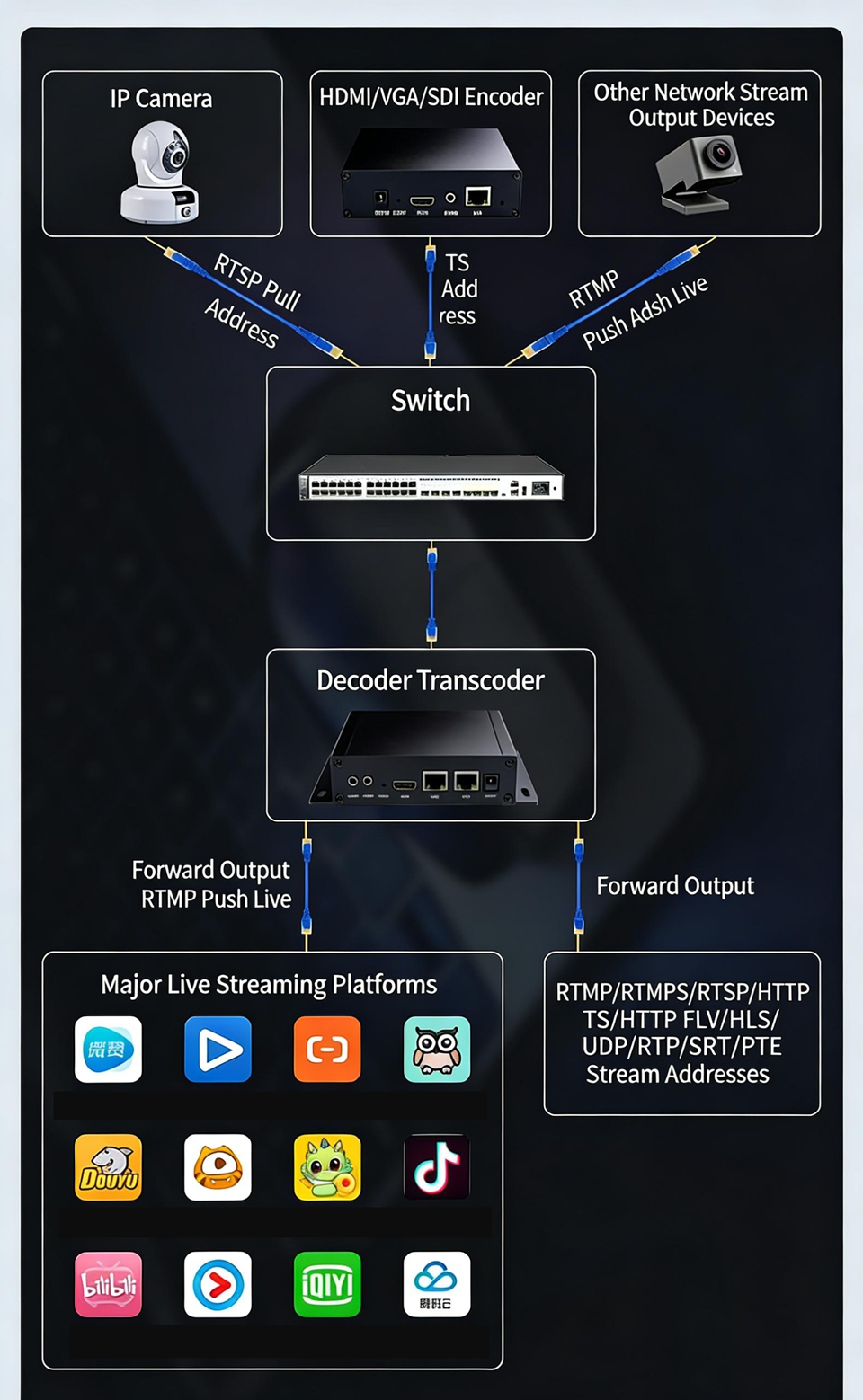

- The video format for transcoding is H.265/H.264, and it can forward and transcode multiple protocols such as RTMP/RTSP/HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP multicast/RTP multicast. It is compatible with 99% of network cameras on the market and can find the RTSP address of the network camera and obtain transcoding through the built-in ONVIF search tool.
- Widely used in advertising, education, healthcare, conferences, video surveillance and other fields.
Key Features:
- CPU: S528

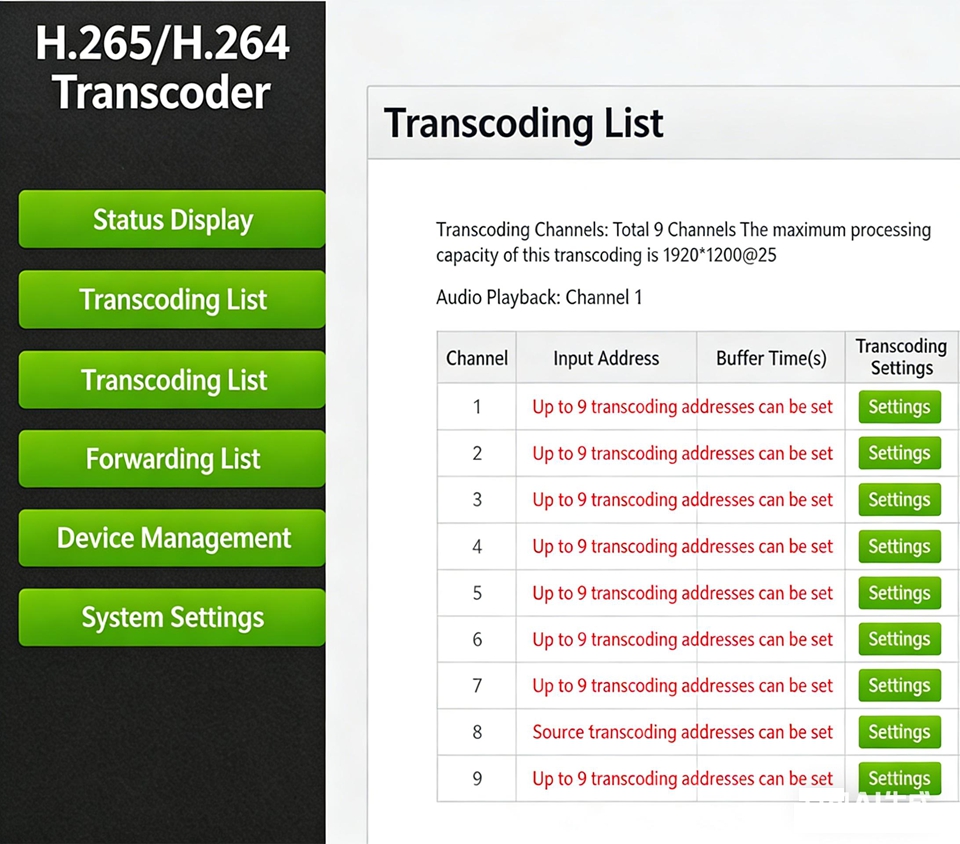

- Transcoding 9 network video streams.

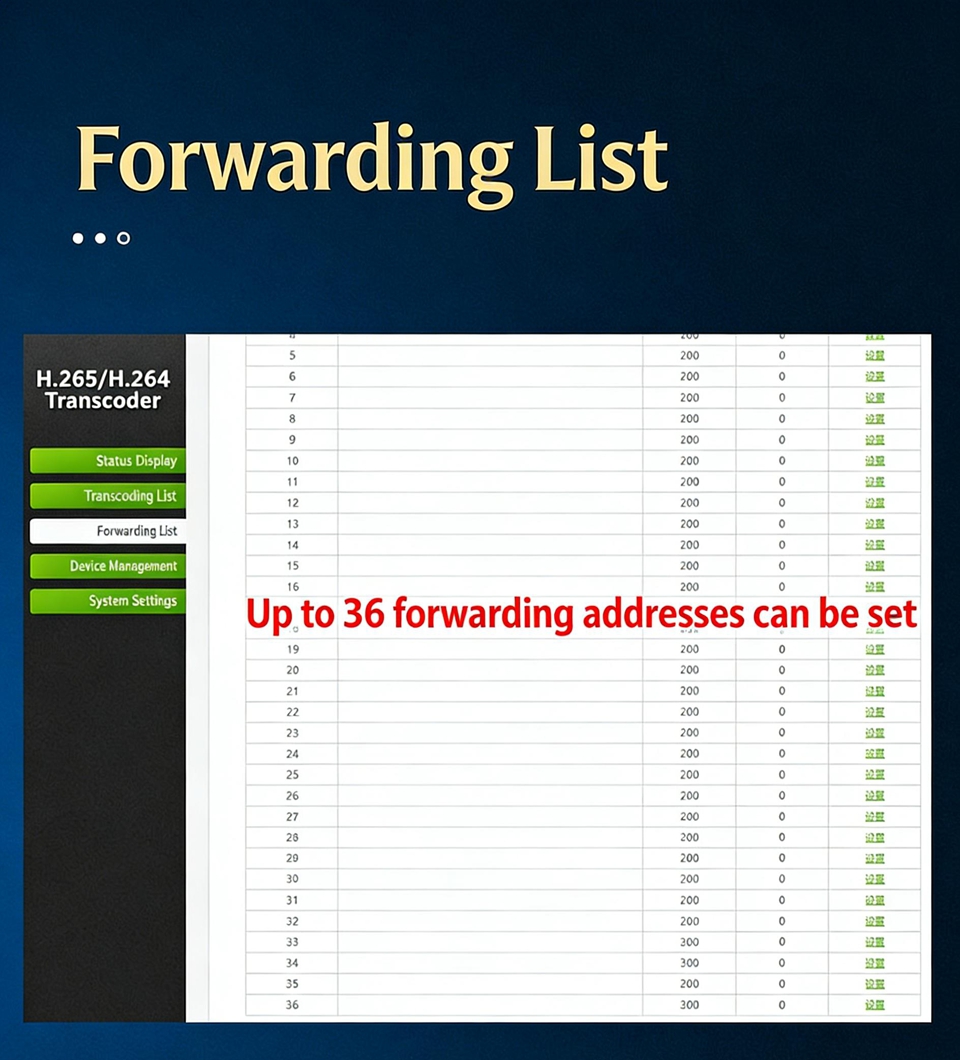

- Forward 36 network video streams.
- Transcode multiple protocols for HTTP TS/HLS/FLV/RTP/RTMP/UDP/RTP/MP4/PTE.
- Video format H.265/H.264.

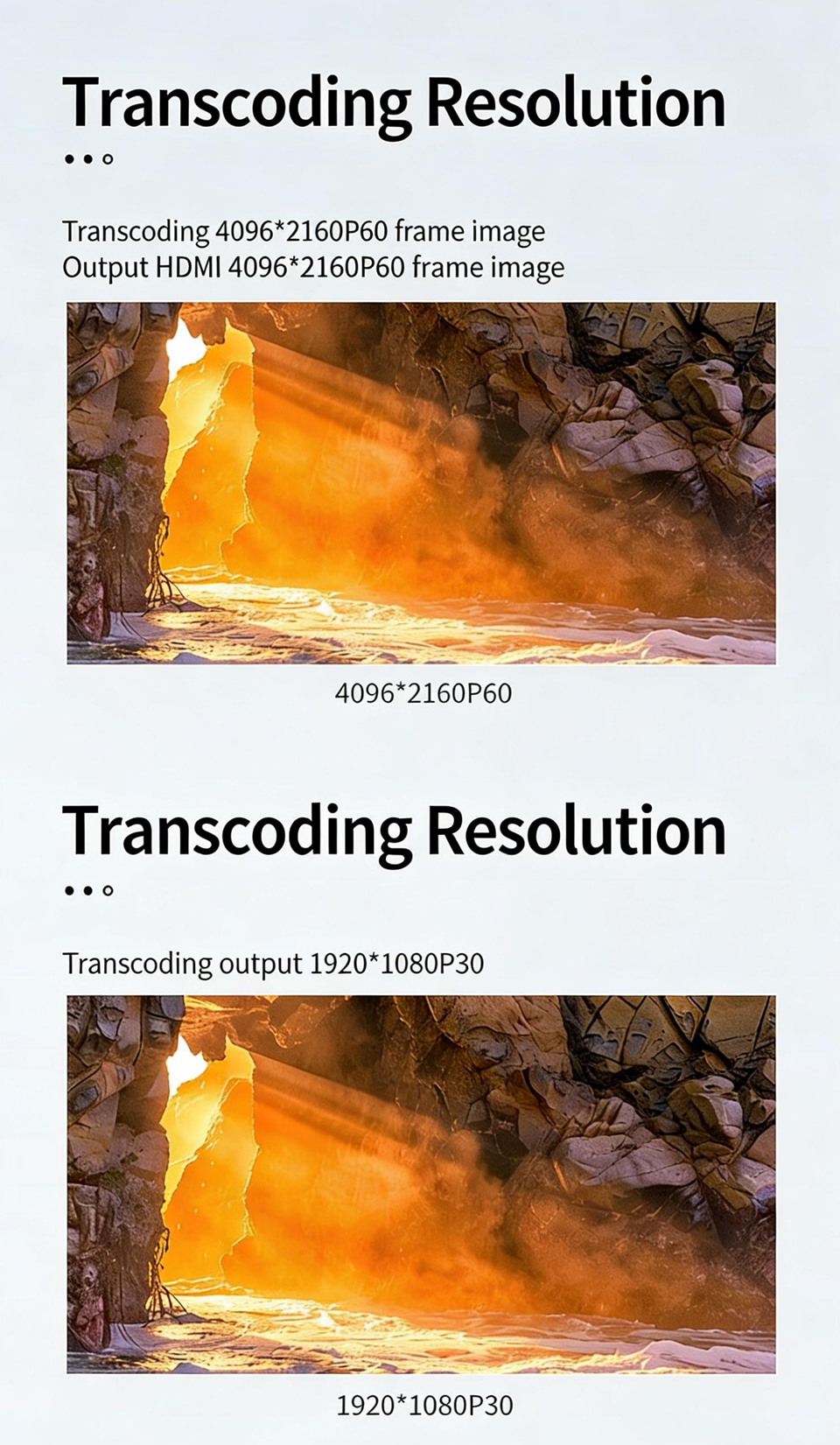

- Maximum transcoding capability: 1 channel 2160P60 or 2 channels 2160P30 or 4 channels 1080P60 or 9 channels 1080P25.
- HDMI-compatible output preview.
- Audio: 2 channels of 3.5mm audio ports, HDMI-compatible built-in audio output, supporting stereo sound.
- Dual network ports and dual IP.
- Configure parameters and upgrade firmware through WEB.
Specification:
Audio/Video Input:
- Video input: network stream
- Audio Input: choose one in three (network stream built-in audio or 2-channel external audio)
Video Transcoding:
- Channel number: 1/2/4/9
- Audio playback: choose any channel
- Encoding type: H.265/H.264
- Encoding frame rate: 5 - 60 adjustable
- Key-frame interval (fps): 5 - 300 adjustable
- Bit rate (kbit): 32 - 32000 adjustable
- Encoded resolution: 4096x2160 /3840x2160 /2560x1140 /1920x1200 /1920x1080 /1680x1056 /1680x1200 /1680x900 /1366x768 /1280x1024 /1280x720 /1024x768 /1024x576 /960x540 /850x480 /800x600 /720x576 /720x540 /720x480 /720x404 /704x576 /640x480
- H.264 grade: baseline profile/main profile/high profile
- Stream control: CBR/VBR optional
- Transcoded streaming protocol: support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP Multicast/RTP Multicast
Audio Transcoding:
- Encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3/Opus
- Encoding bit rate:
AAC: 48000 - 320000 adjustable
AAC+: 24000 - 48000 adjustable
AAC++: 12000 - 32000 adjustable
MP3: 64000 - 320000 adjustable
MP2: 64000 - 320000 adjustable
AC3: 40000 - 640000 adjustable
Opus: 8000 - 256000 adjustable
- PTE stream using G711A encoding: disabled/enabled
- RTSP stream using G711A encoding: disabled/enabled/enable and resample to 8K
- G711 encoding: disabled/enabled
OSD:
- Transparency: 0 - 255
- Type: text/image/scrolling text/time
- Area: 4 areas optional
- X coordinate: 0 - 1920
- Y coordinate: 0 - 1080
- LOGO: can upload 4 logos for backup selection
- Font size: 8 - 72
- Background color: transparent/white/black
- Font color: optional RGB color
Video Forwarding:
- Channel number: 36
- Transcoded streaming protocol: support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP Multicast/RTP Multicast
Audio Forwarding:
- Encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3/Opus
- Encoding bit rate:
AAC: 48000 - 320000 adjustable
AAC+: 24000 - 48000 adjustable
AAC++: 12000 - 32000 adjustable
MP3: 64000 - 320000 adjustable
MP2: 64000 - 320000 adjustable
AC3: 40000 - 640000 adjustable
Opus: 8000 - 256000 adjustable
- PTE stream using G711A encoding: disabled/enabled
- RTSP stream using G711A encoding: disabled/enabled/enable and resample to 8K
- G711 encoding: disabled/enabled
General Parameter:
- Network: dual Gigabit
- Configuration management: via WEB
- ONVIF: support for ONVIF search or browse video
- Power supply: 12V DC, 2A
- Power consumption: < 5W
- Working temperature: -20â to +60â
- Working humidity: <90%, non-condensing
- Product size: 14.6 x 3.5 x 10.3cm
- Net weight: 372g
Package Included:
- 1 x Transcoder
Description:
- H.265 forwarding and transcoding device can forward and transcode multiple network videos, with a maximum of 9 transcoding channels and 36 forwarding channels. The HDMI-compatible interface output displays the transcoded image, and can transcode up to 1 4K60 frame image or 2 4K30 or 4 1080P60 or 9 1080P25 frames per second.
- The video format for transcoding is H.265/H.264, and it can forward and transcode multiple protocols such as RTMP/RTSP/HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP multicast/RTP multicast. It is compatible with 99% of network cameras on the market and can find the RTSP address of the network camera and obtain transcoding through the built-in ONVIF search tool.
- Widely used in advertising, education, healthcare, conferences, video surveillance and other fields.
Key Features:
- CPU: S528
- Transcoding 9 network video streams.
- Forward 36 network video streams.
- Transcode multiple protocols for HTTP TS/HLS/FLV/RTP/RTMP/UDP/RTP/MP4/PTE.
- Video format H.265/H.264.
- Maximum transcoding capability: 1 channel 2160P60 or 2 channels 2160P30 or 4 channels 1080P60 or 9 channels 1080P25.
- HDMI-compatible output preview.
- Audio: 2 channels of 3.5mm audio ports, HDMI-compatible built-in audio output, supporting stereo sound.
- Dual network ports and dual IP.
- Configure parameters and upgrade firmware through WEB.
Specification:
Audio/Video Input:
- Video input: network stream
- Audio Input: choose one in three (network stream built-in audio or 2-channel external audio)
Video Transcoding:
- Channel number: 1/2/4/9
- Audio playback: choose any channel
- Encoding type: H.265/H.264
- Encoding frame rate: 5 - 60 adjustable
- Key-frame interval (fps): 5 - 300 adjustable
- Bit rate (kbit): 32 - 32000 adjustable
- Encoded resolution: 4096x2160 /3840x2160 /2560x1140 /1920x1200 /1920x1080 /1680x1056 /1680x1200 /1680x900 /1366x768 /1280x1024 /1280x720 /1024x768 /1024x576 /960x540 /850x480 /800x600 /720x576 /720x540 /720x480 /720x404 /704x576 /640x480
- H.264 grade: baseline profile/main profile/high profile
- Stream control: CBR/VBR optional
- Transcoded streaming protocol: support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP Multicast/RTP Multicast
Audio Transcoding:
- Encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3/Opus
- Encoding bit rate:
AAC: 48000 - 320000 adjustable
AAC+: 24000 - 48000 adjustable
AAC++: 12000 - 32000 adjustable
MP3: 64000 - 320000 adjustable
MP2: 64000 - 320000 adjustable
AC3: 40000 - 640000 adjustable
Opus: 8000 - 256000 adjustable
- PTE stream using G711A encoding: disabled/enabled
- RTSP stream using G711A encoding: disabled/enabled/enable and resample to 8K
- G711 encoding: disabled/enabled
OSD:
- Transparency: 0 - 255
- Type: text/image/scrolling text/time
- Area: 4 areas optional
- X coordinate: 0 - 1920
- Y coordinate: 0 - 1080
- LOGO: can upload 4 logos for backup selection
- Font size: 8 - 72
- Background color: transparent/white/black
- Font color: optional RGB color
Video Forwarding:
- Channel number: 36
- Transcoded streaming protocol: support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP Multicast/RTP Multicast
Audio Forwarding:
- Encoding method: AAC/AAC+/AAC++/MP3/MP2/AC3/Opus
- Encoding bit rate:
AAC: 48000 - 320000 adjustable
AAC+: 24000 - 48000 adjustable
AAC++: 12000 - 32000 adjustable
MP3: 64000 - 320000 adjustable
MP2: 64000 - 320000 adjustable
AC3: 40000 - 640000 adjustable
Opus: 8000 - 256000 adjustable
- PTE stream using G711A encoding: disabled/enabled
- RTSP stream using G711A encoding: disabled/enabled/enable and resample to 8K
- G711 encoding: disabled/enabled
General Parameter:
- Network: dual Gigabit
- Configuration management: via WEB
- ONVIF: support for ONVIF search or browse video
- Power supply: 12V DC, 2A
- Power consumption: < 5W
- Working temperature: -20â to +60â
- Working humidity: <90%, non-condensing
- Product size: 14.6 x 3.5 x 10.3cm
- Net weight: 372g
Package Included:
- 1 x Transcoder
