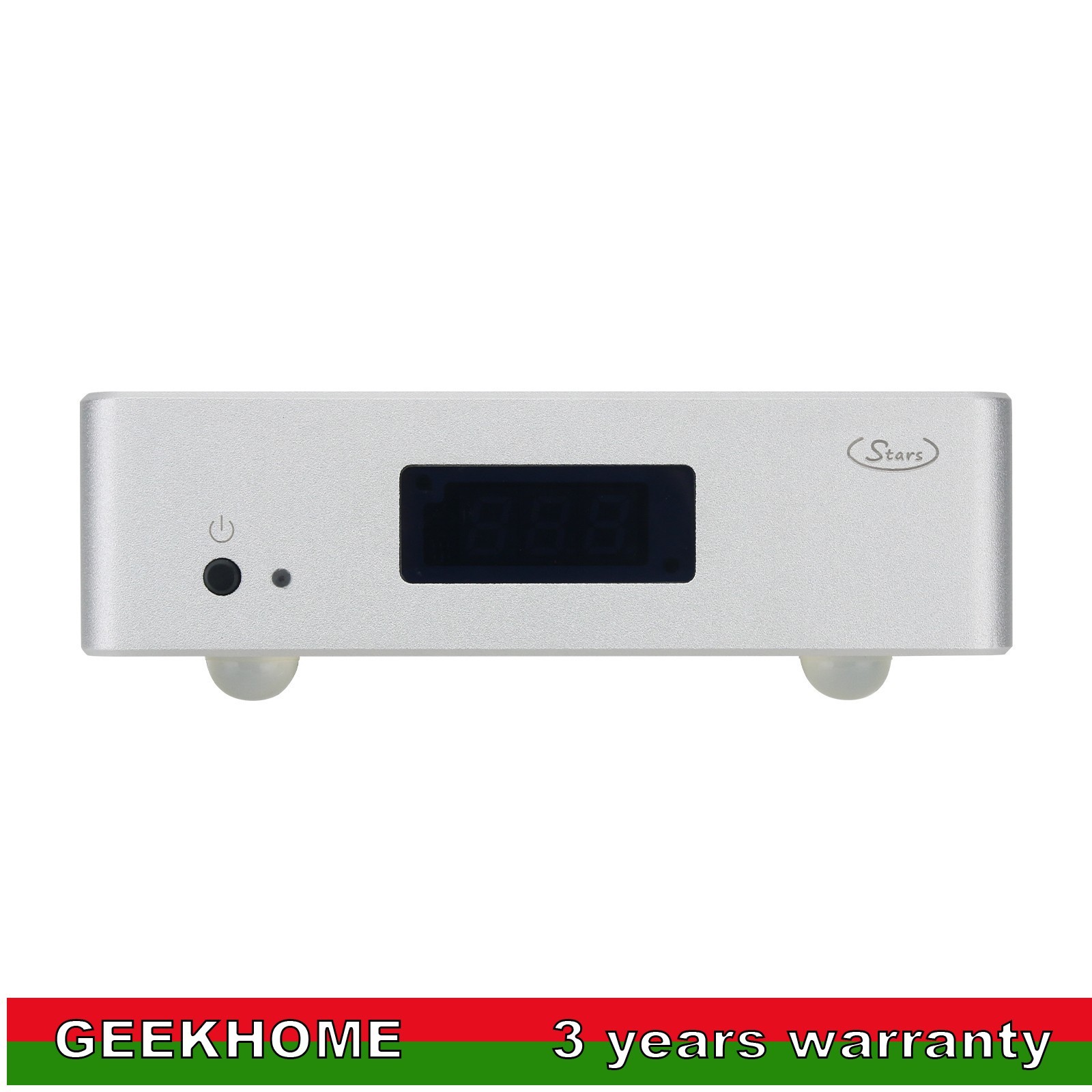

H99 AK4499EX Audio Decoder Full Balanced HiFi Bluetooth DAC Built-in OCXO 8 Digital Filtering
Description:
- The H99 is equipped with a built-in HiFi OCXO to provide accurate clock signals for the entire machine. Through the intervention of a 10M clock signal, the clarity and transparency of the sound are greatly improved, and the sound field is wide and precise in positioning.
- Two sets of LT3042 ultra-low noise LDO stabilizers provide analog power supply for the left and right channels of AK4499EX; LT3042 has an output noise of up to 0.8uVRMS, fast speed, high resolution, and strong driving force.
- AK4499EX is a new concept advanced multi bit stereo DAC. It is a newly developed switch resistor array structure decoding chip by AKM, paired with a dedicated AK4191 digital filtering chip, with a sampling rate of 1536kHz and DSD1024 decoding ability. The theoretical dynamic range is as high as S/N: 135dB.
- The LPF part of H99 has eliminated defects such as insufficient driving force in the original line structure.
- Using Instruction:
https://pan.baidu.com/s/1VW8VtJ58ry4J9NEho9b02g?pwd=6666
Colorful Indicator:
- Red: shutdown
- Yellow: standby
- Blue: start
- Purple: lock the PCM input signal
- White: DSD hard decoding

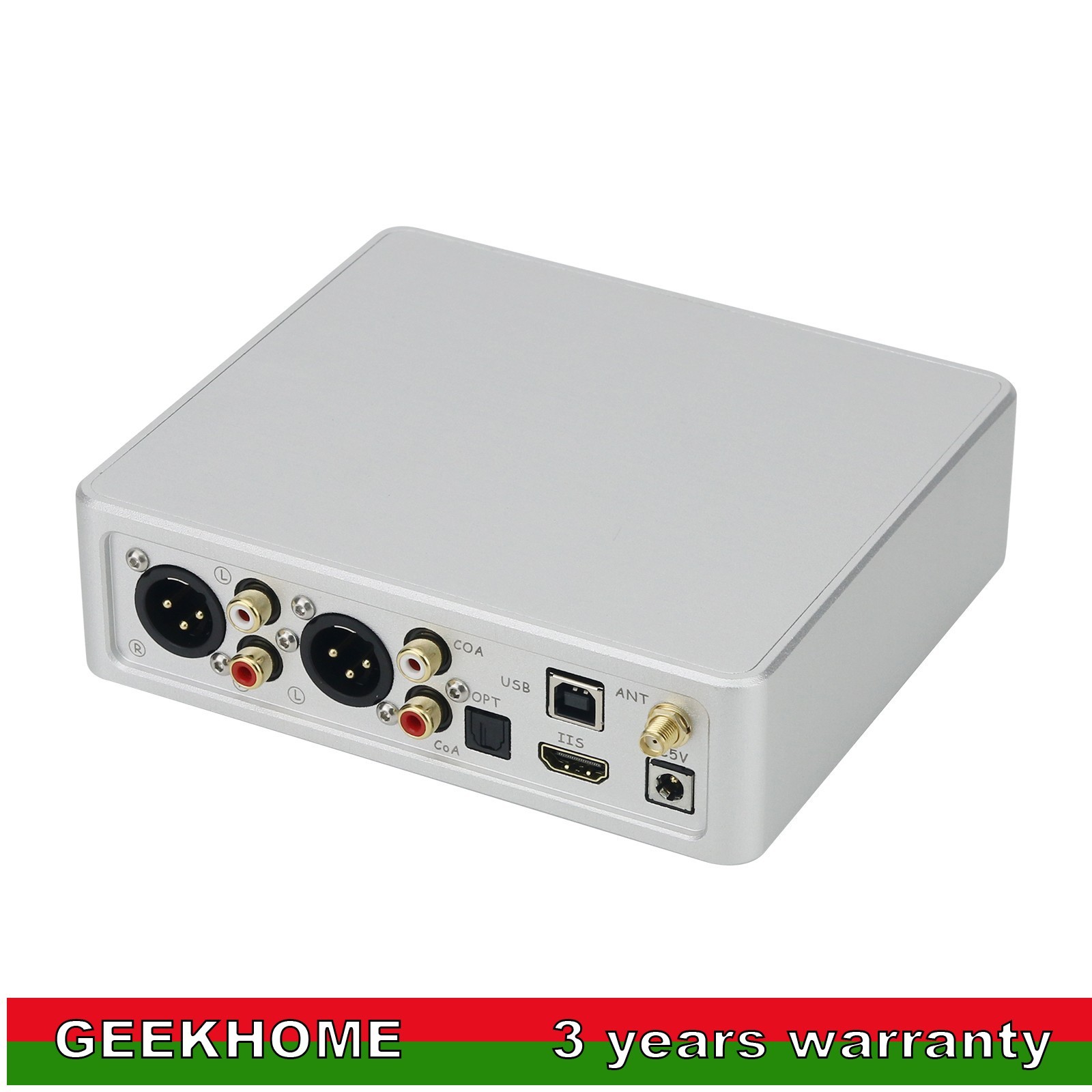

Digital Input:
- Coaxial:
PCM: 44.1kHz - 384kHz/24Bit
DSD: DSD64/DSD128 (DOP)
- Optical:
PCM: 44.1kHz - 192kHz/24Bit
DSD: DSD64 (DOP)
- IIS:
PCM: 44.1kHz - 384kHz/32Bit
DSD: DSD64/128/256/512 (Native DSD)
- USB:
PCM: 44.1kHz - 384kHz/32Bit
DSD: DSD64/128/256/512 (Native DSD)
- Bluetooth: for LDAC / for aptX-HD / for aptX / AAC / SBC
Analog Output:
- RCA single-end output: 2.2Vrms/-0dB
- XLR balanced output: 4.5Vrms/-0dB
- XLR interface definition: 1-GND; 2-Positve; 3-Negative
- THD + N: 0.0002% at 1kHz
Power Specification:
- Power adapter parameter:
Input: AC110 - 240V, 50/60Hz
Output: 5V/2A
- Power voltage: DC stabilized +5V, ±5%
- Power interface specification: 5.5/2.1; positive inside, negative outside
- Shutdown current: <10mA
- Standby current: about 250mA/OCXO is powered on in standby mode.
- Working current: initial startup > 1000mA; normal working > 800mA
Chassis Specification:
- Size: W x H x D = 160mm x 45mm x 140mm
- Net weight: 0.9kg
- Packaging size: W x H x D = 250mm x 125mm x 250mm
Package Included:
- 1 x Host
- 1 x Power Adapter
- 1 x USB Cable
- 1 x Bluetooth Antenna
- 1 x Remote Control
Note:
- Modifications to the machine or damaged warranty labels are not covered by the warranty, and we are not responsible for this occasion.
- Due to the need for product performance design and the limitations of material purchase conditions, products are produced using some non brand new components.
