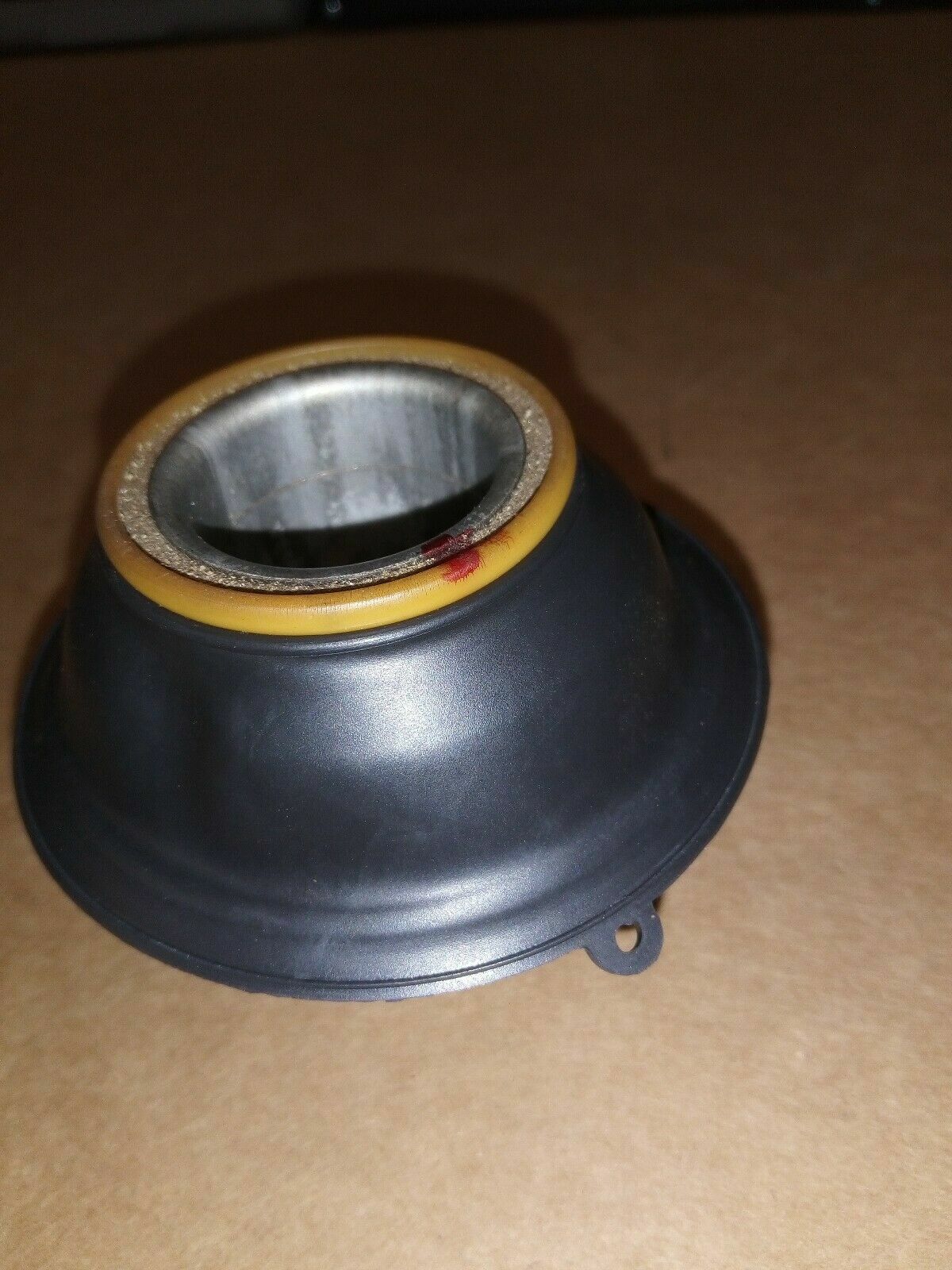

THIS IS ONE NEW KEIHIN CARBURATOR RUBBER DIAPHRAGM ONLY. (slide is for display only and not included)
FOR THE 1988 TO 2000 HONDA GL1500 MOTORCYCLE.
IT IS NEW CONDITION.
CHECK YOUR PART NUMBER TO MAKE SURE THIS IS THE ITEM YOU NEED

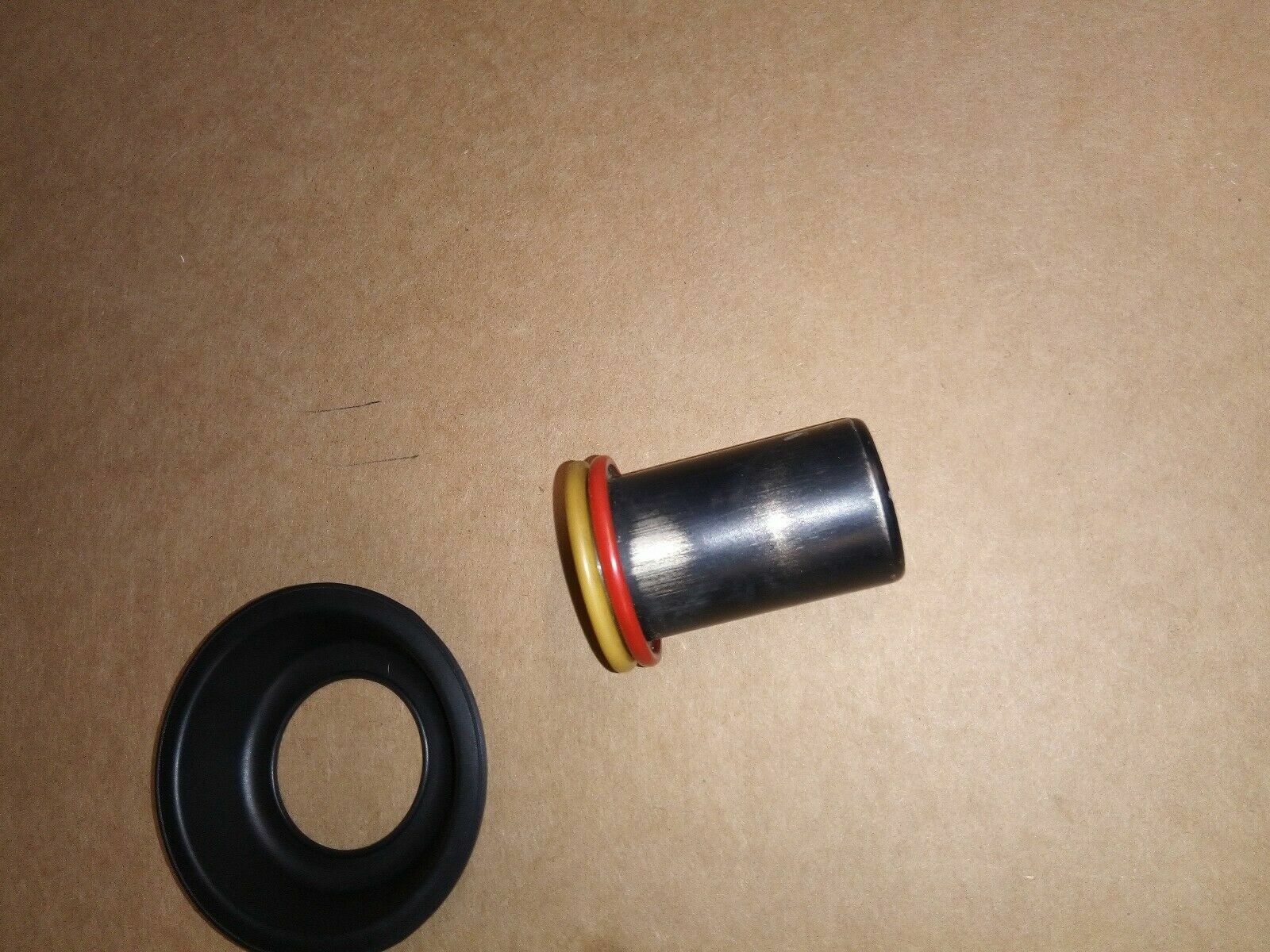

YOU GET WHATS IN FIRST PHOTO. ( inventory # 705335 )
You can find many guides and videos on the internet of how to change
these but it just looks easy but it is not. The parts are very fragile and
delicate so I strongly advise the change to be done by a professional.

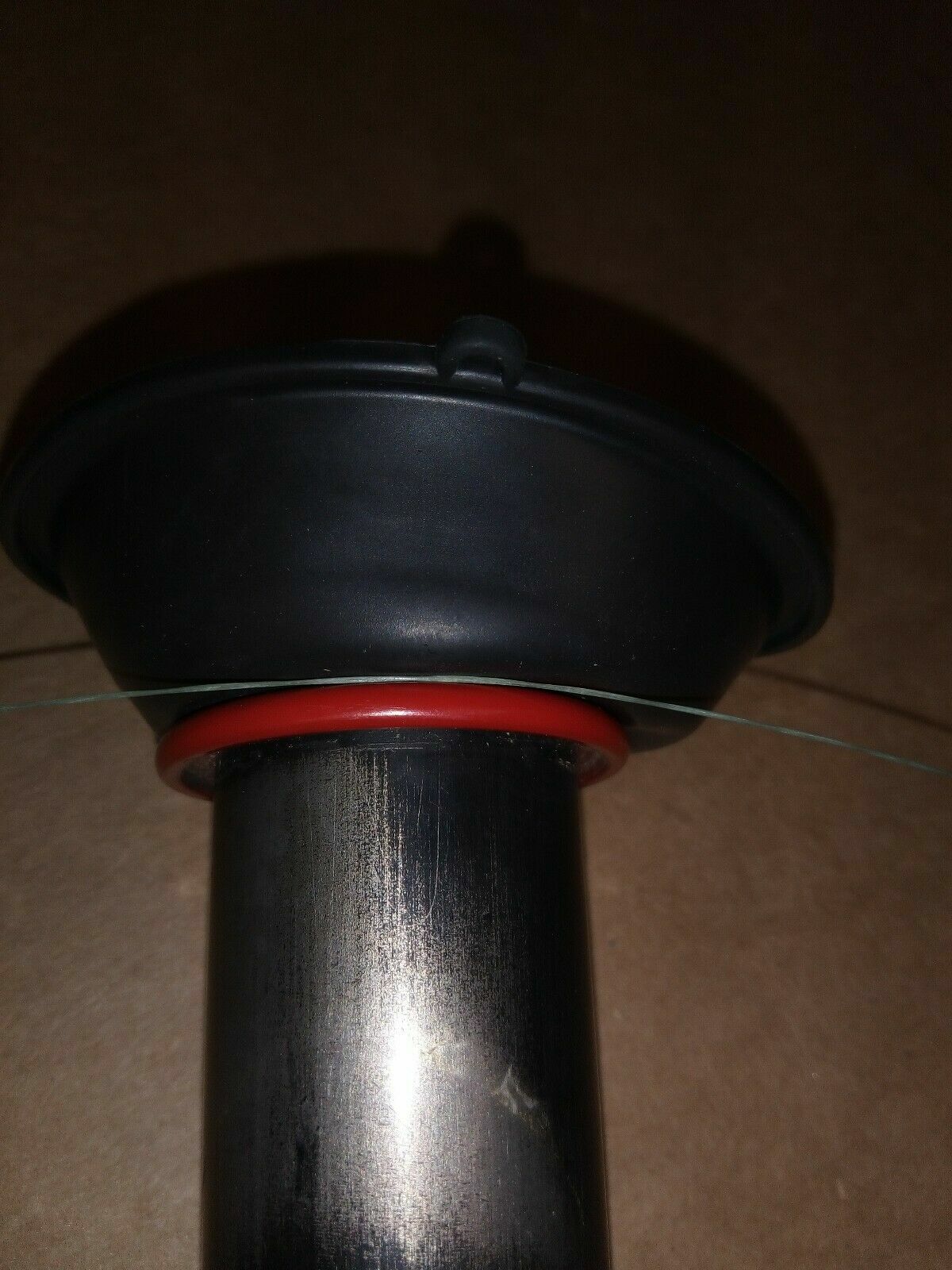

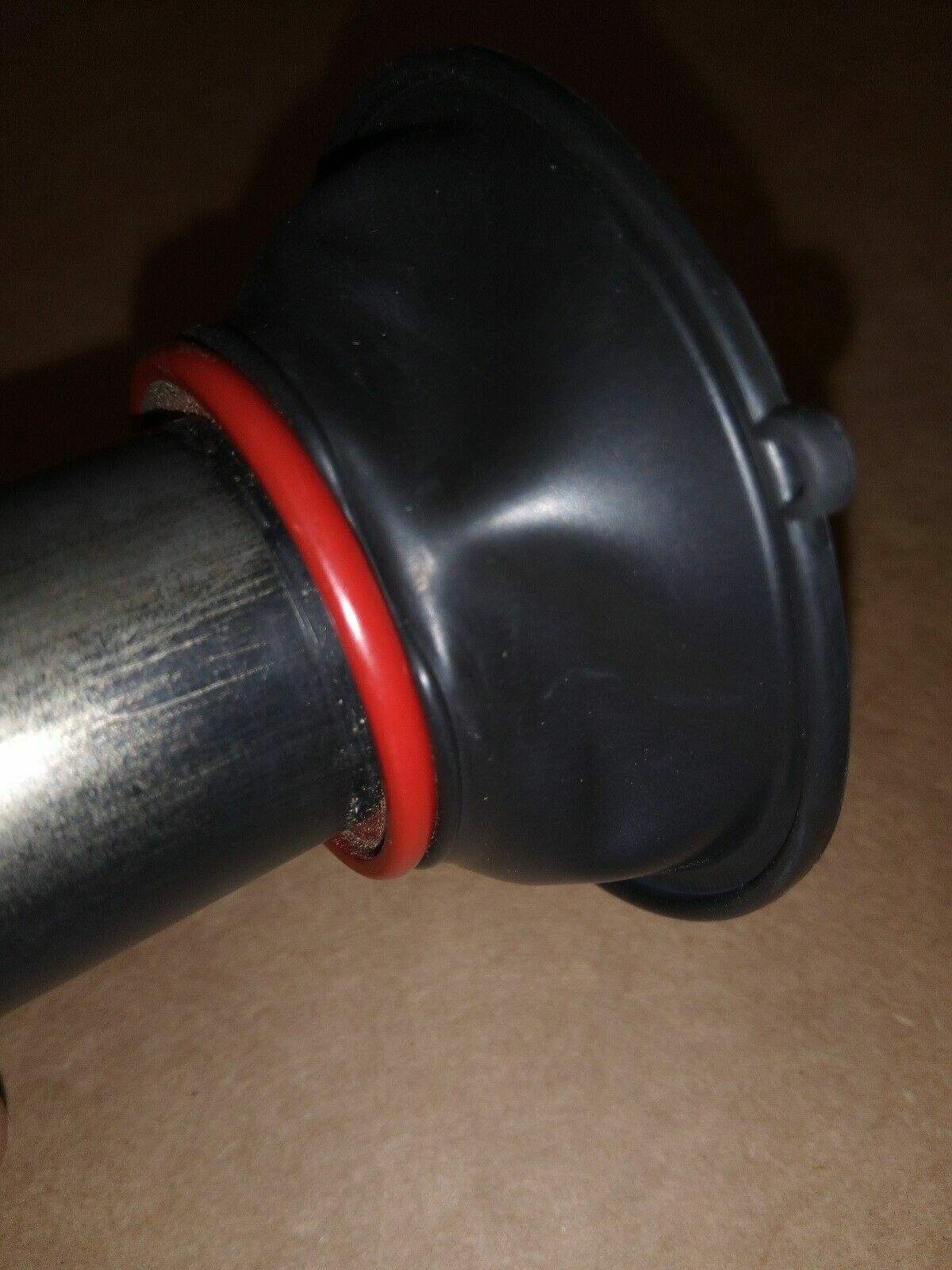

First you want to mark the small tab on the side. Then use some silicone spray to lube it up. If you don't have silicone spray then wd-40 or some kind of oil that is safe for rubber. Pull the old diaphragm out and make sure no pieces are left behind. Line the new diaphragm up with mark. Make sure you have the correct side facing up. I have a butter knife that I sanded all sharp edges off. You can also use a hard piece of plastic like a credit card. Make sure the knife edge is above the lip of the rubber so you don't poke a hole in the rubber. When you push the knife in it should be rolling the rubber edge in. Be very careful not to push on the rubber below the o-ring lip because that could cut the rubber. Work it around on opposite sides like 12 o'clock the 6 o'clock then 9 and 3 and so on. This cross pattern is very important so the rubber is going in evenly. After you get the o-ring lip in so you don't see anyone sticking out you take some strong fishing line and push the rest home.
The diaphragm itself does not have separate part number
and the reference HONDA part numbers for the entire
Diaphragm Valve Assemblies are
16111-MN5-004
16111-MY4-000
This Honda 16111-MN5-004 PISTON, VACUUM is used on these models and components:
1988 GL1500 A
1988 GL1500 AC
1989 GL1500 A
1989 GL1500 AC
1990 GL1500 A
1990 GL1500 AC
1990 GL1500SE A
1990 GL1500SE AC
1991 GL1500A A
1991 GL1500A AC
1991 GL1500I A
1991 GL1500I AC
1991 GL1500SE A
1991 GL1500SE AC
This Honda 16111-MY4-000 PISTON, VACUUM is used on these models and components:
1992 GL1500A A
1992 GL1500A AC
1992 GL1500I A
1992 GL1500I AC
1992 GL1500SE A
1992 GL1500SE AC
1993 GL1500A A
1993 GL1500A AC
1993 GL1500I A
1993 GL1500I AC
1993 GL1500SE A
1993 GL1500SE AC
1994 GL1500A A
1994 GL1500A AC
1994 GL1500I A
1994 GL1500I AC
1994 GL1500SE A
1994 GL1500SE AC
1995 GL1500A A
1995 GL1500A AC
1995 GL1500I A
1995 GL1500I AC
1995 GL1500SE A
1995 GL1500SE AC
1996 GL1500A A
1996 GL1500A AC
1996 GL1500I A
1996 GL1500I AC
1996 GL1500SE A
1996 GL1500SE AC
1997 GL1500A A
1997 GL1500A AC
1997 GL1500SE A
1997 GL1500SE AC
1998 GL1500A A
1998 GL1500A AC
1998 GL1500SE A
1998 GL1500SE AC
1999 GL1500A A
1999 GL1500A AC
1999 GL1500SE A
1999 GL1500SE AC
2000 GL1500A A
2000 GL1500A AC
2000 GL1500SE A
2000 GL1500SE AC
