Handheld Hart 475 Field Communicator Protocol Smart Transmitter Power Module

sunhk918

$315

CONTACT SELLER SEE ON EBAY

sunhk918

$315

DESCRIPTION

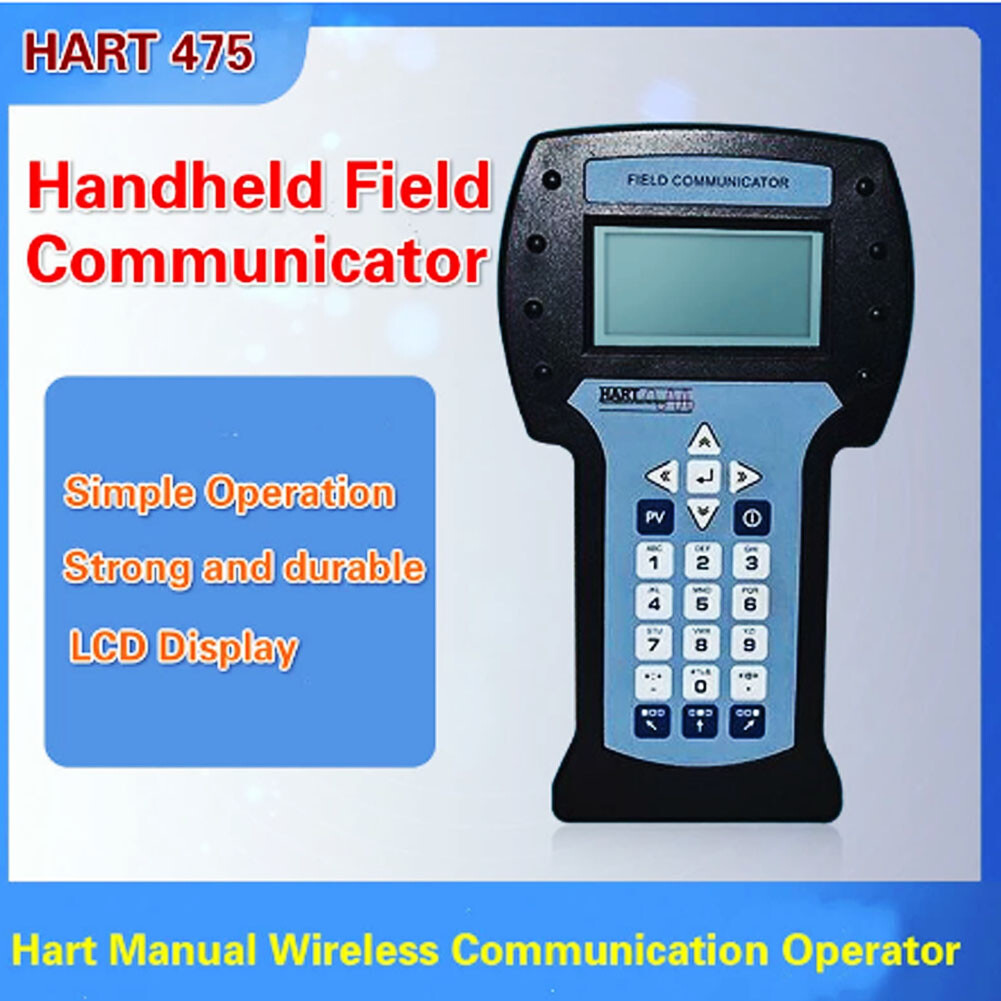

Handheld Hart 475 Field Communicator Hart Communication for Pressure Temperature Transmitter Calibration

Brief introduction

Hart475 is the upgraded version based on Hart375. Ita hand held interface based on HART protocol,which could perform configuration, management, maintenance and adjustment to all HARTcompatible instruments. It can monitor input/ output value and self diagnosis results, set constant current output and zero adjustment. When the system starts or maintenance operation, as long as the HART communicator connected to 4~20mA communication signal line, you can use.

　Specification:

Communication signal connection: dedicated cable, length 1.1m (3.6ft)

Communication cable length: 1KM

Power: 5*AA batteries (Not included)

Overload resistance: 250~600Ω

Overload capacitance: <0.22UF

Overload inductance : <3.3MH

Display: 128*64 dot LCD display

Weight: 1KG

Control: touch switch (4 direction keys, 16 function keys, 1 power switch)

Features

- During the online monitoring and communication, modulation signal will not interrupt 4~20mA DC signal

- Can work with the devices that adopt HART protocal

- Self diagnosis / protection function

- Full function communication: flow meter, temperature meter, transmitter communication support carrying HART protocol

- Large screen display, imported LCD screen

- Can carry out inspection and production test of HART intelligent equipment etc.

- HART intelligent equipment, in field operation, configuration, calibration, diagnosis, maintenance and monitoring etc.

- Obtain field HART instrument manufacturers

- Get the working state and fault information of HART instrument

- Read the output current and the process variable

- Get the parameters and output the value of the sensor

- Self checking function

- Formatted password protection

- Low voltage alarm display

- Standard technical specifications

What's in Package:

- 1* Hart Field Communicator

- 1* Charger

- 1* Communication cable

- 1* User Manual
