- Upgraded Version: Our harmonic damper pulley tool have 6 jaw, 3 thicker jaw fit old vehicle models, 3 thiner fit newest model, because professionally tested, we find 3 thicker jaw can't enter new model vehicle belt pulley, and we design 3 thin jaw to fit the new model. So this update version tool fit many vehicle model, includ newest model
- Application: GM 5.7L V8; GM 2000 and newer 4.8L, 5.3L, 5.7L, 6.0L, 8.1L V8;Cadillac 4.5L, 4.6L, and 4.9L V8; compatible with Chevrolet trucks (2003-) 4.2L I6, (2004-) 3.5L I5, (2005-) 2.8L I4; compatible with Ford (1995-) V8 engine; Mitsubishi Eclipse (1995 - ) 2.0L DOHC non-turbo
- Function: Designed for removing damper pulleys in tight engine compartments without removing the radiator. This pulley is hard to access and remove dute to space limitations in and around the engine compartment
- Quality Guarante: Our harmonic damper pulley tool made of high quality steel, high hardness, not easy to break, The exterior is coated with black antioxidant layer, extended service life, and we offer 12 month warranty
- Tips: if you try the 3-jaw puller is not fit you car, you need replace another 3 jaw
Application
- compatible with GM 5.7L V8;
- compatible with GM 2000 and newer 4.8L, 5.3L, 5.7L, 6.0L, 8.1L V8;
- compatible with Cadillac 4.5L, 4.6L, and 4.9L V8;
- compatible with Chevrolet trucks (2003-) 4.2L I6, (2004-) 3.5L I5, (2005-) 2.8L I4;
- compatible with Ford (1995-) V8 engine;
- compatible with Mitsubishi Eclipse (1995 - ) 2.0L DOHC non-turbo.

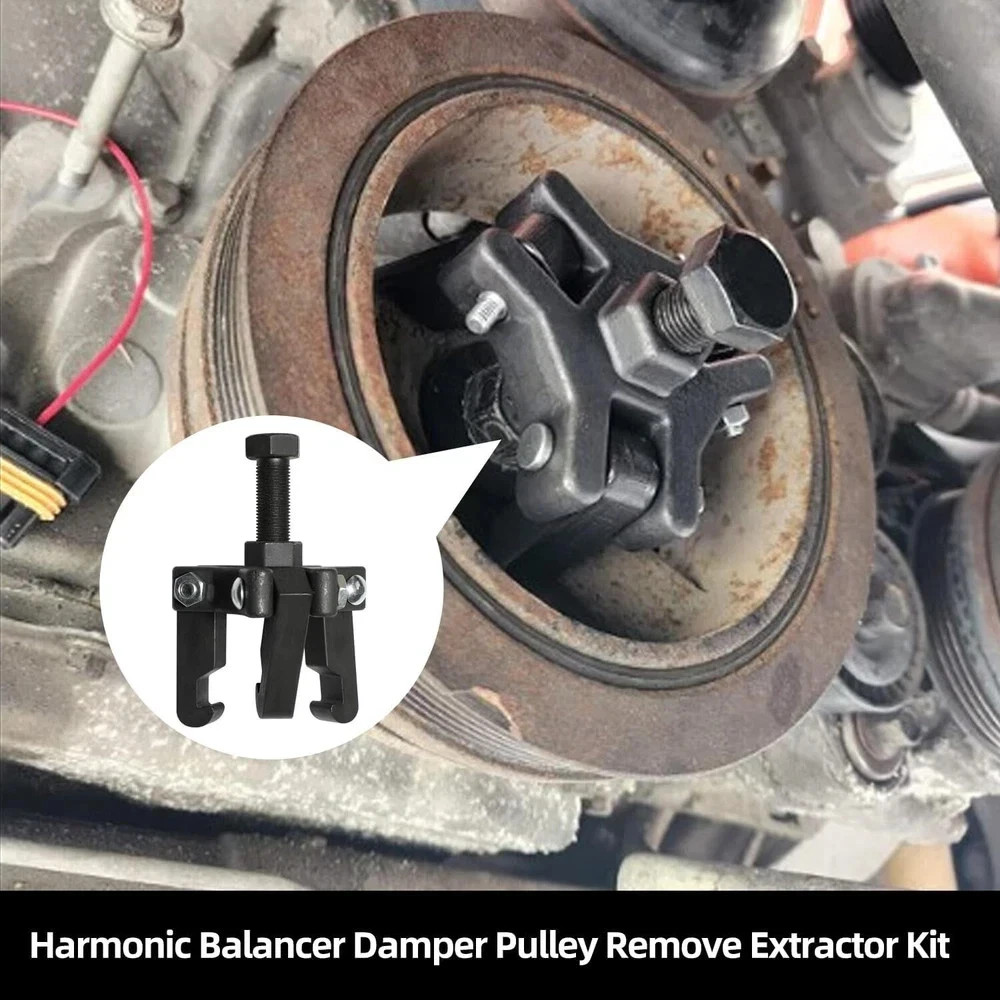

Easy To Remove Damper Pulley
Designed for removing damper pulleys in tight engine compartments without removing the radiator. This pulley is hard to access and remove dute to space limitations in and around the engine compartment.
Upgraded Version Jaws, fit Old and Newest Vehicle Model
Come with Two Different Jaws
By professionally tested and many user descript, we find 3 thicker jaw can't enter new model vehicle belt pulley, so we add 3 thiner jaws, the 3 thiner fit newest vehicle model.
Replaceable Jaws
Loosen nuts and studs, you change the jaws.
you can replace another 3 jaws to use, if you try the 3-jaw puller is not fit you car.
Tips
Please tighten the nut to prevent it from falling off before use.
How to Use
Step 1
After removing the drive belt from the pulley, use a ratchet wrench to remove the pulley center bolt.
Step 2
Select a top bar from the kit and insert that push bar into the center bolt hole of the three-jaw puller. Then lock the three jaws of the puller behind the pulley.
Note:The length of the push rod must be the same length as the puller jaws to engage the pulley.
Step 3
Position the puller/pusher assembly onto the pulley.
Ensure that the jaw puller is firmly engaged with the back of the pulley.
Step 4
Using a 3/8" center fly wrench or 19MM, the Slowly turn the center bolt to apply top bar pressure and the pulling horse slowly pulls the pulley out.
Step 5
Continue to turn the extractor center bolt until the end of the extractor disengages.
