DESCRIPTION
High Accuracy Ultrasonic Distance Sensor Penetration Smog Dust Range3173
This ultrasonic sensor uses ultrasonic technology to detect the distance to objects or people.
The sensor features an integrated waterproof and sealed probe design with an IP67 protection rating.

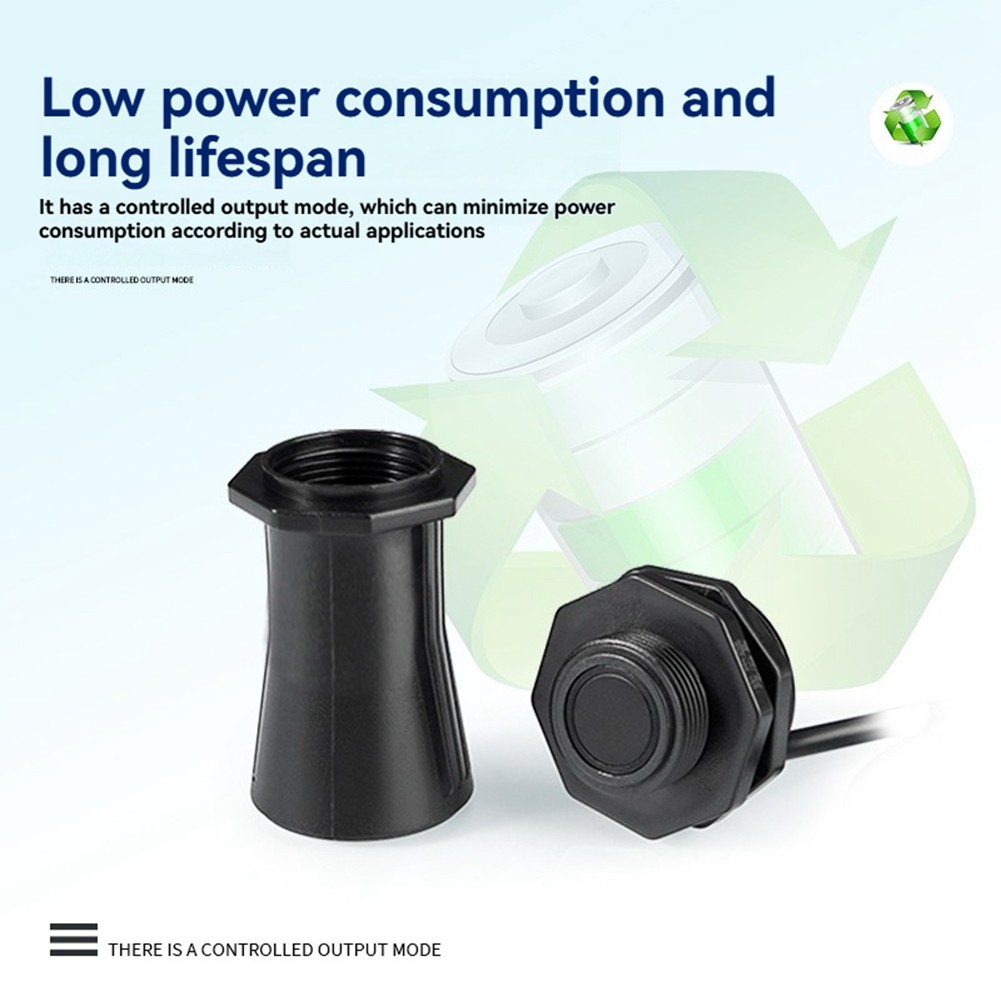

It has a horn-shaped structure design, allowing for controllable distance measurement angles at close range and enhanced signal strength at long range. It meets the measurement needs of various application scenarios.
The output port supports UART controlled output.
The sensor is widely used in various scenarios such as object proximity and presence detection, parking management systems, and smart trash can overflow monitoring.
Specification:
Operating Voltage: 3.3~5V
Average Current: <15mA
Blind Zone:0- 28cm
Detection Range (Flat Object): 28-750cm
Output: UART Controlled Output
Response Time: >100ms
Probe Center Frequency: 40K±1.0KHZ
Operating Temperature: -15~60℃
Storage Temperature: -25~80℃
Sensing Angle: with bell-mouth: 55º
without bell-mouth: 40º
Waterproof Grade: IP67
Color: Black
Material: plastic
Package Contents:
1* Ultrasonic Ranging Sensor
