Packaging: Cut Tape (CT) Alternate Packaging
Series: -
Part Status: Active
Switch Circuit: SPST - NC
Multiplexer/Demultiplexer Circuit: 1:1
Number of Circuits: 1
On-State Resistance (Max): 750mOhm
Channel-to-Channel Matching (ΔRon): -
Voltage - Supply Single (V+): 1.4V ~ 4.3V
Voltage - Supply Dual (V±): -
Switch Time (Ton Toff) (Max): 40ns 15ns
-3db Bandwidth: 60MHz
Charge Injection: 6pC
Channel Capacitance (CS(off) CD(off)): 35pF
Current - Leakage (IS(off)) (Max): 10nA
Crosstalk: -
Operating Temperature: -40°C ~ 125°C (TA)
Mounting Type: Surface Mount

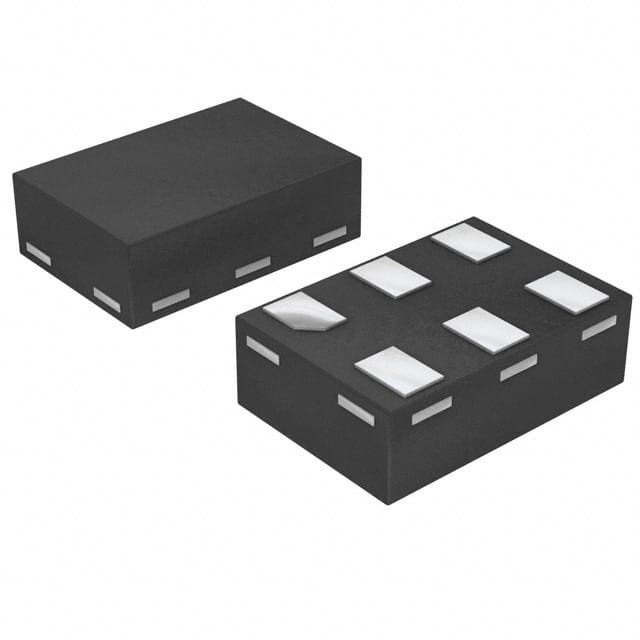

Package / Case: 6-XFDFN
Supplier Device Package: 6-XSON SOT886 (1.45x1)


NX3L1T384GM 115
