Packaging: Cut Tape (CT) Alternate Packaging
Series: -
Part Status: Active
Number of Bits: 16
Number of D/A Converters: 4
Settling Time: 500ns (Typ)
Output Type: Current - Unbuffered
Differential Output: No
Data Interface: SPI
Reference Type: External
Voltage - Supply Analog: 2.7V ~ 5.5V
Voltage - Supply Digital: 2.7V ~ 5.5V
INL/DNL (LSB): ±1 (Max) ±1 (Max)
Architecture: Multiplying DAC
Operating Temperature: -40°C ~ 85°C

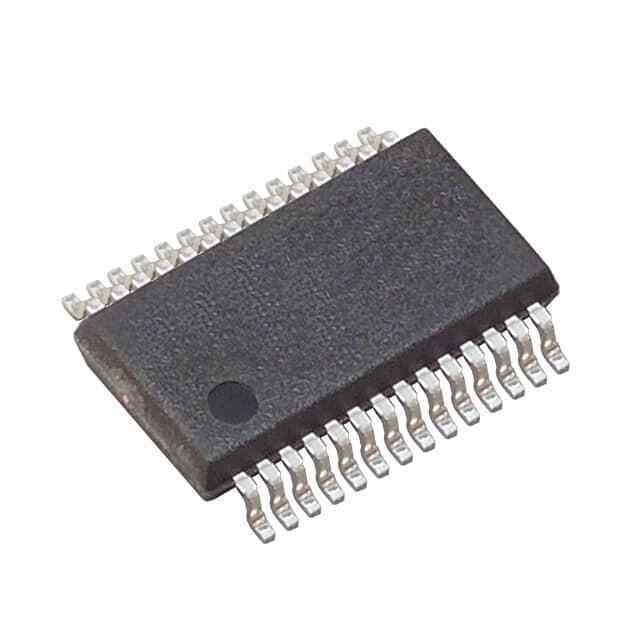

Package / Case: 28-SSOP (0.209 5.30mm Width)
Supplier Device Package: 28-SSOP
Mounting Type: Surface Mount


DAC8814ICDBT
