Fcar F801 Full System Heavy Duty Truck Diagnostic Scanner, OBD2 Diesel Scan Tool with DPF Regeneration, Android Touchscreen HD Code Reader for Freightliner, Volvo, Mack, International and More
✔️Extensive vehicle coverage for almost all American trucks, and part of European and Asian that comply with standard protocols.
✔️OE-LEVEL full system diagnostics for diesel commercial trucks.
✔️Unique diagnostic menu for Volvo, International, Mack, Freightliner, Peterbilt, Kenworth, and Ford trucks.
✔️One-Click Wi-Fi updates to get new software releases.
✔️POWERFUL D-P-F REGEN for Volvo, International, Mack trucks.
✔️Professional SYSTEM diagnostic including Engine, ABS, Transmission, Body Controller, Instrument Cluster, Brakes, Exhaust Emission Controller, Communication Unit, D-P-F Controller, Aftertreatment, SART Module, Forward Road Image Processor, etc.
✔️Basic functions: Read Fault Codes, Erase Fault Codes, Read Datastream, Version Information,
✔️Open source Android Operating System for fast boot-up and multitasking.
✔️Come with 6PIN/9PIN and 16PIN adapters for HD OBD/OBD2 Diagnostic.
✔️One-click screenshot, one-click printing, one-click feedback, one-click sharing report for best user experience.
Diagnose your heavy duty trucks with confidence!
1. Engine System: Engine device that provides power for the automobile and the heart of the automobile. It determines the power, economy, stability of the automobile. Easily identify car problems and turn off the engine lights. Help you pass the exhaust test and keep your car in the best condition.
2. Auto Transmission System: AT is a set of transmissions used to coordinate the engine speed and the actual speed of the wheel, which is used to give full play to the best performance of the engine. F801 scanner can read/clear codes and the error information from AT.
3. Airbag System: SRS is a device that expands the airbag to protect the passenger before the second collision occurs called Supplemental Restraint System (SRS). F801 truck scanner can read/clear code, turn off warning light of airbag.
4. ABS System: ABS automatically controls the braking force of the brake when the car is braking so that the wheels are not locked and in the state of edge rolling slip (the slip rate is about 20%) to ensure the maximum adhesion between wheels and ground. F801 truck scanner can turn off the light, and locate the error part.
5. Diesel Particulate Filter (D-P-F) Regeneration: Clear PM (Particulate Matter) from the D-P-F filter through continuous combustion oxidation mode to stabilize the filter performance.
6. Tire Pressure Monitor System Reset: Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7. Battery Register & Battery Maintenance: Re-match the control module and motoring sensor for battery detecting more accurately, clear original low battery information and prevent the related control module from detecting false information.
8. Electronic Parking Brake Reset: Reset the brake pad after repairs in electronic parking brake system are done. Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.
Available Special functions include: DPF regeneration
Diesel is more particulate than gasoline, and the particles are more difficult to fully burn, so DPF blockage is a problem that lots of diesel truck drivers experience.
Most trucks will be equipped with DPF filters to re-burn and decompose carbon particles produced by insufficient diesel combustion.
However, the DPF device on the car has the risk of being easily blocked, and needs to be cleaned and regenerated regularly, otherwise, it will block and lead to torque limitation.
Therefore, the emergence of F801 successfully solves the risk of DPF blockage for you.
Warm Tips: F801 only supports the DPF function of Volvo, International, Mack heavy duty trucks.
FCAR F801 heavy duty truck scanner integrates commercial vehicle OBD standard diagnostic protocols, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4. In addition, models of 12V & 24V voltage that are in compliance with the standard protocols and has coverage for all Class 4, to class 8 heavy-duty trucks as well.
- Supports private diesel protocols for 3 main trucks: HD Volvo, Mack, International
- Supports OBD2 protocol for passenger cars, extends the diagnostic range of the device and enables easy engine diagnostics on most passenger cars, minivans and light trucks 1996 and newer.
- Support for other main HD trucks: Freightliner, Peterbilt, Ford truck, GMC truck, Iveco, Kenworth, Mack, Mercedes Truck, Sterling, Western Star, Volvo...
- Supports off road equipment: BobCat, Case, Caterpillar, John Deere, Komatsu, Volvo, Terex...
Available functions for models supporting standard OBD protocol:
- ECU Information: Read and display the control system module information detected from ECU
- Read Fault Codes: Read the fault code information retrieved from the vehicle system module
- Erase Fault Codes: Clear the fault code and freeze frame data retrieved from the vehicle system module
- Live Data: Read and show the real-time operating parameters of the current system module, display all real time live data stream with chart.

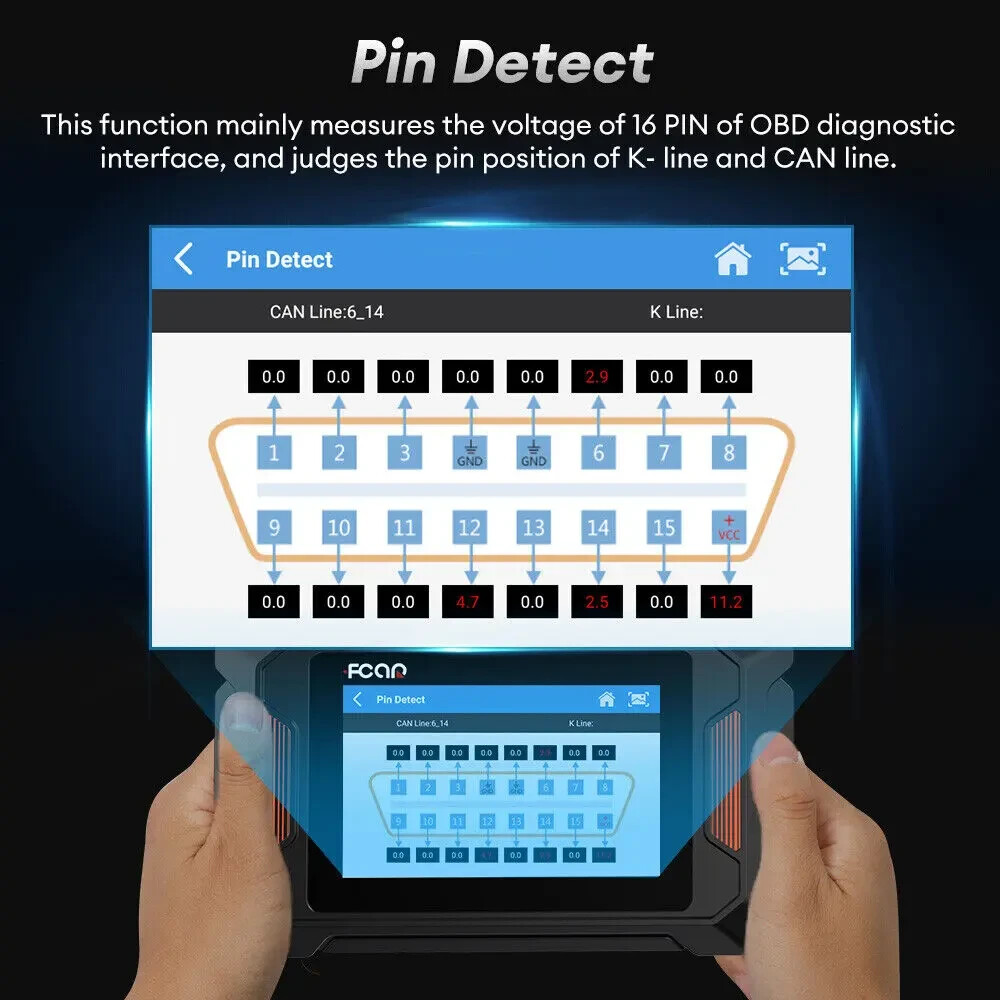

Pin Detect
This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of the vehicle, click the main interface "Tools" to select pin detection. The program automatically measures the 16pin voltage of the OBD diagnosis interface, and judges the pin position of K-line and can line.
Note: The test requires ECU no response, please ask the customer to check whether the diagnostic interface has voltage
1pc x Fcar F801
1pc x Packing box
1pc x User Manual
1pc x 6pin & 9pin Connector For Trucks
1pc x 16pin OBD2 Connector
