Model |

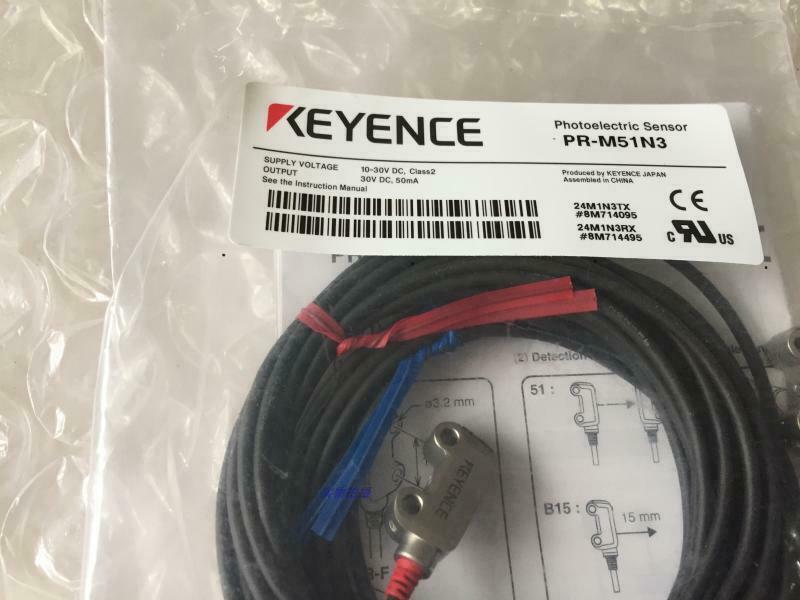

PR-M51N3 |
|
|
Type |
Thrubeam |
|
|
Output |
NPN |
|
|
Shape |
Mini-slim |
|
|
Cable connection |
3 m cable |
|
|
Detection distance |
1.2 m |
|
|
Number of control outputs |
2 outputs |
|
|
Output operation |
Output 1 |
Dark-ON |
|
Output 2 |
Light-ON |
|
|
Response time |
Output 1 |
0.5 ms |
|
Output 2 |
ON→OFF: 2.7 ms, OFF→ON: 0.5 ms |
|
|
Sensitivity adjustment |
None |
|
|
Spot diameter |
- |
|
|
Light source |
4 element, point light source, red LED (650 nm) |
|
|
Mutual interference prevention function |
- |
|
|
Indicator lamp |
Output indicator (orange), stable operation indicator (green), thrubeam type transmitter: power supply indicator (green) |
|
|
Control output |
30 VDC or lower, 50 mA or lower |
|
|
Protection circuit |
Power supply reverse connection protection, output overcurrent protection, |
|
|
Rating |
Power voltage |
10 to 30 VDC, including Ripple (P-P) 10 % |
|
Current consumption |
Transmitter: 11 mA, Receiver: 16 mA |
|
|
Environmental resistance |
Enclosure rating |
IP67 (IEC60529), IP69K (DIN40050-9), 4X, 6P, 13 (NEMA250) |
|
Insulation resistance |
20 MΩ or higher (500 VDC) |
|
|
Ambient light |
Incandescent lamp: 5,000 lux or lower, Sunlight: 20,000 lux or lower |
|
|
Ambient temperature |
-25 to +55 °C -13 to 131 °F (No freezing) |
|
|
Storage temperature |
-25 to +75 °C -13 to 167 °F |
|
|
Relative humidity |
35 to 85 % RH (No condensation) |
|
|
Withstand voltage |
1,000 VAC, 50/60 Hz, 1 min |
|
|
Vibration resistance |
10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions |
|
|
Shock resistance |
1,000 m/s2, 6 times in each of the X, Y, and Z directions |
|
|
Material |
Case: SUS316L, indicator cover/lens cover: polysulfone, |
|
|
Accessories |
Instruction manual |
|
|
Weight |
Approx. 90 g |
|
