KLAYERS RS232/485/422 to RJ45 Ethernet Module Data processing apparatus
Product Description
Features At A Glance
This is a RS232/485/422 device data acquisitor / IoT gateway designed for industrial environment. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. The module features RS232/485/422 and Ethernet port with PoE function, uses DC port (outer diameter: 5.5mm, inner diameter: 21mm) and screw terminals for power input. The case with rail-mount support, small in size, easy to install, cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
Specifications
| PRODUCT | KLAYERS RS232/485/422 TO POE ETH (B) |
|---|
| Product Type | Serial server, Modbus Gateway, MQTT Gateway |
| Basic Function | Bi-directional transparent data transmission between RS232/485/422 and Ethernet |
| Communication interface | RS232 port × 1; RS485 port × 1; RS422 port × 1; Ethernet port × 1 |
| Power supply | DC power port, 6 ~ 36V DC screw terminal, or PoE port |
| Isolation Protection | Power isolation, Signal isolation |
| COMMUNICATION |
|---|
| Ethernet | PoE network port, support IEEE 802.3af standard |
| 10 / 100M auto-negotiation RJ45 connector, 2 KV surge protection |
| Serial port | Isolated RS232/485/422 |
| SERIAL SPECIFICATION |
|---|
| Baudrate | 300 ~ 115200 bps |
| Parity bit | none, odd, even, mark, space |
| Data bit | 5 ~ 9 bits |
| Flow control | N/A |
| SOFTWARE |
|---|
| Protocol | ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS |
| Configuration | host, web browser, device management functions library |
| Communication method | TCP/IP direct communication, VCOM |
| Operating mode | TCP server, TCP client (coexisting with TCP server), UDP, UDP multicast |
| ENVIRONMENT REQUIREMENT |
|---|
| Operating temperature | -40℃ ~ 85℃ |
| Humidity range | 5% ~ 95% relative humidity |
| Dimensions | L × W × H: 88.7 × 72.5 × 24.2 mm |

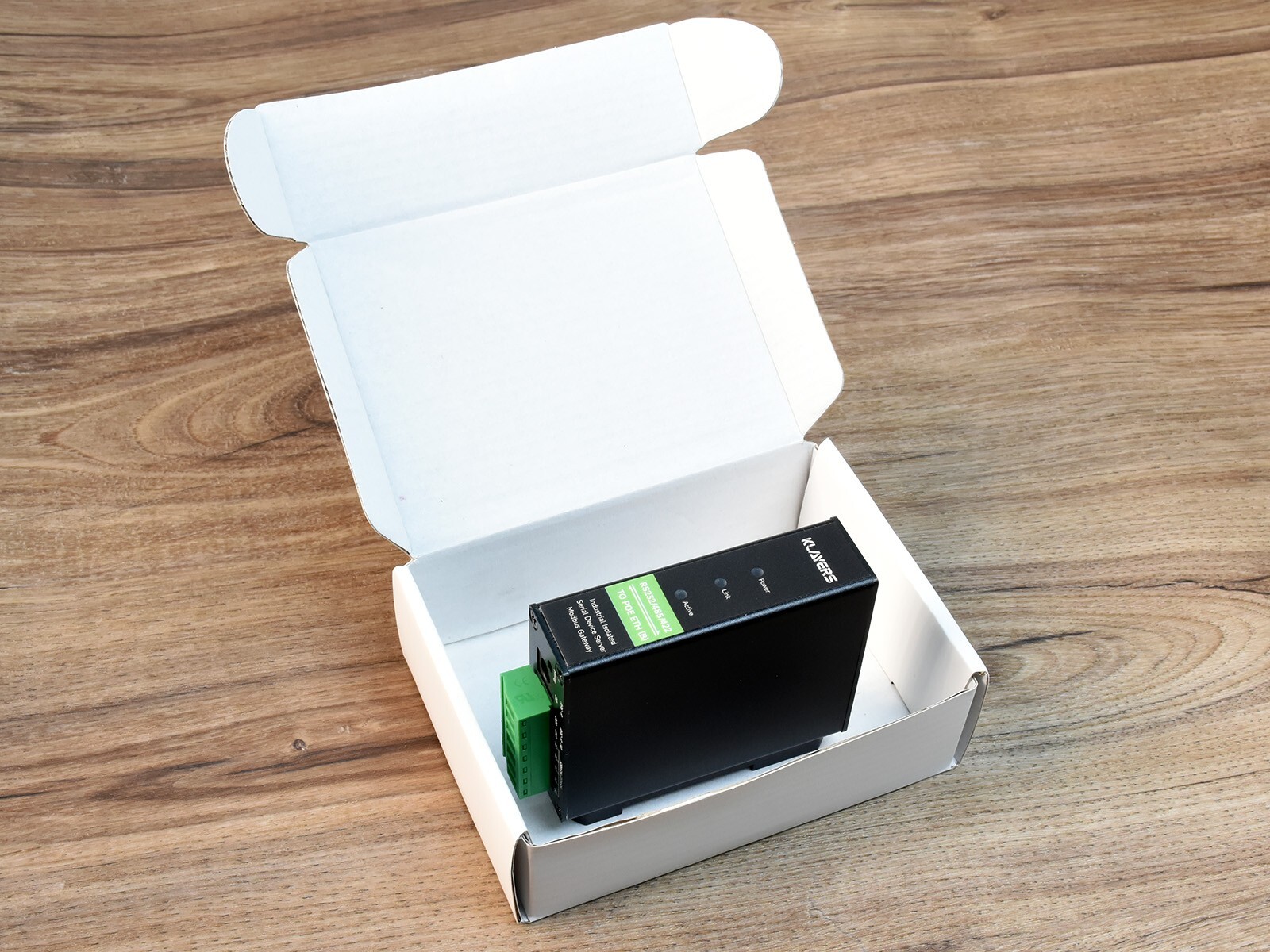

Package include： KLAYERS RS232/485/422 TO POE ETH (B) x1
