Features:

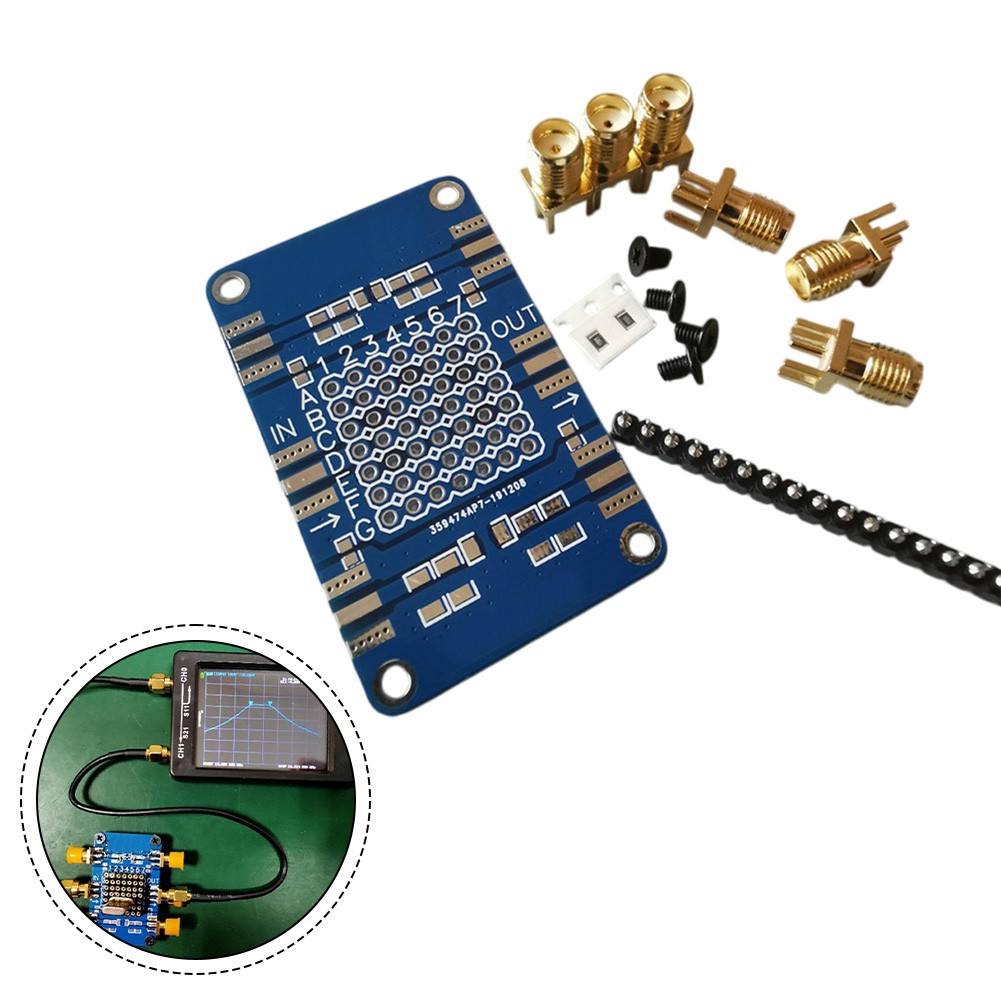

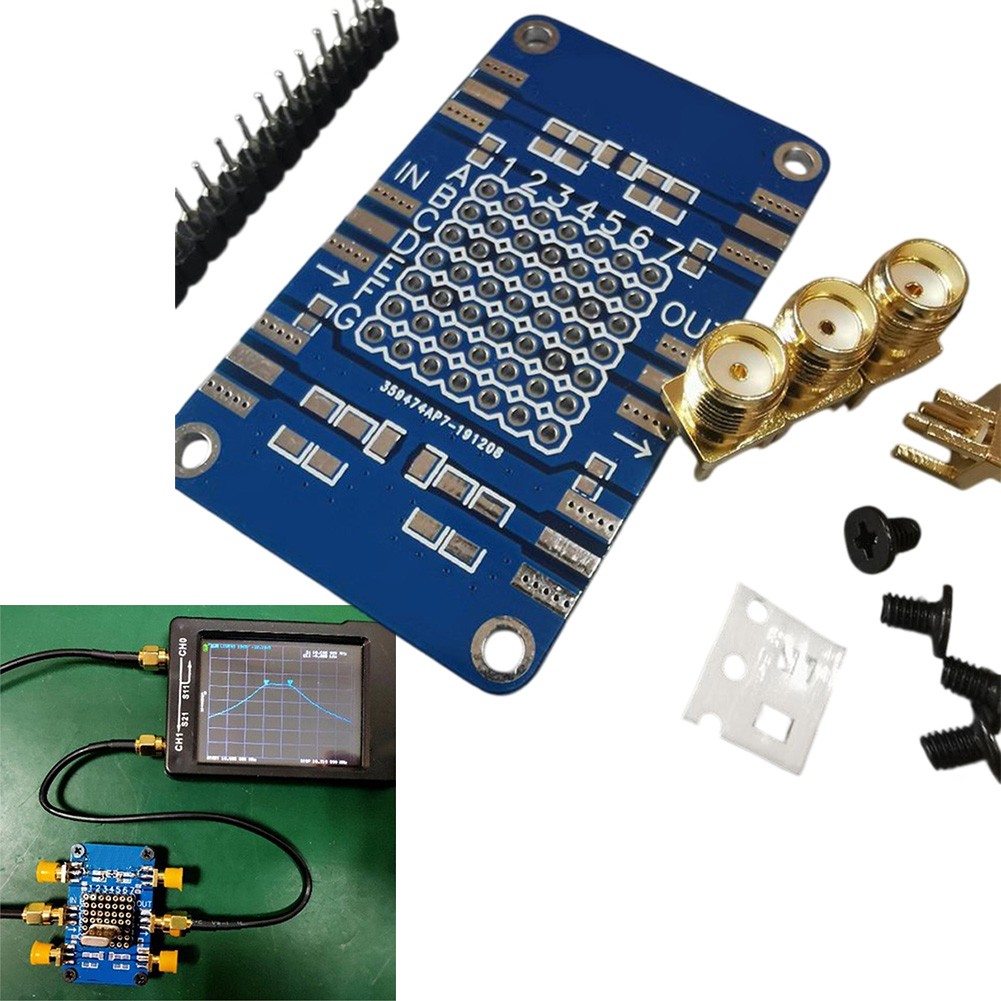

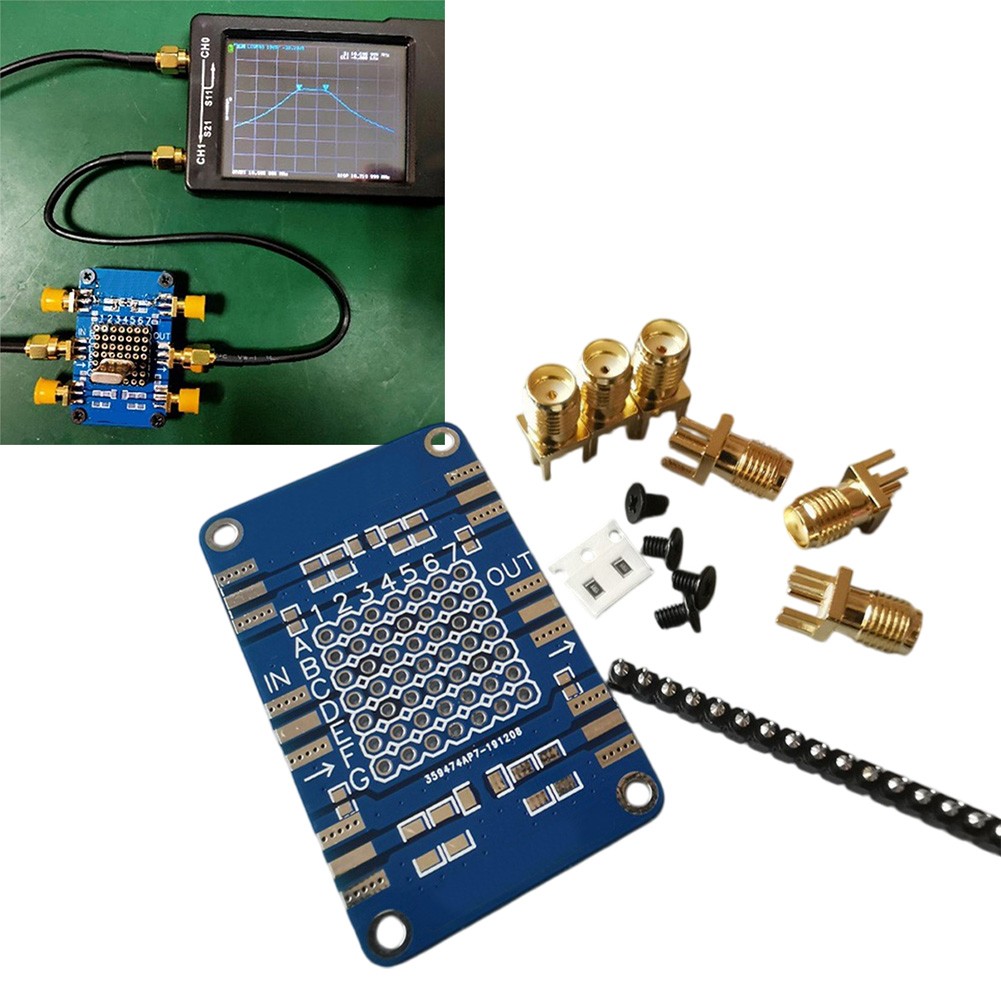

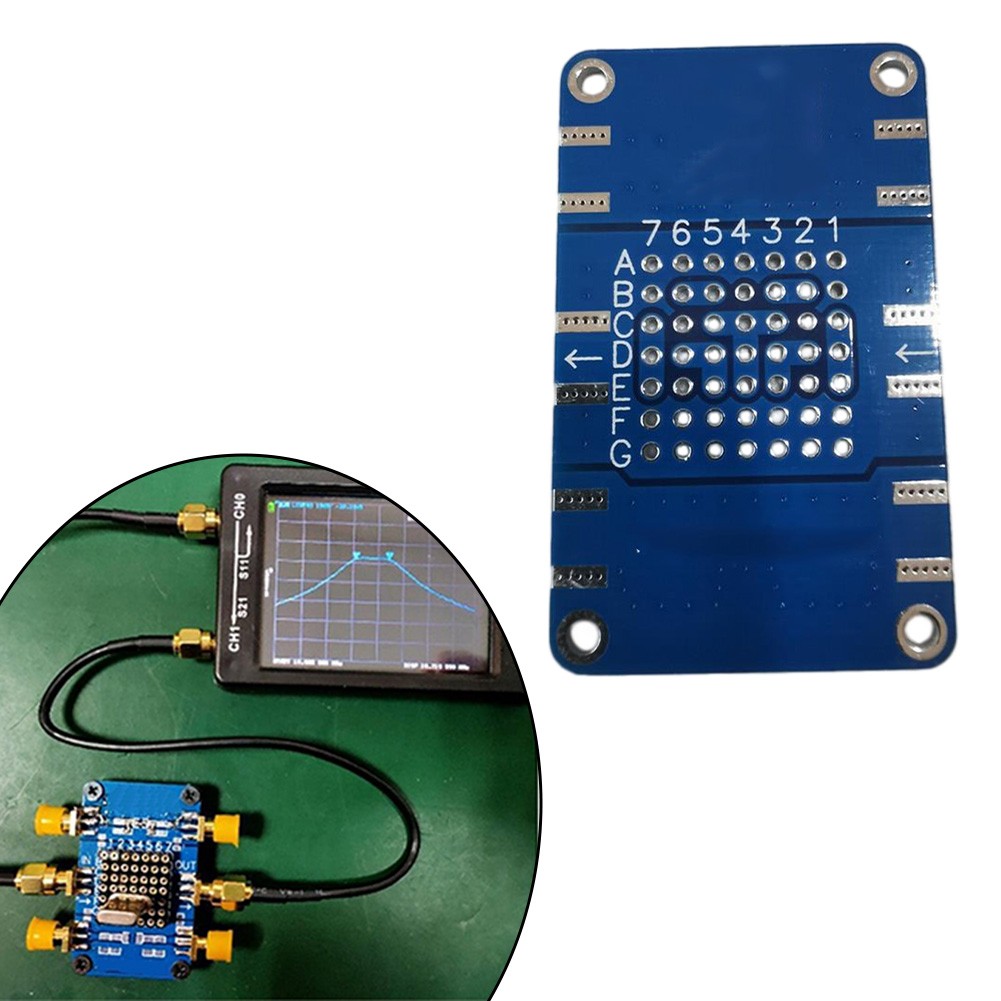

*Versatile Testing Applications: The L68A Testboard Kit is designed for both DIP adevices, allowing users to perform a wide range of measurements with various vector network analyzers, making it for IDEAL for diverse testing scenarios.

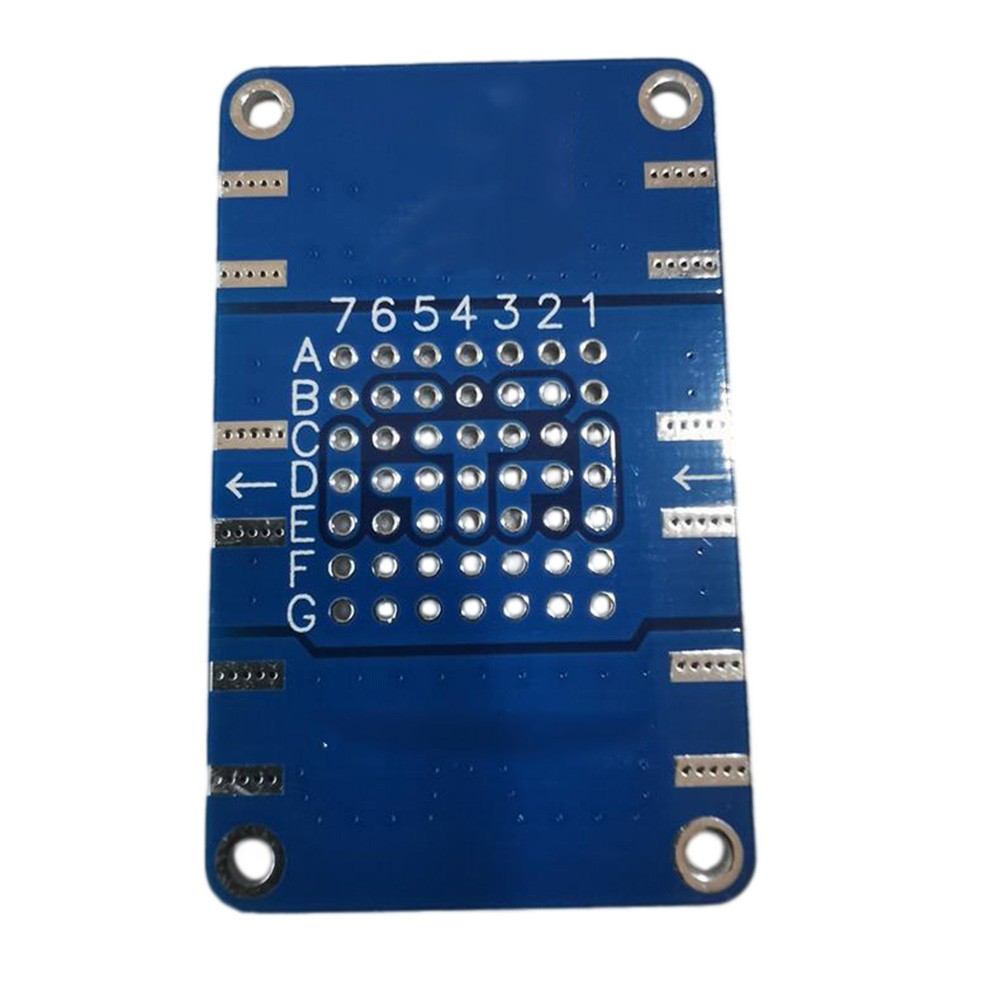

*Comprehensive Circuit Compatibility: This kit includes a DIP test circuit that is fully compatible with VNWA Testboard, seamless integration for precise testing while also providing a collection of 0805 and 1206 patch circuits to expand your testing capabilities.
*Hands-on Assembly Required: The circuit board comes unassembled, allowing users to engage in hands-on building. This feature encourages the development of practical skills as you customize your test circuit according to specific measurement needs.
*Robust Construction Materials: Made from PC and metal materials, the testboard is built to withstand the rigors of regular use, longevity and reliability for both professional and hobbyist applications.
*Complete Package Contents: Each kit includes essential components such as two motherboards, multiple for SMA female connectors, copper studs, screws, headers, and calibration resistors, providing everything needed to set up and begin testing right away.
Specifications:
Part Name:Test Demo Board
Material:PC + Metal
Size:As shown in the figure
Color:blue

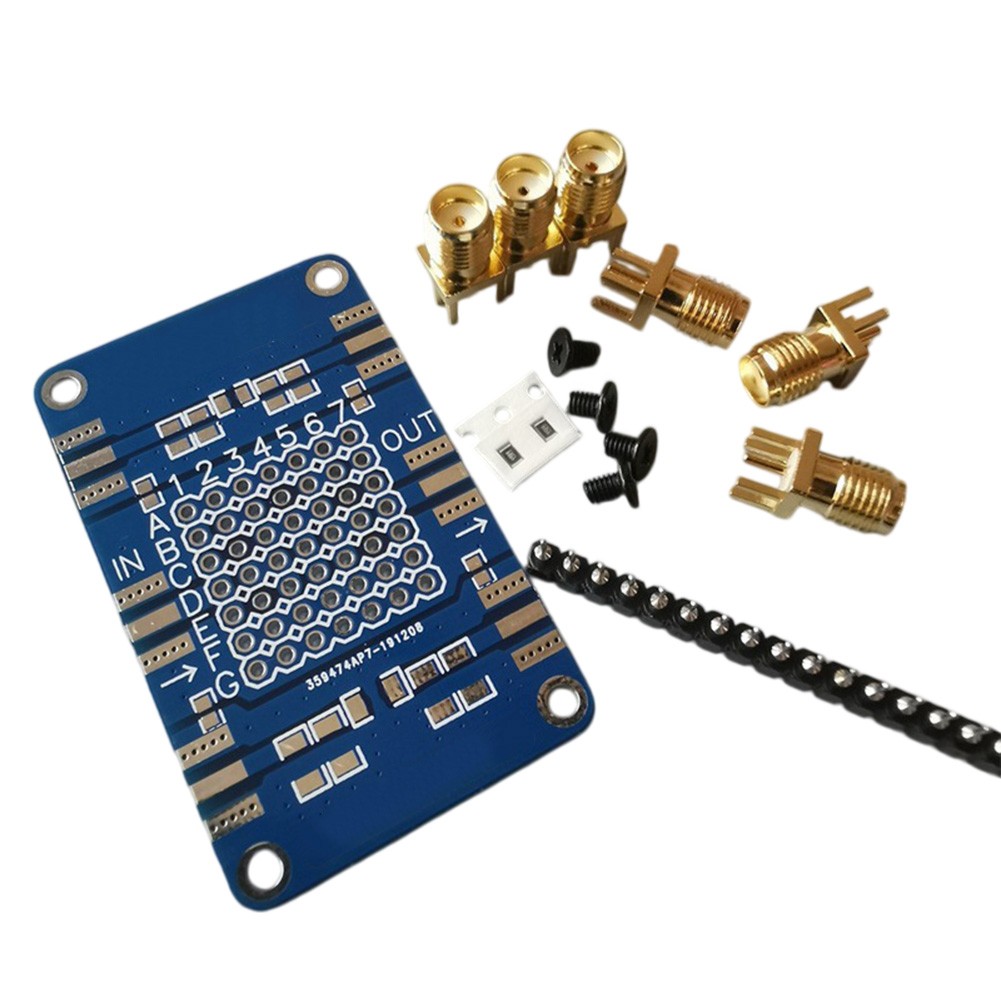

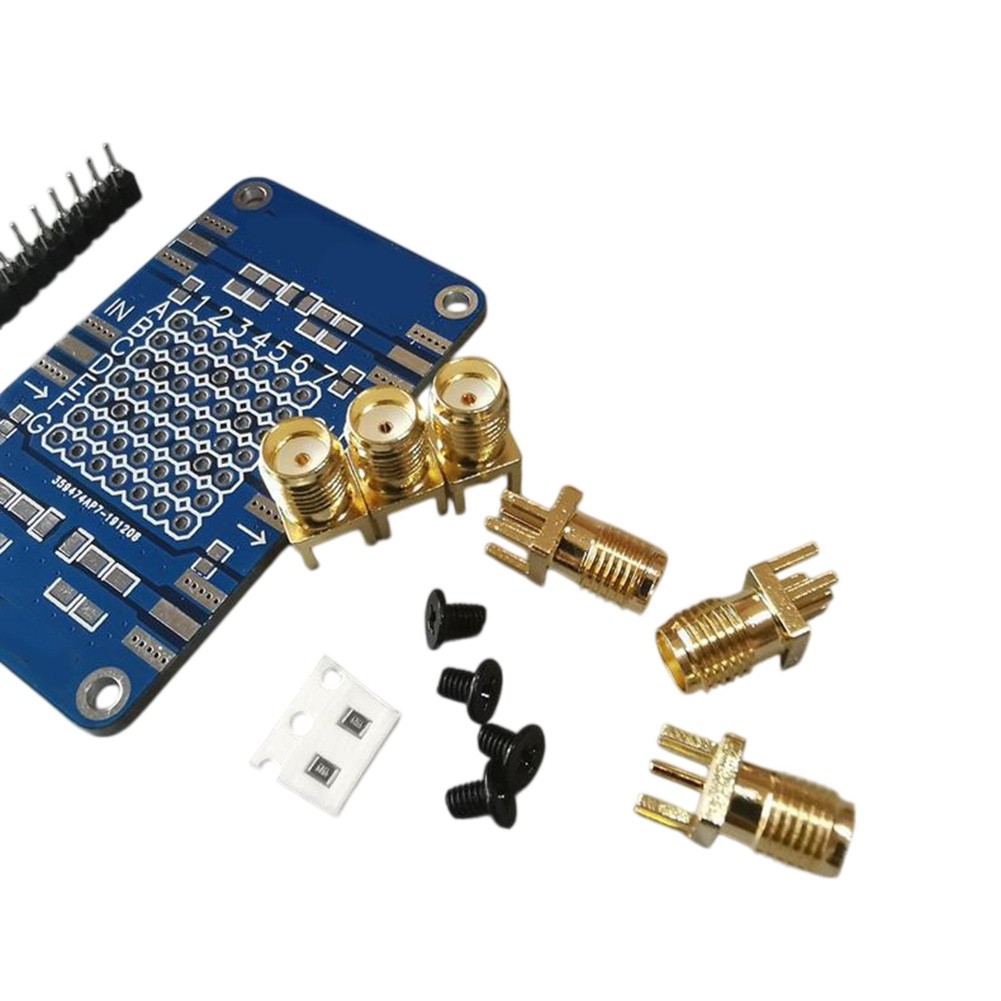

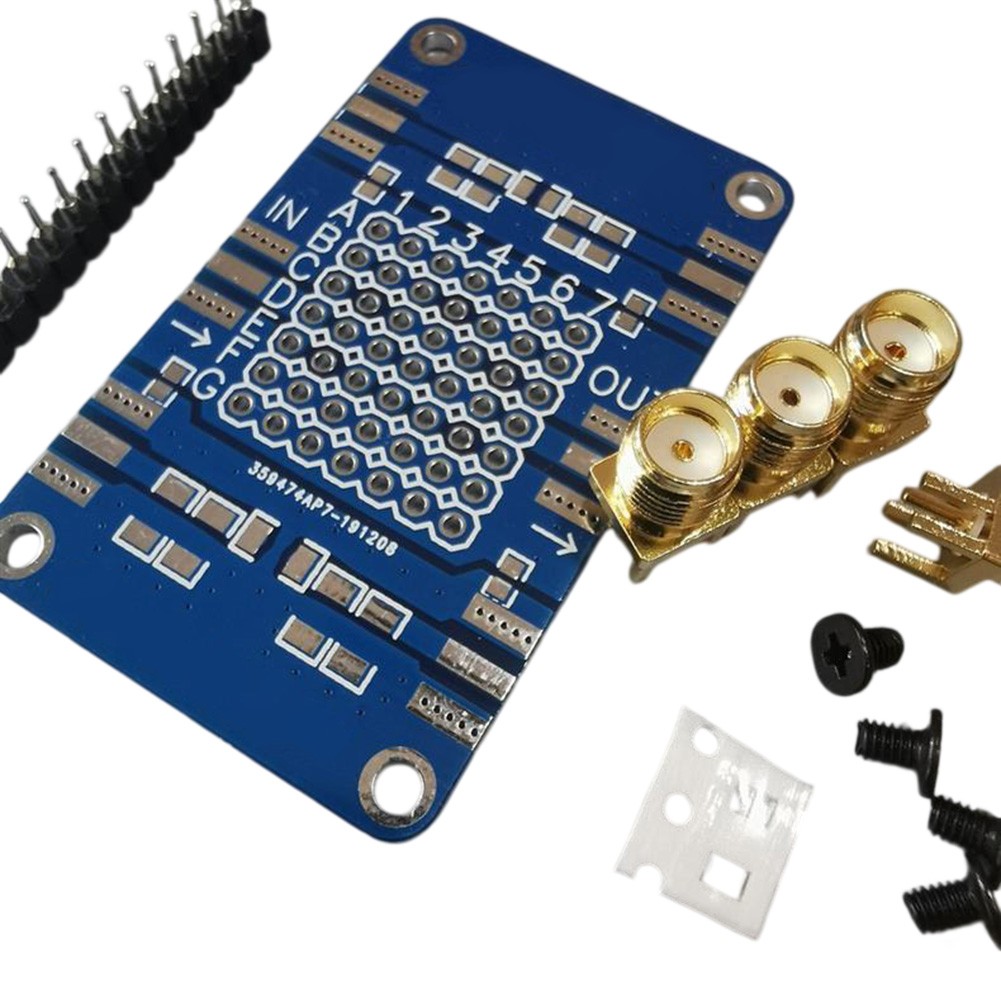

Package Content:
1 x Testboard main board
6 x for SMA female head
4 x 6mm copper stud
4 x M2.5 screw
2 x 40pin round row seat
2 x 0805 49R9 Calibration resistance
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
