DESCRIPTION

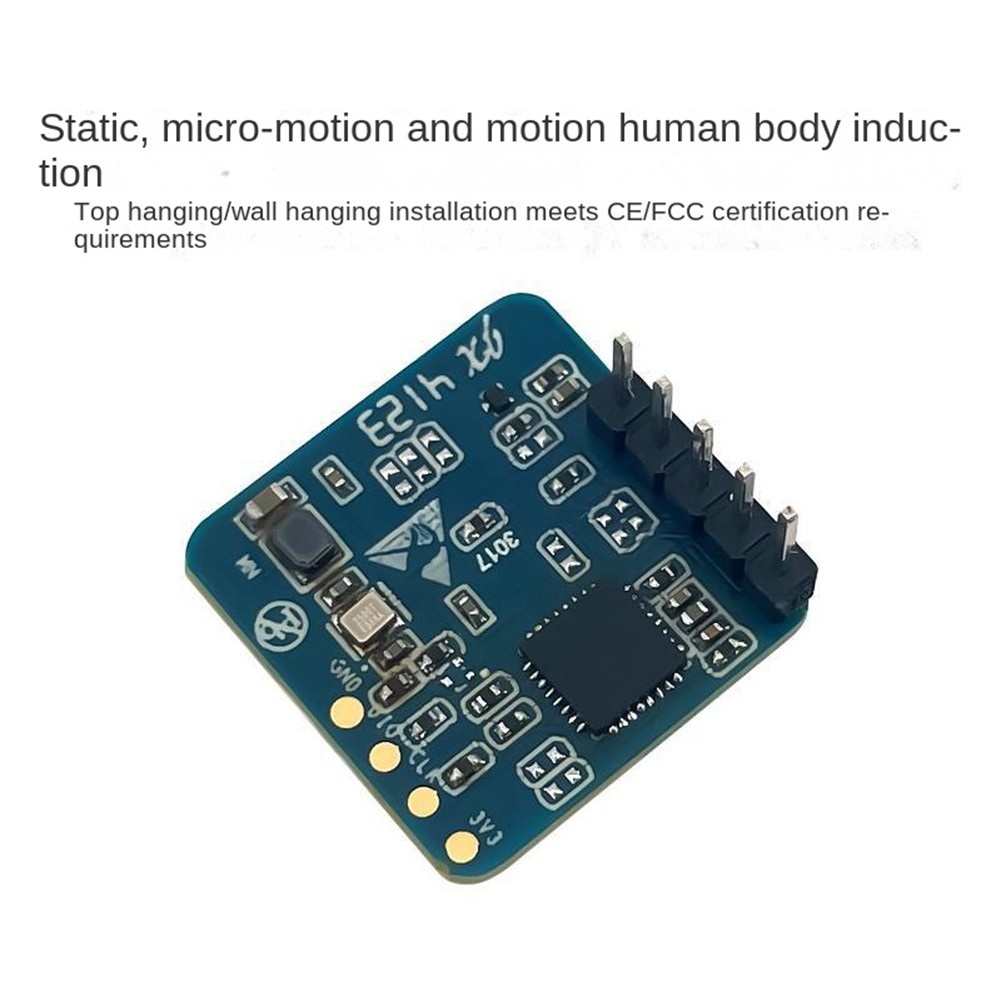

LD2410S Motion Detection Sensor Module 24GHz Human Presence Sensor, for 2463
Equipped with a single-chip smart millimeter wave sensor SoC and smart algorithm firmware
Wall mountable, with a large detection angle
compliant with 24GHz ISM band, No Commission Spectrum Regulations
Offers a wide voltage range of 3.0V to 3.6V
Minimal operating current of 0.1 mA at 1Hz reported frequency
Frequency: 24G-24.25GHz
Modulation method: FMCW
Detection distance: motion detection within 8m/sensor within 4m
Detection angle: ±60°
Power supply: 3.3V(Typ.)
Current: ~0.12mA(Typ.)
Output serial port level: 3.3V
Sweep bandwidth: 250MHz (in line with CE/FCC certification standards)
Maximum equivalent omnidirectional radiated power: 10dBm
Data refresh cycle: 40s (Typ. configurable)
Data format: Serial port ASCII output/high and low levels 3.3V&
Package form: Default with pins
Material: PCB
colour: blue
Package Contents:
1 x Sensor Module
