Led Brake Tail Light with Built-in Integrated Turn Signals
Items Description

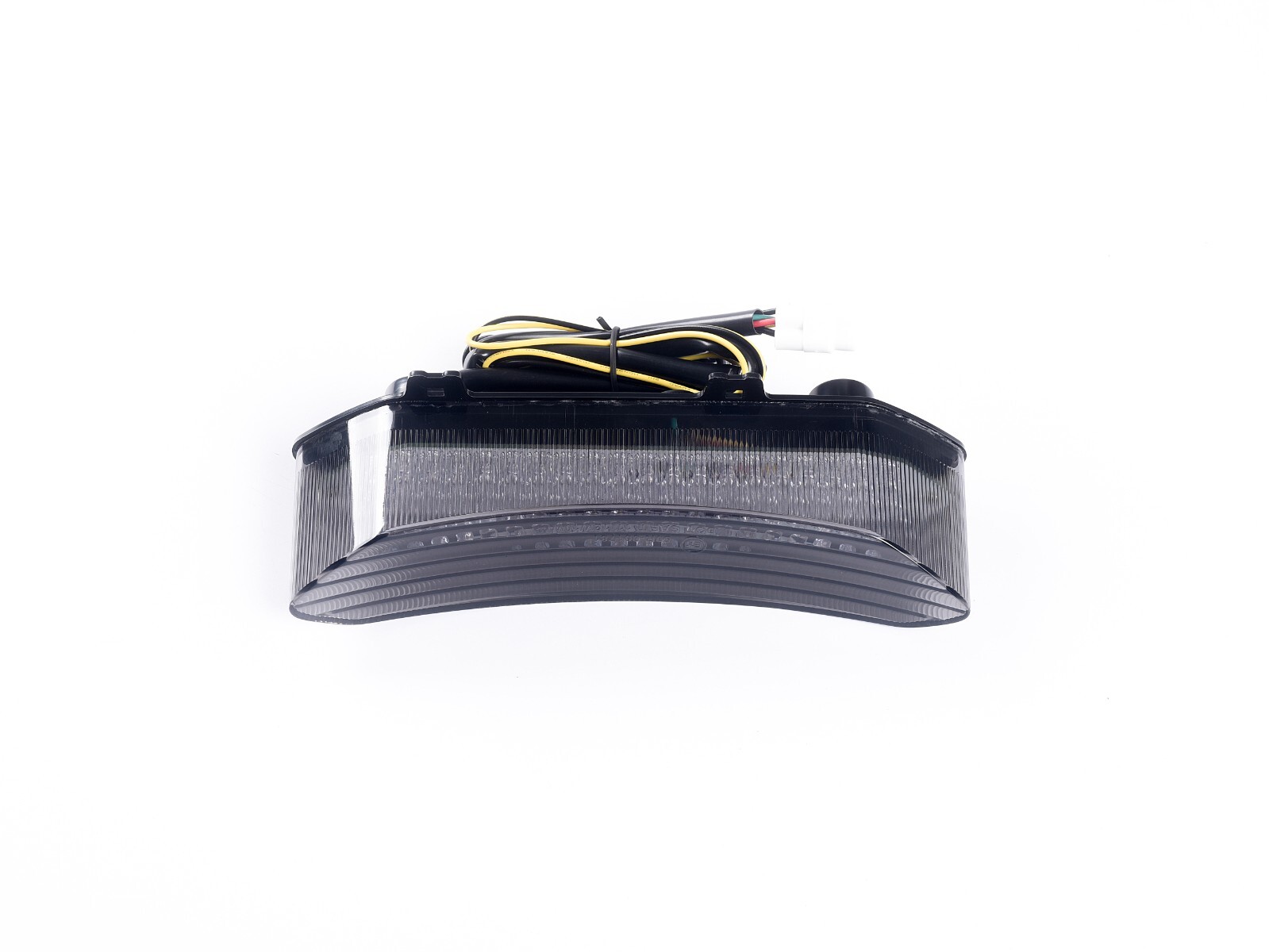

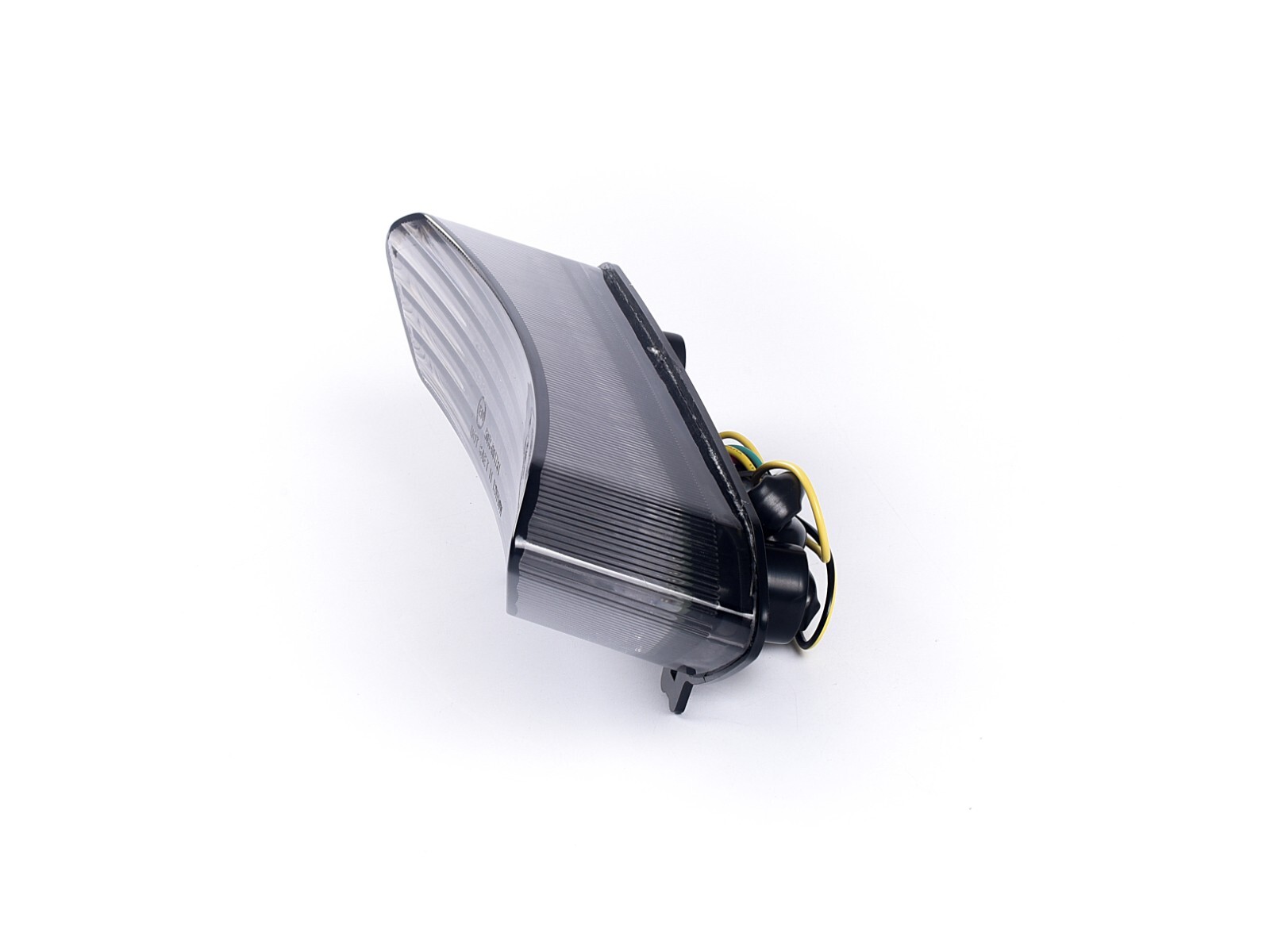

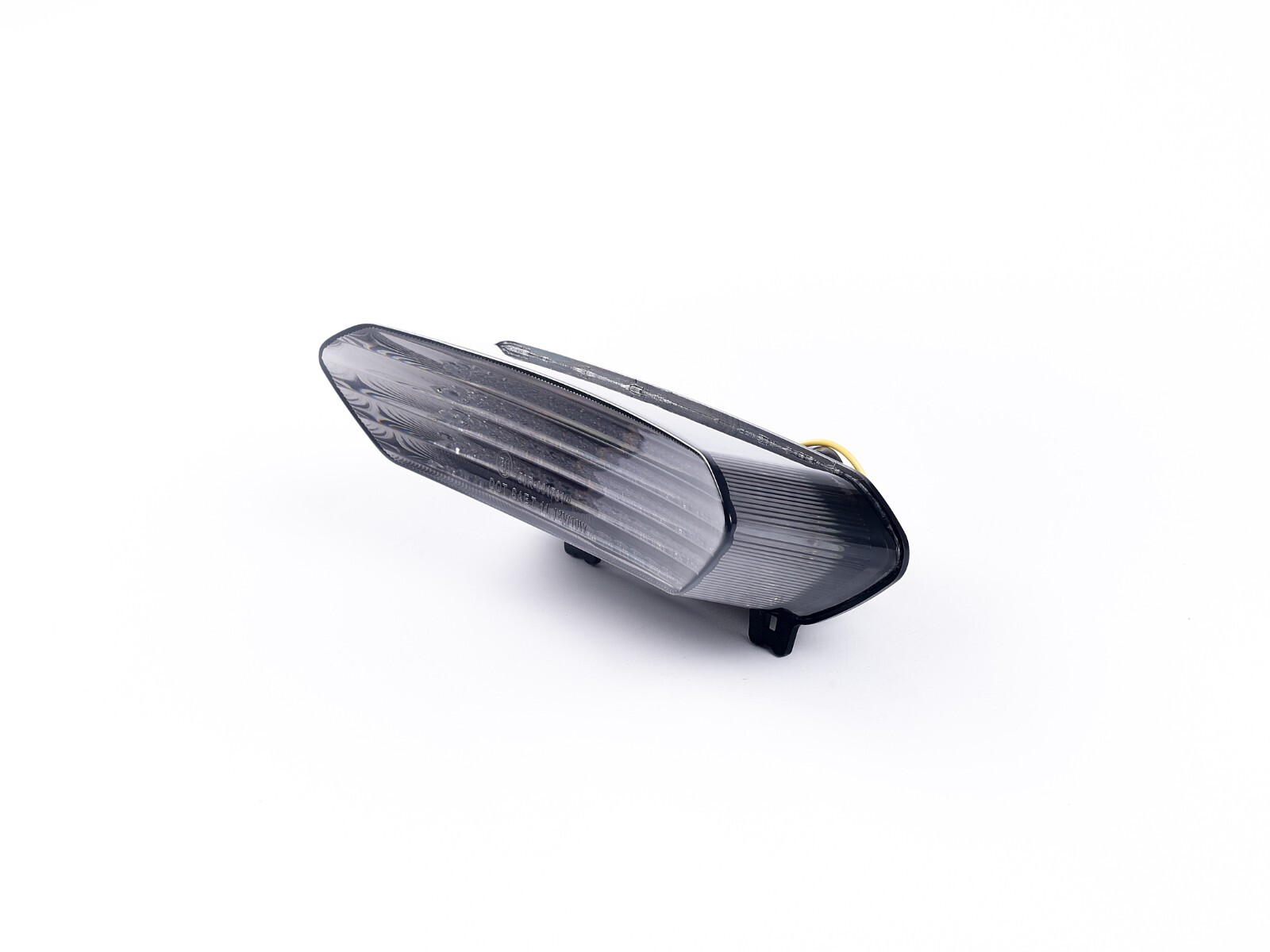

Integrated Led Tail Light with Built-in Turn Signals
Fit for: Yamaha
2002-2003 YZF R1
Smoke lens
Super Bright Leds
40 Red Leds for running/brake light
40 Amber Leds for turn signals
FEATURES:
- Specific tail light for the above-mentioned models, Improve the look and lighting of your motorcycle
- It integrates the flashing tail light function
- Light has the following functions: Position light, brake light, left turn light , right turn light
- Fixed in the place of your original light without any changes
- Maximum Quantity LED installed
- Super Bright LED
- With built-in Amber Turn Signals
- Included connectors and resistors if applicable
- Guarantee 6 months
Installation:
Wiring Diagram:
Black Wire(Negative),
Green Wire(Brake)
Red Wire(Running Light)
Connect the YELLOW wires to the positive turn signal wires using provided red connectors or alternately use your existing factory connectors. Ground wire is not needed unless you are
using resistors to slow down the blinking rate. The ground wire is the same color wire used on both turn signals. To slow down the blinking rate use provided resistors.
1. Connect one end of the resistor to the ground wire on your turn signal harness from your bike.
2. Connect the other end of the resistor to both the YELLOW wire from our taillight and the positive turn signal wire from your turn signal harness from your bike.
3. Repeat the same process for the other side.
To use the red connectors, place one wire inside along one channel, place another wire inside along the other channel. Push down the metal pin as it will make a small cut on each wire bridging the connectors. if you are using the resistors, place one end of the resistor in the middle of either channel along with the one wire.
