Product Description:

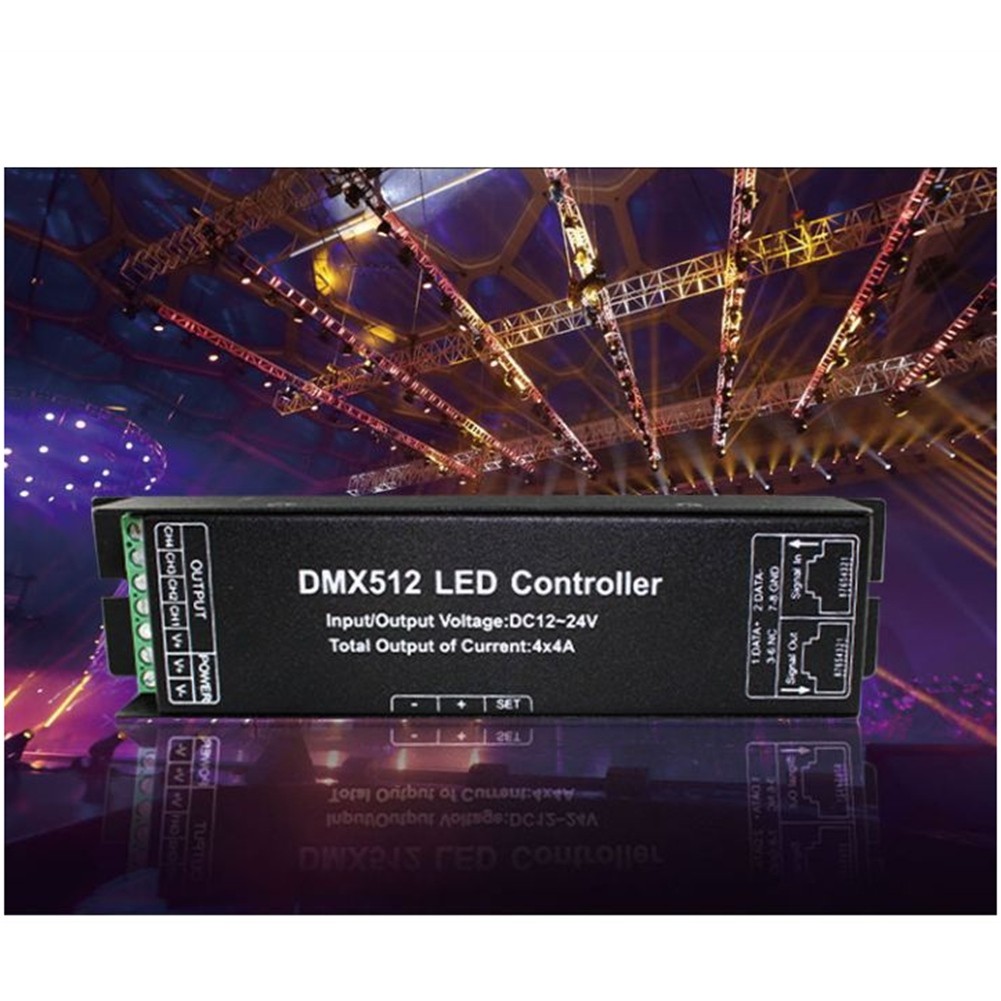

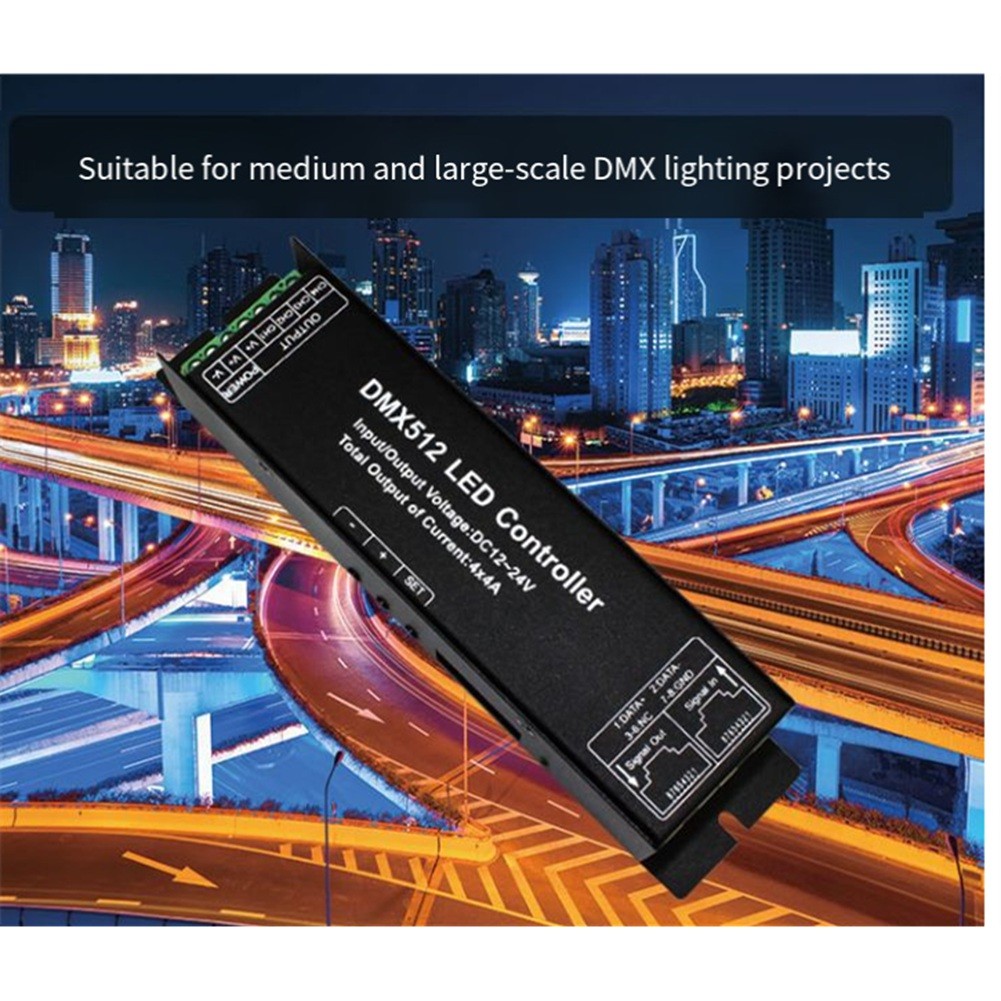

Unlock advanced LED lighting control with the -DMX512-DP 4-Channel DMX512 Decoder! Designed for stage lighting, architectural accents, and dynamic displays, this compact decoder transforms DMX512 signals into powerful PWM outputs to drive your LED fixtures with .
4-Channel High-Power Output
Each channel supports up to 4A current
Max power: 192W (12V) / 384W (24V)

zrive multiple LED strips or fixtures simultaneously
Intuitive Digital Display
4-digit tube shows addresses/functions clearly
3-button setup (SET/+/-) for effortless programming
Dual Control Modes
DMX512 Mode (A):
Master/slave synchronization
Supports 512 addresses (4 channels per decoder)
Chain unlimited decoders
Standalone Mode (H/S):
10 built-in programs (static colors, fades, jumps)
Adjustable speed for dynamic effects
Robust Design
Wide voltage input: DC 12-24V
Operating temp: -20°C to 60°C

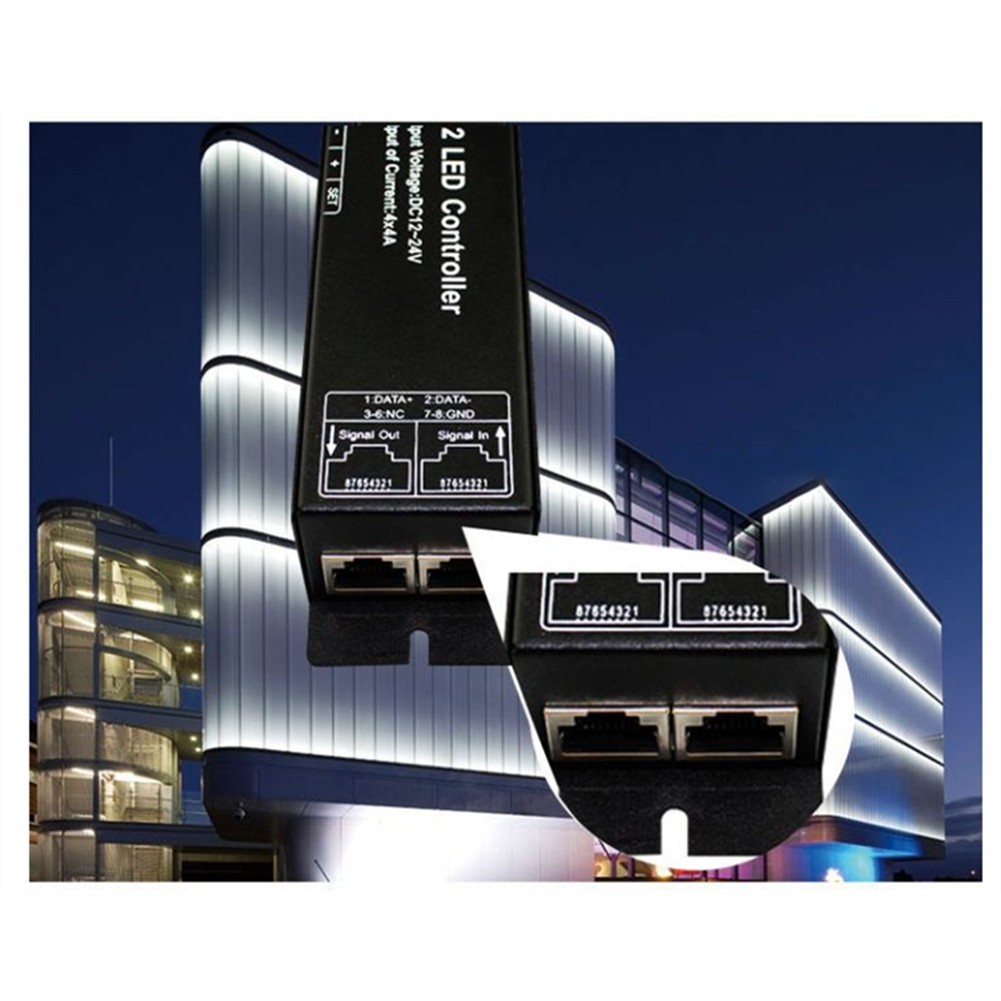

RJ45 connectors for input/output

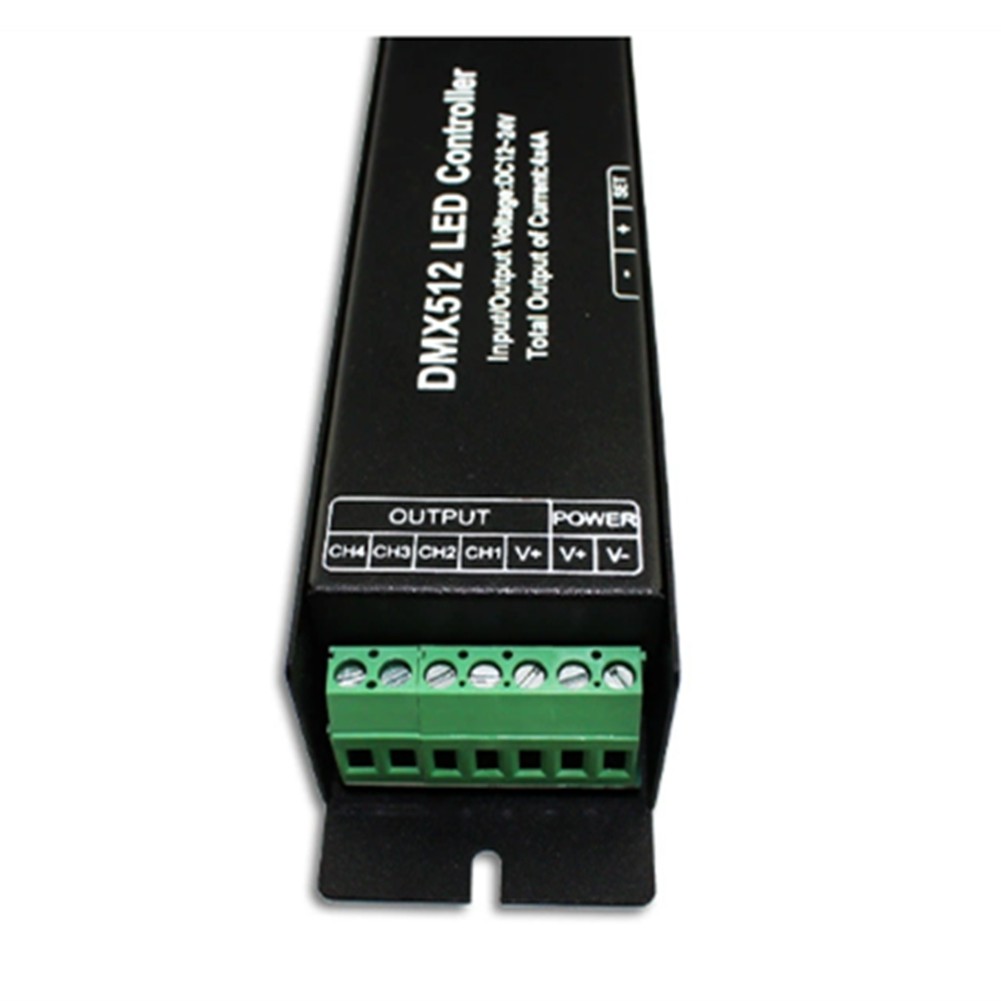

Screw-terminal power/LED connections
Technical Specs:
Dimensions: 177x42x33mm (LxWxH)
Static power: Less than 1W
Perfect For:
Stage lighting systems
LED video walls
Wedding/event décor
Museum/exhibit lighting
Architectural RGB installations
Safety Notice:
Use ONLY 12-24V DC power
Match wire colors during installation
Do not exceed 4A per channel
Color: Black
Material: Metal+Plastic

Package Contents:
1 x LED DMX512 Decoder
