Fitment & Description

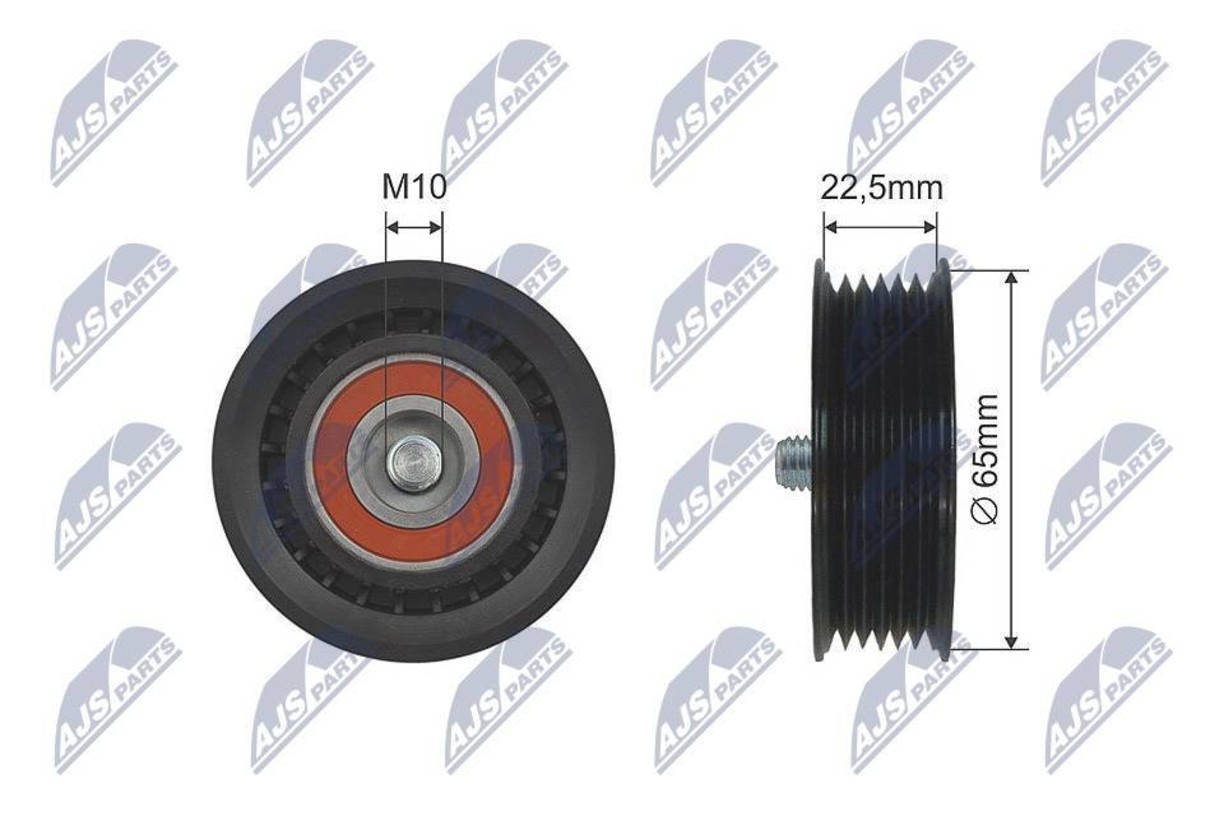

Item Name: V-Ribbed Belt Deflection Guide Pulley

Part Brand: NTY

OEM Numbers: 1 117 009 / 1117009 / 1 128 896 / 1128896 / XS7E-19A21-6BC

Fitting Position: Left

Will this item fit your vehicle?

Cross Reference And OE number list

Brand	Number
FEBI BILSTEIN	24409
FORD	1 117 009
FORD	1117009
FORD	1 128 896
FORD	1128896
FORD	XS7E-19A21-6BC
GATES	T36125
INA	532 0471 10
OPTIMAL	0-N1428
RUVILLE	55258
SKF	VKM 34031

Fitment

Brand

Model

Type

Years

CCM

Engine

Body


FORD	MONDEO III (B5Y)	2.0 16V DI / TDDi / TDCi	10/2000 - 03/2007	1998	66	90	Hatchback
FORD	MONDEO III (B5Y)	2.0 16V TDDi / TDCi	10/2000 - 03/2007	1998	85	115	Hatchback
FORD	MONDEO III (B5Y)	2.0 TDCi	10/2001 - 03/2007	1998	96	130	Hatchback
FORD	MONDEO III (B5Y)	2.2 TDCi	09/2004 - 03/2007	2198	114	155	Hatchback
FORD	MONDEO III (B5Y)	2.2 TDCi	09/2004 - 03/2007	2198	110	150	Hatchback
FORD	MONDEO III Saloon (B4Y)	2.0 16V DI / TDDi / TDCi	10/2000 - 03/2007	1998	66	90	Sedan
FORD	MONDEO III Saloon (B4Y)	2.0 16V TDDi / TDCi	10/2000 - 03/2007	1998	85	115	Sedan
FORD	MONDEO III Saloon (B4Y)	2.0 DI	10/2000 - 03/2007	1998	92	125	Sedan
FORD	MONDEO III Saloon (B4Y)	2.0 TDCi	10/2001 - 03/2007	1998	96	130	Sedan
FORD	MONDEO III Saloon (B4Y)	2.2 TDCi	09/2004 - 03/2007	2198	114	155	Sedan
FORD	MONDEO III Saloon (B4Y)	2.2 TDCi	09/2004 - 03/2007	2198	110	150	Sedan
FORD	MONDEO III Turnier (BWY)	2.0 16V DI / TDDi / TDCi	10/2000 - 03/2007	1998	66	90	Wagon
FORD	MONDEO III Turnier (BWY)	2.0 16V TDDi / TDCi	10/2000 - 03/2007	1998	85	115	Wagon
FORD	MONDEO III Turnier (BWY)	2.0 TDCi	10/2001 - 03/2007	1998	96	130	Wagon
FORD	MONDEO III Turnier (BWY)	2.2 TDCi	09/2004 - 03/2007	2198	110	150	Wagon
IMPORTANT NOTES: Driven Units: Driven unit: alternator;Quantity: 1
FORD	MONDEO III Turnier (BWY)	2.2 TDCi	09/2004 - 03/2007	2198	114	155	Wagon
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	55	75	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	55	75	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	55	75	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	55	75	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	55	75	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	74	100	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	74	100	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	74	100	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	74	100	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	74	100	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	63	86	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	63	86	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	63	86	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	63	86	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 DI (F_E_ F_F_ F_G_)	08/2000 - 05/2006	1998	63	86	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 TDCi (F_F_ F_E_ F_G_)	08/2002 - 05/2006	1998	92	125	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 TDCi (F_F_ F_E_ F_G_)	08/2002 - 05/2006	1998	92	125	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 TDCi (F_F_ F_E_ F_G_)	08/2002 - 05/2006	1998	92	125	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 TDCi (F_F_ F_E_ F_G_)	08/2002 - 05/2006	1998	92	125	Bus
FORD	TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)	2.0 TDCi (F_F_ F_E_ F_G_)	08/2002 - 05/2006	1998	92	125	Bus
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _)	2.0 DI (F_E_ F_F_)	08/2000 - 05/2006	1998	55	75	Platform/Chassis
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _)	2.0 DI (F_E_ F_F_)	08/2000 - 05/2006	1998	55	75	Platform/Chassis
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _)	2.0 DI (F_E_ F_F_)	08/2000 - 05/2006	1998	74	100	Platform/Chassis
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _)	2.0 DI (F_E_ F_F_)	08/2000 - 05/2006	1998	74	100	Platform/Chassis
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _)	2.0 DI (F_E_ F_F_)	08/2000 - 05/2006	1998	63	86	Platform/Chassis
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _)	2.0 DI (F_E_ F_F_)	08/2000 - 05/2006	1998	63	86	Platform/Chassis
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _)	2.0 TDCi (F_E_ F_F_)	08/2002 - 05/2006	1998	92	125	Platform/Chassis
FORD	TRANSIT Platform/Chassis (FM_ _, FN_ _)	2.0 TDCi (F_E_ F_F_)	08/2002 - 05/2006	1998	92	125	Platform/Chassis
FORD	TRANSIT TOURNEO Bus (FC_ _)	2.0	06/2000 - 03/2005	1998	74	101	Bus
IMPORTANT NOTES: Driven Units: Driven unit: alternator;Quantity: 1
FORD	TRANSIT Van (FA_ _)	2.0 DI (FAE_ FAF_ FAG_)	08/2000 - 05/2006	1998	55	75	Van
FORD	TRANSIT Van (FA_ _)	2.0 DI (FAE_ FAF_ FAG_)	08/2000 - 05/2006	1998	74	100	Van
FORD	TRANSIT Van (FA_ _)	2.0 DI (FAE_ FAF_ FAG_)	08/2000 - 05/2006	1998	63	86	Van
FORD	TRANSIT Van (FA_ _)	2.0 TDCi	08/2002 - 05/2006	1998	92	125	Van
