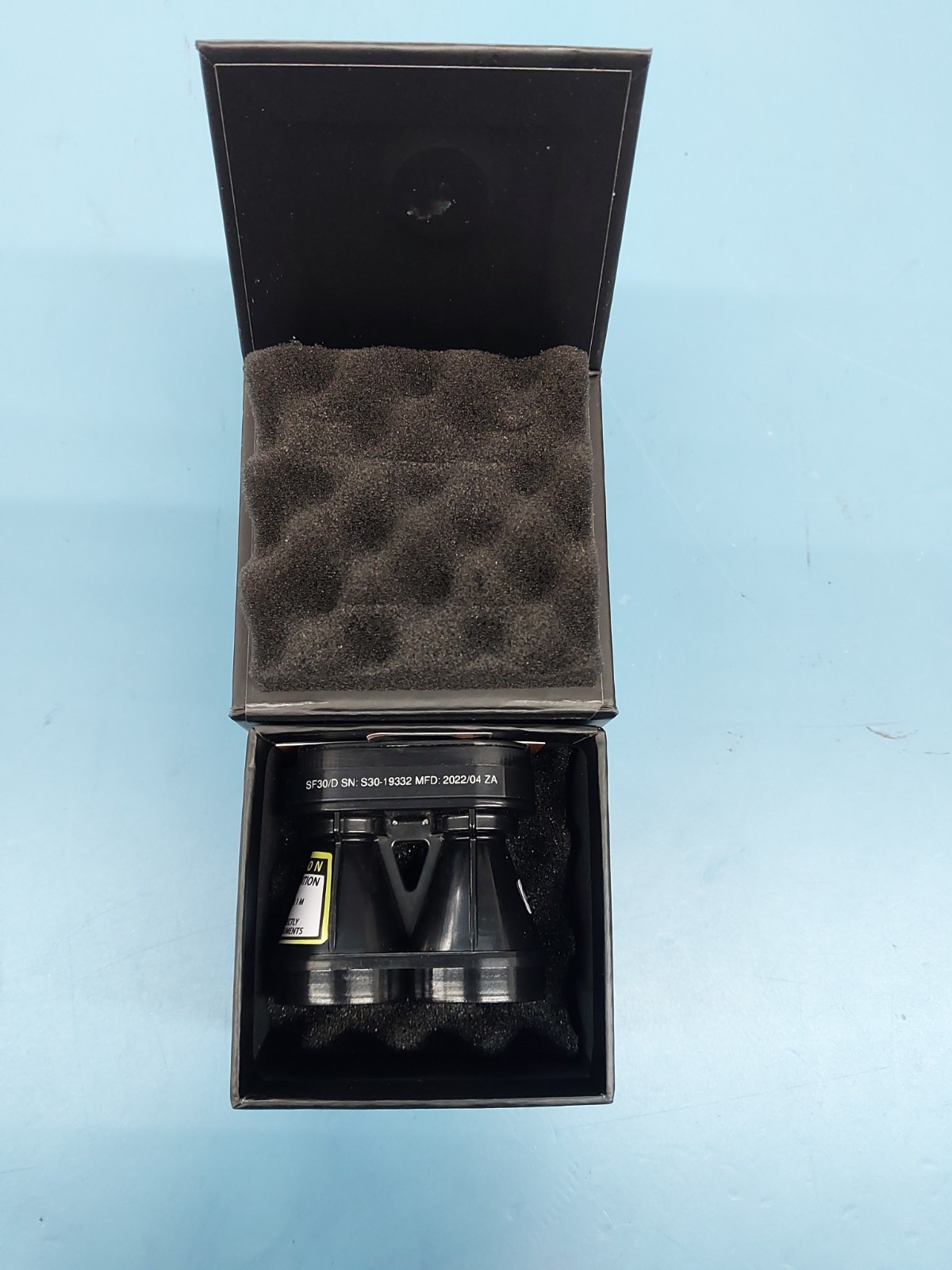

The SF30/D laser measurement sensor provides real time, accurate altitude (AGL) measurements for UAVs. The lightweight 36 gram design features a time-of-flight range up to 200 meters (656 feet), and an update rate up to 20K readings per second.

Typical applications: Assist with takeoff, landing and hovering Altimetry Obstacle warning and collision avoidance Terrain following Mapping. USB, serial, I2C, analog and alarm outputs enable easy system integration. The SF30/D is ArduPilot compatible, and laser Class 1M eye-safe.

This SF30-D high-speed laser rangefinder is designed to detect obstacles or create maps from moving ground-based or aerial vehicles. Using a time-of-flight system to make very fast and accurate distance and speed measurements, accuracy is mot affected by the color or textures of the surface, nor the angle of incidence of the laser beam.

It is virtually immune to background light, wind and noise, making it an ideal sensor to detect unexpected obstacles. Also suited to high-speed scanning and sense and avoid applications, this microLiDAR (TM) unit boasts an effective range of 200 m and only weighs 35 g.

Specifications:

LiDAR type: Single beam

Wavelength: 905nm

Range: 0.2 to 200 m / 0.6 to 656 ft

Update rate: 39 to 20 000 readings per second

Signal processing: First and last pulse available

Weight: 3g / 1.6 0z

Size: 30mm x 56mm x 50mm / 1.2” x 2.2” x 2”

Interfaces: USB, Serial UART and 12C (3.3 V TTL, 5V tolerant)

Integration: PX4, ArduPilot, Arduino, Raspberry Pi and LW Studio
