Features:

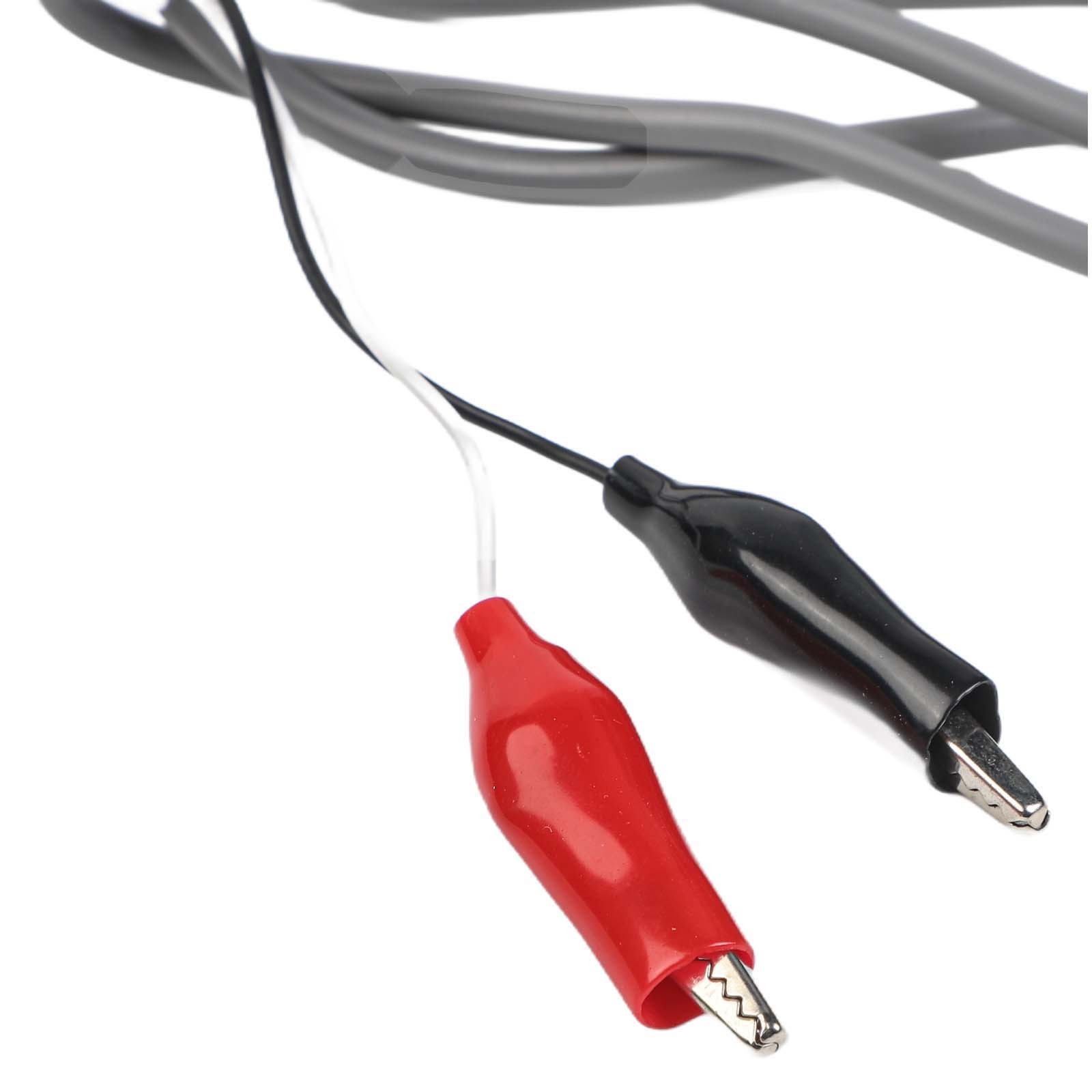

Connect the red clip to the + terminal and the black clip to the power supply terminal of the circuit being tested. The power supply voltage should not exceed 18V DC.

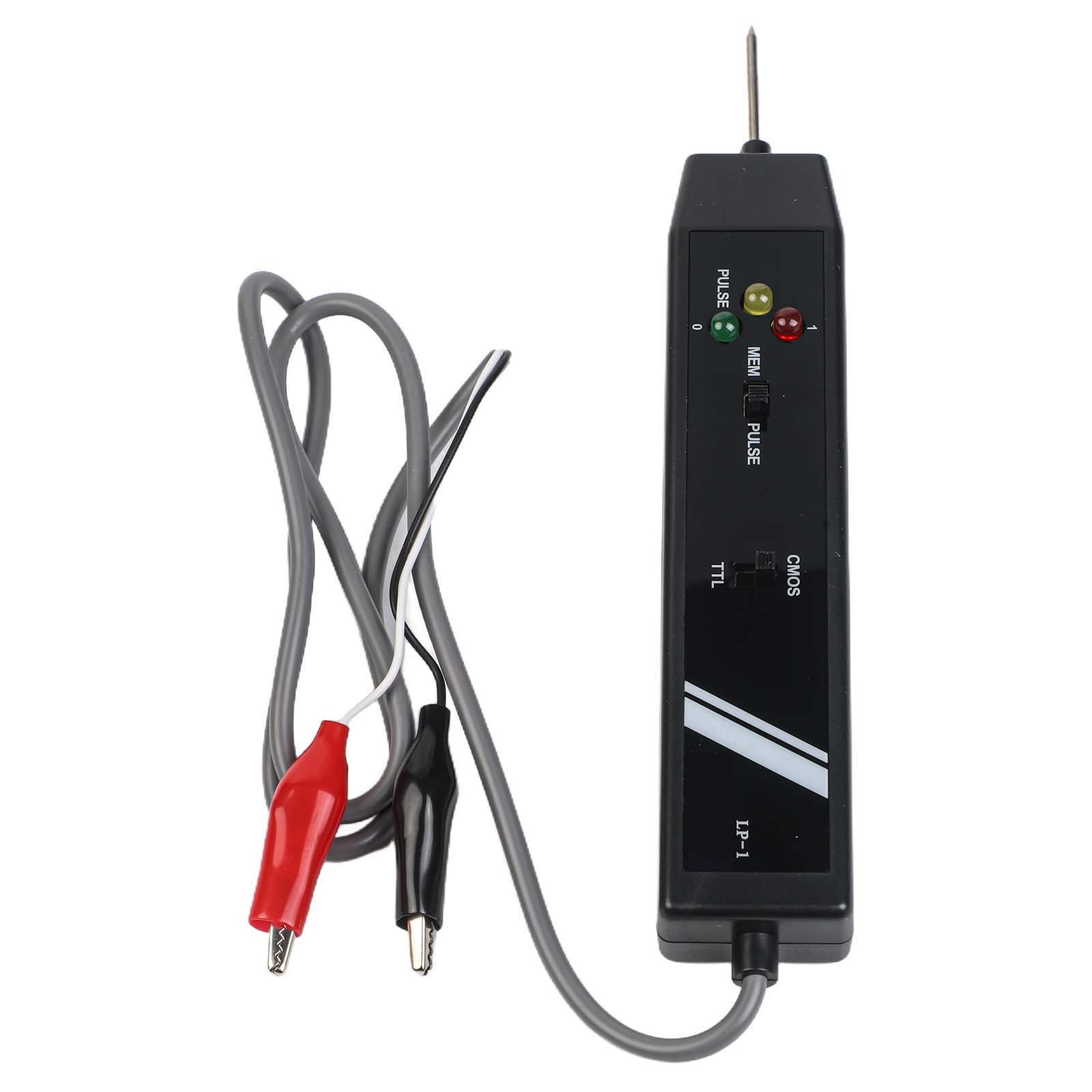

For TTL and DTL, set the upper selector switch to the side marked "for TTL". For CMOS, set the upper selector switch to the side marked "CMOS".
Touch the probe to the test point; the LEDs will indicate the logic state: A: All LEDs off --- High impedance B: Red LED on --- High state [1] C: Green LED on --- Low state [0] D: Orange LED on --- for PULSE To detect and store pulses or level transitions, first set the lower selector switch to the side marked " for PULSE".
Touch the probe to the test point. The LEDs will indicate the initial state. Then, set the lower selector switch to the side marked "MEM". The orange LED will light up when any for PULSE or level transition is detected. The for PULSE direction can be determined relative to the initial state. After use, for reset the logic probe by for moving the lower selector switch back to the side marked " for PULSE".
Specifications:

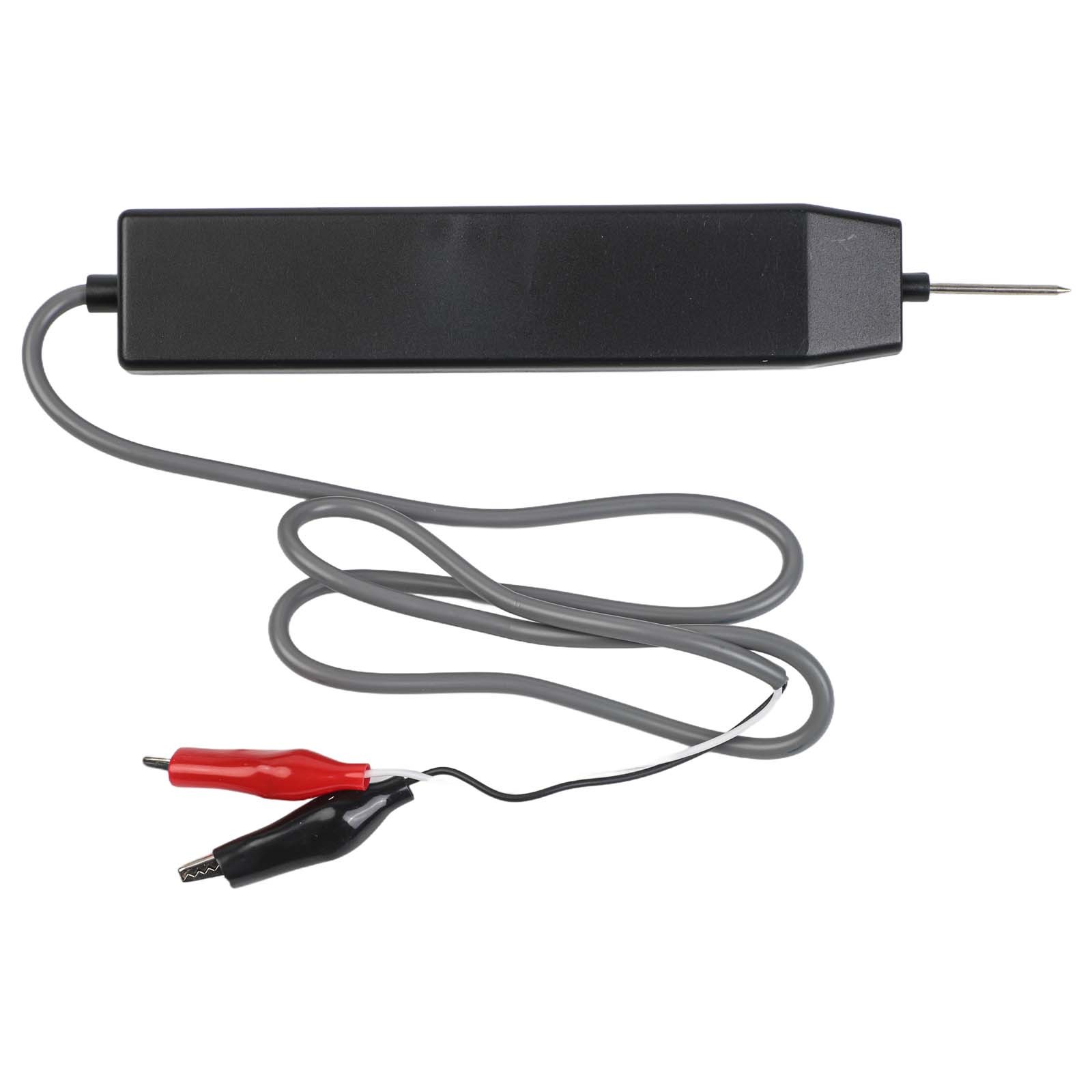

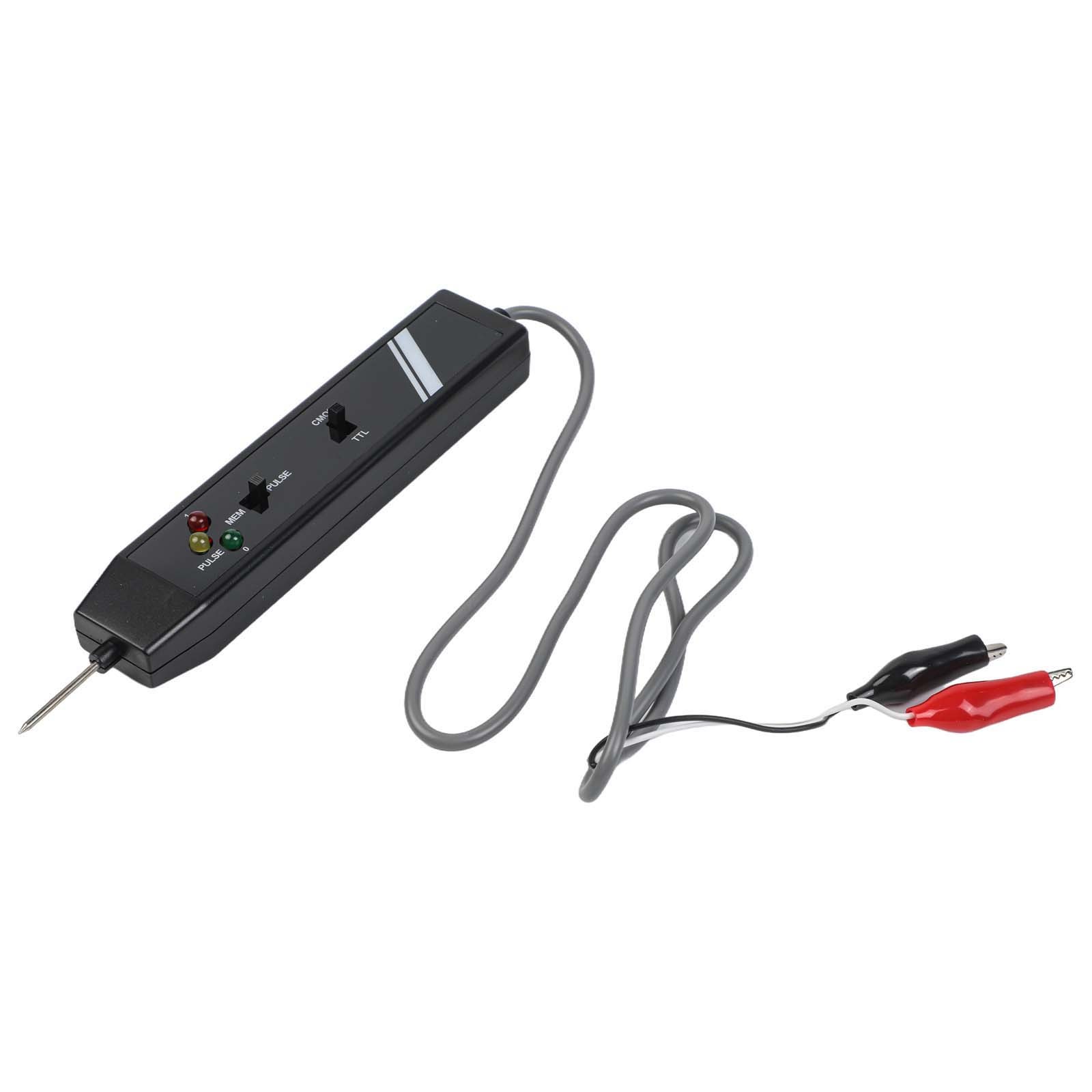

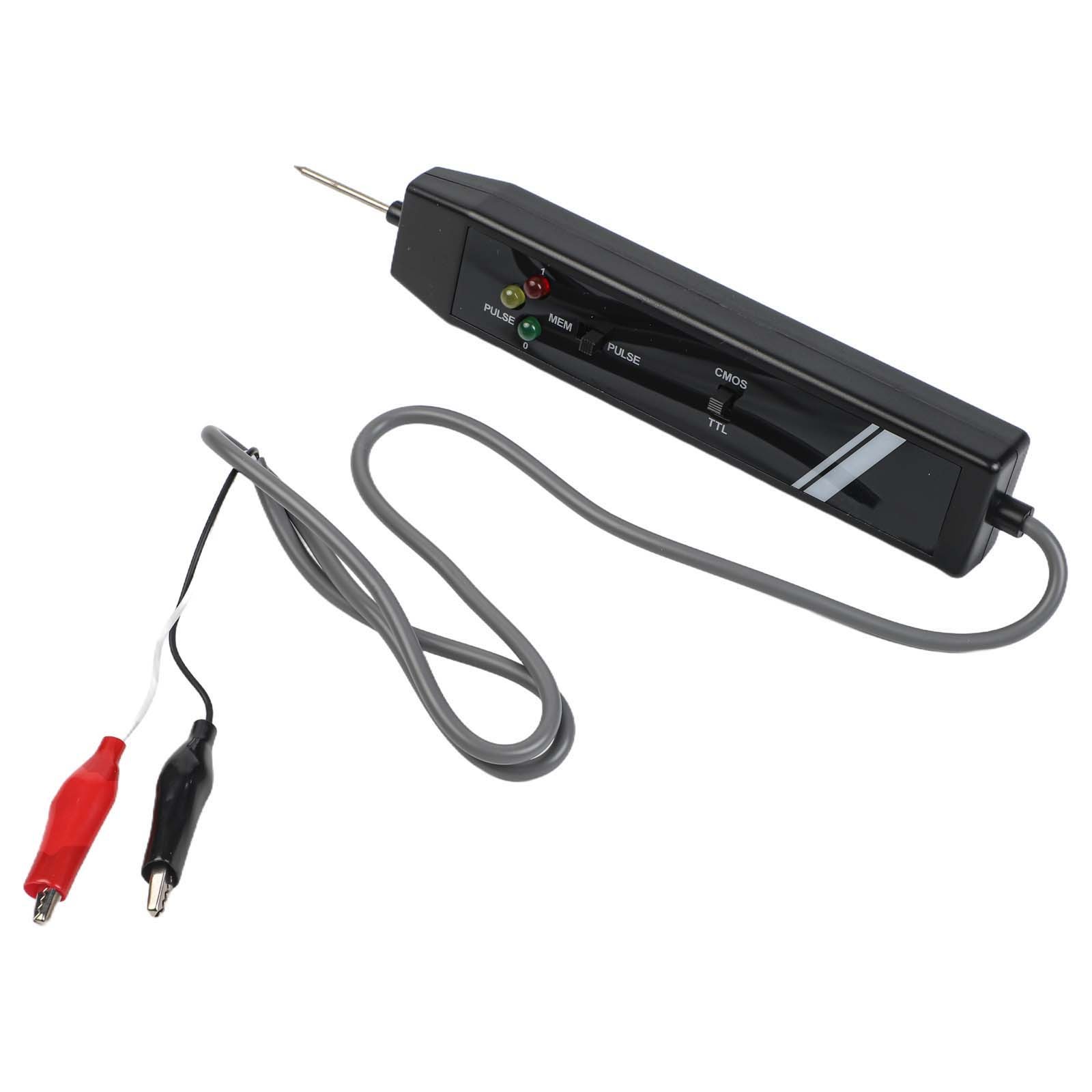

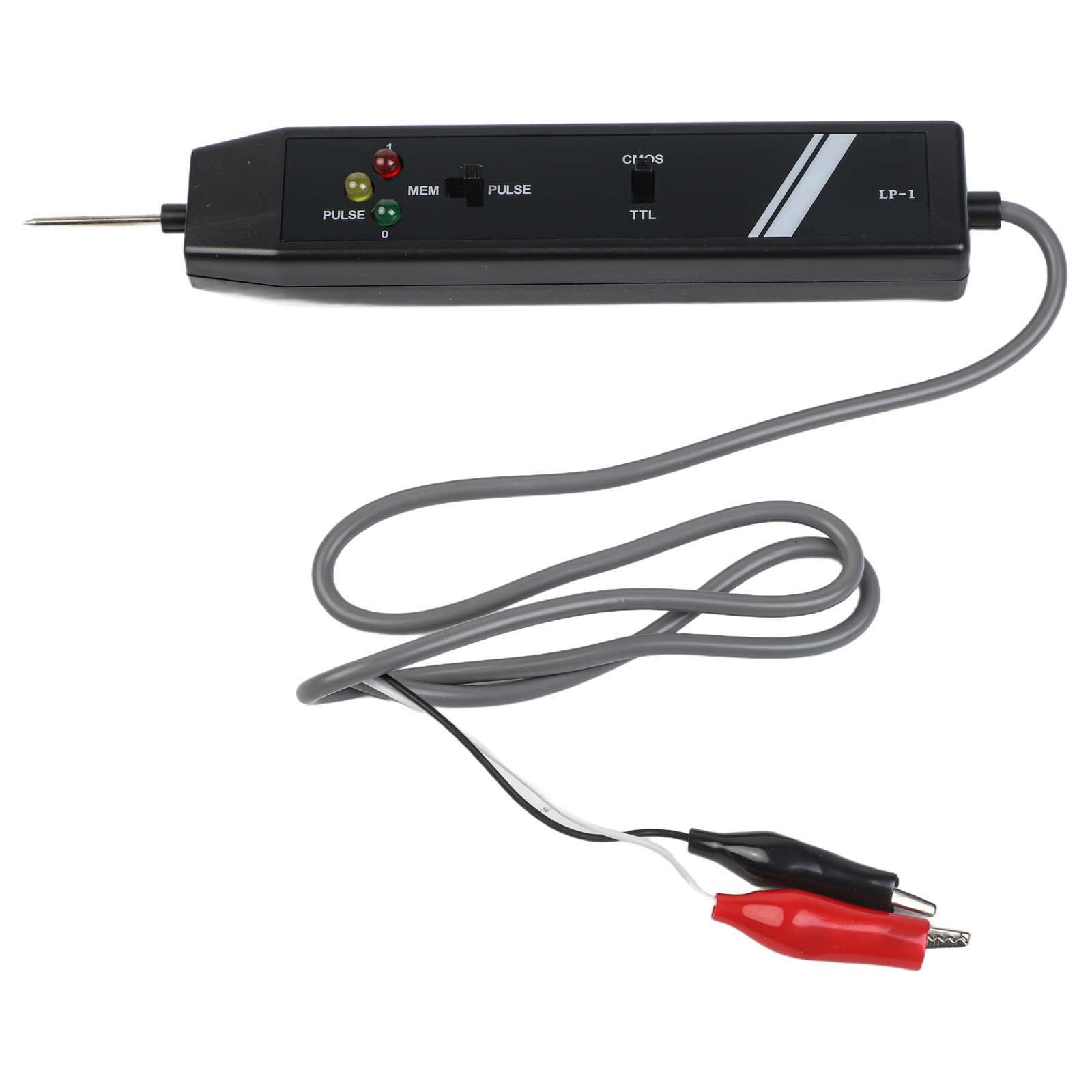

Part Name: LP-1 Logic Tester
Size: As shown in the picture
Color: Gray
Material: Plastic
Package content:
1 * Circuit Probe
Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
