Feature:
1. Scope of application: This product can calibrate 8 very practical thermocouple types (including K, J, T, N, S, E, B and
R) Non-linear error characteristics of the thermocouple.
2. High accuracy: The calibration coefficient of this product comes from the National Institute of Standards and Technology (NIST) ITS-90 thermocouple database.
The measurement accuracy is ±1.5°C, so accurate temperature data for the selected thermocouple can be output.
3. With user-programmable registers: the product has user-programmable registers, which can provide design for various temperature sensing applications
flexibility.
4. Four programmable temperature alarm outputs and digital filters: the product has an adjustable digital filter with fast instantaneous
Temperature, and four separately programmable temperature alarm outputs for detecting multiple temperature zones.
5. Low power consumption: The product has low power consumption, has shutdown mode and burst mode, can save power, and is very environmentally friendly.
Description:

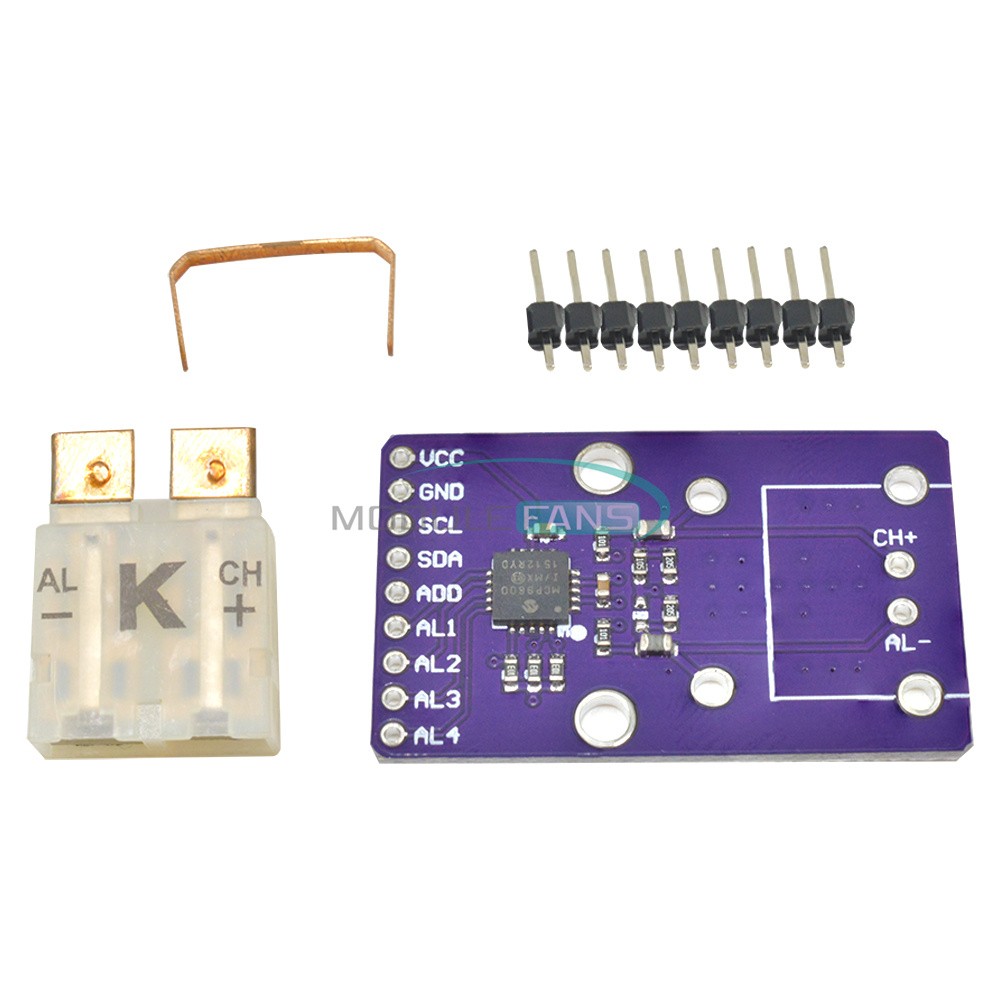

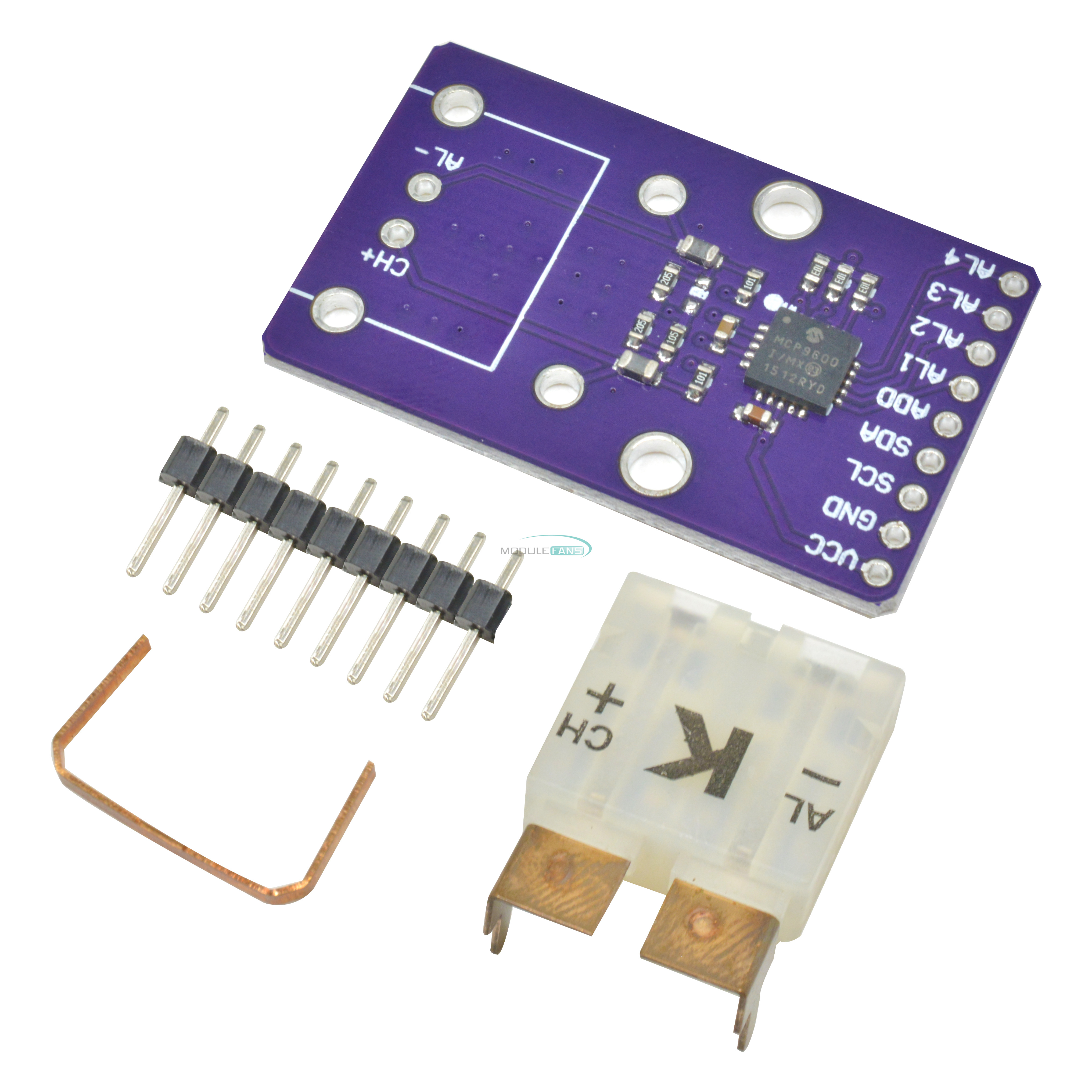

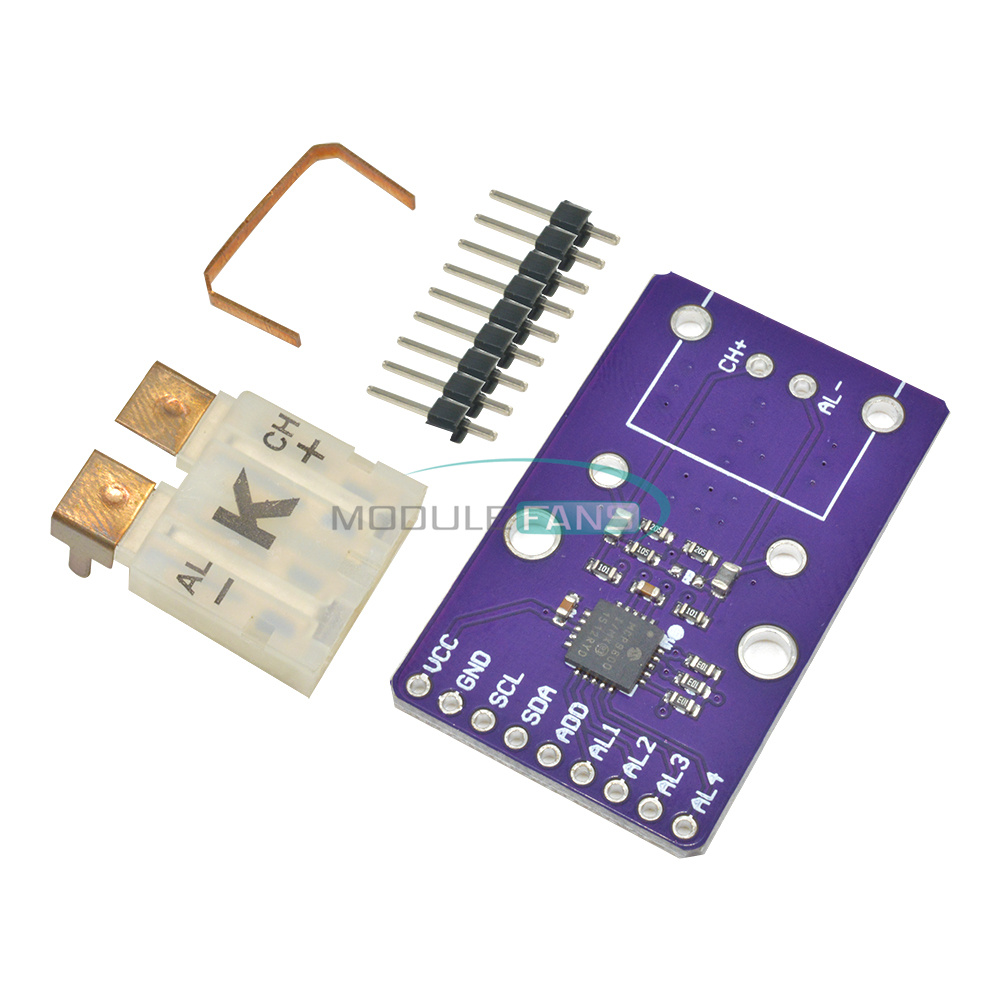

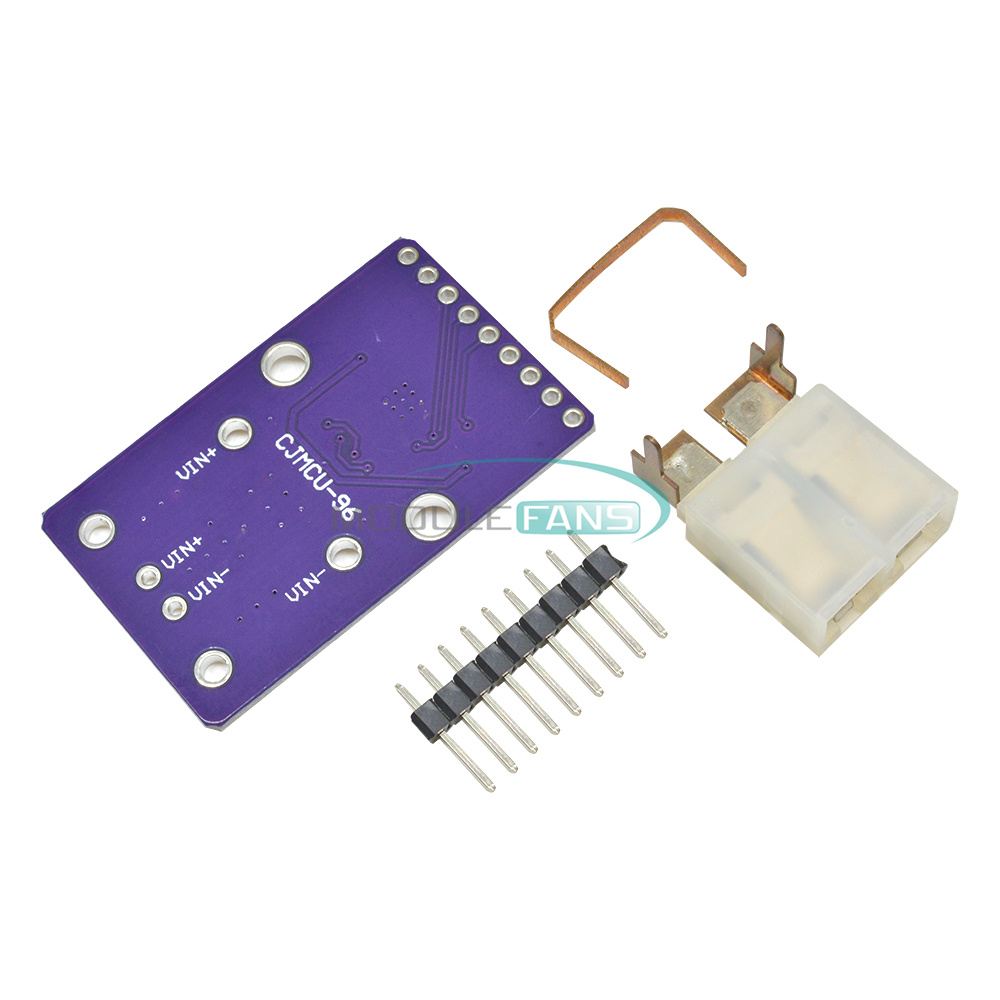

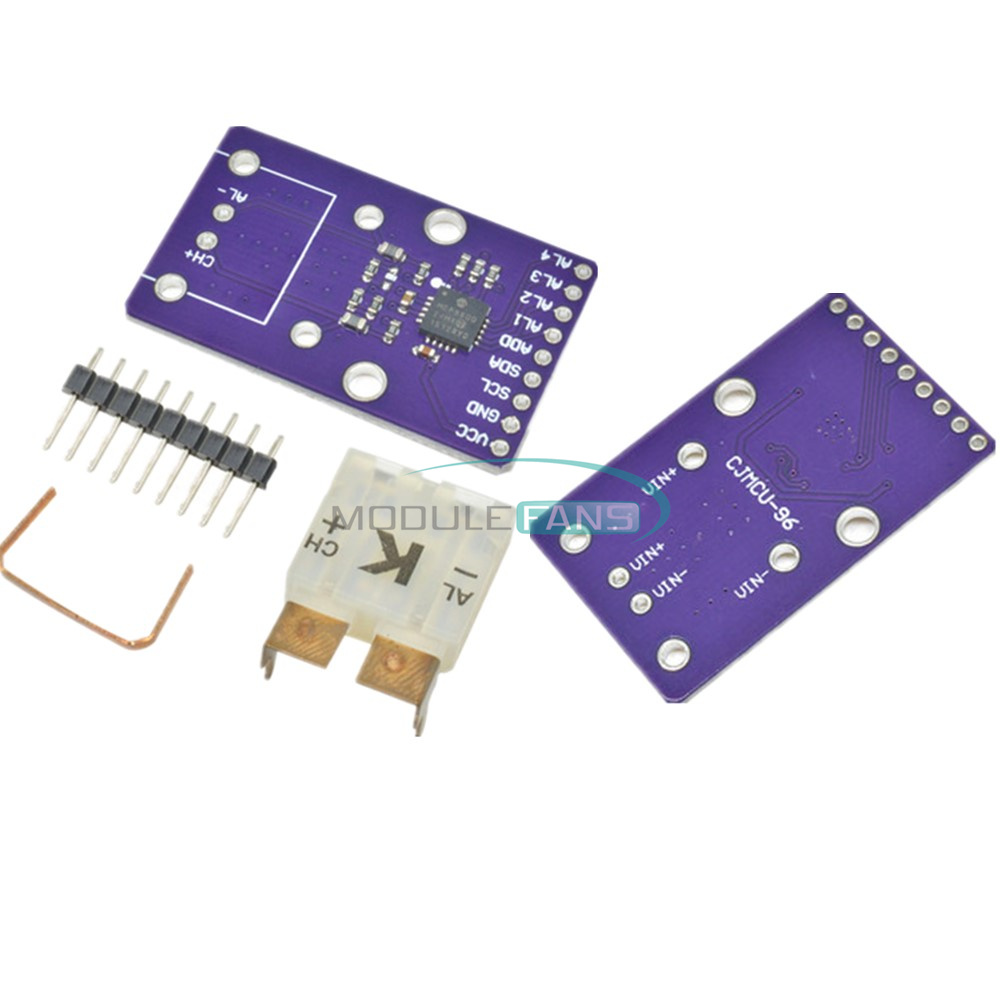

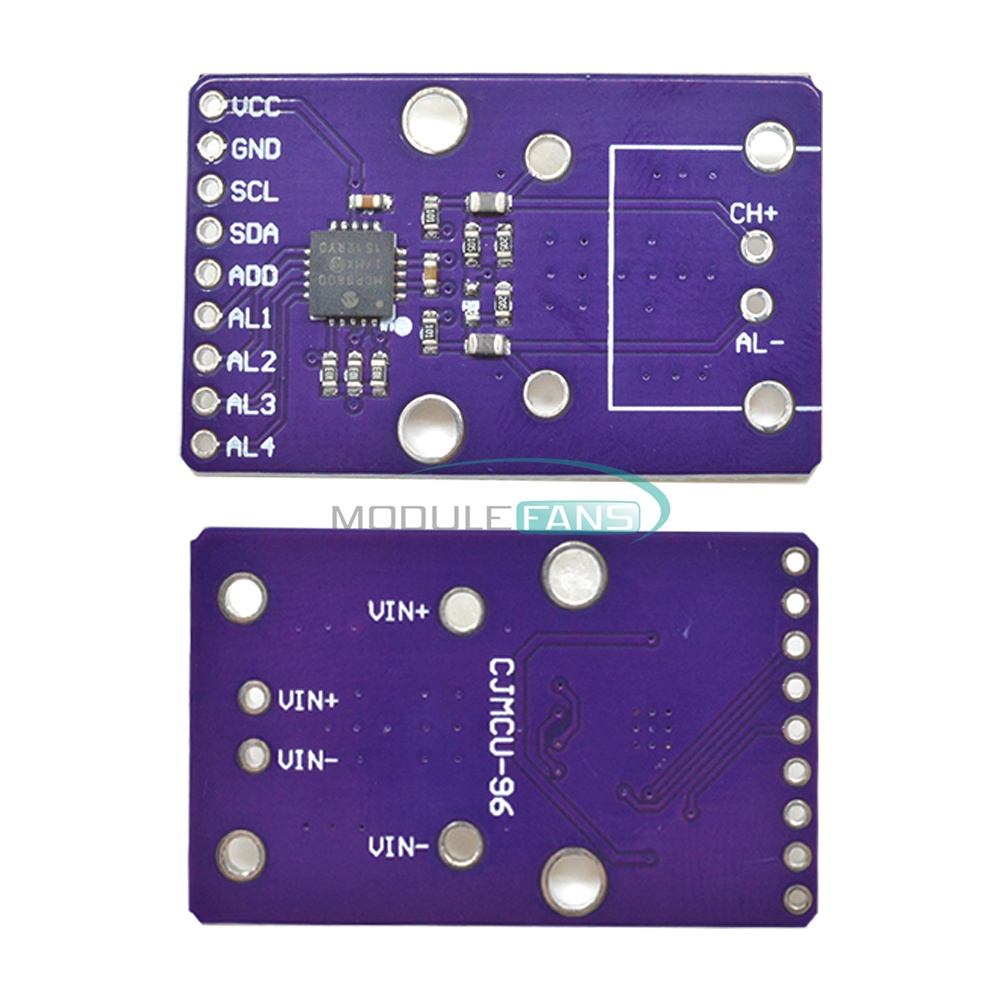

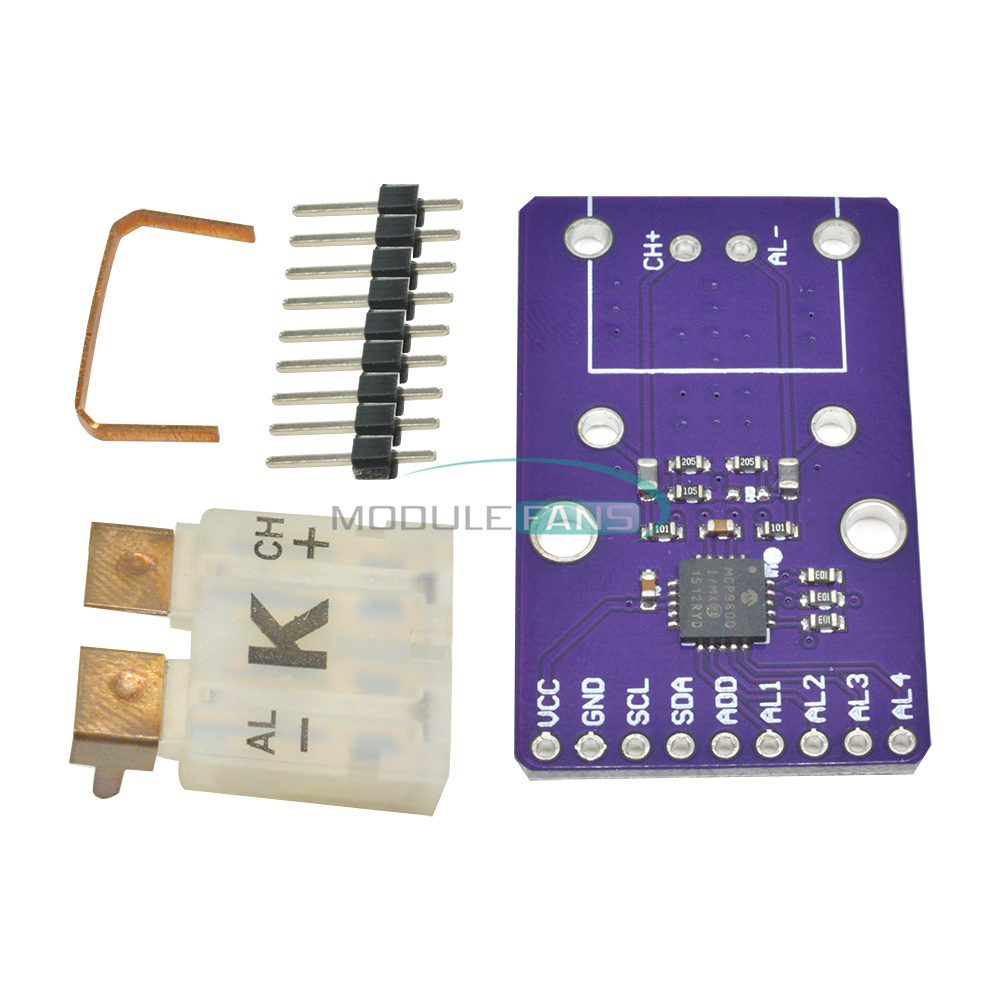

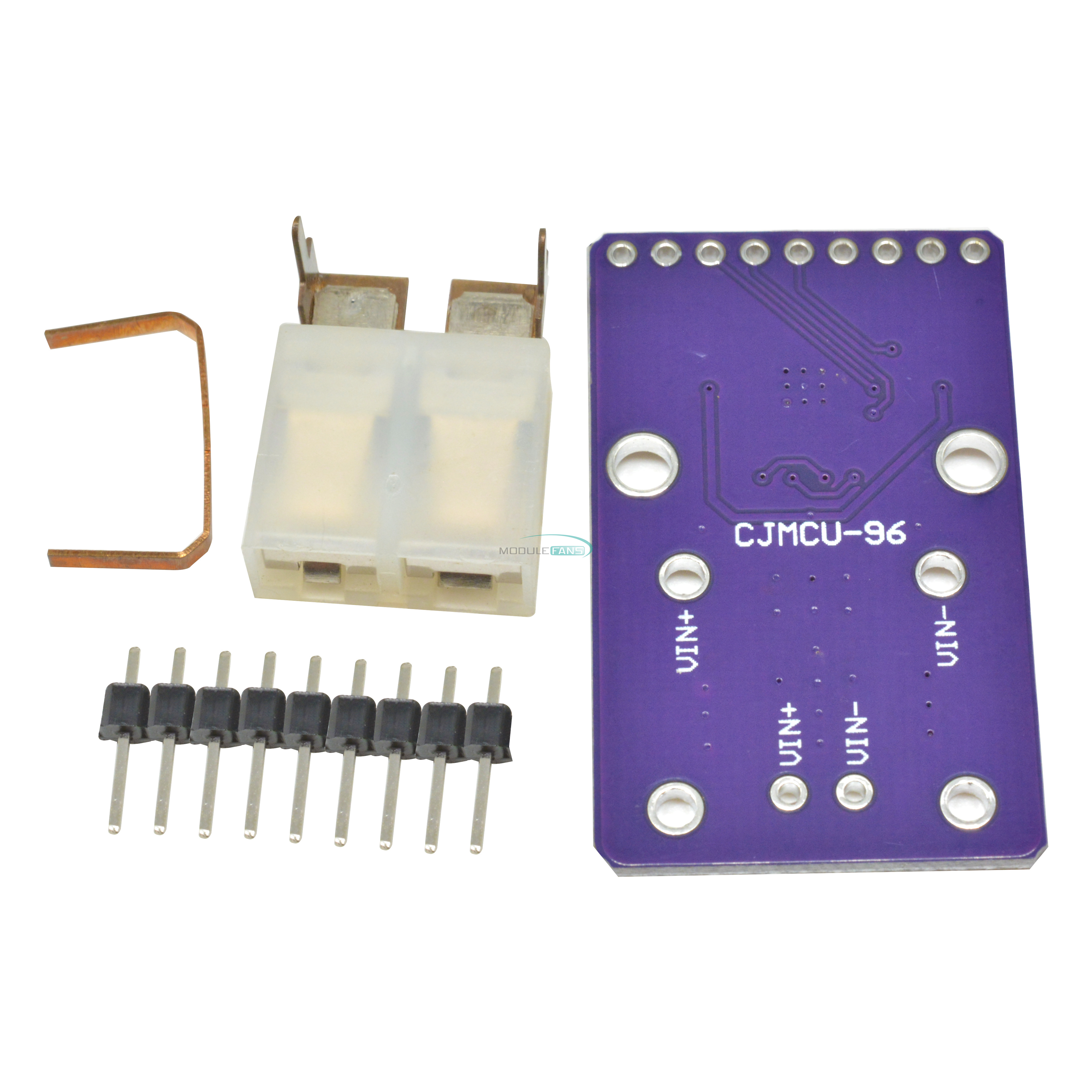

1. CJMCU-96 is a fully integrated thermocouple electromotive force (EMF) Celsius converter module with cold junction compensation.
2. CJMCU-96 supports eight types of thermocouples (K, J, T, N, S, E, B and R), and provides user programmable
To enhance the design flexibility of various temperature sensing applications.
specification:
Color: purple
Supported types (specified by NISTITS-90): K, J, T, N, S, E, B and R
Measurement accuracy: ±1.5°C (maximum)
Cold junction: 0°C to 85°C, ±1°C (maximum)
Temperature measurement resolution: cold junction and hot junction = 0.0625°C (typical)
Low power consumption: shutdown mode, burst mode, 1 to 128 temperature samples
Two-wire interface: I2C compatible, 100kHz-8 devices per I2C bus
Operating voltage range: 2.7V to 5.5V.
Working current: 500μA (typical value)
Shutdown current: 2μA (typical value)
Package Included:
1PC Thermocouple Converter
